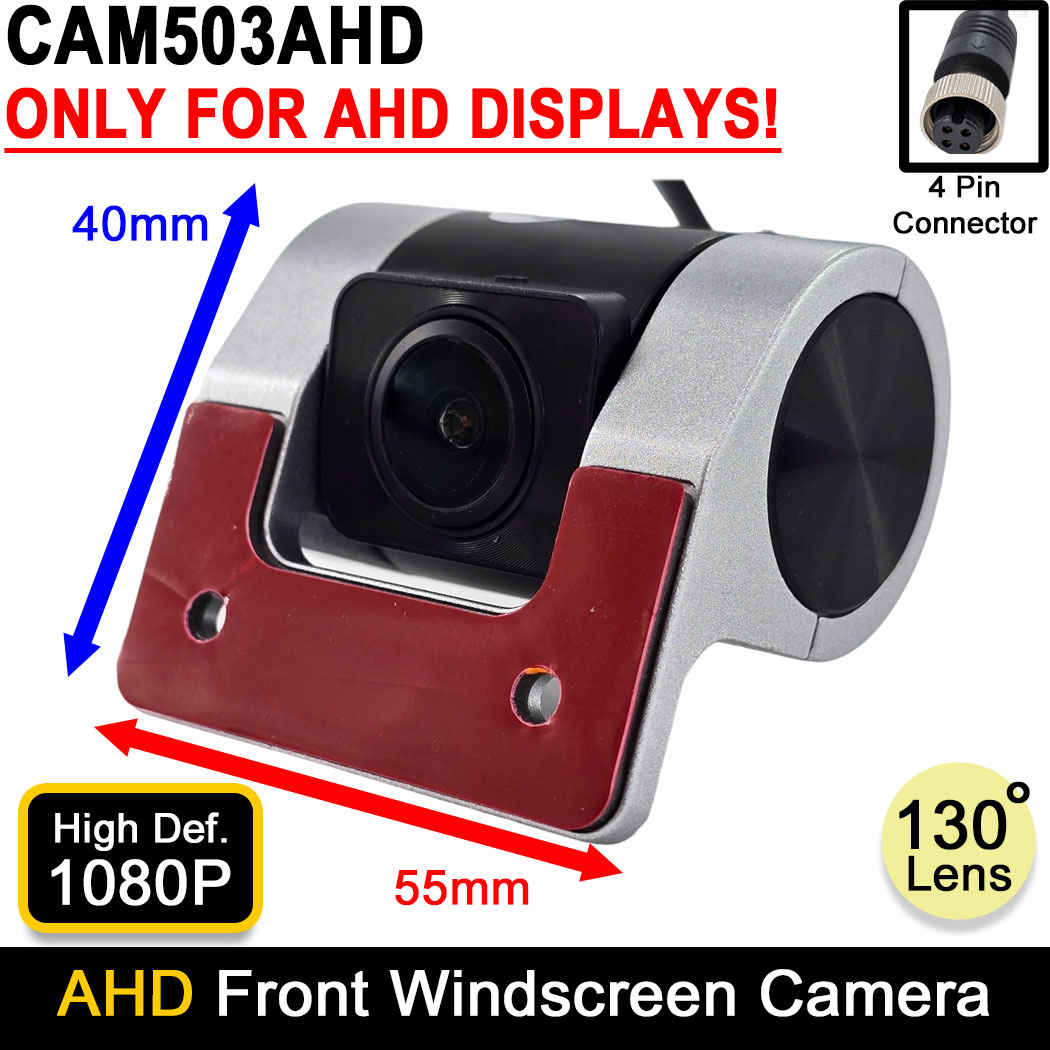

Front Windscreen Vehicle Camera - 1080P AHD | CAM503AHD
Front facing vehicle windscreen camera, either rear or forward facing. X5322 1080P PAL AHD signal image sensor. Lots of people use this type of camera to insert in to an MDVR to use for recording any accidents. This camera is IP68 waterproof, but mainly installed internally. Can change mirror/normal view, plus add/remove guidelines. 1920x1080 output.
Important Compatibility Info (PLEASE READ BEFORE ORDERING)
Most vehicle monitors and stereo systems only support traditional CVBS signal reversing cameras. Plugging a 1080P AHD signal camera into a traditional monitor will result in no image being displayed. Please read the AHD compatibility tab for even more information. Our AHD input vehicle monitors can all handle the 1080P PAL AHD signal that this camera outputs.
Introducing our Vehicle Windscreen Mounted Camera for MDVR's - 1080P AHD PAL
Front facing vehicle windscreen camera, either rear or forward facing. X5322 1080P PAL AHD signal image sensor. Lots of people use this type of camera to insert in to an MDVR to use for recording any accidents. This camera is IP68 waterproof, but mainly installed internally. Can change mirror/normal view, plus add/remove guidelines. 1920x1080 output.
Wide Viewing Angle - Capture all the details with the 2.8mm lens proving a diagonal viewing angle of 130 degrees (95 horizontal).

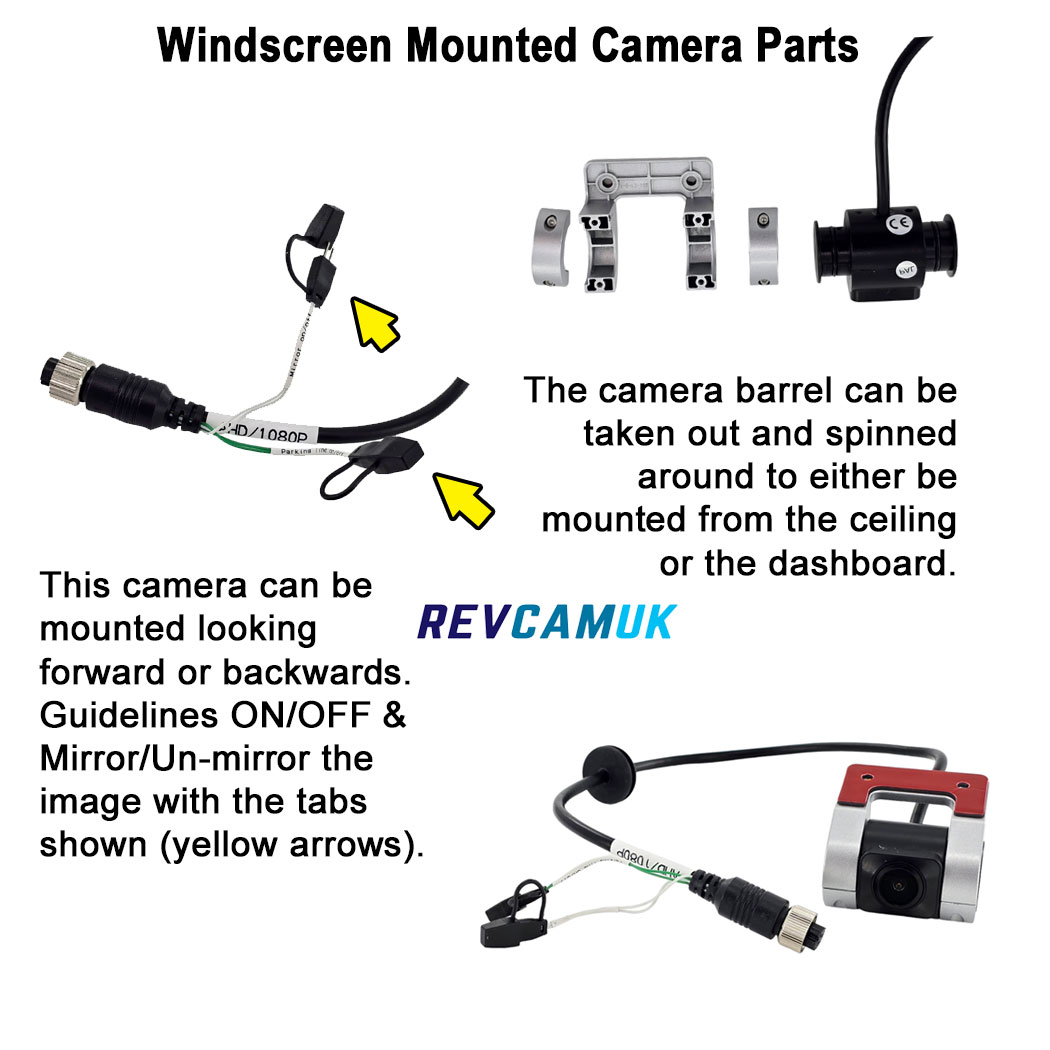

Adjustable Camera Position - This camera can be tilted back up/down. plus can also be deconstructed and rebult to allow the camera to be mounted to various surfaces whether vertical or horizontal.
1080P AHD High Definition Image - Fitted with a great XC5322 1080P AHD PAL image sensor, this camera will output a 1920*1080P high definition image. Please ensure you understand that this only works with AHD monitors - do not order this version if you are using a standard stereo head unit/monitor otherwise there will be no image shown.
High Dynamic Range Image - The high quality image sensor installed (the part that captures the image detail) is great at dealing with light and dark areas in the image at the same time.
Front or Rear Facing (Normal/Mirror) - There is a tab on the cable near the 4 pin connector that allows you to choose whether the image outputted from the windscreen camera is normal view or mirror image view. Select normal view if the camera is facing forward, and mirror view if the camera is pointing backwards.
Optional Guidelines - If you are using this as a rear facing reverse camera it may be useful to turn this function on using the jumper tabs on the cable.
Brilliant Vivid Colours - In the day time this reversing camera will give you lovely, bright, vivid images. At night the camera will be in black and white night vision mode.
IP68 Waterproof Protection - Although this camera is designed for mounting inside on a windscreen, this camera still has a waterproof rating of IP68, you can be assured your camera will remain in good working order whatever the Great British weather can throw at it.
Important Compatibility Info (PLEASE READ BEFORE ORDERING)
Most vehicle monitors and stereo systems only support traditional CVBS signal reversing cameras. Plugging a 1080P AHD signal camera into a traditional monitor will result in no image being displayed. Please read the AHD compatibility tab for even more information. If you are buying one of our AHD monitors to work with this camera, rest assured that they will work together. Our AHD input vehicle monitors can all handle the 1080P PAL AHD signal that this camera outputs.
AHD Reversing Camera Compatibility Info
AHD signal is a relatively new technology and as such is still relatively rare to find in use. Most reversing camera systems fitted to vehicles use CVBS (composite video signal), which has limitations in the definition that you can achieve. AHD (Analogue High Definition) allows you to achieve full HD 1080P definition image quality.
This recent technology uses advanced digital signal processing and analogue modulation to send high-definition video signals down traditional analogue coax-based cables. This means you can usually use your old 4-pin cabling to carry the new AHD signal without having to rewire from front to back.
Important things to consider:
- The device on which you wish to use your new camera MUST be capable of displaying the input from a 1080P AHD camera. You will see no image if you attempt to use this on any other device.
- Some AHD displays can only handle 720P inputs; again, if that is the case, no image will be displayed.
- Some AHD monitors and MDVRs require all cameras to be in the same format, e.g., 1080P or PAL. All of our AHD cameras are 1080P PAL (PAL is the European standard). So rest assured that if you are using one of our AHD monitors and wish to add an extra camera, you will not have any issues when choosing another camera.
- We DO NOT recommend AHD for use with cabled trailer links. Anyone with a trailer would be better off using our standard definition range of cameras (we have a lovely selection of high-resolution cameras that push the limits of the traditional CVBS signal to the max).
Technical Specs
Please see the technical specification for the product below:
Image Sensor : XC5322 CMOS 1/3"
Resolution : 1920H x 1080V
White Balance : Auto
Noise Reduction : 3D DNR
Viewing Angle : 2.8mm Lens, horizontal viewing angle 95 degrees, diagonal approx 130 degrees
SNR : 》52DB(AGC OFF)
System : PAL
Waterproof Level : IP68
Shockproof Level : 4G
Connector Type : 4 Pin
Working Voltage : DC 9-12V
Power Consumption : About 1.5W
Maximum Current : 155MA (12V)
Working Temperature : -20℃ to +70℃
Storage Temperature : -30℃ to +80℃
