Number Plate Frame Reversing Camera - 1080P AHD | CAM104AHD
Our 1080P AHD number plate frame reversing camera. Insert an EU or UK standard-size number plate into the camera's frame and screw up using the original fixings. Adjustable camera barrel and a very wide angle image with the fitted quality aspheric lens. This camera will work with AHD monitors that can support 1080P, as well as AHD compatible MDVR's.
Important Compatibility Info (PLEASE READ BEFORE ORDERING)
Most vehicle monitors and stereo systems only support traditional CVBS signal reversing cameras. Plugging a 1080P AHD signal camera into a traditional monitor will result in no image being displayed. Please read the AHD compatibility tab for even more information. If you are buying one of our AHD monitors to work with this camera, rest assured that they will work together. Our AHD input vehicle monitors can all handle the 1080P PAL AHD signal that this camera outputs.
About our Number Plate Frame Reversing Camera - 1080P AHD PAL

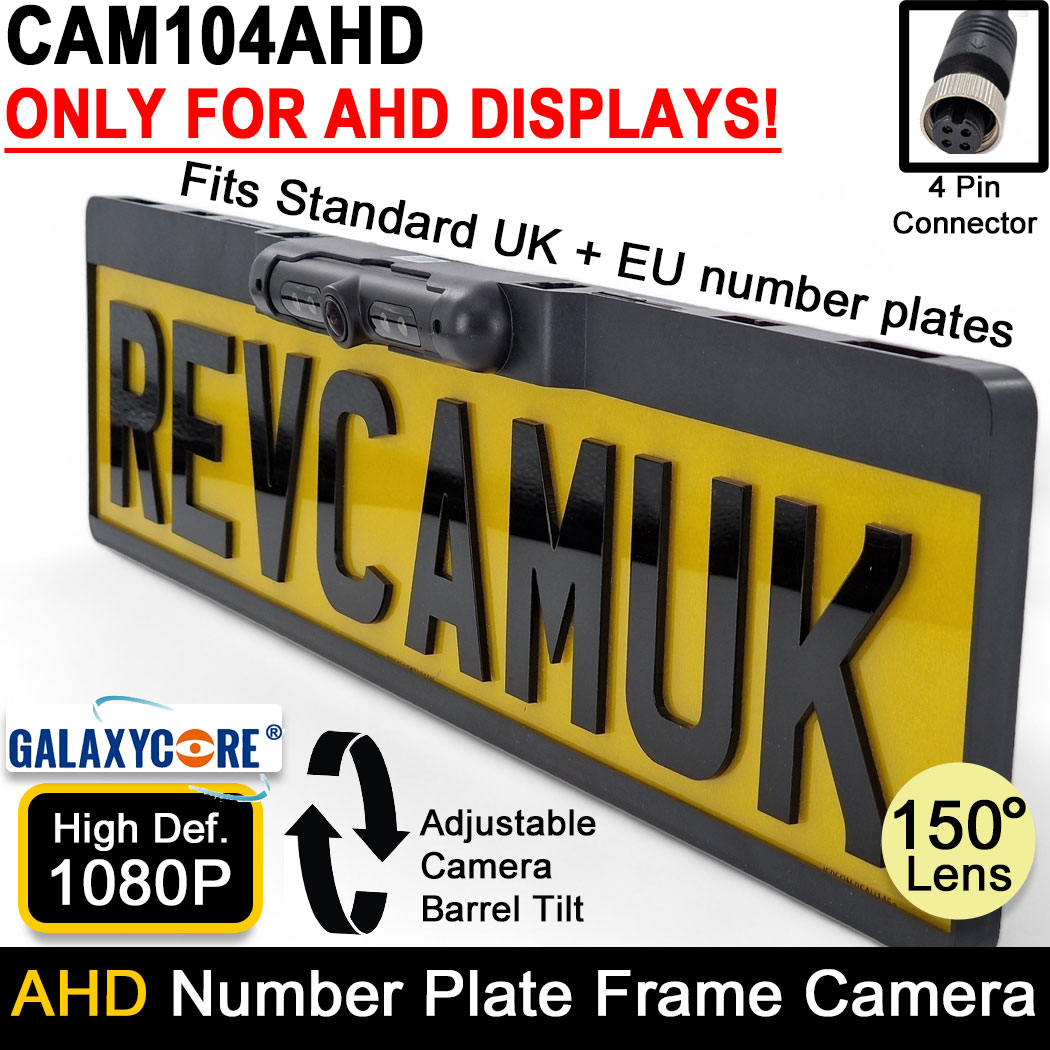

Our 1080P AHD number plate frame reversing camera. Insert an EU or UK standard-size number plate into the camera's frame and screw up using the original fixings. Adjustable camera barrel and a very wide angle image with the fitted quality aspheric lens.
Extra Wide Viewing Angle - This camera is fitted with a very high quality 150 degrees field of view Aspheric Lens. Although this angle is very wide, the camera doesn't suffer from the "goldfish bowl effect" you might see on cheaper cameras.
Adjustable Camera Barrel Up + Down - Loosening the two front screws will allow you to adjust the camera barrel up/down. This makes it great if you want to use as a hitching up camera and require the tow bar to be in full view.
1080P AHD High Definition Image - Fitted with a top specification Galaxy Core 2053 1080P AHD image sensor, this camera will output a 1920*1080P high definition image. Please ensure you understand that this only works with AHD monitors - do not order this version if you are using a standard stereo head unit/monitor otherwise there will be no image shown.
High Dynamic Range Image - The high quality image sensor installed (the part that captures the image detail) is great at dealing with light and dark areas in the image at the same time.
Brilliant Vivid Colours - In the day time this reversing camera will give you lovely, bright, vivid images. At night the camera will be in black and white night vision mode. A mechanical IR cut filter is used to improve day time colours, which flips out of the way at night time to allow the IR light to pass through to the sensor in night mode.
Night Time IR LED's - IR LED's are fitted to provide additional light for the camera's image sensor to view when the light levels drop. This light is not visible to the human eye, so don't worry about it blinding following traffic. The camera can use it to light up a dark area.
IP69K Waterproof - Designed to cope with the worst of weather, you can rest assured in the knowledge that this camera has an extremely low fault rate, leaking cameras are unheard of with this camera.
Screw Locking 4 Pin Connector - This 4 pin connector is located at the end of the camera fly lead, which you can connect to a 4 pin extension cable, that in turn would connect to one of the inputs on your AHD monitor.

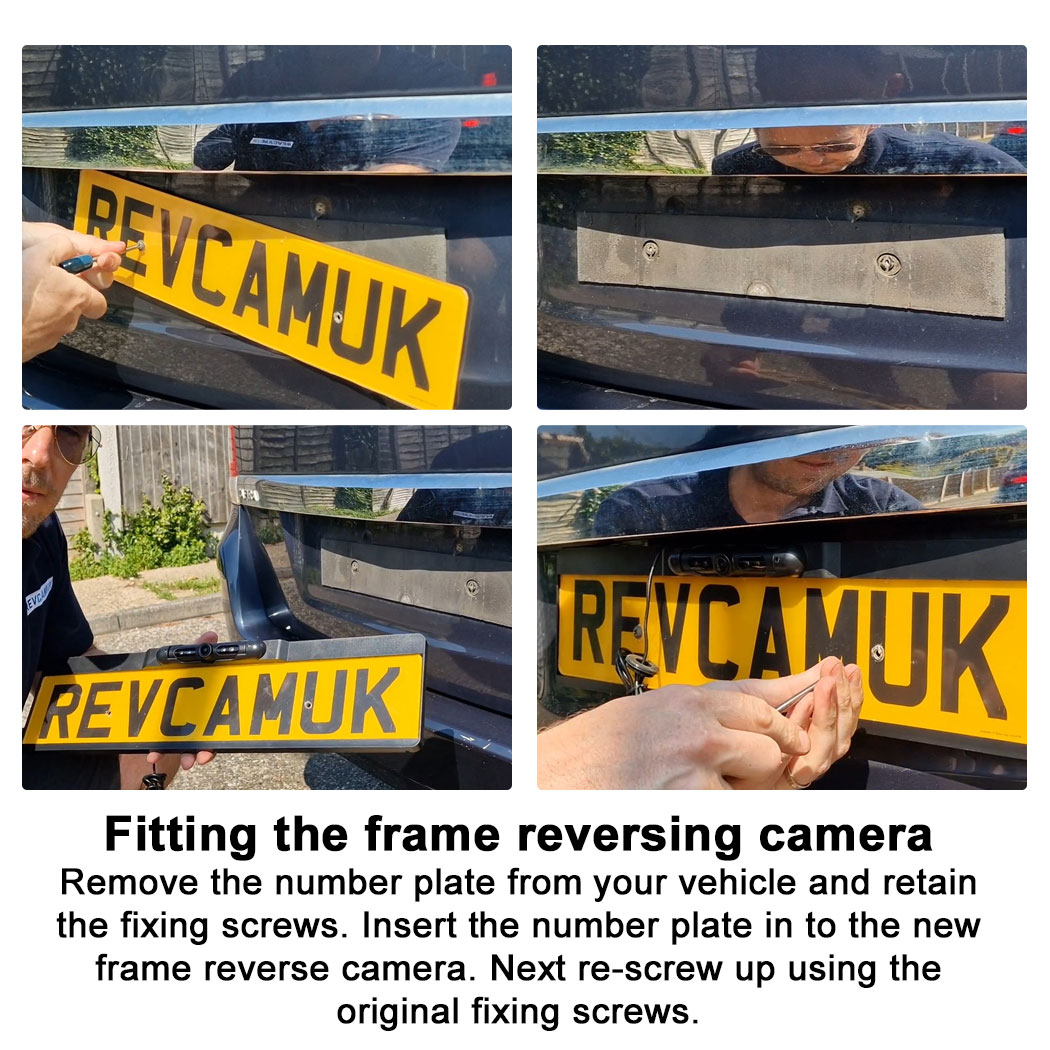

Easy Installation - This reverse camera can be installed on to the back of your vehicle quickly and easily. Simply unscrew your original number plate from the rear of your vehicle, insert it in to this new number plate camera frame, then re-screw up using the original fixings. If you have number plate lights we suggest making a small channel for the thin cable to pass through without being crushed. See our video below to see the installation method.
Important Compatibility Info (PLEASE READ BEFORE ORDERING)
Most vehicle monitors and stereo systems only support traditional CVBS signal reversing cameras. Plugging a 1080P AHD signal camera into a traditional monitor will result in no image being displayed. Please read the AHD compatibility tab for even more information. If you are buying one of our AHD monitors to work with this camera, rest assured that they will work together. Our AHD input vehicle monitors can all handle the 1080P PAL AHD signal that this camera outputs.
AHD Reversing Camera Compatibility Info
AHD signal is a relatively new technology and as such is still relatively rare to find in use. Most reversing camera systems fitted to vehicles use CVBS (composite video signal), which has limitations in the definition that you can achieve. AHD (Analogue High Definition) allows you to achieve full HD 1080P definition image quality.
This recent technology uses advanced digital signal processing and analogue modulation to send high-definition video signals down traditional analogue coax-based cables. This means you can usually use your old 4-pin cabling to carry the new AHD signal without having to rewire from front to back.
Important things to consider:
- The device on which you wish to use your new camera MUST be capable of displaying the input from a 1080P AHD camera. You will see no image if you attempt to use this on any other device.
- Some AHD displays can only handle 720P inputs; again, if that is the case, no image will be displayed.
- Some AHD monitors and MDVRs require all cameras to be in the same format, e.g., 1080P or PAL. All of our AHD cameras are 1080P PAL (PAL is the European standard). So rest assured that if you are using one of our AHD monitors and wish to add an extra camera, you will not have any issues when choosing another camera.
- We DO NOT recommend AHD for use with cabled trailer links. Anyone with a trailer would be better off using our standard definition range of cameras (we have a lovely selection of high-resolution cameras that push the limits of the traditional CVBS signal to the max).
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
 Click preview image to download the PDF file | Instructions for fitting our number plate reversing cameras Instructions on fitting and adjusting the two most popular number plate reversing cameras that we stock. |
Technical Specs
Please see the technical specification for the product below:
Image sensor: Galaxy Core 2053
Image Device: 1/2.9” CMOS
Frame Rate: 25fps
Effective Pixels: 1920 (H) x 1080 (V)
Pixel pitch 2.8 μm x 2.8 μm
Scanning System: Progressive Scanning
Sync. System: Internal
Resolution: 1080P
Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
Microphone: Yes
Video Output: 1.0 Vp-p, 75 Ohm
Gamma Consumption: 0.45
AGC: Auto
Dynamic Range: 81dB
White Balance: Auto
Electronic Shutter: 1/30(1/25)～1/50,000 Seconds
BLC: Auto
Current Consumption: Max. 130mA
Power Supply: DC 12 V
Connection: 4 PIN
Operating Temperature: -20°C~70°C, RH 95% MAX. Lens: f=2.1mm / f =1.98 mm
Lens Angle: 150°
