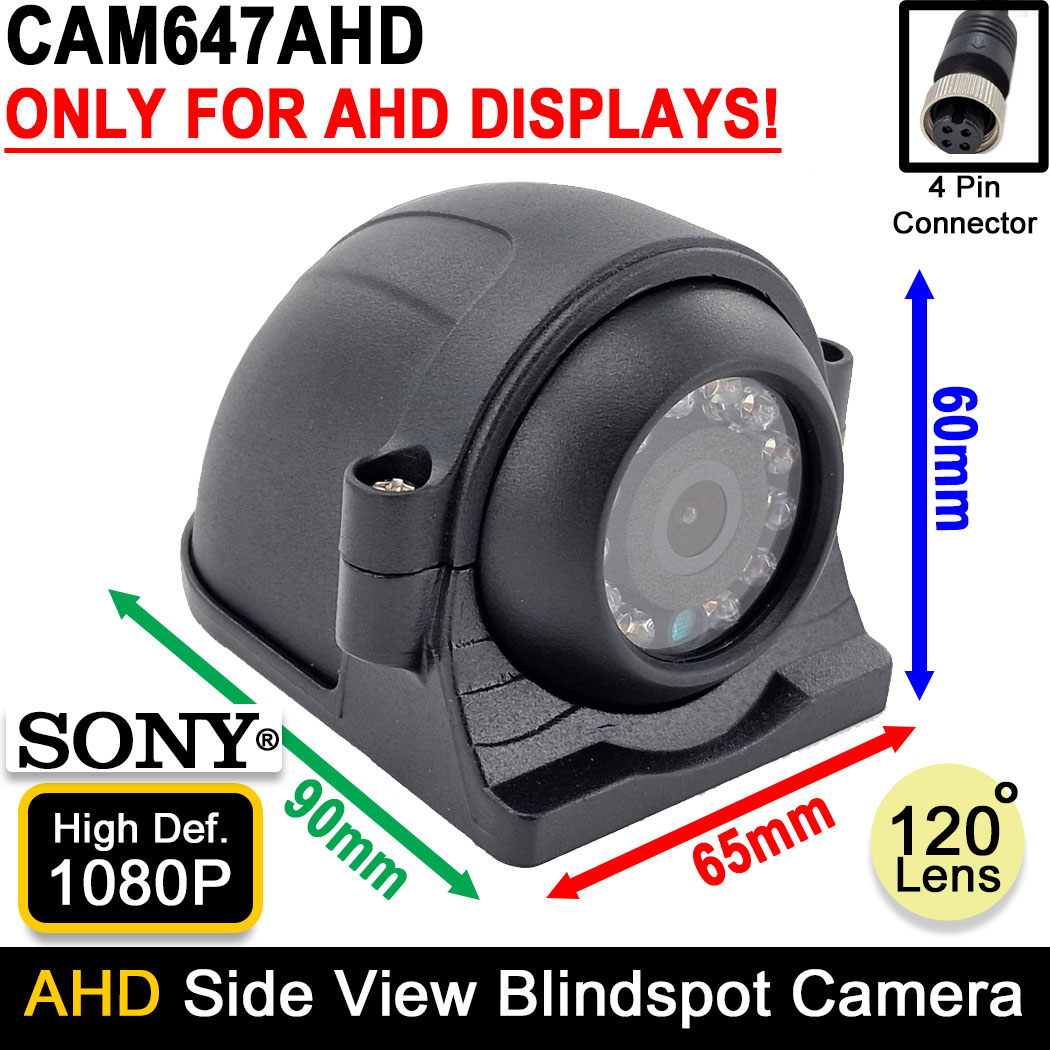

Side View Blindspot Camera - Sony 1080P AHD | CAM647AHD
Our vehicle side mountable cyclist/blind spot camera. Fitted with the latest Sony IMX307 1080P AHD image sensor to achieve a high-definition image. Keep pedestrians, cyclists and other road users safe. Ideal for HGV, LGV, and large vans to help comply with DVS. This camera will work with AHD monitors that can support 1080P, as well as AHD compatible MDVR's.
Important Compatibility Info (PLEASE READ BEFORE ORDERING)
Most vehicle monitors and stereo systems only support traditional CVBS signal reversing cameras. Plugging a 1080P AHD signal camera into a traditional monitor will result in no image being displayed. Please read the AHD compatibility tab for even more information. If you are buying one of our AHD monitors to work with this camera, rest assured that they will work together. Our AHD input vehicle monitors can all handle the 1080P PAL AHD signal that this camera outputs.
This vehicle pod based camera is most often used as a side view camera for monitoring blind spot areas to increase pedestrian and cyclist safety, as well as preventing property damage/collisions.
1080P AHD High Definition Image - Fitted with a top specification Sony IMX 307 1080P AHD image sensor, this camera will output a 1920*1080P high definition image. Please ensure you understand that this only works with AHD monitors - do not order this version if you are using a standard stereo head unit/monitor otherwise there will be no image shown.
High Dynamic Range Image - The high quality Sony image sensor installed (the part that captures the image detail) is one of the best at dealing with light and dark areas in the image at the same time.
Brilliant Vivid Colours - In the day time this reversing camera will give you lovely, bright, vivid images. At night the camera will be in black and white night vision mode. A mechanical IR cut filter is used to improve day time colours, which flips out of the way at night time to allow the IR light to pass through to the sensor in night mode.
Night Time IR LED's - IR LED's are fitted to provide additional light for the camera's image sensor to view when the light levels drop. This light is not visible to the human eye, so don't worry about it blinding following traffic. The camera can use it to light up a dark area.
IP68 Waterproof - Designed to cope with the worst of weather. Mechanical seals all around the camera body makes this camera less prone to leaks.
Screw Locking 4 Pin Connector - This 4 pin connector is located at the end of the camera fly lead, which you can connect to a 4 pin extension cable, that in turn would connect to one of the inputs on your AHD monitor.
Important Compatibility Info (PLEASE READ BEFORE ORDERING)
Most vehicle monitors and stereo systems only support traditional CVBS signal reversing cameras. Plugging a 1080P AHD signal camera into a traditional monitor will result in no image being displayed. Please read the AHD compatibility tab for even more information. If you are buying one of our AHD monitors to work with this camera, rest assured that they will work together. Our AHD input vehicle monitors can all handle the 1080P PAL AHD signal that this camera outputs.
AHD Reversing Camera Compatibility Info
AHD signal is a relatively new technology and as such is still relatively rare to find in use. Most reversing camera systems fitted to vehicles use CVBS (composite video signal), which has limitations in the definition that you can achieve. AHD (Analogue High Definition) allows you to achieve full HD 1080P definition image quality.
This recent technology uses advanced digital signal processing and analogue modulation to send high-definition video signals down traditional analogue coax-based cables. This means you can usually use your old 4-pin cabling to carry the new AHD signal without having to rewire from front to back.
Important things to consider:
- The device on which you wish to use your new camera MUST be capable of displaying the input from a 1080P AHD camera. You will see no image if you attempt to use this on any other device.
- Some AHD displays can only handle 720P inputs; again, if that is the case, no image will be displayed.
- Some AHD monitors and MDVRs require all cameras to be in the same format, e.g., 1080P or PAL. All of our AHD cameras are 1080P PAL (PAL is the European standard). So rest assured that if you are using one of our AHD monitors and wish to add an extra camera, you will not have any issues when choosing another camera.
- We DO NOT recommend AHD for use with cabled trailer links. Anyone with a trailer would be better off using our standard definition range of cameras (we have a lovely selection of high-resolution cameras that push the limits of the traditional CVBS signal to the max).
Technical Specs
Please see the technical specification for the product below:
Image sensor: H8550+SONY IMX307 1/2.8" colour CMOS
Pixels: 2.0 Mega
Resolution:1920(H)*1080(V)
Min illumination: 0.001 Lux
Lens:2.8mm
View angle:120 degree
Current Consumption: 100mA/12V
Night vision distance: 30 ft
Waterproof rate:IP68
