Ford Transit Mark 7 2006 - 2013 Brake Light Reverse Camera | CAM839
Our Mk7 Ford Transit Reverse Camera to fit the brake light on 2006 - 2013 vans. 2-year guarantee, high-resolution 700tvl 4089 image sensor, easy to install, fast delivery, from the forum favourites - REVCAMUK.

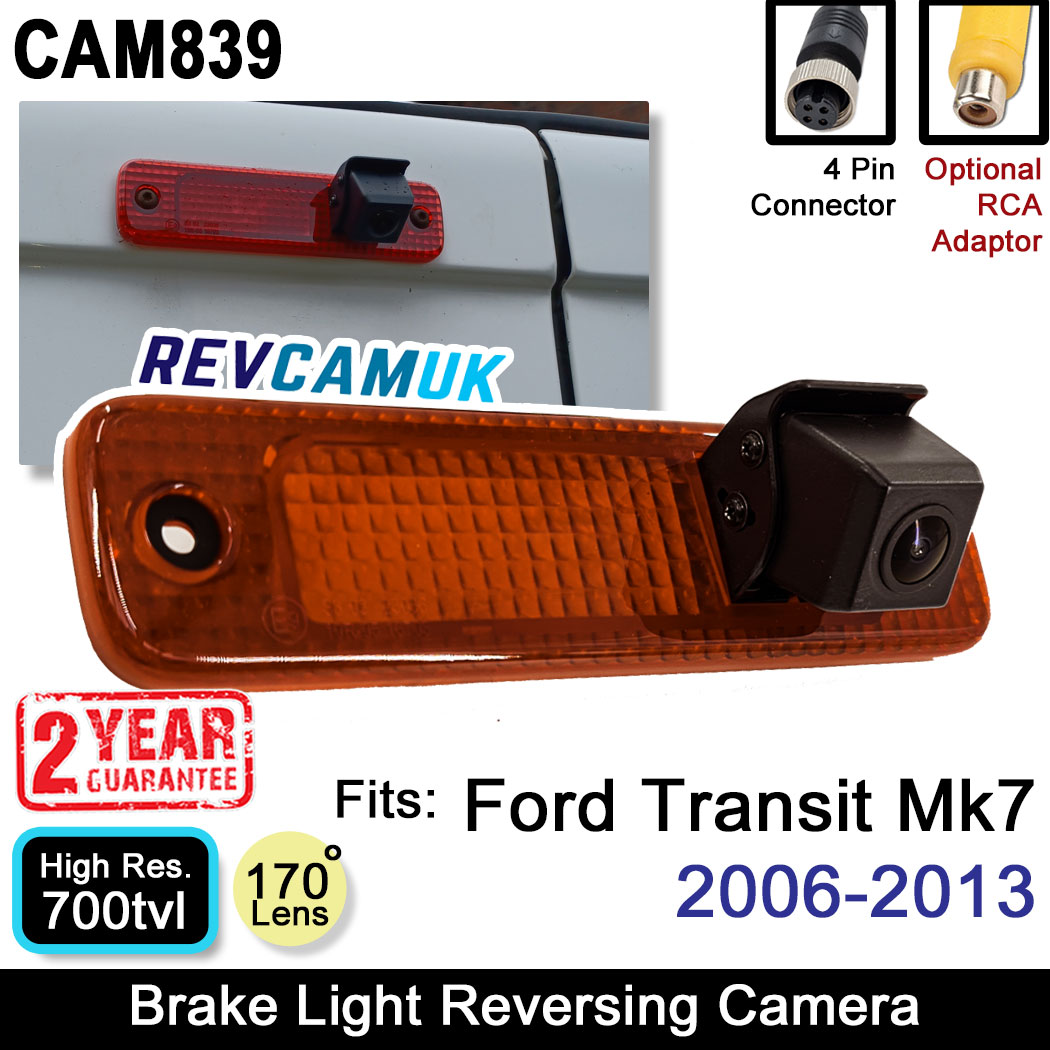

Introducing our Mark 7 Ford Transit Reversing Camera to fit 2006 - 2013 Vans
Brake light reversing camera, designed to increase your safety, giving you greater rear visibility, whilst maintaining the factory appearance. Easy to install, high resolution, great image quality, durable, supported with a two year guarantee from the reversing camera specialists.
This brake light reversing camera fits the following vans:
Ford Transit Mk7 2006 - 2013
This camera has the following advantages :
Great Image Quality - We don't settle for the base spec when it comes to this brake light camera. We have the 4089 700tvl image sensor fitted, which is paired with a top quality all-glass composite lens. The image sensor is one of the most important components for ensuring a colourful, sharp, and high dynamic image. We select all glass lenses instead of cheaper glass-plastic composites, because over time plastic containing lenses would fade from UV damage. No such issue with our all-glass lenses.
IP69K Waterproof Protection - This reversing camera is rated to IP69K water/dust ingress protection, the highest available. This will keep the camera protected in even the worst wet and stormy weather the Great British weather can throw at it, or indeed on your trips across the continent.
170°(D) Ultra Wide Angle - Due to the external lens fitted to this camera, you are able to have a greater field of view, which is very helpful when reversing. External lenses can achieve wider field of view compared to those mounted behind a glass cover.
2 Year Guarantee - We believe that our brake light reversing cameras come from the best factory, the factory is so sure of their own product that they fully support our highly respected two year guarantee. We find the fault rate very low from them, but should anything happen in your first two years of ownership, we will provide a replacement.

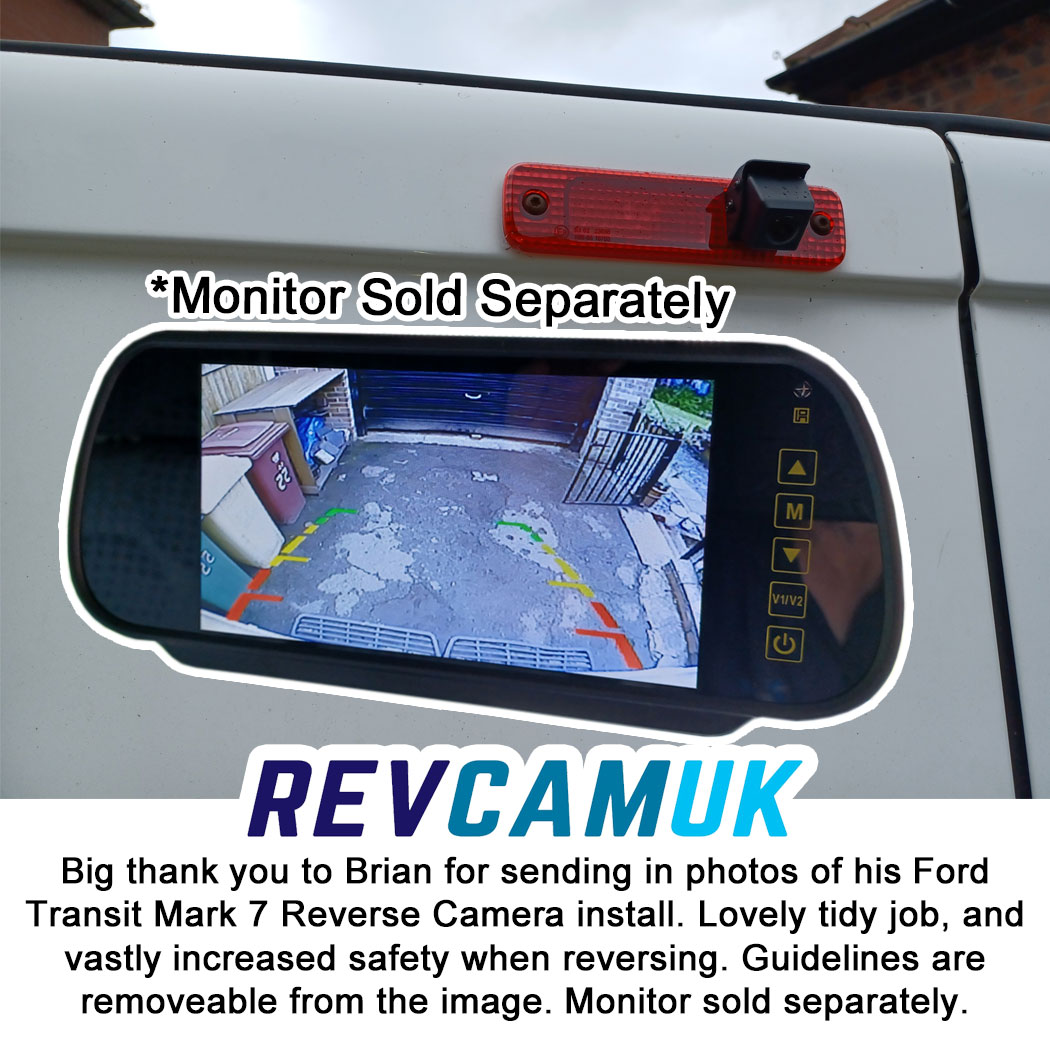

Maintains a Tidy Factory Look - This brake light reverse camera was designed to fit perfectly where the OEM brake light used to be. If you didn't tell anyone, most people would assume it was a factory addition. The brake light works just as well as the original, in fact you are actually using the original light strip.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo head units e.g. Sony, Pioneer, Kenwood... |
Technical Specification
Please find the technical specifications of the brake light reverse camera below :
Image Sensor : 1/3" colour Super CMOS
Effective Pixels : 976(H) x 592(V)
Resolution : 700TVL
Sensing Area : 4.6228mm x 3.6112mm
Minimum illuminations : 0.1 Lux (day)
Lens Angle : 170 degrees
Waterproof : IP69K
Camera head : Adjustable 20 degrees up/down
AGC : Auto
Signal to noise ratio : Better than 48dB
White balance : Auto
Electronic Shutter : Auto
Power Supply : DC12V
Operating Temperature : -20C to 70C RH95% MAX
Storage Temperature : -40C to 80C RH95% MAX
