Black Bracket Reversing Camera | Sony 1/3" 700TVL CCD | CAM022/CAM004
Black bracket reversing camera, fitted with a rust-resistant painted stainless steel bracket/hood, a Sony 1/3" CCD 960H 700TVL 811 Image Sensor, and choice of 4 pin screw or RCA connectors. 18 IR LED's coupled with the sensitive image sensor means that this camera works well in the dark.

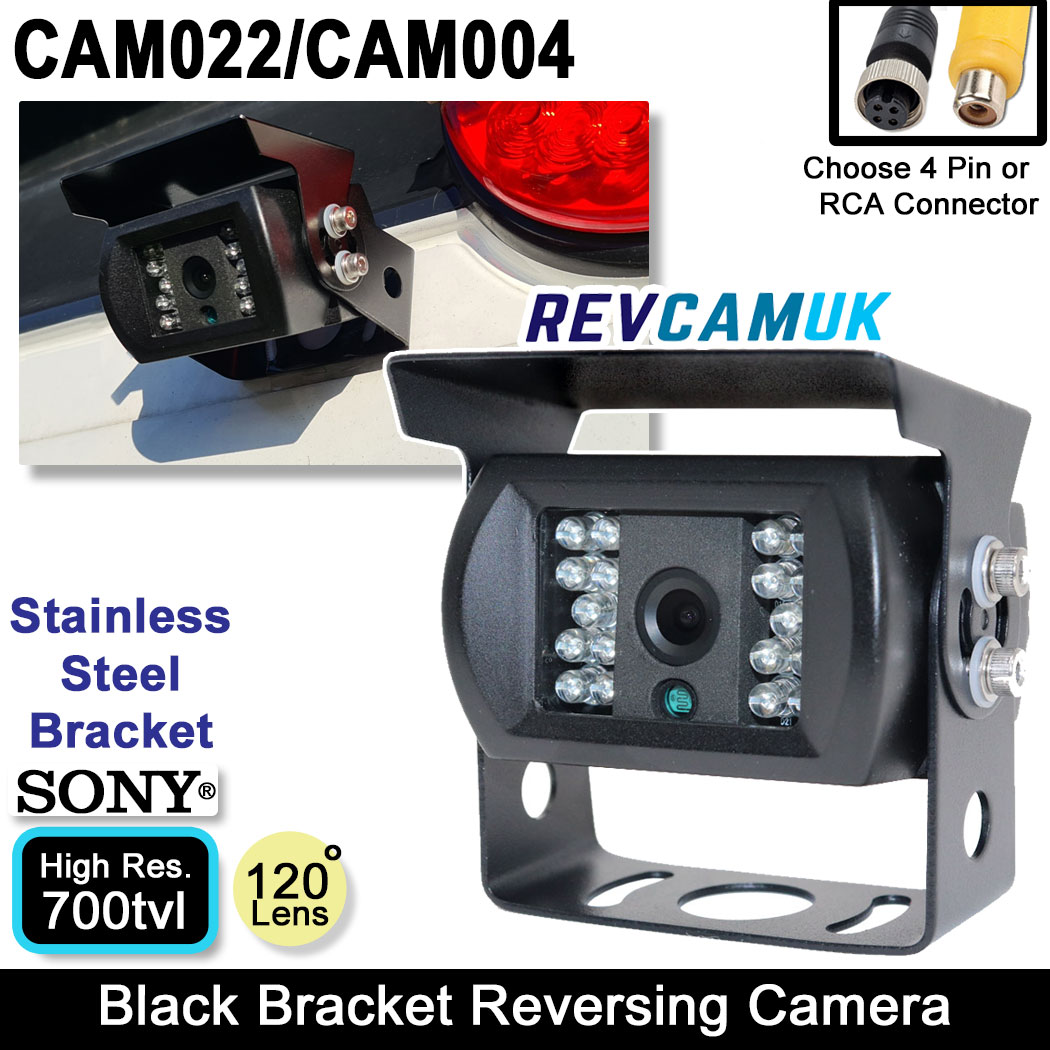

Black Bracket Reversing Camera with Sony CCD image Sensor
One of our most sold reversing cameras. Durable build quality, painted stainless steel bracket, high-res Sony 1/3" CCD image sensor, and IR night vision LED's.
Great Image Quality - You can expect a colourful, high resolution image in the day, plus a good quality image at night hanks to the installed 1/3" Sony CCD 700tvl image sensor.
IR Night Vision LED's - Multiple IR LED's provide the camera with useable light when it gets dark. This light is not visible to the human eye, so you won't be blinding people behind you, but it will be visible to the camera to help you avoid obstacles at night.
Painted Stainless Steel Bracket - To prevent rust, we have fitted this camera with a black painted stainless steel bracket. Painting stainless steel is costly and difficult, which is why it is still rare to see on many competitor products. But since we swapped over more than a decade ago, we never have any of our customers asking to replace a rusty, broken bracket.
Horizontal or Vertical Mounting - This reverse camera can either be mounted on a horizontal surface, or a vertical rear wall. This camera is popular with a multitude of different vehicle types including vans, HGV/LGV, Agricultural, Motorhomes, and even tanks/monster trucks/Santa's sleigh.

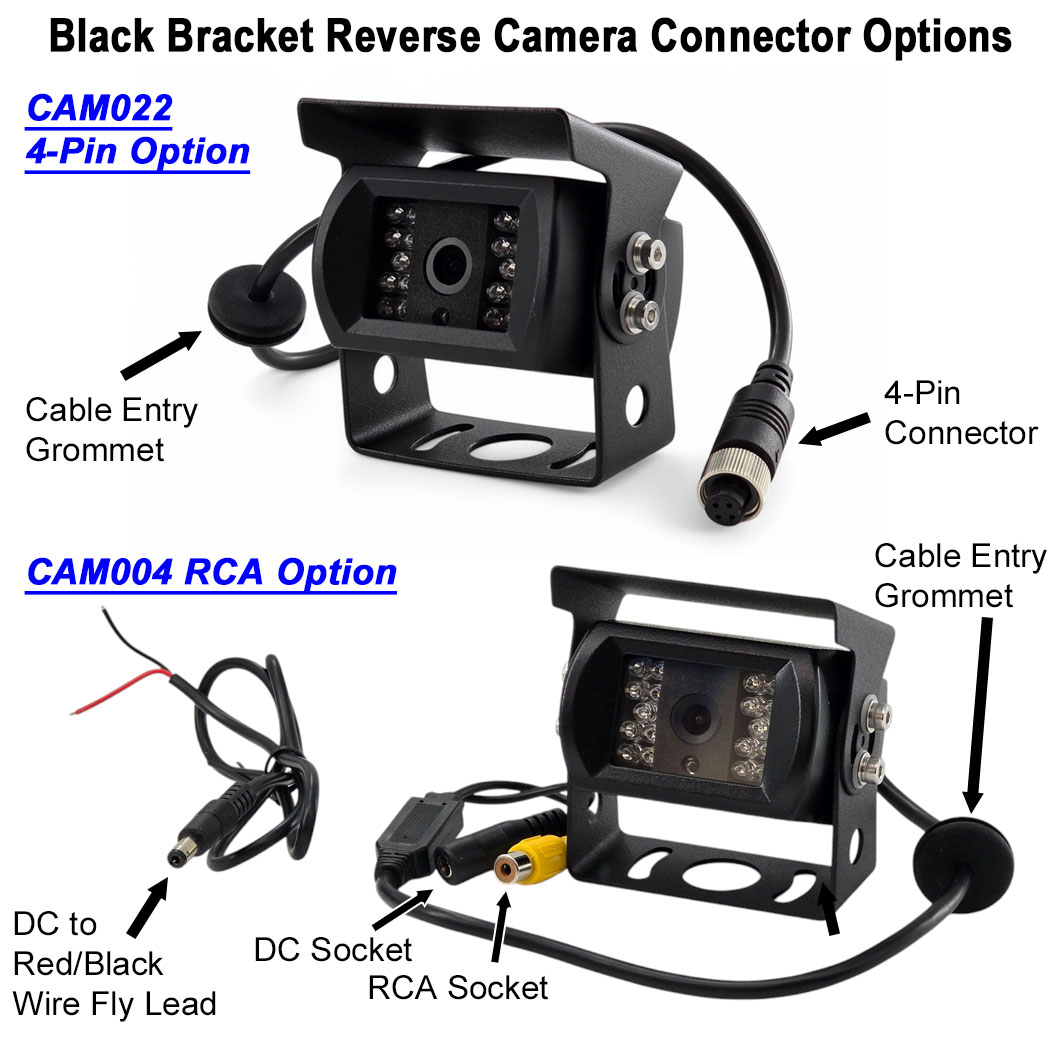

Choice of 4 Pin or RCA Connectors - We stock this camera with an option of the two main universal connector types - RCA and 4 Pin Aviation.
Increased Reversing Safety - Most importantly this reversing camera helps to improve reversing safety by helping to reduce blind spots to the rear of the vehicle.
IP68 Waterproof Rating - Rated to withstand even the worst weather the Great British Isles can throw at it.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Technical Specs
Please see the technical specification for the product below:
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR leds on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
18 Infra red LEDs to provide night view
Waterproof with adjustable shade to prevent glare from sun
Mirror image only
Stainless Steel Bracket (painted)
