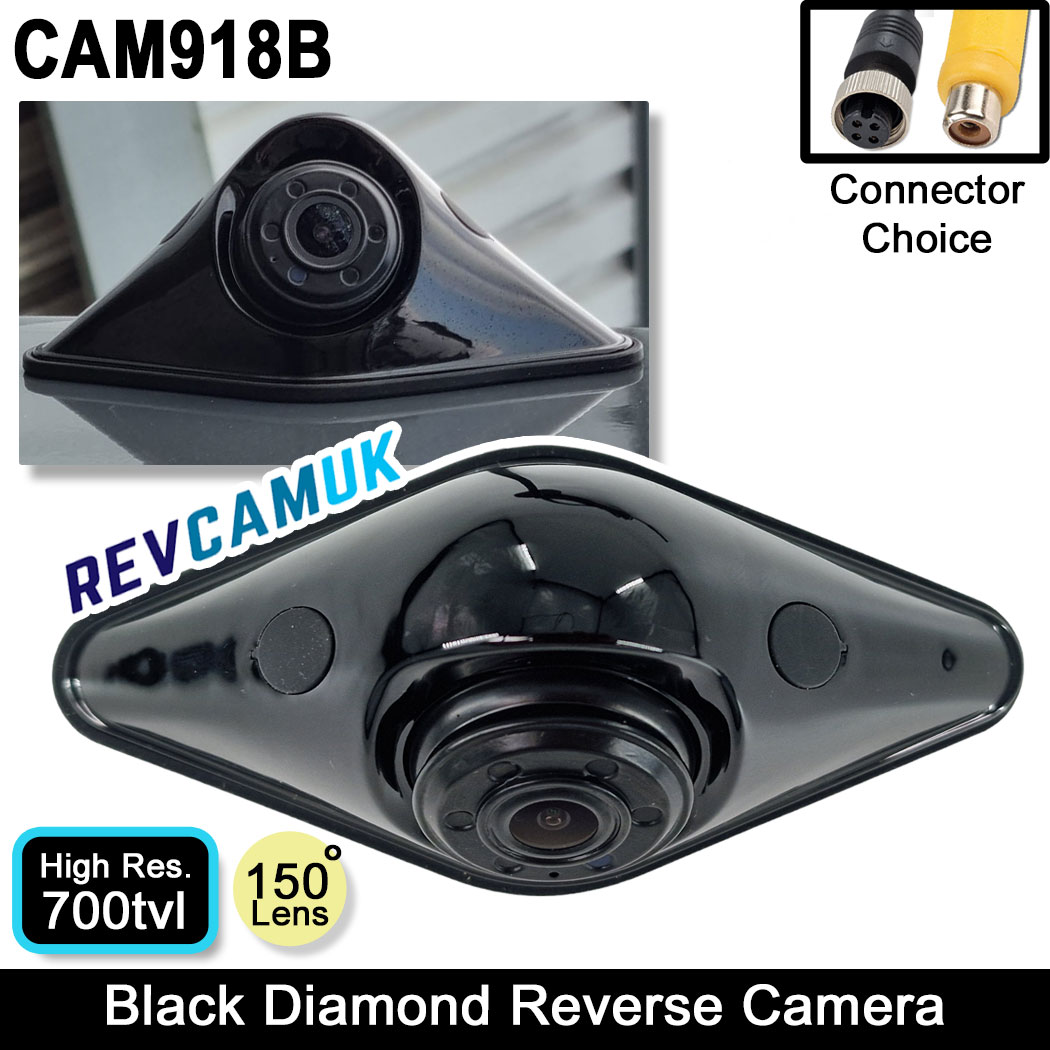

Black diamond shape pod reversing camera | CAM918B

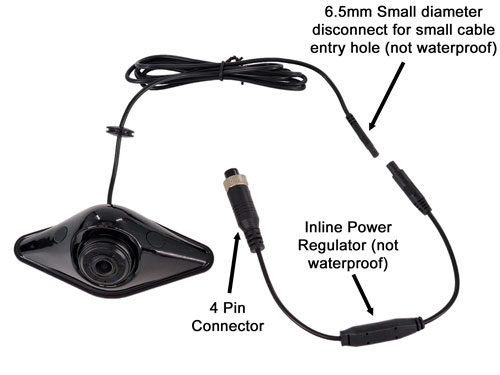

The diamond shaped reversing camera was introduced in 2023, and will be a good choice for someone wanting a tidy looking diamond pod reversing camera for mounting on the rear vertical wall, or door of a van or motorhome. The image sensor fitted is a high spec PC4089 700TVL 1/3" Super CMOS image sensor. IR night vision LEDs mean that this camera will give great vision both day and night. Small cable entry hole size, with choice of connector - 4 pin or RCA.
About our Black diamond shape pod reversing camera
The diamond shaped reversing camera was introduced in 2023, and will be a good choice for someone wanting a tidy looking diamond pod reversing camera for mounting on the rear vertical wall, or door of a van or motorhome. The image sensor fitted is a high spec PC4089 700TVL 1/3" Super CMOS image sensor. IR night vision LEDs mean that this camera will give great vision both day and night. Small cable entry hole size, with choice of connector - 4 pin or RCA. Expect the following advantages :
Unique Stylish Design - Customers tell us that they love the sleek design of this camera, it looks very different to the usual bolt-on style cameras that are often fitted aftermarket. Adding this camera doesn't distract away from the natural curves of most Motorhomes built today.
Great High Resolution Image Quality - This reverse camera is fitted with one of our favourite 4089 image sensor + all glass composite lens combinations. This is the same winning combo that the same manufacturer of this camera uses in the brake light cameras we stock. We insisted on its use with this camera.

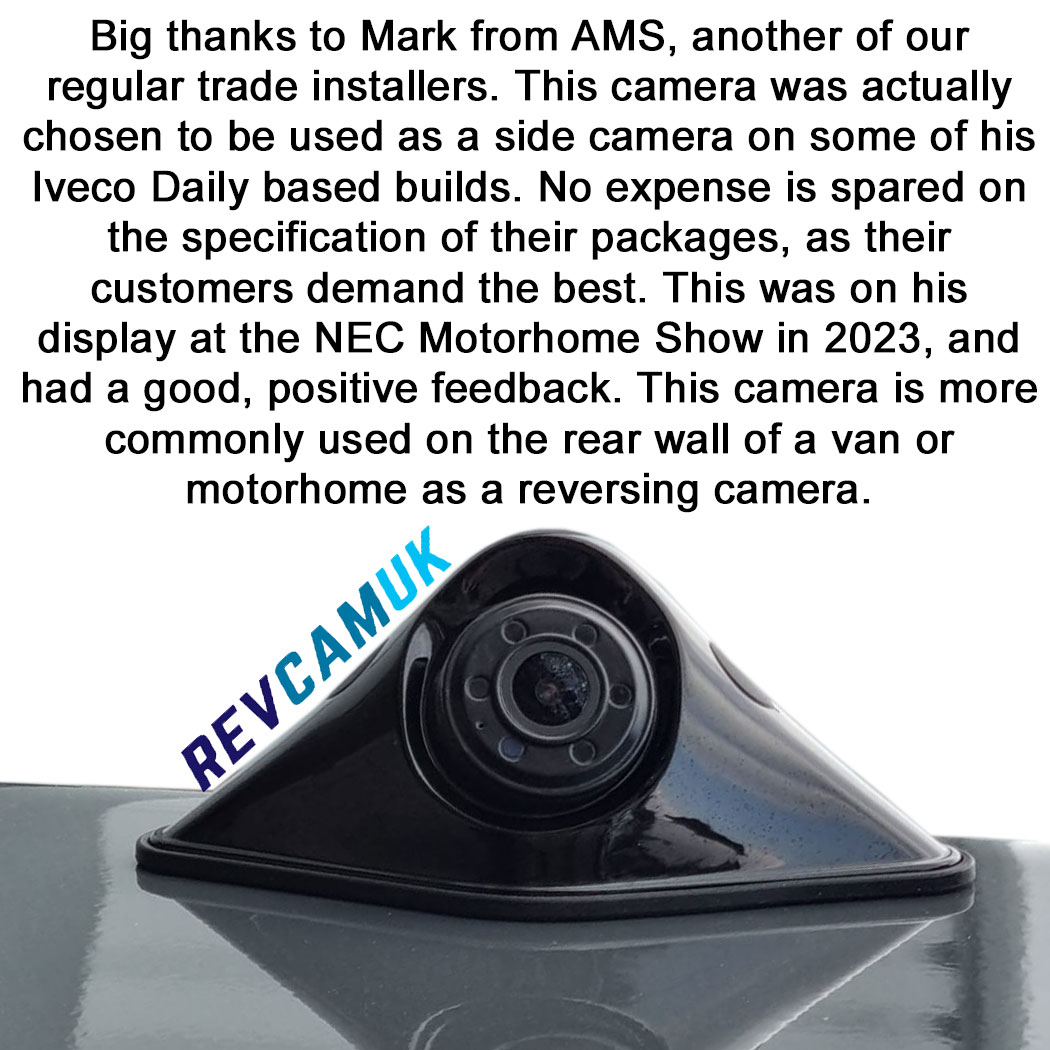

Adjustable Tilt - The ball of this camera is adjustable up/down/rotational. Traditionally this is used as a reversing camera, but we have had customers mount them to the side of their vehicle to use as a blind spot camera.
IR Night Vision - IR night vision LED's are fitted to this camera to allow the camera to work well at night time in dark conditions. This light isn't visible to the human eye, so it won't affect following drivers, but it is visible to the camera so that it can be used to produce an image when it's night time.
IP68 Waterproof - The IP rating of a camera indicates how much protection against water and dust ingress a product can cope with. At IP68 this camera can withstand the very worst the Great British Weather can throw at it.
Wide Viewing Angle - A 150 degree diagonally measured wide viewing angle means you get a lovely wide spread across the rear of your vehicle to help look out for hazards.
Increased Reversing Safety - The most important aspect of any reversing camera is its ability to increase the safety of your vehicle by reducing blind spots and helping to make potential hazards more visible. This means less likely hood of damage to your vehicle, other property, or harm to other people. The quality of vision that this camera gives will also help to reduce stress during reverse manoeuvres.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Technical Specs
Please see the technical specifications for the product below:
Image Sensor : CMOS4089
Effective Pixels : 976(H) * 592(V)
TV Lines : 700TVL
TV System : PAL
Lens : 1.9mm
Min illumination 0Lux (LED ON)
IR LED's : 6pcs
Night Vision Distance : 30ft
Waterproof : IP68
Viewing angle : 150°(D)

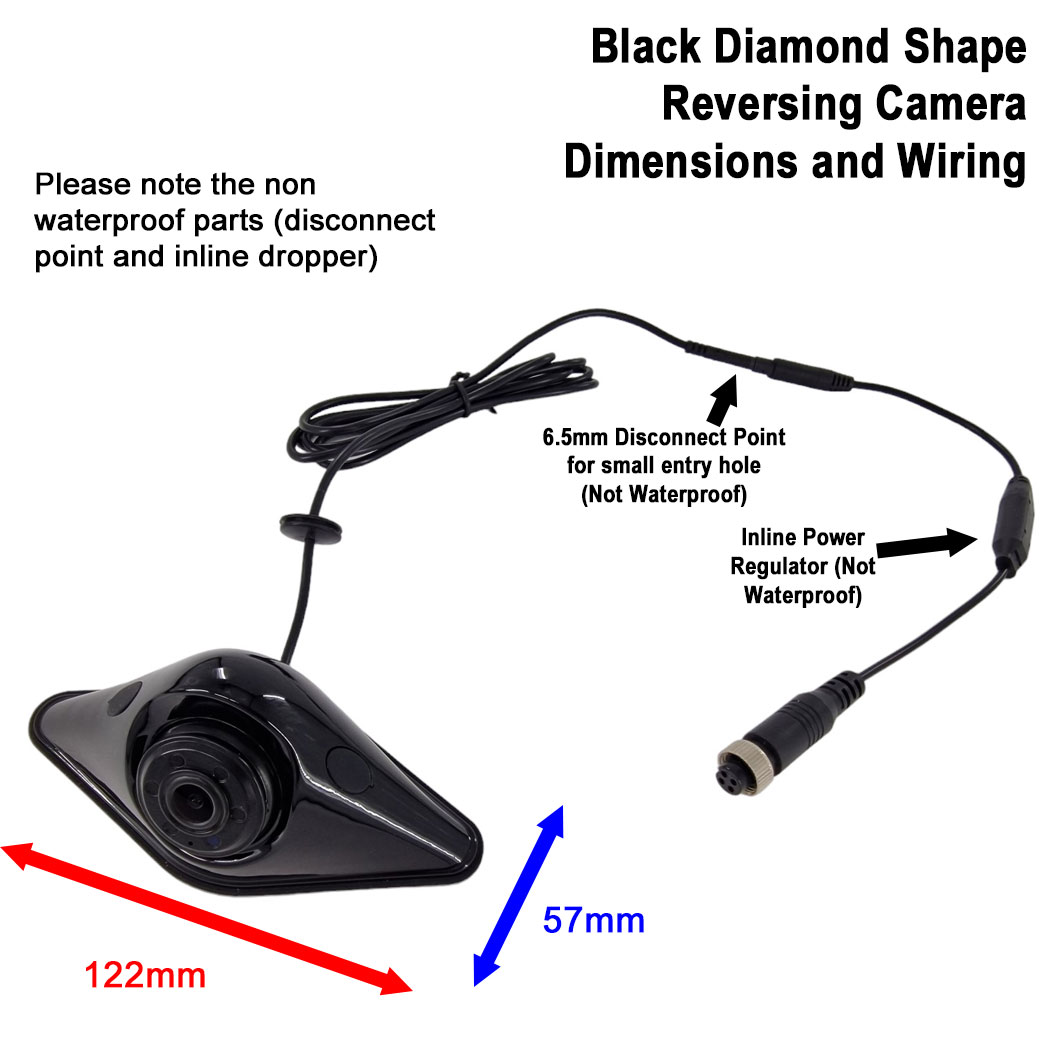

Dimensions : 122*57*49.4 (mm)
Camera lens adjustable : 20° (up&down)
Power Voltage : 12V
Current Consumption : 150mA
Operating temperature : -20℃~+70℃
