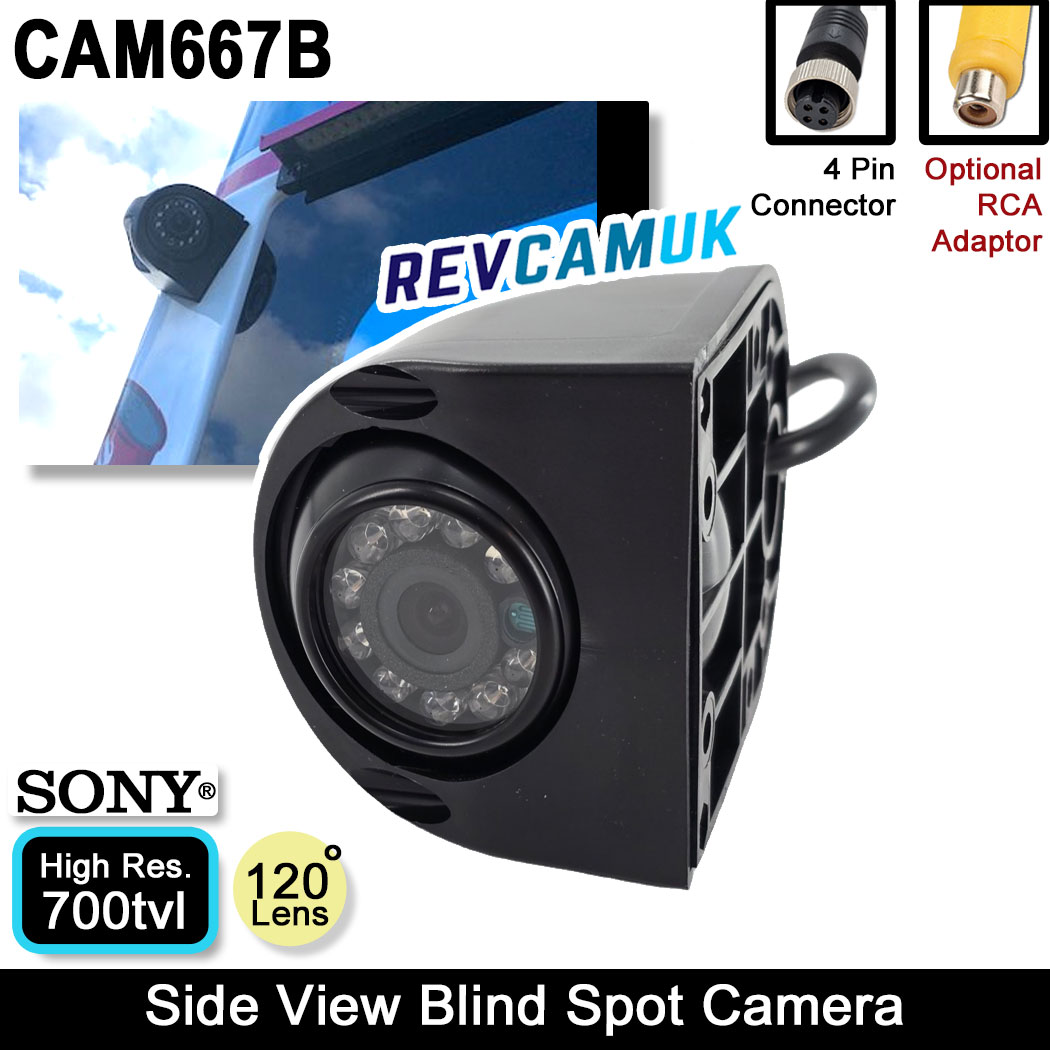

Black Side View Blind Spot Camera - Sony 700TVL CCD sensor | CAM667B
Black Vehicle Side View Camera, fitted with a Sony 1/3" 700tvl Image sensor, night vision IR, left or right side mounting, pod design. Ideal addition to assist with meeting cyclist and pedestrian safety e.g. DVS. Helps to reduce blindspots on large vehicles e.g. HGV/LGV.
Blindspot Side View Camera | Sony CCD 700tvl | DVS/Cyclist Protection
This pod mounted side camera is very useful for monitoring blindspots and cyclist safety whilst driving. The camera is designed to be mounted at the front of a vehicle, usually a large vehicle suchas a HGV, or van, and is pointed rearwards to monitor the side of the vehicle too assist with blindspots.
This type of side camera is very popular for people wanting to achieve cyclist and pedestrian safety, plus comply with DVS (Direct Vision Standard).
These side cameras are typically purchased when people are using one of our split-screen quad monitors and wished to see all around their vehicle when driving.
The image sensor fitted is a very high spec 700TVL 1/3" Sony CCD image sensor. IR LEDs coupled with the high-performance sensor mean the camera will perform well in low light level conditions.
The camera comes with a 45cm fly lead with a 4 pin aviation connector at the end, extension cables and adaptors (for some connector types) are available.

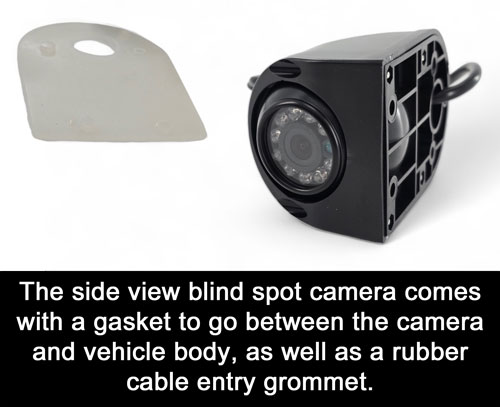

The camera is designed so it may be mounted on both passenger and drivers side of the vehicle on the vertical face. When you install the camera you will remove the plastic case by undoing the 5 screws with a 2mm Allen key (included). Once the case is off you will loosen the clamp holding the ball camera and spin it to face the correct way, then re-tighten this clamp afterwards to lock position.
PDF Downloadable Instructions for fitting vehicle side view camera
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | Instructions for fitting our CAM667 Side View Vehicle Blindspot cameras Instructions on fitting and adjusting the side view blindspot cameras. |
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
Click preview image to download the PDF file | Instructions for fitting our CAM667 Side View Vehicle Blindspot cameras Instructions on fitting and adjusting the side view blindspot cameras. |
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Technical Specs
Please see the technical specifications for the product below:
1/3 700TVL SONY CCD
Video System:- PAL
Pixels:- PAL:752(H)*582(V)
Horizontal Resolution:-700 TVL
Min Illumination:- 0.001Lux (0 Lux IR on)
SNR:- ≥50dB
Electronic Shutter:- 1-1/10000(S)
Video Output:- 1.0V±0.5Vp-p 75Ω
View Angle:- 120°
Working Voltage:- DC9V-12V±0.5V
Consumption:- 70mA±10%
Waterproof Rate:- IP68
