Bolt to Number Plate Reversing Camera | CAM071P

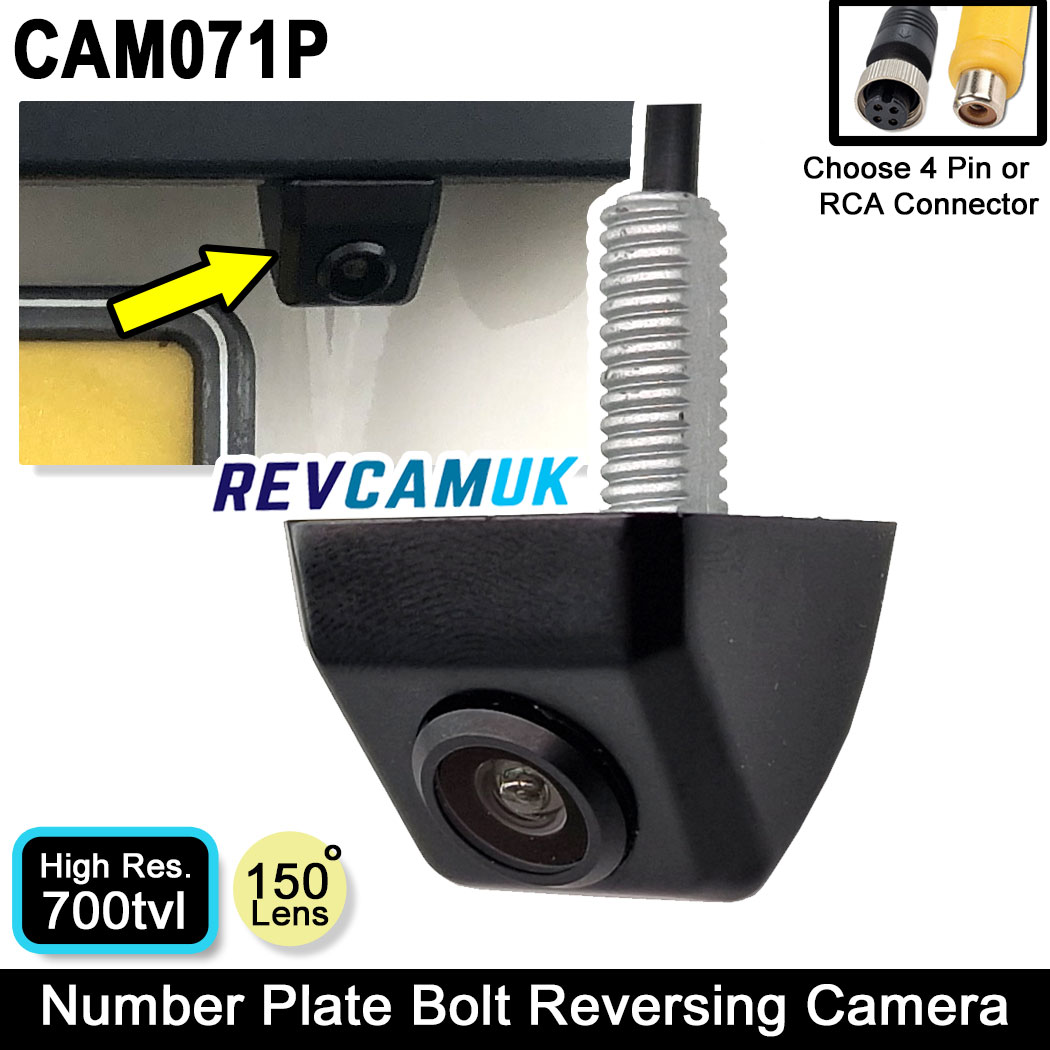

Our bolt-on reversing camera for the number plate is very small and discreet. It is designed with the cable entering through the bolt that secures the camera to the vehicle. It is fitted with a high-resolution 4089 700tvl image sensor and a high-quality all-glass lens and has a choice of either 4-pin or RCA connector options.
Details of Bolt Number Plate Reverse Camera
Our bolt-on numberplate reversing camera has been designed in a very small case, yet uses a powerful 4089 700tvl image sensor. Designed to fit under the license plate trim, next to the number plate lights. When this reverse camera is installed, it is quite difficult to spot. This camera has the following highlights :

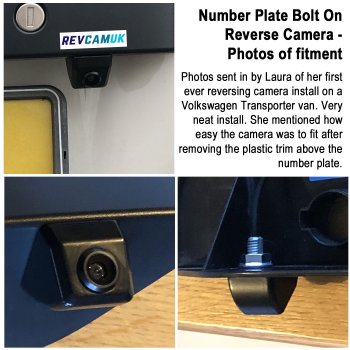

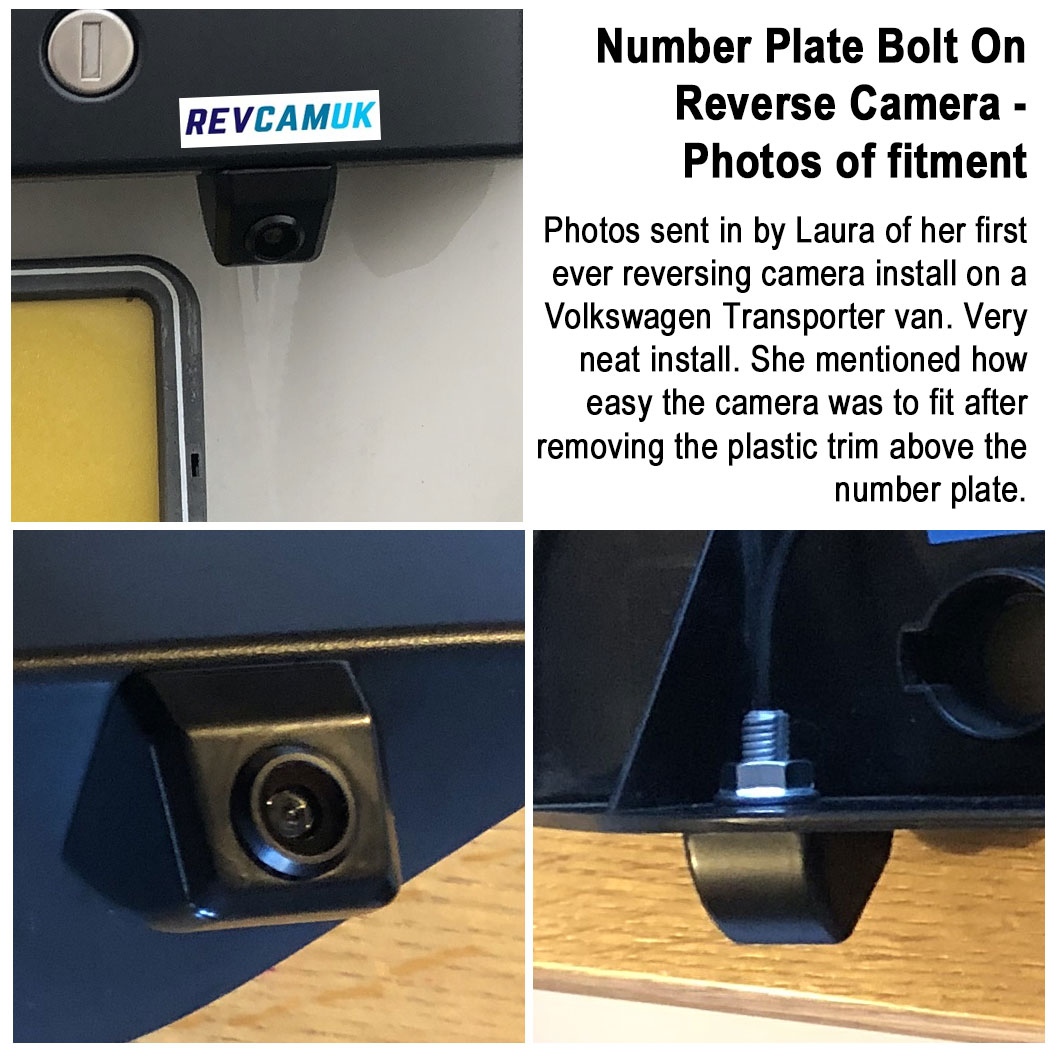

Small and Discreet - This reversing cameras is probably one of the most discreet we have seen. I invite you to check out the installation photos sent in by Laura of it fitted to her VW Transporter van, it almost looks factory fit.
High Resolution Image Quality - The factory managed to get our favourite lens/image sensor combo fitted in to the small case - the 4089 700tvl high resolution image sensor, coupled with the all-glass composite lens. The image sensor is one of the most important aspects of achieving a good picture from a reversing camera. This image sensor is the same as we use on our brake light cameras, which are greatly respected by the community. All glass composite lenses cost more than their plastic/lens composite counterparts, but long-term they are worth it. The cheaper lenses fade over time due to UV damage to the plastic elements, no such problem with ours! Expect a clear image years later.
Extra Wide Viewing Angle - A 150 degree lens all-glass composite lens is fitted to make it an extra wide angle reversing camera. Being low down on the number plate, you want as wide angle as you can get. This makes it possible to see and avoid any obstacles behind your vehicle.
IP68 Waterproof Protection - The IP rating is a number that specifies how good the product is at resisting water and dust. IP68 will deal with the worst weather conditions you will ever find.

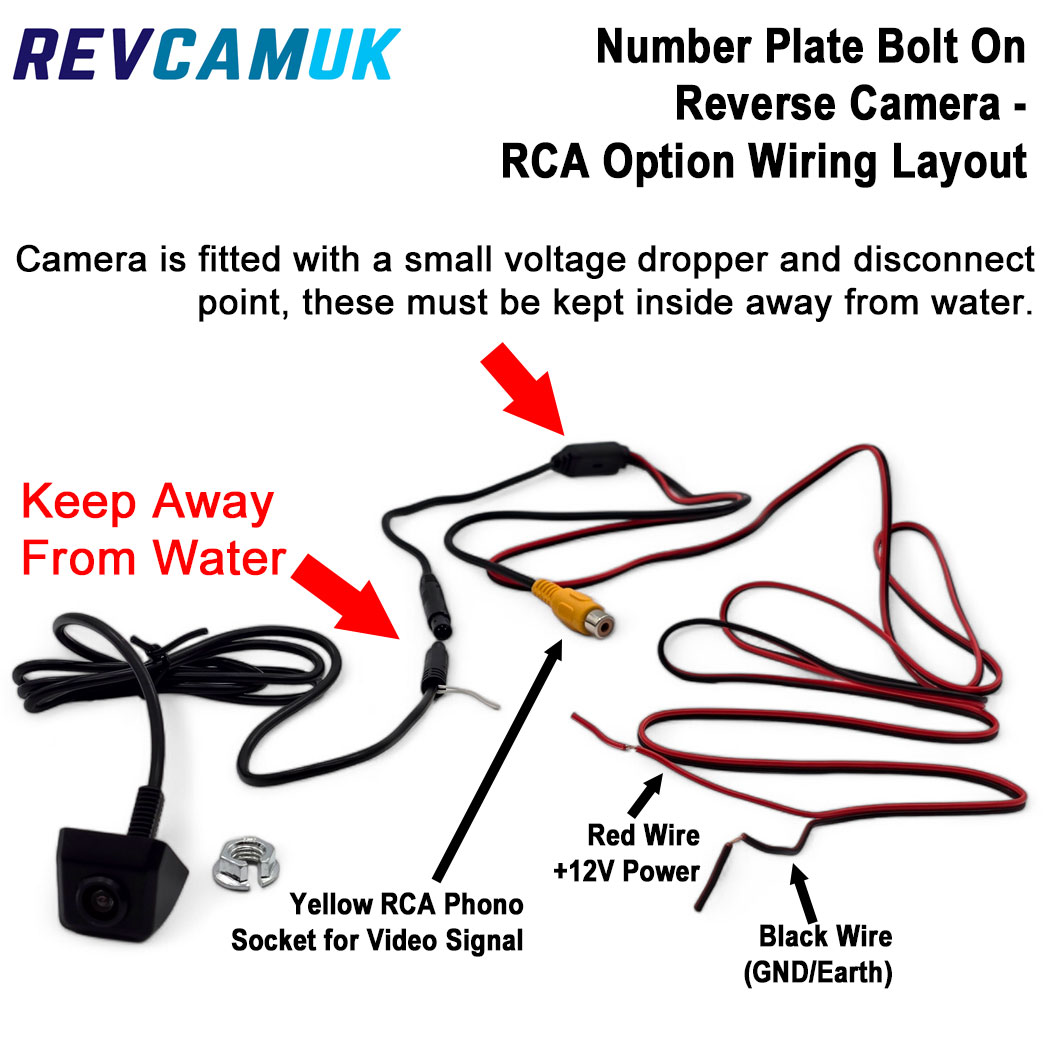

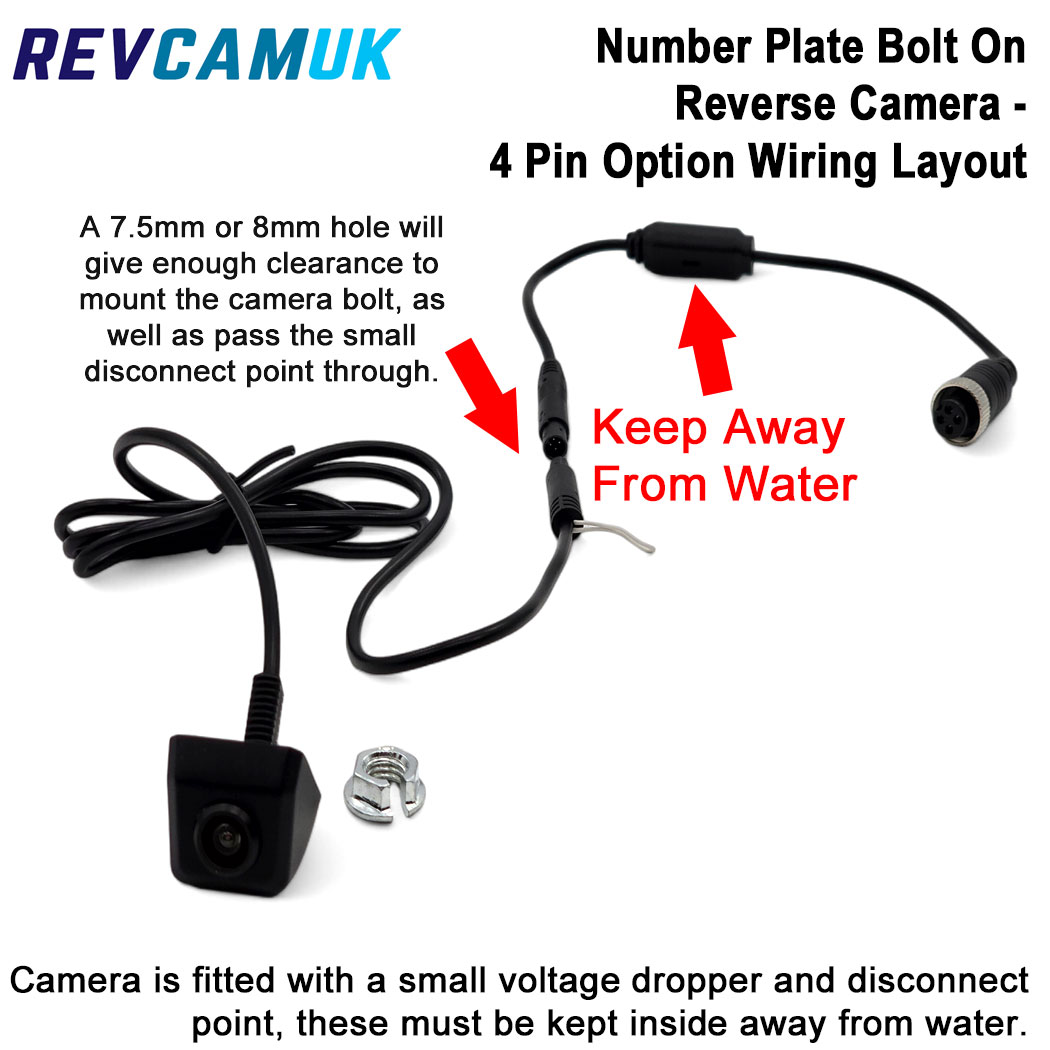

Choice of 4 Pin or RCA Connectors - Select your choice of connector option when ordering to match your displays input type.
Guidelines ON/OFF Function - The camera will add guidelines as standard. If you wish to remove these from the image produced, simply cut the white trigger loop/wire that is close to the small disconnect point.
See our 4 Pin Extension Cables or RCA Extension Cables if you require for your install.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Technical Specs
Please see the technical specifications for the product below:
Image device:- PC4089 CMOS sensor
Effective pixels: 976(H) x 592(V)
Resolution: 700 TVL
Selectable guidelines
PAL format
IP rating: Ip68
Lens angle: 150° diagonal
Minimum illumination 0.1 Lux
Video output: 1.0VP-P.75Ohm
Power supply: DC12V
Operating Temperature: -20°C to +70°C
