"Butterfly Wings" Number Plate Reverse Camera | 1/3" 600TVL Sony CCD sensor | CAM085

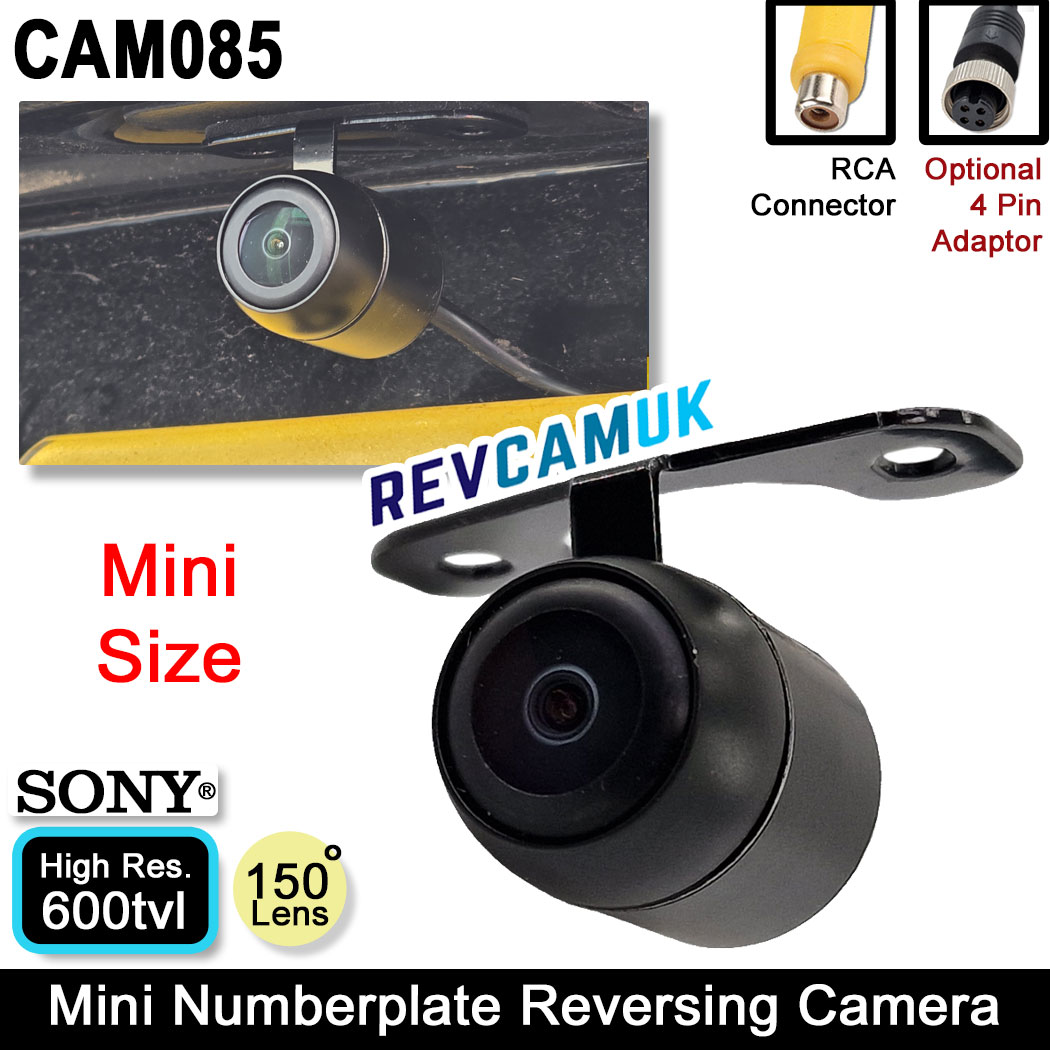

Our mini "butterfly" number plate reversing camera, fitted with a Sony 639 600TVL 1/3" CCD image sensor for a good quality picture.

  • £75
  • including VAT
Qty:
In stock (7 items available)

About our Sony CCD Mini Butterfly Bracket Numberplate Reversing Camera

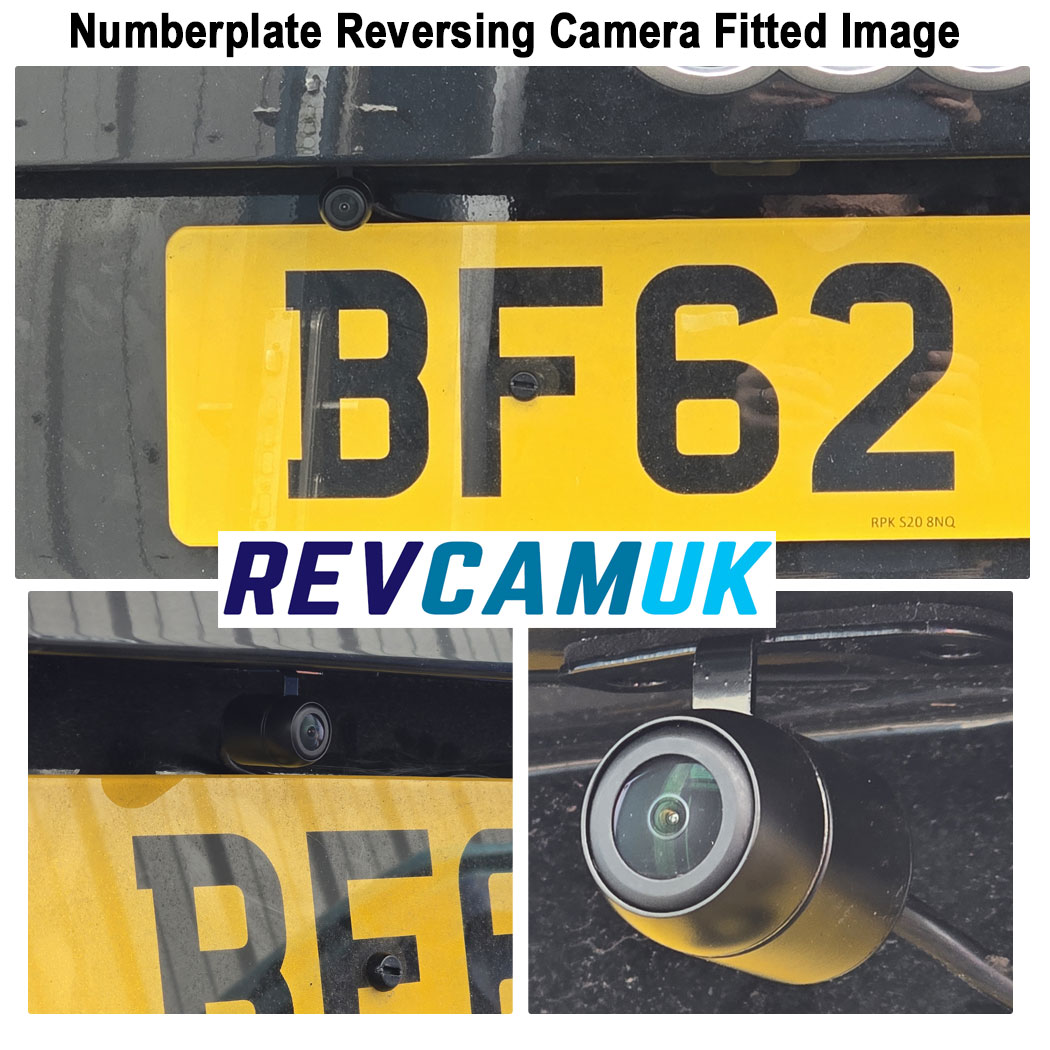

The number plate is a popular area to mount a reversing/parking camera on a car. This is a very small number plate reverse camera that we have stocked for a number of years now, it has a nice quality image sensor and a very wide angle at 150 degrees. This has recently had an upgrade to a Sony 600TVL CCD image sensor.

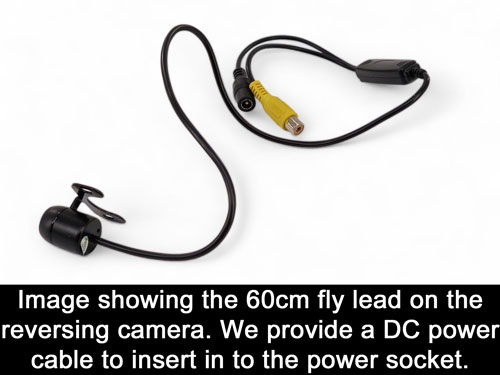

The camera comes with a 60cm fly lead with a phono socket and a 2.1/5.5mm DC socket at the end, we provide a 1.5M DC plug to red/black bare wire to connect this to your reversing light supply, and a 5M RCA Phono Cable.  We can supply different lengths using the drop down menu.

Reversing Safety - The most important advantage of this camera is of course the added safety that it provides due to increasing visibility to the rear of your vehicle.

Great Quality Sony 1/3" Image Sensor - This reverse camera has just had an upgrade to the higher resolution CCD sensor. It used to run a 1/4" 420tvl Sony CCD, but now it uses the Sony 639 600tvl CCD image sensor (the same as our larger night vision version). This means you get a lovely, colourful image.

Extra Wide Viewing Angle - This camera is fitted with a very wide angle lens, which returns 150 degrees diagonal field of view. Wide angles become even more important on cameras mounted low down - to ensure it is wide enough to see hazards to the sides.

RCA Connection / 4 Pin Adaptor Option - This camera comes with a yellow phono RCA socket and 2.1mm/5.5mm DC socket, if you click the adaptor to 4 pin option we will provide our adaptor from 4 Pin to RCA/DC for reversing camera.

Great Reliability/Support - I can't remember ever hearing one of these cameras failing, but should you experience an issue within the first year of purchase we will of course provide the support that our reputation was built on. If you were to purchase this, with one of our 4 pin monitors/adaptor we would extend to 2 years guarantee. This is because we know our monitors protect the camera from any voltage fluctuations.

Technical Specification

Image Sensor: 1/3" CCD Sony 639
Resolution:600 TVL
Pixels:752*582
Minimum Illumination:0.001 Lux
