2017+ VW Crafter Reverse Camera Fits Existing Brake Light | CAM981
Our VW Volkswagen Crafter Reverse Camera to fit to the brake light on 2017 to present vans. 2-year guarantee, high-resolution 700tvl 4089 image sensor, easy to install, fast delivery, from the forum favourites - REVCAMUK.

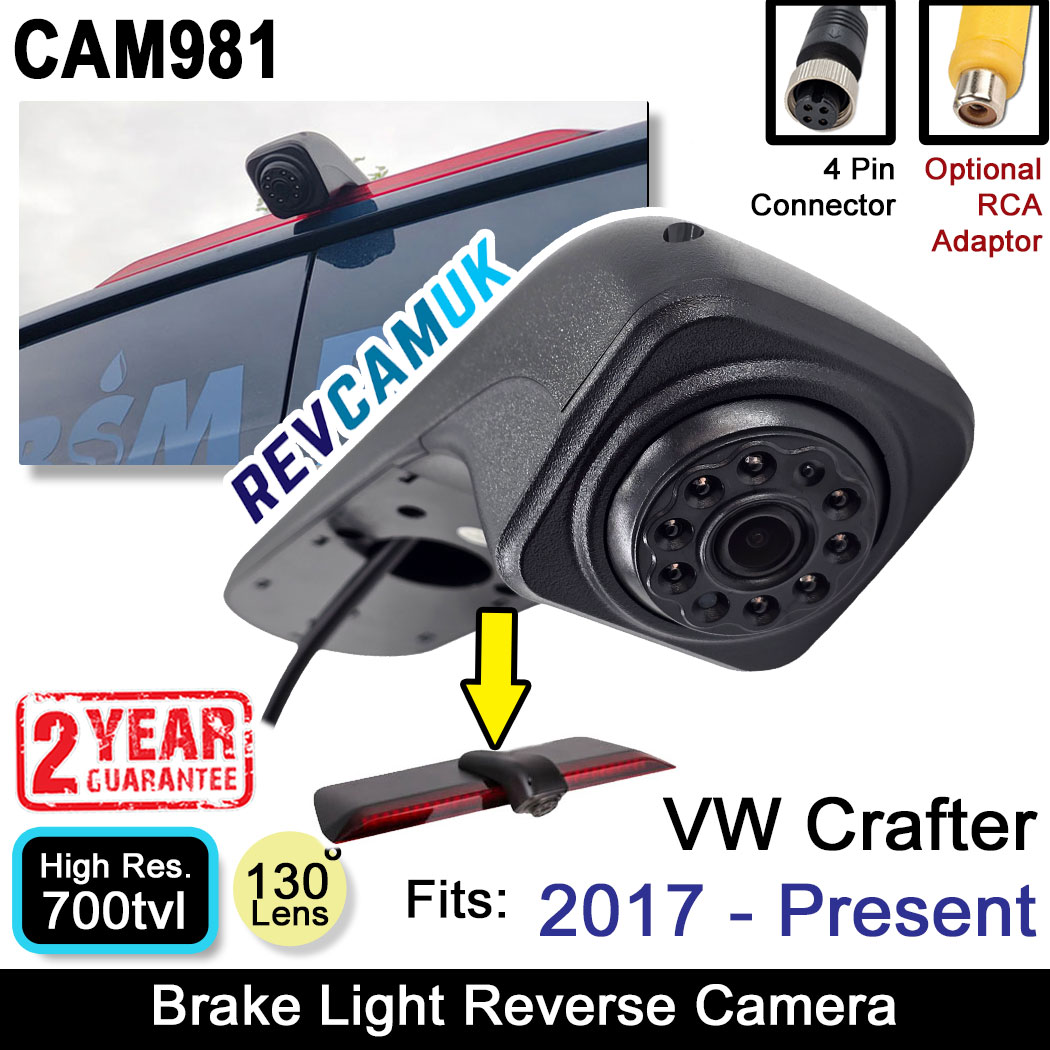

Introducing our VW Crafter Reverse Camera to fit Brake Light 2017+ Vans
Brake light reversing camera, designed to increase your safety, giving you greater rear visibility, whilst maintaining the factory appearance. Easy to install, high resolution, great image quality, durable, supported with a two year guarantee from the reversing camera specialists.
This brake light reversing camera fits the following vans:
VW Volkswagen Crafter 2017 - Present
This camera has the following advantages :
Great Image Quality - We don't settle for the base spec when it comes to this brake light camera. We have the 4089 700tvl image sensor fitted, which is paired with a top quality all-glass composite lens. The image sensor is one of the most important components for ensuring a colourful, sharp, and high dynamic image. We select all glass lenses instead of cheaper glass-plastic composites, because over time plastic containing lenses would fade from UV damage. No such issue with our all-glass lenses.
IP68 Waterproof Protection - This reversing camera is rated to IP68 water/dust ingress protection. This will keep the camera protected in even the worst wet and stormy weather the Great British weather can throw at it, or indeed on your trips across the continent.
130°(H) / 160°(D) Ultra Wide Angle - Due to the external lens fitted to this camera, you are able to have a greater field of view, which is very helpful when reversing. External lenses can achieve wider field of view compared to those mounted behind a glass cover.
2 Year Guarantee - We believe that our brake light reversing cameras come from the best factory, the factory is so sure of their own product that they fully support our highly respected two year guarantee. We find the fault rate very low from them, but should anything happen in your first two years of ownership, we will provide a replacement.
IR Night Vision - This camera is fitted with IR LED's that activate when it becomes dark. IR light is beyond the visible spectrum of the human eye, so you won't be blinding anyone behind you with light. The camera will see it, and use it to see obstacles behind your van when it is dark. Another bonus about our external lens is not having the IR LED's behind a glass lens cover. This means you get a really good contrast at night time, with none of the haziness sometimes seen with glass lens cover versions.
Maintains a Tidy Factory Look - This brake light reverse camera was designed to fit perfectly where the OEM brake light used to be. If you didn't tell anyone, most people would assume it was a factory addition.

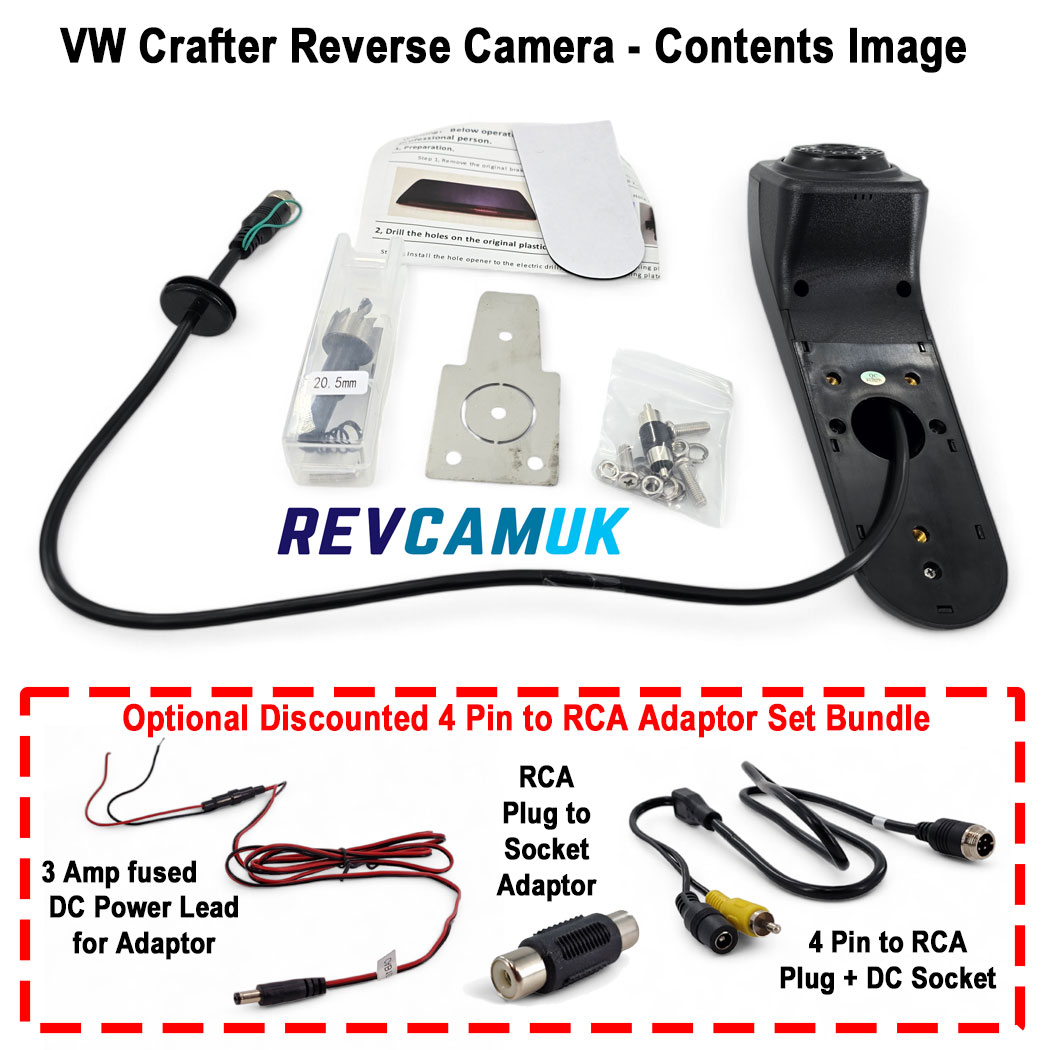

Fitting Accessories and Instructions Provided - This camera is supplied with the bracket, gasket, hole saw, instructions and parts required to add the camera to the top of your existing brake light.

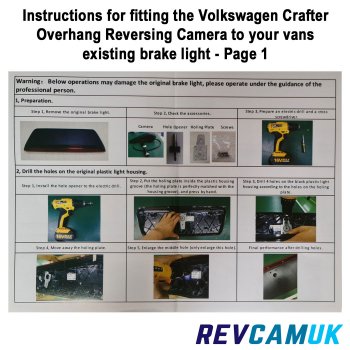

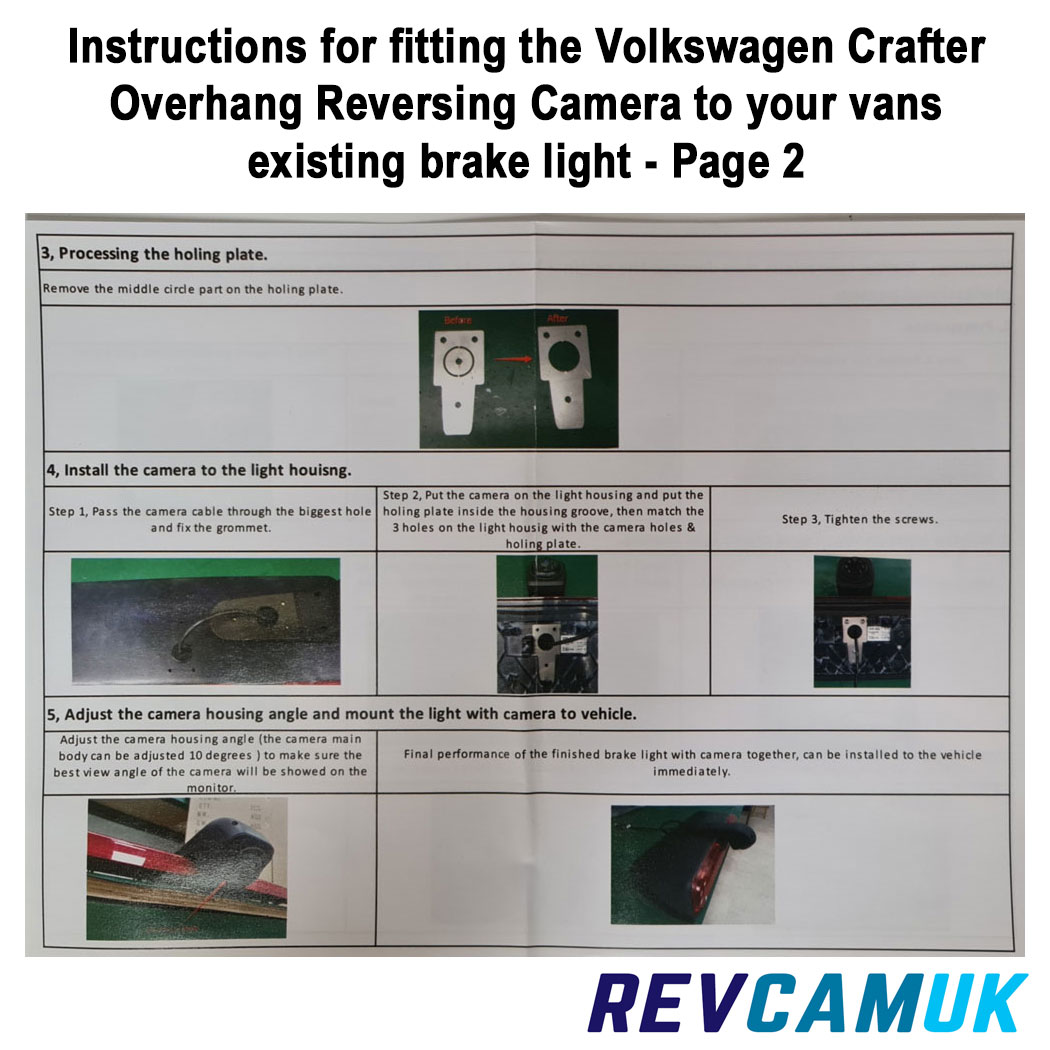

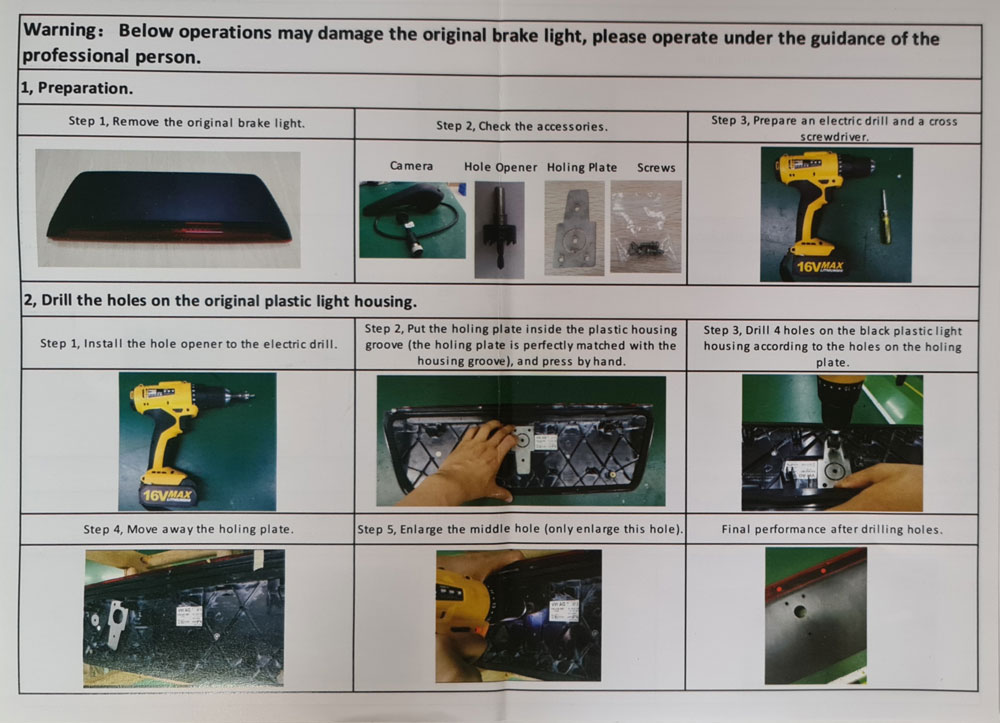

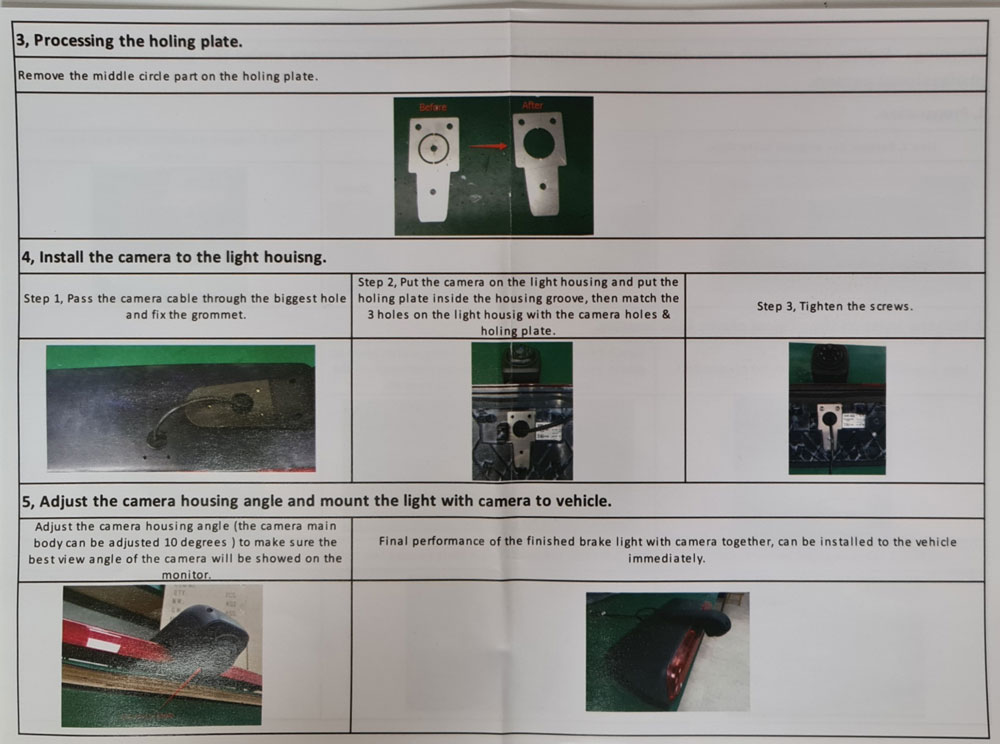

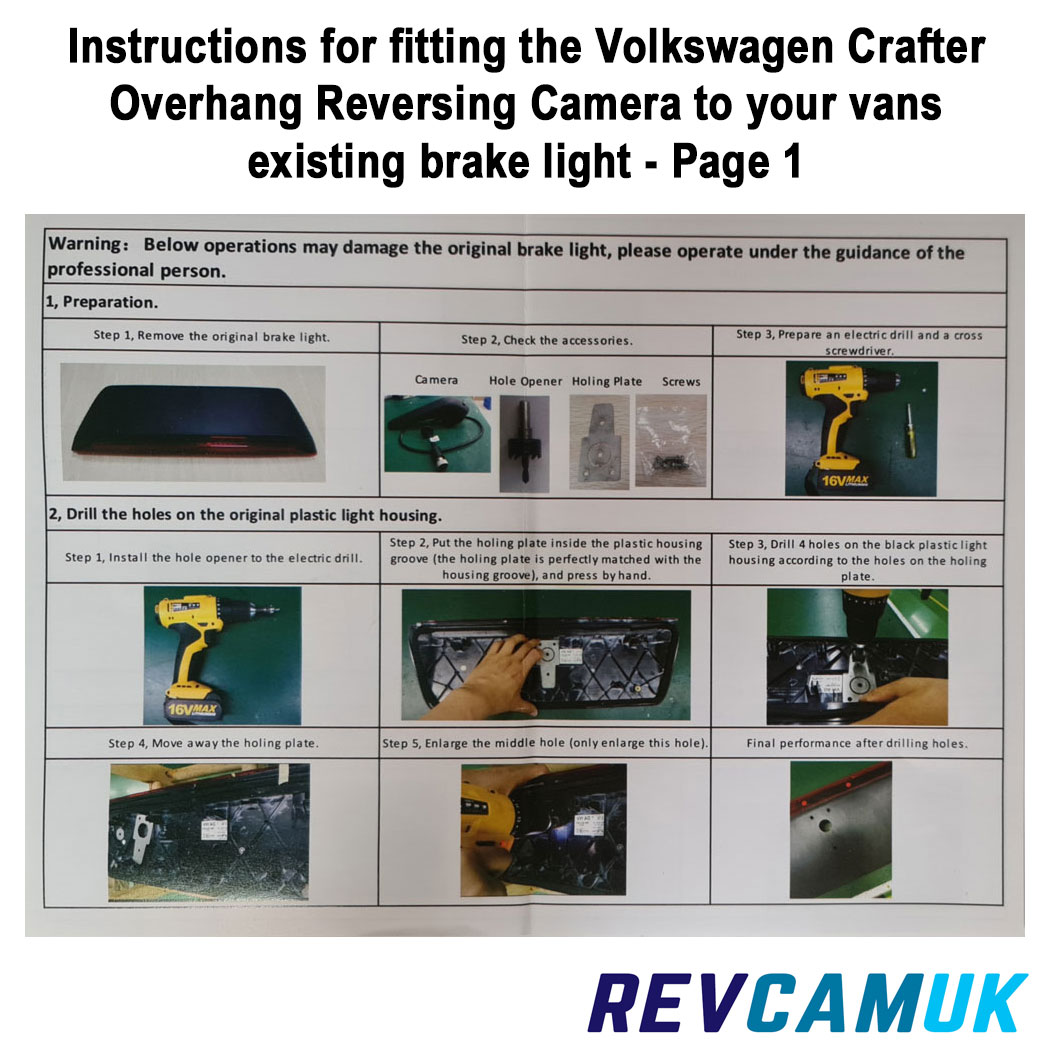

PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo head units e.g. Sony, Pioneer, Kenwood... |
Technical Specification
Please find the technical specifications of the brake light reverse camera below :
Sensor: 1/3" PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (some have a trigger wire to select)
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
