Ford Transit Connect Reversing Camera for Van Brake Light 2013+ | CAM294
Reversing camera for Ford Transit Connect 2013 onwards vans brake light. We select the best premium modern CMOS sensor (the 4089) and combine it with a quality all-glass composite lens. Buy your new reversing camera today, and you will experience reversing safety, reduced stress during reversing manoeuvres, and a lower risk of a costly reverse parking accident. Supplied by the forum and fitter's favourite reversing camera specialist - Reversing Cameras UK Ltd.

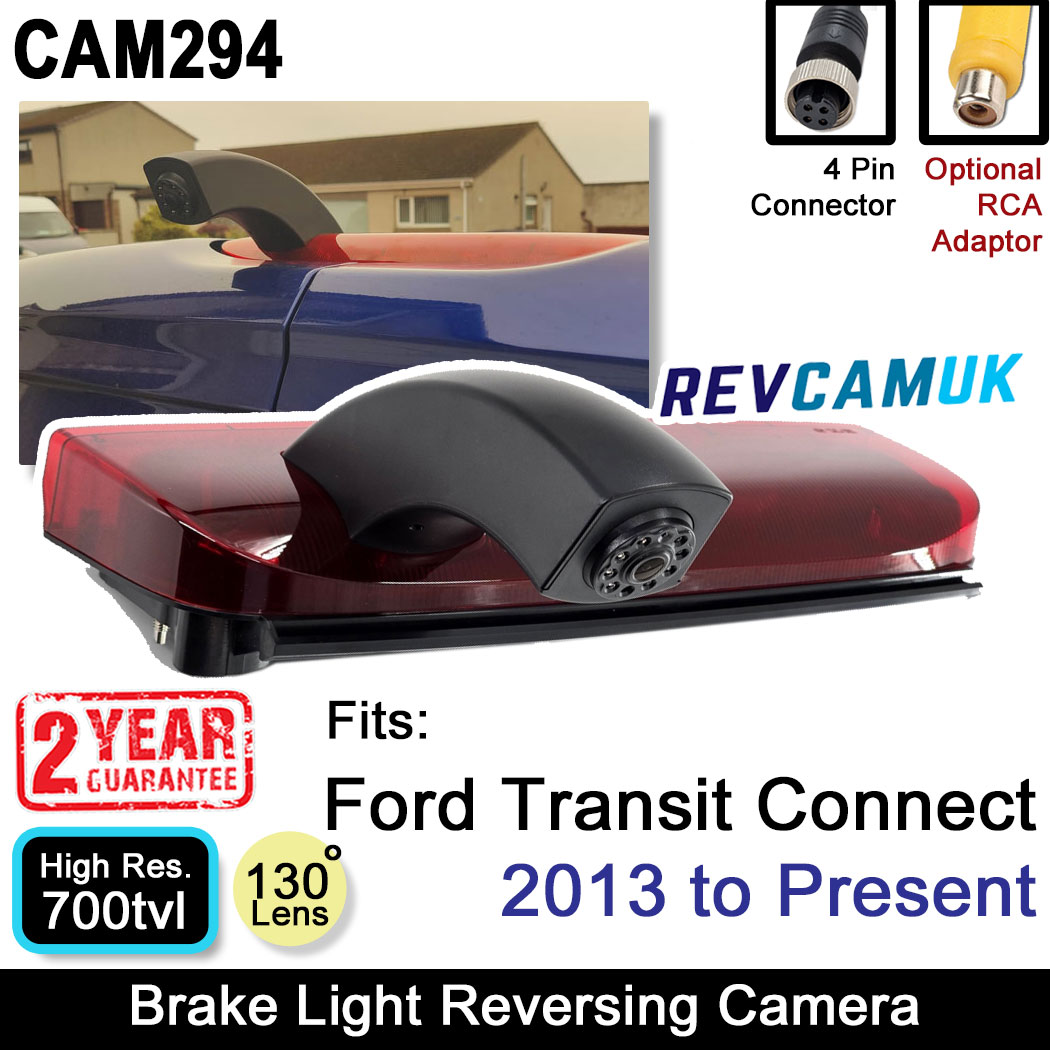

Ford Transit Connect Reversing Camera to fit the brake light on vans built between 2013 and Present

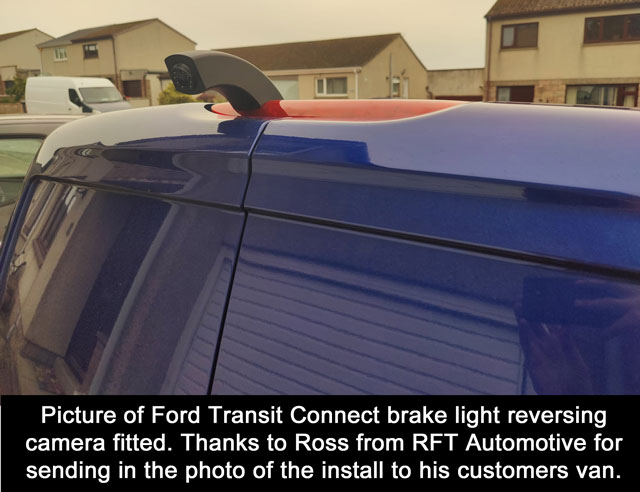

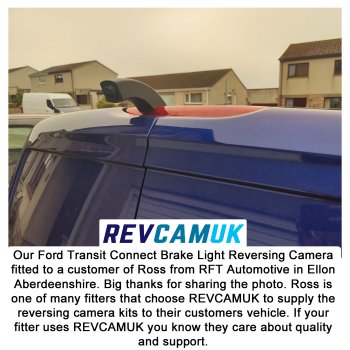

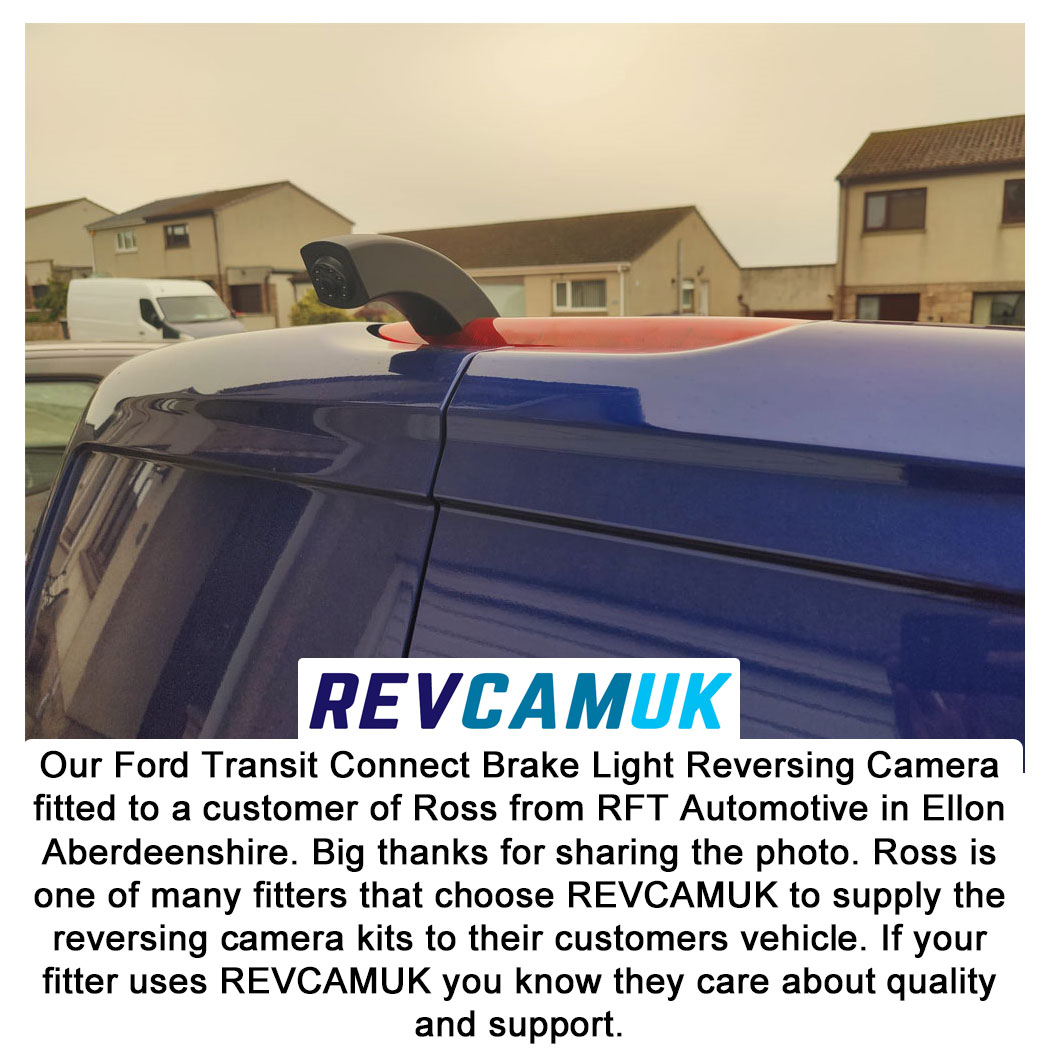

This listing is for our brake light reversing camera to fit 2013 onwards Ford Transit Connect vans with the brake light on the left door. Get the factory look, and enjoy reversing safety.
Brake light reversing cameras all look the same, but there can be subtle variance in build quality and performance. Ours has been fitted with the upgraded 4089 image sensor (vs the entry level 3089 commonly seen elsewhere). We opted for the separated external lens and IR LED's (to give a wider viewing angle and better night time performance). We also specified an all glass composite lens (vs the 2x plastic + 2x glass composites commonly found elsewhere - that fog over time due to the UV light from the sun damages the plastic layers).

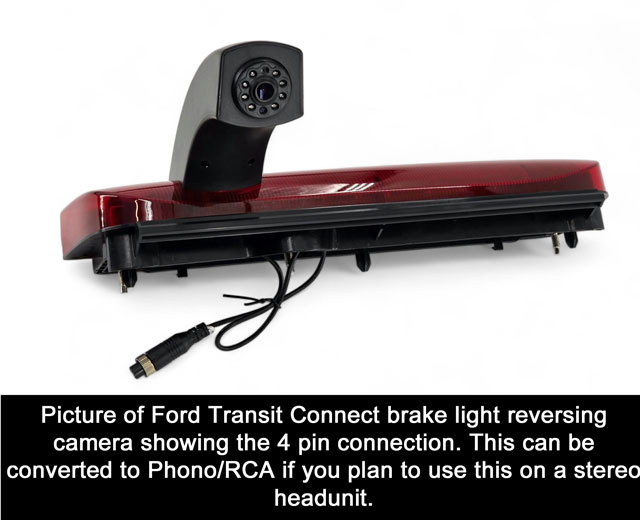

The picture below shows the connections found on the Ford Transit Connect reversing camera, simply insert the old wiring lead in to our new reversing camera power socket. We prefer the 4-pin version because it means a monitor can provide power to the camera (or you can supply power from the front/ignition), and this avoids CANBUS issues that can occur if taking power from the reverse light.

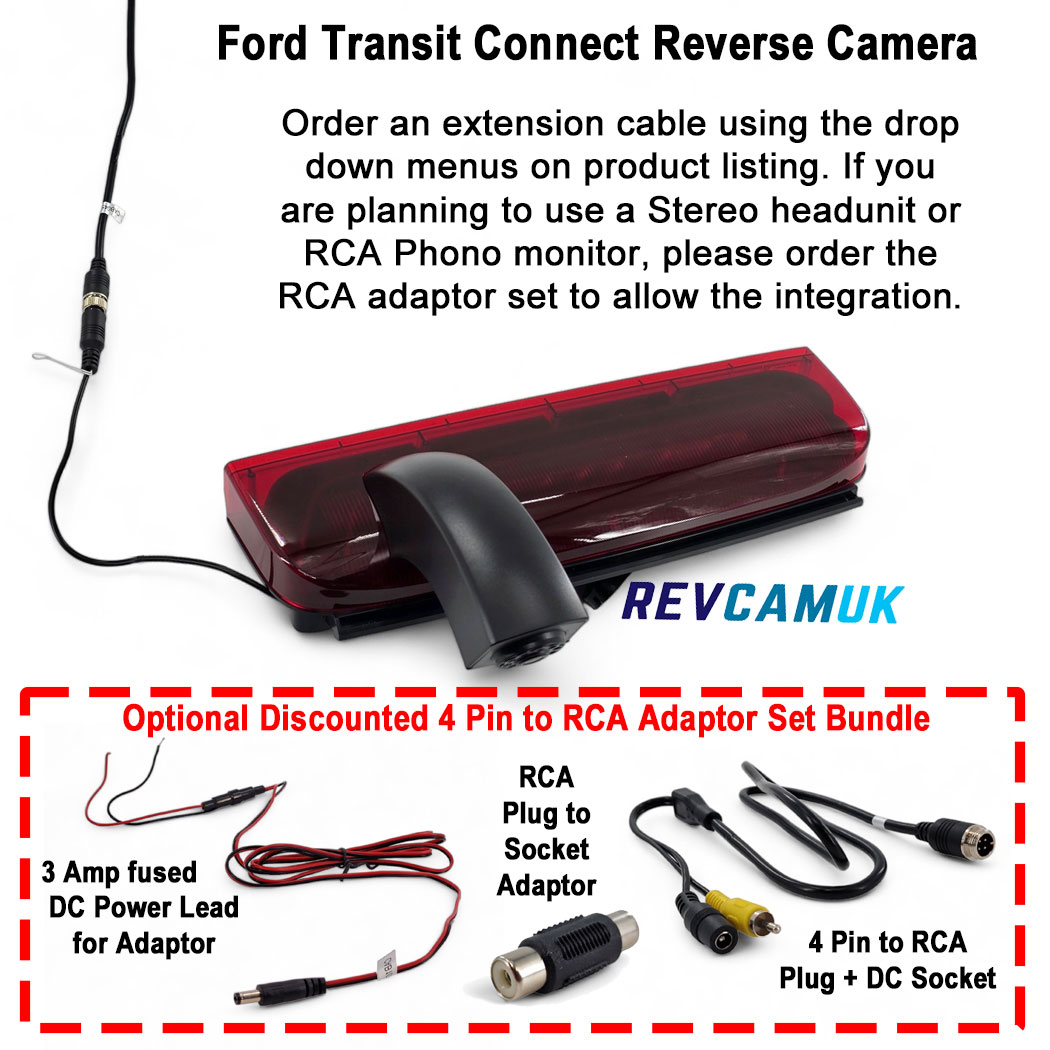

If you plan to use a phono/RCA monitor instead then we recommend sticking with the 4-pin cable and using an adaptor kit at the front (see the photo/option for more details) this means you can send power from the front of the vehicle to the camera down a 4-pin extension cable. You will see an option to add a discounted bundle of adaptors to cover every eventuality.
We use a high res image sensor, namely the 4089 700TVL sensor. Coupled with a 2.6mm 4 layer glass lens (some cheaper cameras use 2xglass 2xplastic which eventually turn cloudy due to sun exposure) to give approximately 130° field of view. See where this falls on our standard definition reversing camera rating list below.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo head units e.g. Sony, Pioneer, Kenwood... |
Technical Specification
Please find the technical specifications of the brake light reverse camera below :
Image Sensor: 1/3" CMOS
Total pixels: 976(H) x 592(V)
Video System: CVBS NTSC, 1.0Vp-p 75Ohm
Horizontal Resolution: 700 TV Lines
S/N Ratio: Better than 48dB
View angle: 150° diagonal / 110° horizontal / 85° vertical
IR LED: 8pcs
Power: DC12V
Temperature: -20°C - 70°C
Connector: 4 pin aviation
