Mini/Small White Reversing Camera | CAM529

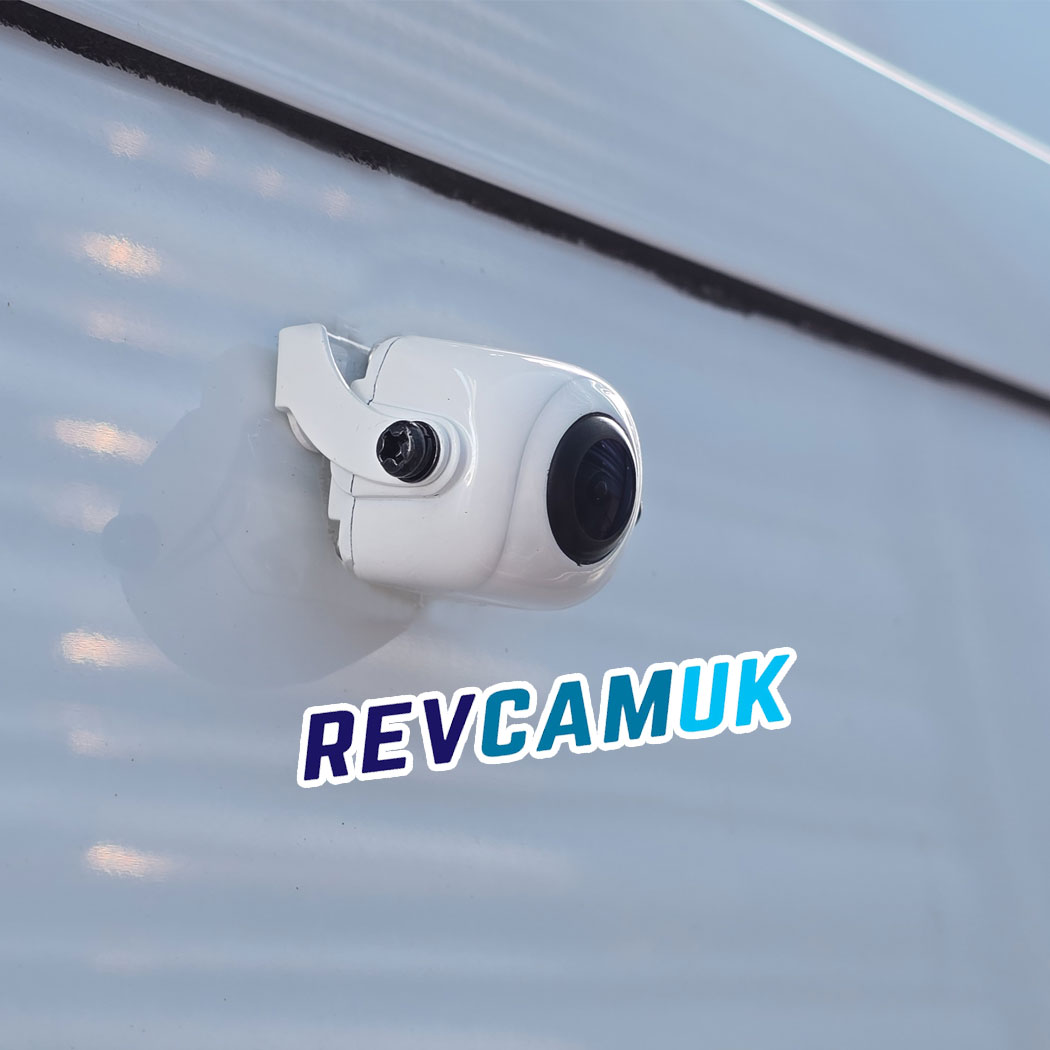

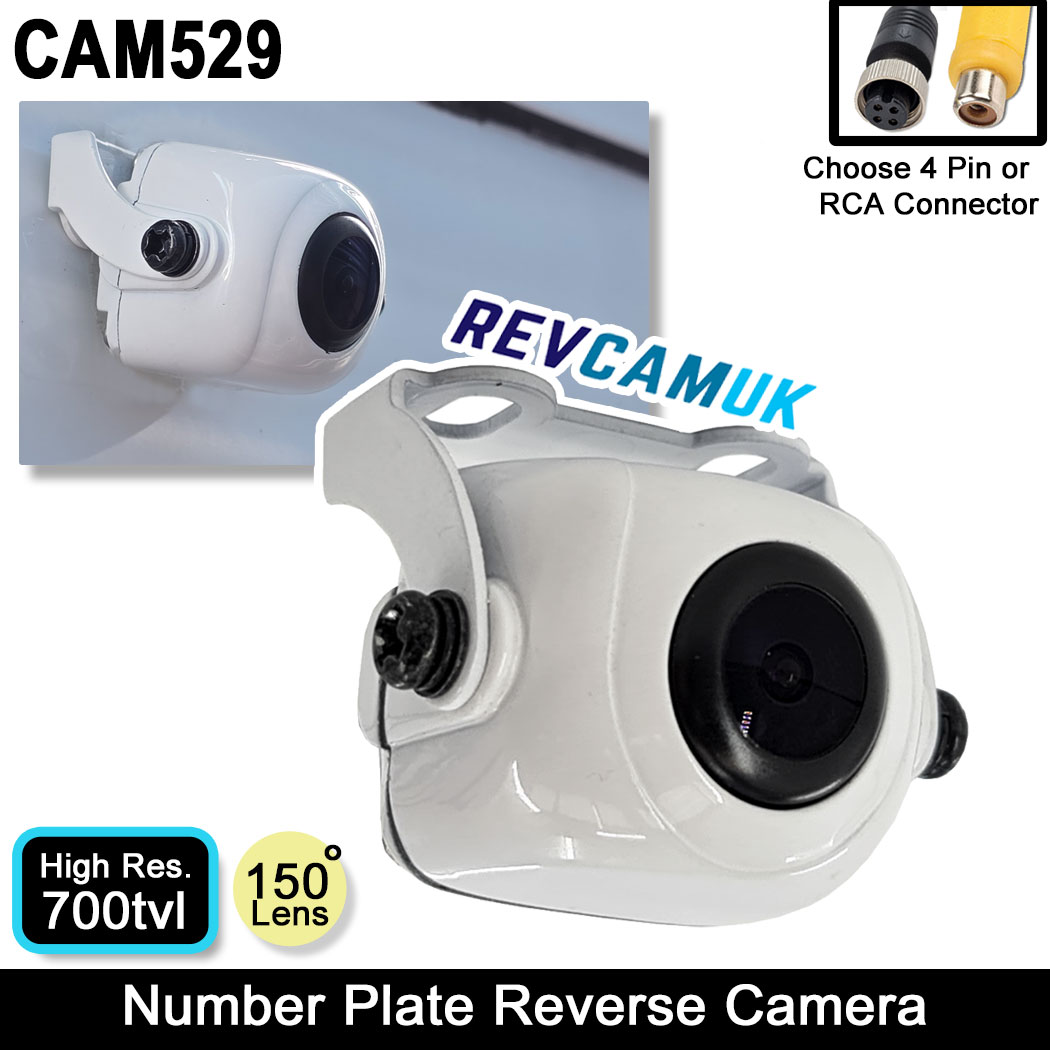

Our very small white reversing camera on a bracket. Fitted with a good quality 700TVL PC4089 image sensor, and all glass composite lens. 6.5mm diameter disconnect point for small cable entry hole requirements. Option of either 4 pin screw aviation or RCA Phono connectors depending on monitor input.
One of our latest small reversing cameras. We requested that this small camera offering had it's image sensor upgraded to the PC4089, which is the one we have fitted to our brake light cameras with good performance (made by the same factory). We requested the upgraded 4x composite glass lenses to keep image clear long term (vs the usual 2x glass + 2x plastic combination used where the plastic lens clouds over time with UV exposure).
You will see a beautiful clear picture from this camera despite its tiny size, the angle of view is very wide angle at 150 degrees.
If you choose the 4 Pin screw connector wiring then the wiring layout will look like the image below. See our 4 pin extension cables if you require additional length to connect to your monitor.
If you choose the RCA connector wiring then the wiring layout will look like the image below. See our RCA Phono extension cables if you require an extension cable with this reversing camera.
Please note that in both connector options the camera has a small non-waterproof plug in-line approx 60cm back from the camera. This must be in a dry, protected environment to avoid premature failure eg inside a tailgate.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Technical Specs
Please see the technical specifications for the product below:
Image device:- PC4089 CMOS sensor
Resolution: 700 TVL
Mirror/Normal image selectable
Selectable guidelines
NTSC format
IP rating: Ip68
Camera angle: 170 degrees diagonal
HD all glass composite lens
10G vibration rating
