Roof Mount "Shark-fin" "Overhang" Twin Lens Rear View + Reversing Camera | VANCAMTW

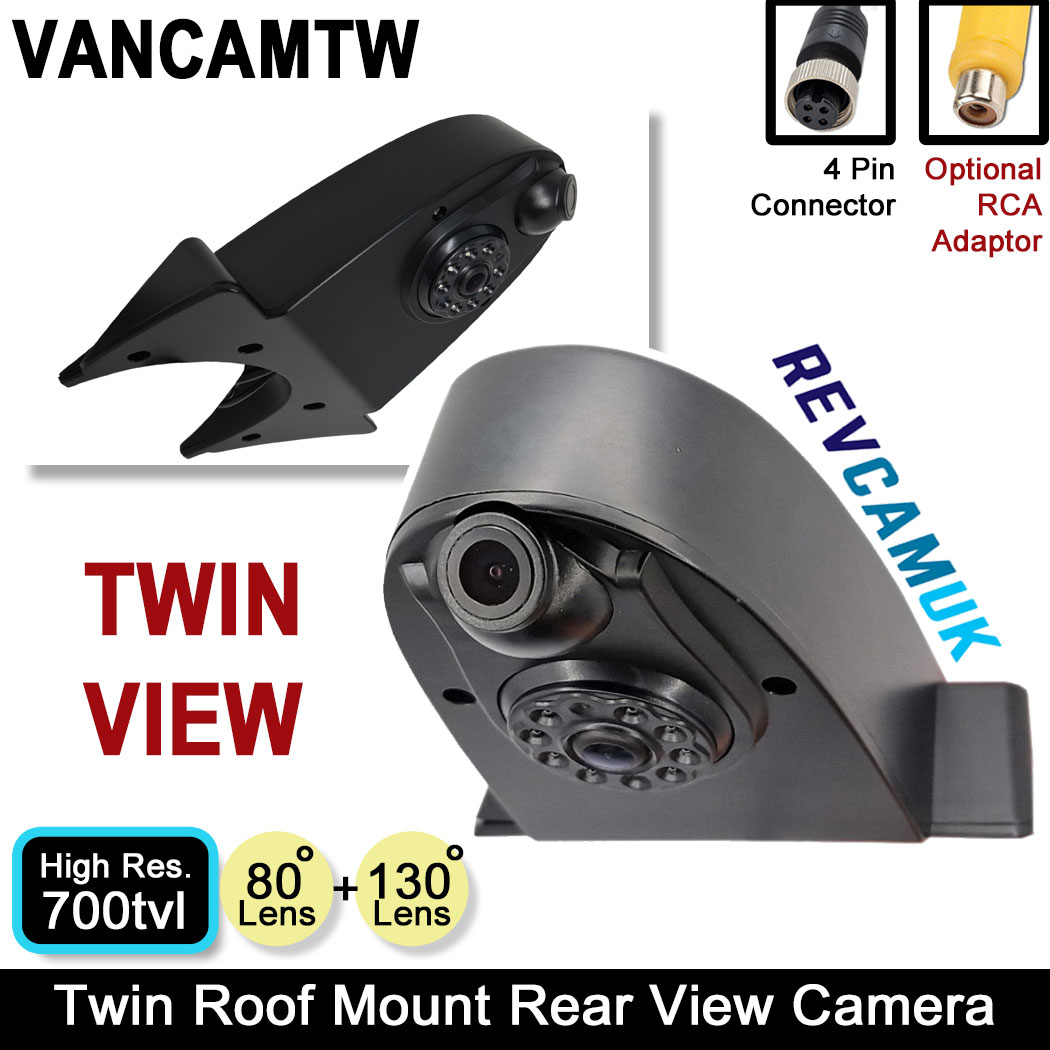

The latest edition to our roof mounted overhang reverse cameras. This model has two cameras, one for parking/reversing (130 degree lens), one for always on driving rear view (80 degrees lens).
We find the roof mount cameras ideal for people who wish to put a camera on the roof and have the camera look down to the bumper area. This was developed when vans seemingly decided overnight to scrap the space that used to be common above the rear doors.
You will have to double-check the thickness of your doors (on a few vans they can be very thick), we do carry a stainless steel extension plate should you find you need to extend the reach of the camera.
The reversing camera is fitted with night vision IR LED's. The quality of the sensor, plus the Infra Red light (only visible to the camera), means this camera has good night time performance. The reversing camera has a very wide angle 130 degree lens for maximum coverage when parking.
The driving rear view camera is fitted with a slightly narrower angle lens at 80 degrees, this allows distance to be judged better than the wide angle cameras.
Both cameras can be adjusted up and down.
This camera comes with a 4 pin connector. If you plan to mount this to a stereo head unit eg Pioneer/Kenwood/Sony then you will need one of our 4 pin to RCA/Phono adaptors.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Technical Specs
Please see the technical specifications for the product below:
Driving camera (upper camera)
Sensor: 1/3 PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
TV system: NTSC
Lens: 2.6mm
Min illumination: 0.1 LUX
Waterproof: IP68
View angle: V 65 degrees, H 80 degrees D 105 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
Reversing camera (lower camera)
Sensor: 1/3 PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
TV system: NTSC
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (some have a trigger wire to select)
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
