Compact White Bracket Reverse Camera | Sony 1/3" 700TVL CCD | CAM361W

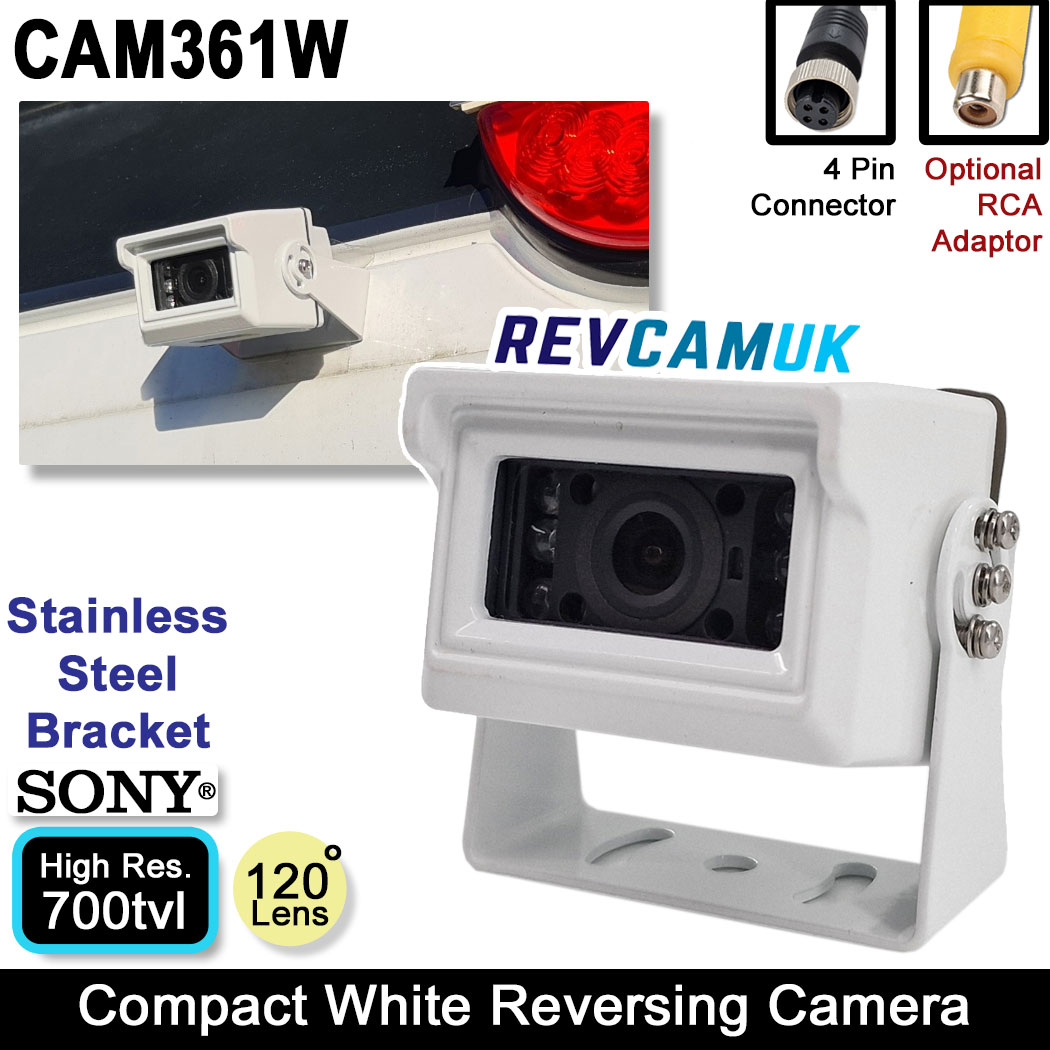

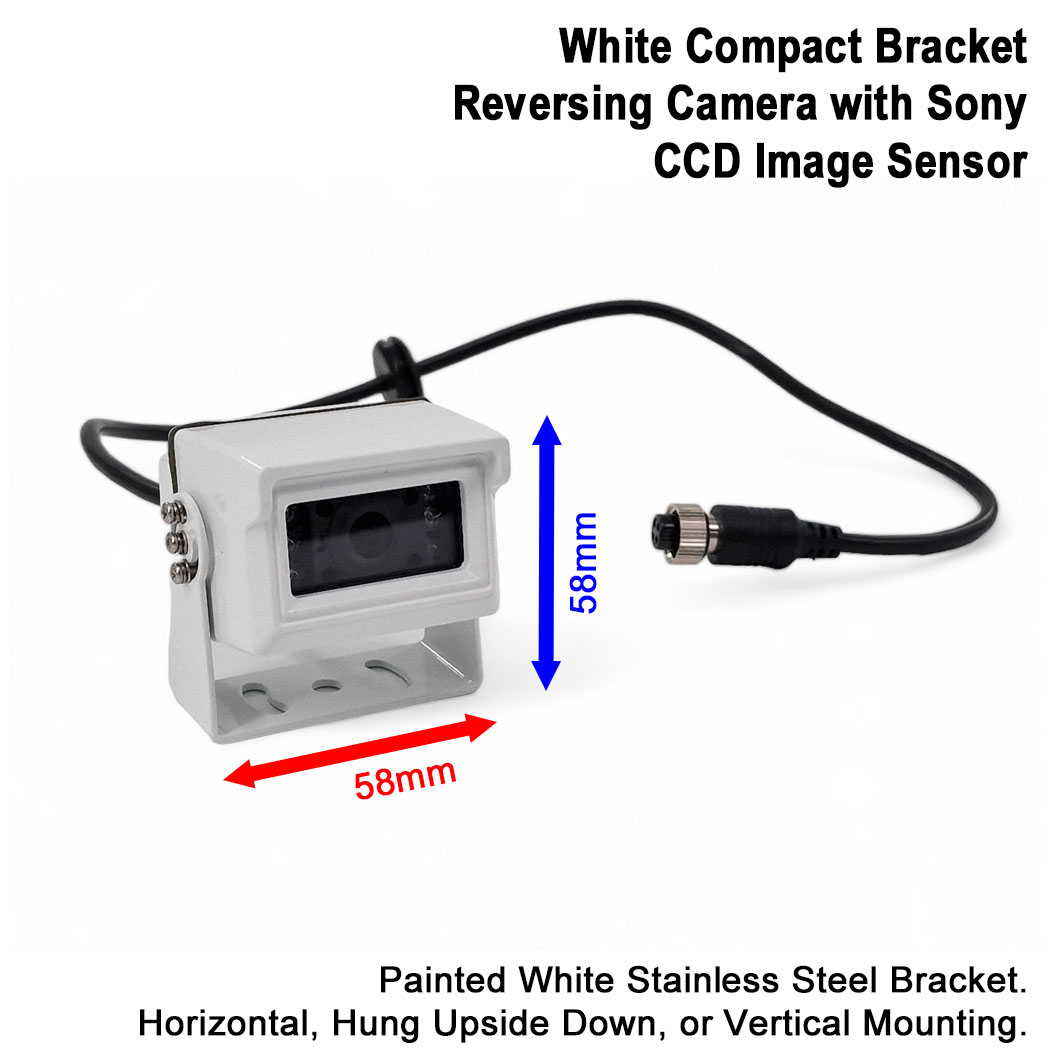

A smaller compact bracket reversing camera that still has our favourite image sensor - the 1/3" CCD Sony 700TVL. Night Vision IR LED's for low light levels, a painted stainless steel bracket, 4 pin aviation screw connector, and an option to include an adaptor set to Phono/RCA connectors. 58mm width and height makes this bracket reverse camera a more compact choice.

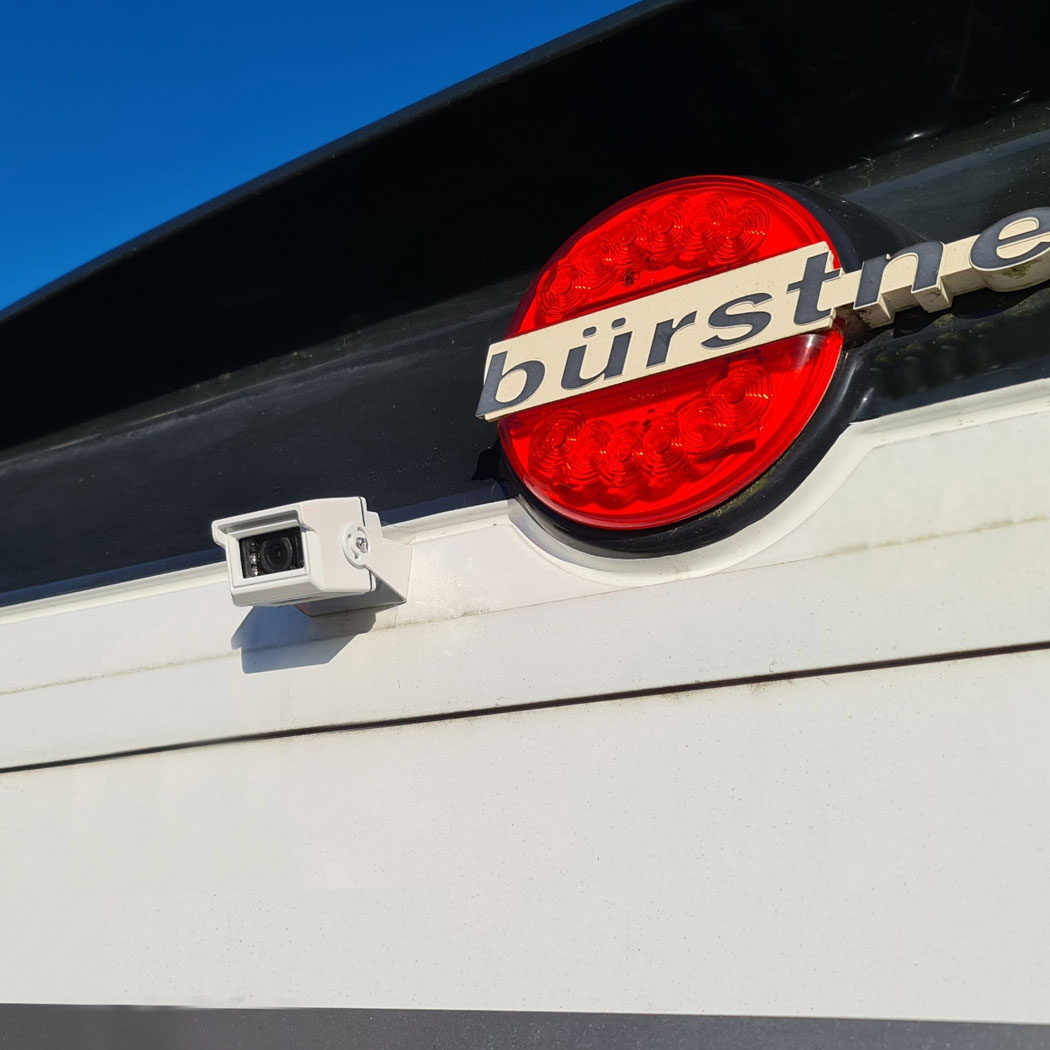

The compact reversing camera described in the provided information is a popular style of camera used in motorhomes, caravans, HGVs, and vans. It features a stainless steel bracket that has been painted white. The bracket is corrosion-resistant and designed to last a long time.
The camera uses a Sony 1/3" CCD 700TVL image sensor, which provides good picture quality during both day and night. It has night vision capabilities with infrared (IR) LEDs that automatically activate in low light conditions, allowing you to see in the dark while parking. These IR LEDs are only visible to the camera and won't distract vehicles behind you with bright lights.
Check out our rating compared to other standard definition image sensors.
To ensure proper visibility, the reversing camera sends a mirror image to the monitor. This mirroring is essential for cameras pointing backward, as it displays obstacles on the left side of the display as they appear on the left in real life, similar to how a mirror works.
The camera is equipped with a fly lead that has a 4-pin screw connector, also known as an aviation connector. This type of connector is preferred for its waterproof properties, thanks to the mechanical seal created by a rubber O-ring when the screw locking collar is tightened. It ensures a secure and reliable connection.
An RCA Phono conversion adaptor set can be added at a discounted price by selecting the check box on the listing next to the add to basket button. The set includes an adaptor to go from the 4 pin connector on the camera, to a yellow Phono RCA plug, a DC power socket, a DC power plug to red (+12V) and black (earth) wires, and a RCA Phono coupler (should you require an RCA socket instead of a plug).
The camera is rated waterproof to IP68, meaning it can withstand various weather conditions. It has an approximate viewing angle of 120 degrees when diagonally measured, providing a wide perspective for better visibility.
In summary, the compact reversing camera features a durable black stainless steel bracket, a Sony 1/3" CCD 700TVL image sensor for high-quality pictures, night vision IR LEDs, a mirror image display, a waterproof 4-pin screw connector, and a wide viewing angle.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Technical Specs
Please see the technical specifications for the product below:
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR leds on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
Infra red LEDs to provide night view
Mirror image only
Stainless Steel Bracket (painted)
