White Motorhome Number Plate Reversing Camera | CAM105

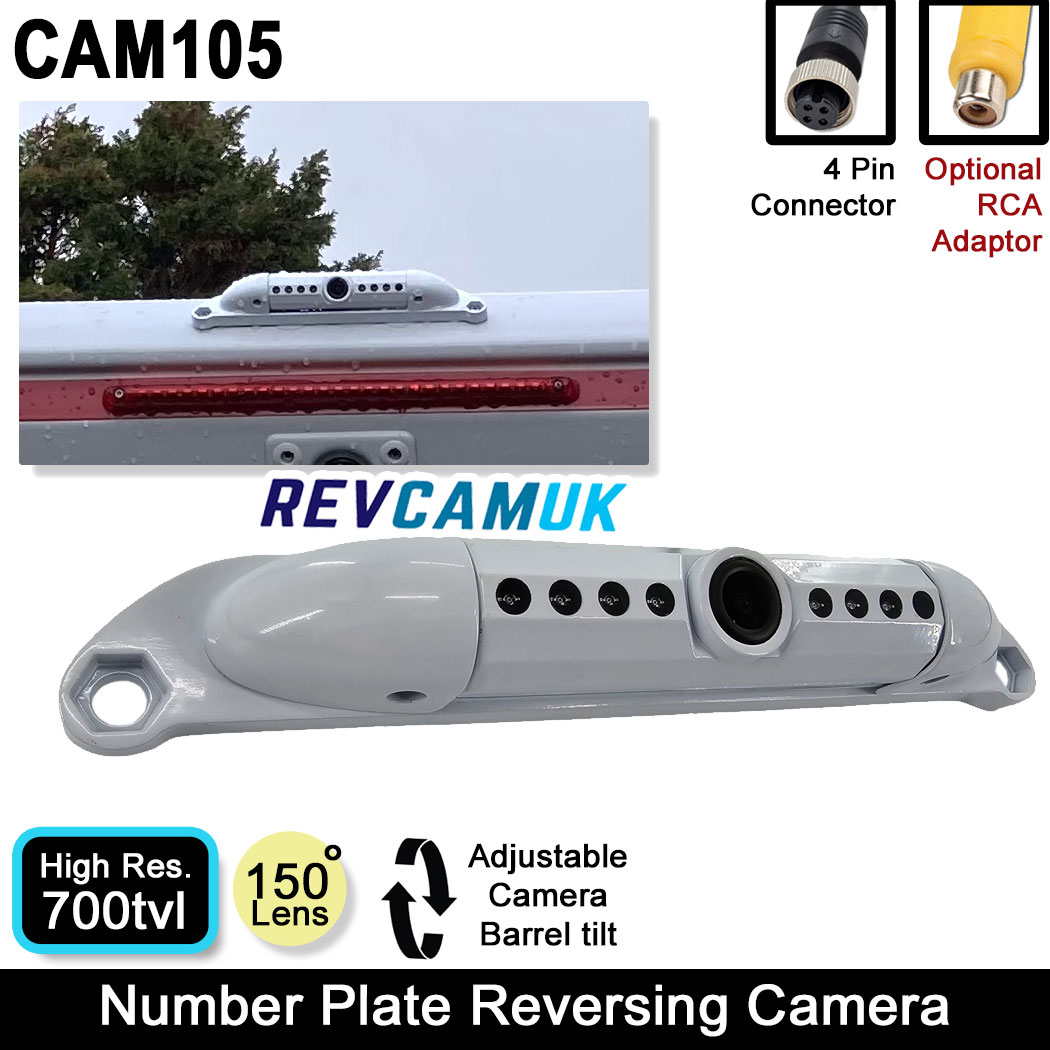

Our Slimline White Motorhome/Van Reversing Camera to either fit the numberplate area, or higher up to view down to give a birds eye view. Produced by the same factory that makes our highly respected brake light cameras. We have had the model upgraded with our favourite PC4089 image sensor and quality all-glass composite lens. Adjustable cylinder design, external IR LED's for great night vision.
About our Adjustable White Numberplate Reversing Camera for Vans and Motorhomes
This model was introduced in 2024 as an answer to people who like our similar design black number plate camera, but wanted it in white. The slimline reverse camera is fitted with IR LEDs for night vision, a high resolution 4089 700tvl image sensor, and an all glass composite lens (the same combo that is found on our brake light cameras that also produce these for us). This camera has the following advantages :
Attractive White Slimline Design - A subtle, discreet camera that can be mounted either low down near the number plate, or higher up to give a birdseye view. See our images to see an example of this camera fitted high up on the back of a Motorhome.
Great Image Quality - Thanks to the 4089 700tvl image sensor and the all glass composite lens, the reverse camera produces a good quality image on your monitor display.
Night Vision IR LED's - Thanks to the fitted IR LED's you can expect good rear vision at all times, even in the middle of the night. With separated IR LED's and Lens you can expect good contrast at night time, to give you greater confidence whilst reversing.
Wide Angle Lens - We have a good quality all glass composite lens fitted, which provides a nice wide spread to give the greatest visibility of any objects around the rear of your vehicle.
IP68 Waterproof Protection - With a rating of IP68, you can be assured your camera will remain in good working order whatever the Great British weather can throw at it.
Increases Reversing Safety - With nearly a quarter of all vehicle collisions occuring whilst reversing, having a reversing camera helps give you greater visibility when travelling backwards. Important in avoiding harming others, or damaging property.

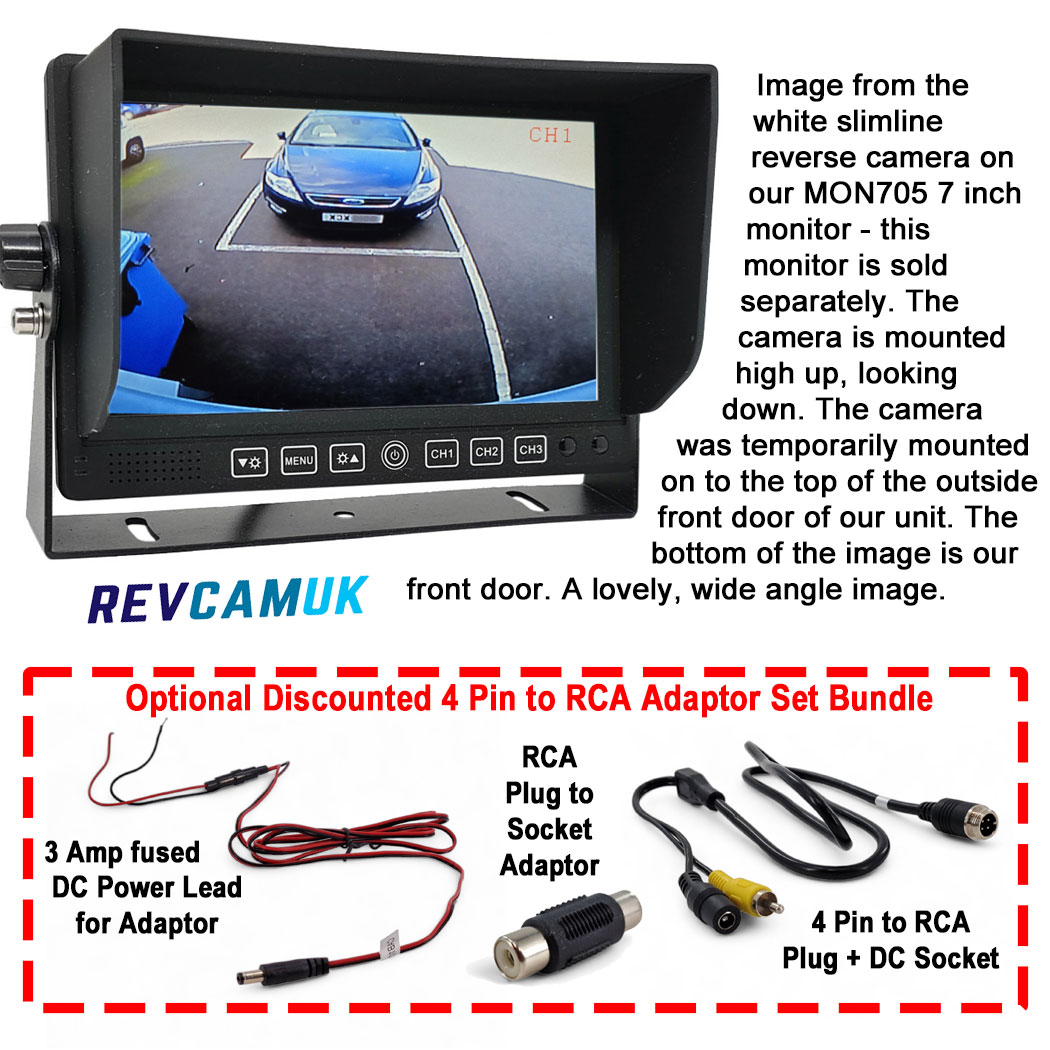

Optional Adaptor Cable to RCA Phono - An RCA Phono conversion adaptor set can be added at a discounted price by selecting the check box on the listing next to the add to basket button. The set includes an adaptor to go from the 4 pin connector on the camera, to a yellow Phono RCA plug, a DC power socket, a DC power plug to red (+12V) and black (earth) wires, and a RCA Phono coupler (should you require an RCA socket instead of a plug).
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Technical Specification
Image Sensor : CMOS4089
Effective Pixels : 976(H) * 592(V)
TV Lines : 700TVL
TV System : PAL
Lens : 1.9mm
Min illumination 0.1Lux / 0Lux (LED ON)
Waterproof : IP68
Viewing angle : 150°(D)
Power Voltage : 12V
Operating temperature : -20℃~+70℃
