2006 - Present Citroen Relay Brake Light Reversing Camera Kit with 7" Mirror Monitor

• Top Image Quality - The Citroen Relay brake light reverse camera is fitted with our favourite image sensor and lens combination - the 4089 700tvl image sensor, coupled with the 4 layer quality composite glass lens.
• Excellent Night Vision - With an external lens, a premium modern CMOS high resolution image sensor, and externally separated IR LEDs you can expect a very good night time image.
• Durable Build Quality - We rarely hear of one of our brake light reversing cameras failing. This is because we insist on using who we consider to be the best brake light camera manufacturer that exists today.
• Factory Fit Look - This retro fit brake light reverse camera has been made to appear as close to factory look as possible.
• Reversing Safety, and Stress Free Parking - With the 130 degree lens and the quality image sensor installed, you can see obstacles around the rear of your van or motorhome conversion van as you manoeuvre around them. Reduce the likelihood of damage, or injury to others with the Citroen Relay brake light reverse parking camera.
• Optional Guidelines to Assist Parking - The Citroen Relay brake light reversing camera comes with coloured parking guidelines turned on as standard. These can be removed via the trigger wire loop next to the plug. *Please note that we currently have two versions of this kit, one with guidelines and one without. If you have a preference as to which we supply please leave a customer note during checkout.
• Choice of Mirror Monitor Mounting Method - You can select either a clip-over mirror monitor, or one of the few attach direct-to-windscreen methods (see further down in the description for more details)
• Bolt from the Rear Fixings - This can also fit brake lights that screw in from the front (simply remove the spacers that the screws secure against - these screws are bolted from the rear).
• No CANBUS issues and Easy Fit - Due to the 4 pin cabling used on this reversing camera system. We prefer 4-pin based systems because it means the monitor can provide power to the camera, and this avoids CANBUS issues that can occur if taking power from the reverse light. The monitor we use provides power down an all-in-one screw together cable making fitting easy.
• Adjustable Tilt Camera - The camera has some up/down adjustability however it can't be angled high enough to give a view back down the road.  If you require this function, please see our twin lens brake light reverse parking and rear view camera kit for Citroen Relay.
• Re-use Original Light Strip - The camera has been designed to accept the old light strip from your existing brake light lens. Simply release the tabs (top and bottom), then transplant the light across to the new brake light reversing camera. See below for guide and video on how to do this.

Our video about the brake light reversing camera kit

Tidy Factory Look Fit

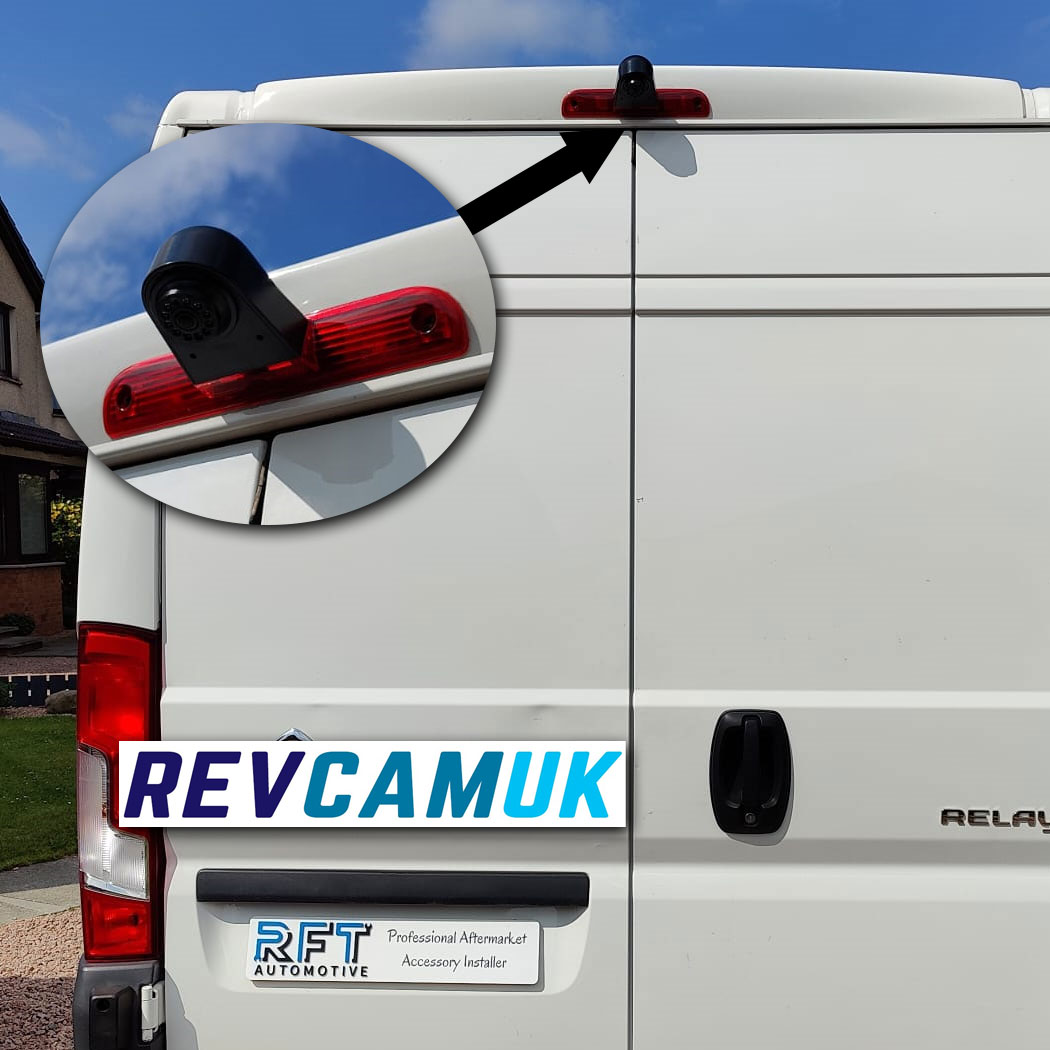

The photo below was sent in by RFT Automotive, a quality fitter from Ellon, Aberdeenshire, who frequently purchases brake light reversing camera kits from us to install on his customer's vehicles. We have a good reputation amongst installers, since they don't have to drive back out for endless replacements (like they do with some of our competitors products).

Choose your preferred mirror monitor mounting option :

• Have a mirror? Choose our clip-over mirror option, we will supply you with a rear view mirror monitor that clips over your existing interior mirror.

• Don't have a mirror but have a twist type hexagonal shaped metal mounting plate/button on the windscreen for one? (usually hidden behind a plastic trim/cover. Then choose the ACCMB2+MP35 swan neck bracket option, we will supply you with our MP35 (Mounting Plate 35) and Swan neck bracket, these will secure to the hexagonal shaped button and fix to the back of the mirror monitor (which we will provide with screw holes on the rear for the bracket to screw in to. This type of mounting plate is most commonly found on later model Ducato, Boxer and Relay Vans. Download the PDF fitting instructions for attaching MP35 to the hexagonal shaped windscreen plate here.

• Don't have a mirror but have a slide down type metal mounting plate/button on the windscreen for one? then choose the ACCMB7 swan neck bracket option. We will supply you with our swan neck bracket compatible rear view mirror monitor + the swan neck bracket designed to fit to the windscreen slide type metal mounting plate.

• Don't have a mirror and don't have a metal button on the windscreen? Choose our ACCMB2 + Button + Glue option, we will supply you with the bracket compatible monitor, a Ford Button to bond to the windscreen, Loctite 319 windscreen button adhesive to bond the button up, as well as full instructions on how to mount a windscreen button with Loctite 319 adhesive. We have researched videos, reviews, and manufacturer recommendations to provide the best instructions available to get the job done correct, first time.

Quality Image Sensor and Lens

• We use a premium modern 700TVL CMOS sensor to capture the image, coupled with a very high quality 4x glass layer composite lens. All glass lenses avoid the fading experienced with the cheaper 2x plastic, 2x glass lenses common on cheaper reversing cameras.
• This brake light reversing camera has the lens fitted externally, which means you get a wider field of view when compared to models that have the lens mounted behind a glass cover.

Guarantee and Support:

• Comes with a 2-year guarantee.
• Offers lifetime support from UK specialists.

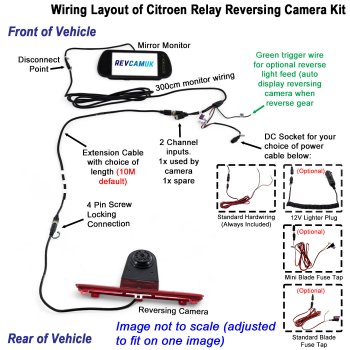

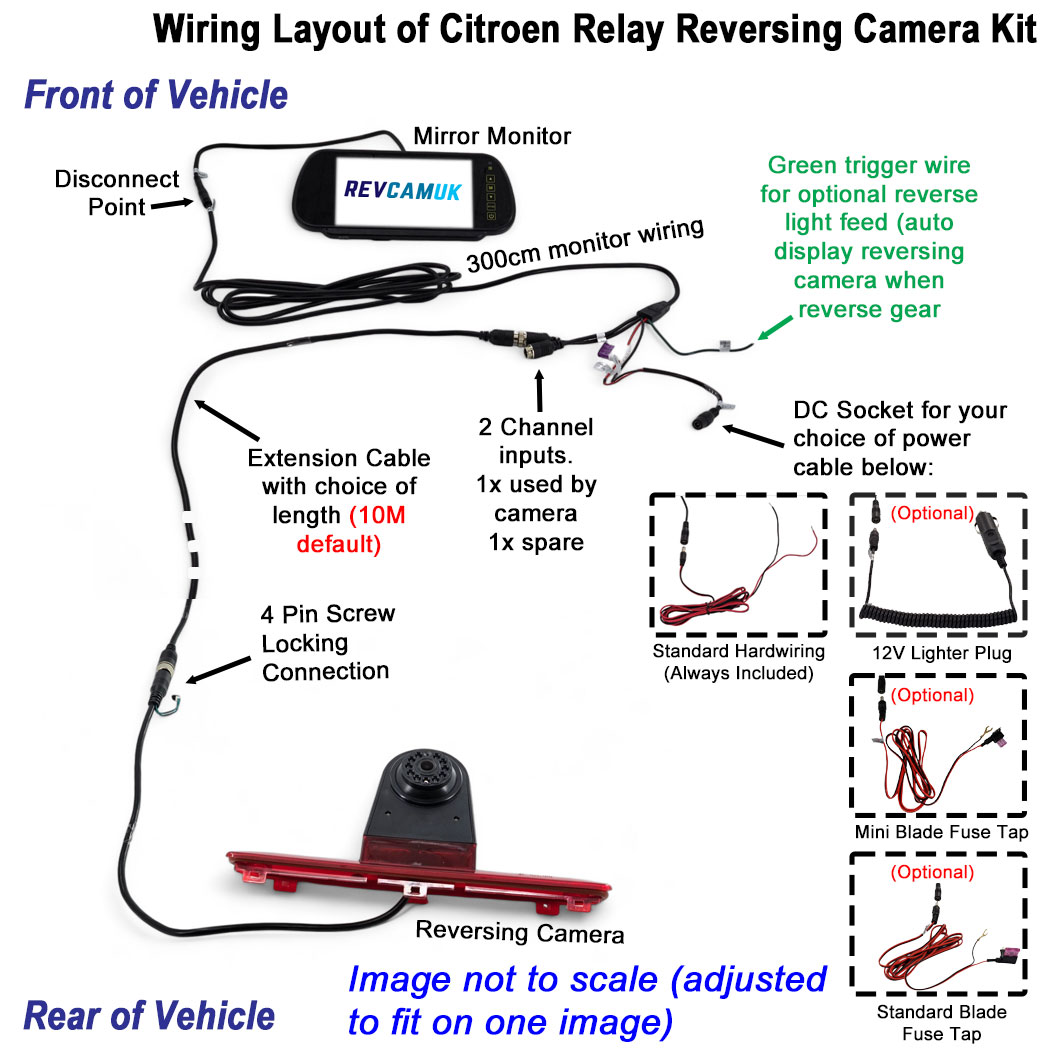

Installation and Power Options:

• Easy installation with various power options that plug in to a socket on the monitors wiring harness/loom.
• Single power connection powers the entire system.
• Standard hardwiring ALWAYS included even when adding the additional connector options.
• Choose a lighter plug for the easiest plug and play solution. Some customers order this just for testing purposes before using one of our hardwiring options (fuse tap or bare wire) afterwards.
• Choose one of our fuse taps for an easy hard wire installation. We have had them designed so that one end plugs in to the monitor power socket on the end of the wiring harness, whilst on the other side of the 200cm lead has a mini blade or a standard blade fuse tap aka piggyback fuse holder, as well as a chassis earth/ground terminal fixing (find a screw/bolt connected to bare chassis and fix to this). See our downloadable PDF instructions on how to install a fuse tap/piggyback fuse holder to your vehicles fusebox.

For more information including main reversing camera kit instructions, and monitor instructions, please click the tab for PDF instructions. If you would like any information/questions that may not be present, please contact us.
