Ford Transit Custom (LED Version) 2016-Present Brake Light Reverse Parking Camera Kit with 7" Mirror Monitor | PM39BLH
Reversing camera kit to fit the smaller Ford Transit Custom Vans with the split type brake lights between the two doors. We provide the left hand side brake light with the camera built in, simply remove the old brake light and clip in the new brake light camera, then run the cable to the monitor. The monitor powers the camera, so no CANBUS worries.
Ford Transit Custom Brake Light Reverse Camera Kit with 7" Mirror Monitor
Reversing camera kit to fit the Ford Transit Custom vans built between 2012 and May 2016 with the bulb fitment. Comes with our amazing quality 7" rear view mirror monitor. When ordering you can choose either a clip-over existing interior mirror monitor, or one of our direct to windscreen stalk bracket monitors. Choose to buy from one the most respected and experienced Reversing Camera Specialists, fast delivery, the best quality, a two year guarantee, and lifetime support.
This brake light reversing camera fits the following vans:
Ford Transit Custom (With Bulb Fitment) 2012 - May 2016
This reversing camera kit has the following advantages :
Great Image Quality - We don't settle for the base spec when it comes to this brake light camera. We have the 4089 700tvl image sensor fitted, which is paired with a top quality all-glass composite lens. The image sensor is one of the most important components for ensuring a colourful, sharp, and high dynamic image. We select all glass lenses instead of cheaper glass-plastic composites, because over time plastic containing lenses would fade from UV damage. No such issue with our all-glass lenses.
Direct Replacement for Ford Transit Custom Vans - Our brake light reverse parking camera is designed to be an exact replacement. Maintain the factory look, whilst adding additional safety.
Premium Grade High Resolution Mirror Monitor - Mirror monitors all look the same due to the public design cases used, however the quality varies massively. Rest assured that ours are amongst the very best we have ever seen in our long experience. Expect a great colourful image and reliability. We try and hold spares for low cost repairs to ensure your system keeps you safe.
Most Popular Location for Fitting a Monitor - The position of the interior mirror is where we naturally look when we wish to see what is behind us.
IP68 Waterproof Protection - This reversing camera is rated to IP68 water/dust ingress protection. This will keep the camera protected in even the worst wet and stormy weather the Great British weather can throw at it, or indeed on your trips across the continent.
130°(H) / 160°(D) Ultra Wide Angle - Due to the external lens fitted to this camera, you are able to have a greater field of view, which is very helpful when reversing. External lenses can achieve wider field of view compared to those mounted behind a glass cover.
2 Year Guarantee - Both the brake light camera and the monitor have such great reliability, we fully guarantee them to be free from defect for 2 years.
IR Night Vision - This camera is fitted with IR LED's that activate when it becomes dark. IR light is beyond the visible spectrum of the human eye, so you won't be blinding anyone behind you with light. The camera will see it, and use it to see obstacles behind your van when it is dark. Another bonus about our external lens is not having the IR LED's behind a glass lens cover. This means you get a really good contrast at night time, with none of the haziness sometimes seen with glass lens cover versions.

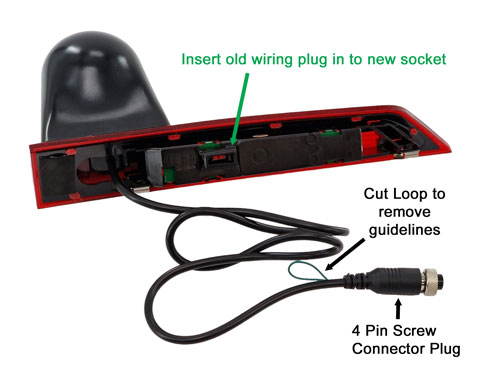

Clips in to the left hand side door, simply insert your old wiring plug in to the new brake light camera.
Choose your preferred mirror monitor mounting option :
Have a mirror? Choose our clip-over mirror option, we will supply you with a rear view mirror monitor that clips over your existing interior mirror.
Don't have a mirror but have a metal button on the windscreen for one? Choose our ACCMB2 swan neck bracket option, we will supply you with our swan neck bracket compatible rear view mirror monitor + a swan neck bracket to fit to the Ford windscreen buttons commonly found on most Ford Transit vans.
Please note that on the Ford Custom, if you have either auto wipers or auto lights you will likely have your Ford windscreen mounting plate (button) covered by a plastic piece that will need to be removed to access the Ford button (see image below).
Don't have a mirror and don't have a metal button on the windscreen? Choose our ACCMB2 + Button + Glue option, we will supply you with the bracket compatible monitor, a Ford Button to bond to the windscreen, Loctite 319 windscreen button adhesive to bond the button up, as well as full instructions on how to mount a windscreen button with Loctite 319 adhesive. We have researched videos, reviews, and manufacturer recommendations to provide the best instructions available to get the job done correct, first time. We have researched videos, reviews, and manufacturer recommendations to provide the best instructions available to get the job done correct, first time.
If you do choose any of the swan neck bracket mounts above then it is worth mentioning that the original trim cover won't be able to fit back with the swan neck bracket present. We have heard back from customers that this isn't too much of an issue, as the mirror still looks tidy and covers most of what is behind. Please see the photo below that has been sent in by a customer, there are different interiors so may look different to your van.
For more information including main reversing camera kit instructions, and monitor instructions, please click the tab for PDF instructions. If you would like any information/questions that may not be present, please contact us.

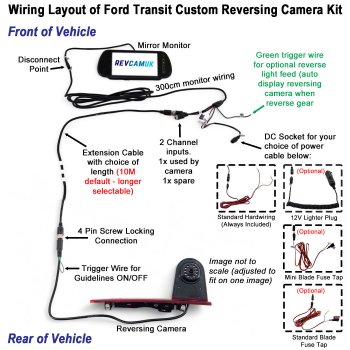

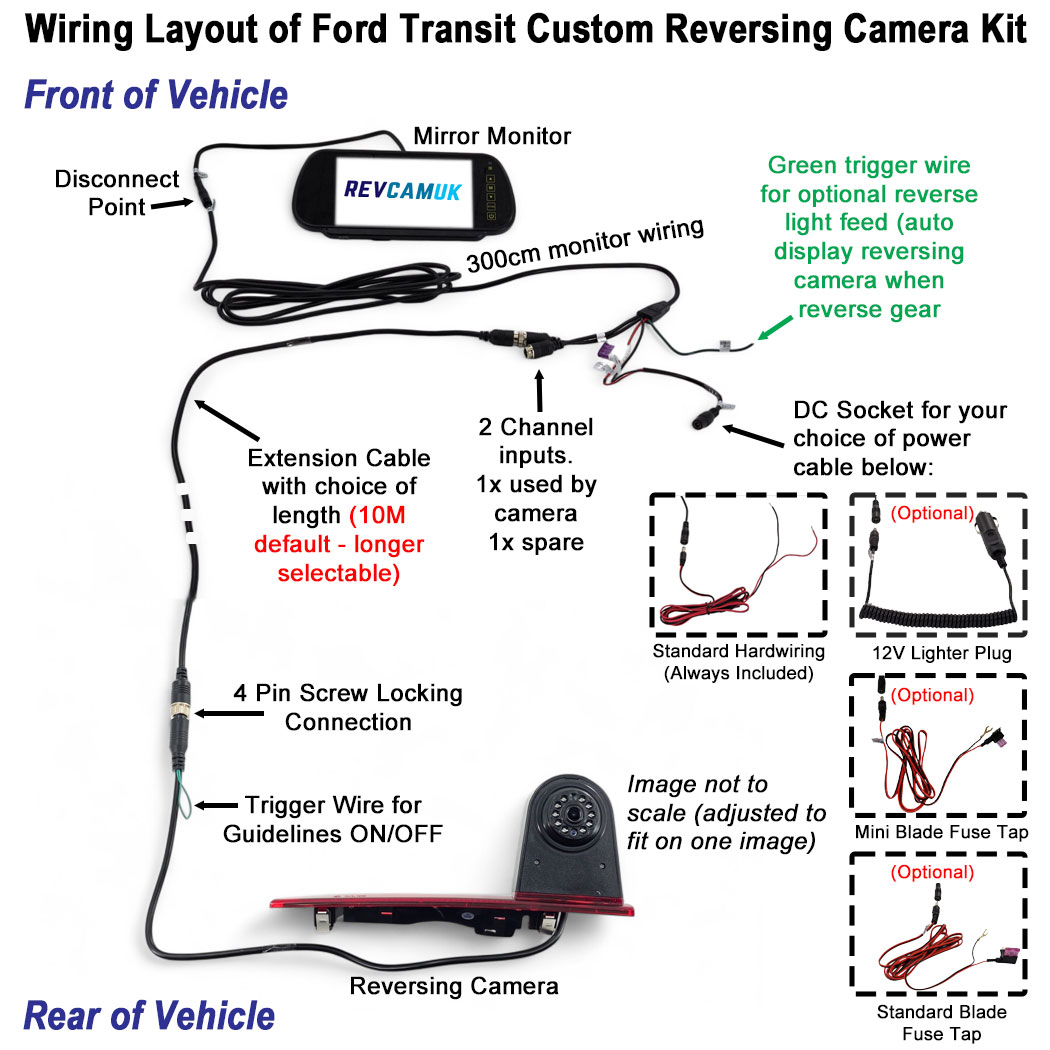

Power Connection Options
You have the option to add additional leads that plug in to a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder / crimp to a power supply.
On the drop down menus you will notice there are two options selectable. One to add a lighter plug, one for a fuse tap. Scroll down for details on each option.
Lighter Plug
Selecting this option adds an additional lighter plug lead - attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some people order this option just to try out there new kit before hardwiring permanently.
Fuse Tap (Mini blade, Standard blade)
Selecting this option adds an additional easy-wire fuse tap lead with built in earth terminal connector.
We designed and had this product produced in 2023, and they have been very popular. We wanted to create something that meant our customers could hardwire a reversing camera system to their vehicle with ease and minimal tools. Fuse taps have already become popular for installing dash cams, so we wanted to make them more popular for reversing camera kits too.
Usually fuse taps have no earth terminal connector and require crimp tools to connect to your wiring - our easy wire fuse tap kits are different. They come supplied with 2M of twin wire (power + earth) attached. The wires can be pulled apart should you wish to earth to an area far from the fuse box.
Choose a fuse that's active when the ignition is on. Remove the original fuse and place it in the empty slot of the fuse tap. The correct rated fuse for the new camera system is supplied already installed in the correct slot. Install the fuse tap (with the two fuses fitted) in to the fuse box (where you removed the original fuse). Lastly, connect the earth terminal to a chassis bolt or screw (or add a new bolt/screw to secure it).
The mini blade is the most commonly seen fuse size on modern vehicles.
Standard blade used to be the most common fuse size installed, and is still commonly seen, even on very recent vehicles.
Monitor
7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x3(RGB)x480
2x 4 pin Inputs
PAL/NTSC/AUTO
Camera
Sensor: 1/3" PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (some have a trigger wire to select)
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install. |
 Click preview image to download the PDF file | Clip-Over Option Mirror Monitor Instructions If you choose a mirror monitor kit and you don't select the AHD upgrade option then this monitor will be supplied. It is a great monitor with lots of menu options, lovely colour, adjustable guidelines, and good viewing angle range. |
 Click preview image to download the PDF file | Bracket to Windscreen Mirror Monitor Instructions If you choose a mirror monitor kit with a direct to windscreen swan neck mount option, then this will be the monitor that is supplied. This guide will teach you about adjusting guidelines, wiring, and other menu settings. |
If you are ordering the Mini Bade or Standard Blade Fuse Tap power option, then please see the further instruction sheet below dealing with this time saving connection method.
 | Instructions for fitting Fuse Taps / Piggyback fuse holders for power supply Our guide on how to correctly install a piggyback fuse holder tap to power a reversing camera system from the fuse box. |
