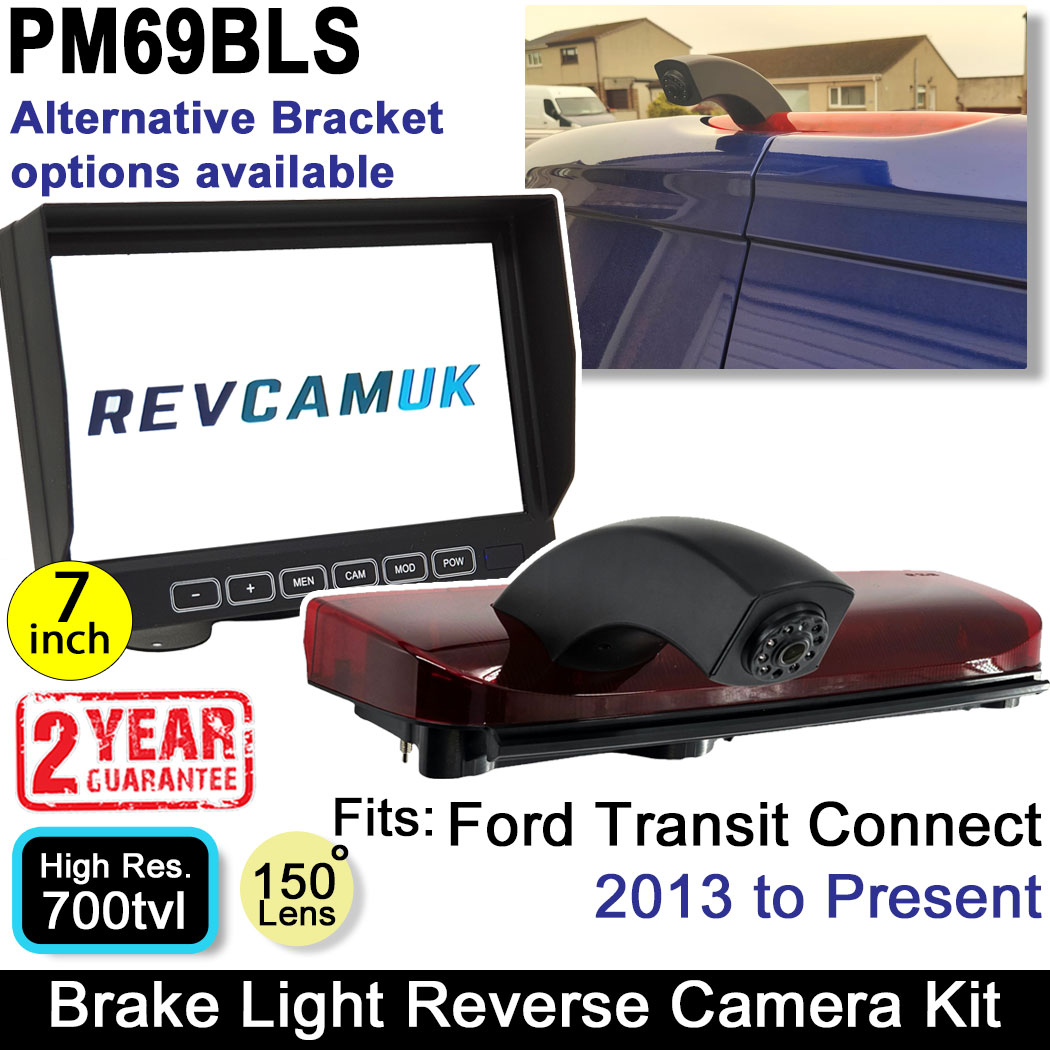

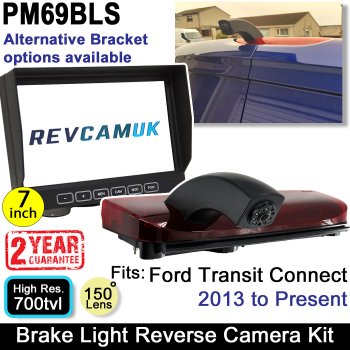

Ford Transit Connect 2013+ Brake Light Reversing Camera Kit with 7" Dash Monitor | PM69BLS
Reversing Camera Kit designed to replace the brake light on Ford Transit Connect Vans built after 2013. Top quality high resolution 7" Dash Monitor Display and Upgraded 700tvl brake light reverse camera, No CANBUS issues due to the monitor powering the camera. Highest quality monitor and camera, with a two year guarantee on all parts, as well as lifetime support. Buy from the reversing camera specialists with two decades of reversing camera sales experience. Expect fast delivery, great quality, and amazing support and advice.
Ford Transit Connect Brake Light Reversing Camera Kit with 7" Monitor
Reversing Camera Kit designed to replace the brake light on Ford Transit Connect Vans built after 2013. Top quality high resolution 7" Monitor Display and Upgraded 700tvl brake light reverse camera, No CANBUS issues due to the monitor powering the camera. Highest quality monitor and camera, with a two year guarantee on all parts, as well as lifetime support. Buy from the reversing camera specialists with two decades of reversing camera sales experience. Expect fast delivery, great quality, and amazing support and advice.
This brake light reversing camera fits the following vans:
Ford Transit Connect 2013 Onwards
This reversing camera kit has the following advantages :
Great Image Quality - We don't settle for the base spec when it comes to this brake light camera. We have the 4089 700tvl image sensor fitted, which is paired with a top quality all-glass composite lens. The image sensor is one of the most important components for ensuring a colourful, sharp, and high dynamic image. We select all glass lenses instead of cheaper glass-plastic composites, because over time plastic containing lenses would fade from UV damage. No such issue with our all-glass lenses.
Direct Replacement for Ford Transit Custom Vans - Our brake light reverse parking camera is designed to be an exact replacement. Maintain the factory look, whilst adding additional safety.
High Resolution Image Quality - Our 7 inch stand/dash mount monitor display gives a good quality image thanks to it's 800x480 pixel digital hi-res LCD panel.
Advanced Menu System - A lot of reversing camera displays have very basic functions, usually just the colour/contrast/brightness. This menu system has the ability to add guidelines, number the guidelines with a distance, choose to say if the measurement is displayed as M or Ft, individually change settings for each channel e.g mirror one channel but not the other, and set interval mode so the monitor flicks between both channels at a set number of seconds. We don't just leave you to figure things out yourself, we issue a booklet to guide you through all of the functions, why not read it before you purchase by heading to the PDF instructions tab of this listing. We are about keeping long term products, consistency, and support for life, which includes providing detailed support material such as this.
Ability to Add Guidelines to Image in Reverse - You can set the monitor up so that it displays guidelines when you select reverse gear. These lines can be adjusted in width, and along both the vertical axis and horizontal axis. Numbers can be added, and choice of imperial or metric measurements. See pages 5 to 6 of our comprehensive instruction manual for the 7 inch reversing camera monitor for more details on the guidelines.
Most Popular Size Reversing Camera Display- The 7 inch displays are the most popular size for reversing camera monitors. Commonly seen fitted to motorhomes and vans.
Alternative bracket options - The monitor has a rear channel that allows our alternative monitor brackets to be installed. This choice includes quick release, ceiling mount, heavy duty, and temporary suction mount brackets. You can choose to add a discounted price bracket with this monitor using the drop down selection box menu.
IP68 Waterproof Protection - This reversing camera is rated to IP68 water/dust ingress protection. This will keep the camera protected in even the worst wet and stormy weather the Great British weather can throw at it, or indeed on your trips across the continent.
130°(H) / 160°(D) Ultra Wide Angle - Due to the external lens fitted to this camera, you are able to have a greater field of view, which is very helpful when reversing. External lenses can achieve wider field of view compared to those mounted behind a glass cover.
2 Year Guarantee - Both the brake light camera and the monitor have such great reliability, we fully guarantee them to be free from defect for 2 years.
IR Night Vision - This camera is fitted with IR LED's that activate when it becomes dark. IR light is beyond the visible spectrum of the human eye, so you won't be blinding anyone behind you with light. The camera will see it, and use it to see obstacles behind your van when it is dark. Another bonus about our external lens is not having the IR LED's behind a glass lens cover. This means you get a really good contrast at night time, with none of the haziness sometimes seen with glass lens cover versions.
For more information including main reversing camera kit instructions, and monitor instructions, please click the tab for PDF instructions. If you would like any information/questions that may not be present, please contact us.
Additional Monitor Bracket Options
To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below. We also have a YouTube video showing the various bracket options below.
ACC035 - "Butterfly" Bracket option
So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.
ACC041 Quick Release Bracket option
The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.
ACC705B - Heavy Duty Rear Mount Bracket Option
The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.
ACC038 - Suction Mount Bracket Option
Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.
ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option
The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.

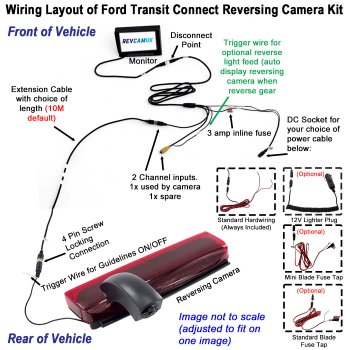

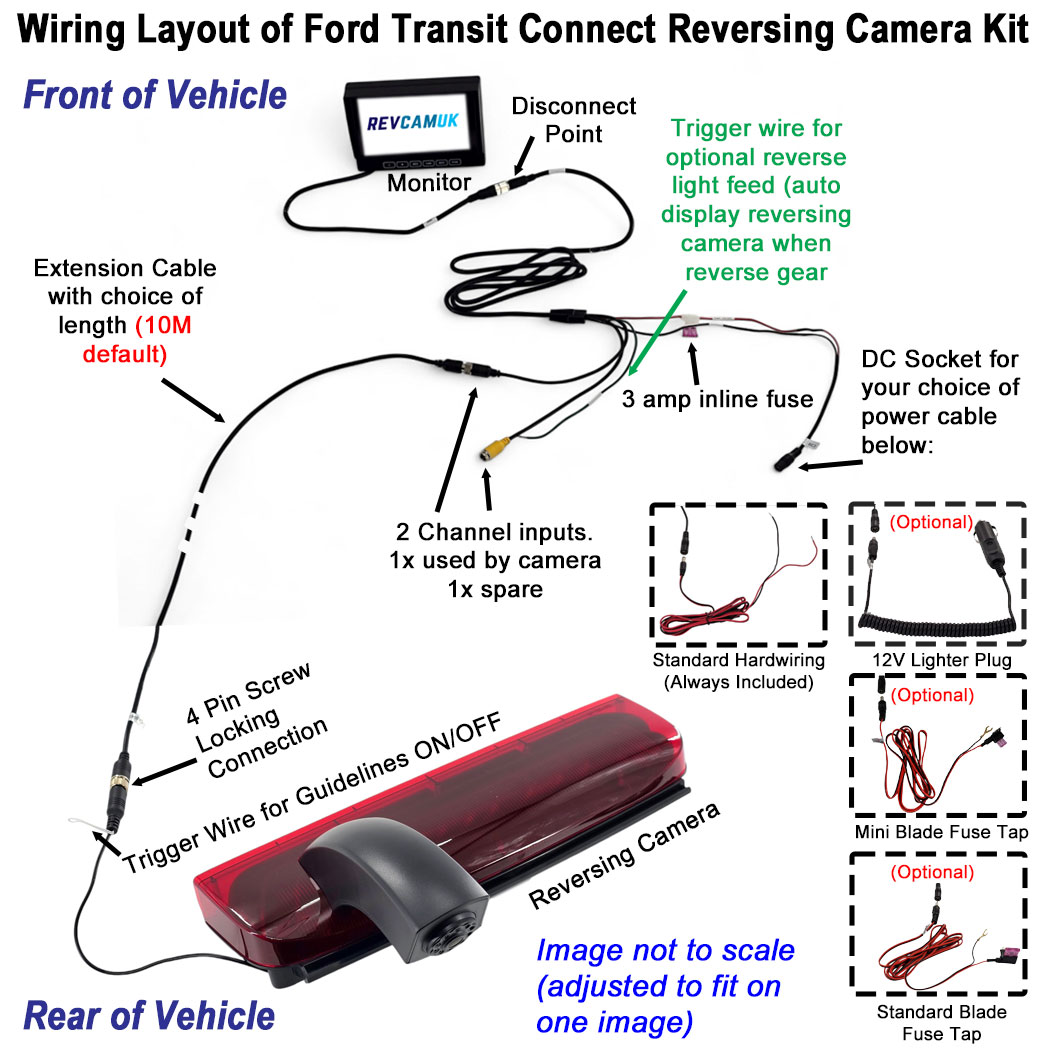

Power Connection Options
You have the option to add additional leads that plug in to a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder / crimp to a power supply.
On the drop down menus you will notice there are two options selectable. One to add a lighter plug, one for a fuse tap. Scroll down for details on each option.
Lighter Plug
Selecting this option adds an additional lighter plug lead - attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some people order this option just to try out there new kit before hardwiring permanently.
Fuse Tap (Mini blade, Standard blade)
Selecting this option adds an additional easy-wire fuse tap lead with built in earth terminal connector.
We designed and had this product produced in 2023, and they have been very popular. We wanted to create something that meant our customers could hardwire a reversing camera system to their vehicle with ease and minimal tools. Fuse taps have already become popular for installing dash cams, so we wanted to make them more popular for reversing camera kits too.
Usually fuse taps have no earth terminal connector and require crimp tools to connect to your wiring - our easy wire fuse tap kits are different. They come supplied with 2M of twin wire (power + earth) attached. The wires can be pulled apart should you wish to earth to an area far from the fuse box.
Choose a fuse that's active when the ignition is on. Remove the original fuse and place it in the empty slot of the fuse tap. The correct rated fuse for the new camera system is supplied already installed in the correct slot. Install the fuse tap (with the two fuses fitted) in to the fuse box (where you removed the original fuse). Lastly, connect the earth terminal to a chassis bolt or screw (or add a new bolt/screw to secure it).
The mini blade is the most commonly seen fuse size on modern vehicles.
Standard blade used to be the most common fuse size installed, and is still commonly seen, even on very recent vehicles.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install. |
 Click preview image to download the PDF file | MON16/MON745 7 Inch High Resolution Monitors These instructions will guide you through the various menu functions including rotation, adjustable guidelines, trigger delays, interval mode, and display settings. |
If you are ordering the Mini Bade or Standard Blade Fuse Tap power option, then please see the further instruction sheet below dealing with this time saving connection method.
 | Instructions for fitting Fuse Taps / Piggyback fuse holders for power supply Our guide on how to correctly install a piggyback fuse holder tap to power a reversing camera system from the fuse box. |

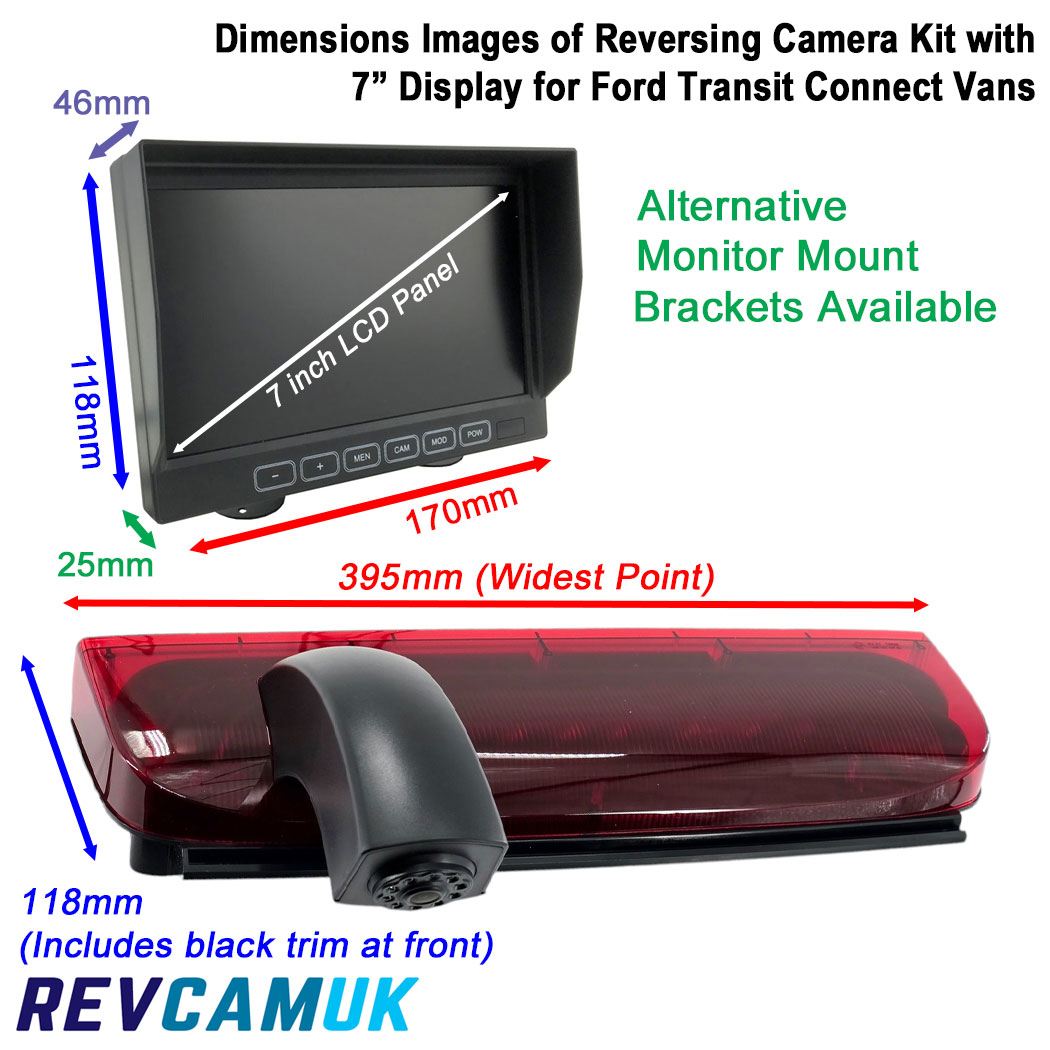

Technical Specification
Vehicle Monitor
7” Colour LCD screen
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Contrast: 500:1
Brightness: 400cd/m2
Viewing Angle: U: 50 degrees/ D: 60 degrees, R/L: 70 degrees
Operating Temperature: -10C to +65C
Storage Temperature: -30C to +80C RH90%
2 Inputs
PAL/NTSC/AUTO
Mirror/Normal Switch on both channels
Full function Remote Control
Reversing Camera
Image Sensor: 1/3" CMOS
Total pixels: 976(H) x 592(V)
Video System: CVBS NTSC, 1.0Vp-p 75Ohm
Horizontal Resolution: 700 TV Lines
S/N Ratio: Better than 48dB
View angle: 150° diagonal / 110° horizontal / 85° vertical
IR LED: 8pcs
Power: DC12V
Temperature: -20°C - 70°C
Connector: 4 pin aviation
