Additional Monitor Bracket Options

To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below.  We also have a YouTube video showing the various bracket options below.

ACC035 - "Butterfly" Bracket option

So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.

ACC041 Quick Release Bracket option

The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.

ACC705B - Heavy Duty Rear Mount Bracket Option

The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.

ACC038 - Suction Mount Bracket Option

Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.

ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option

The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.

Power Connection Options

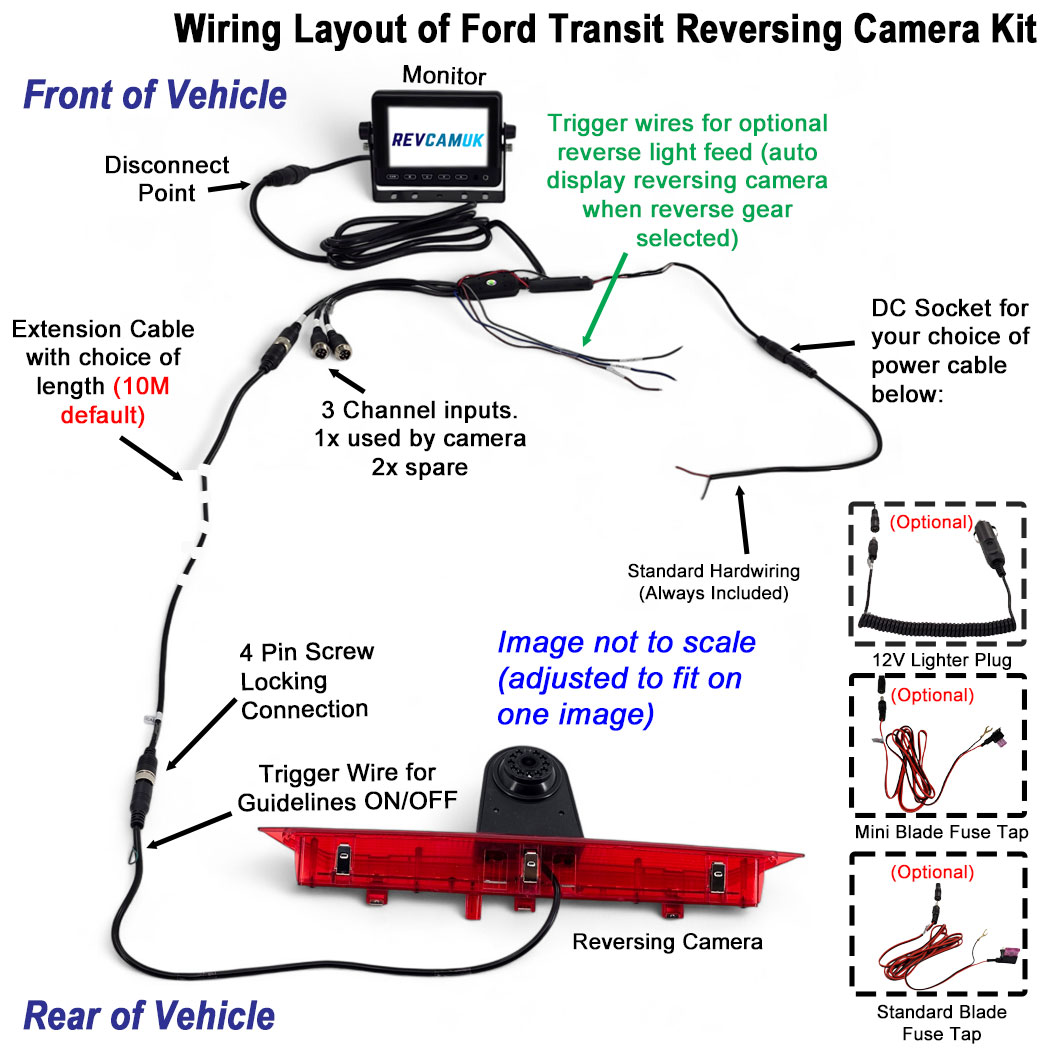

You have the option to add additional leads that plug in to a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder / crimp to a power supply.

On the drop down menus you will notice there are two options selectable. One to add a lighter plug, one for a fuse tap. Scroll down for details on each option.

Lighter Plug

Selecting this option adds an additional lighter plug lead - attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some people order this option just to try out there new kit before hardwiring permanently.

Fuse Tap (Mini blade, Standard blade)

Selecting this option adds an additional easy-wire fuse tap lead with built in earth terminal connector.

We designed and had this product produced in 2023, and they have been very popular. We wanted to create something that meant our customers could hardwire a reversing camera system to their vehicle with ease and minimal tools. Fuse taps have already become popular for installing dash cams, so we wanted to make them more popular for reversing camera kits too.

Usually fuse taps have no earth terminal connector and require crimp tools to connect to your wiring - our easy wire fuse tap kits are different. They come supplied with 2M of twin wire (power + earth) attached. The wires can be pulled apart should you wish to earth to an area far from the fuse box.

Choose a fuse that's active when the ignition is on. Remove the original fuse and place it in the empty slot of the fuse tap. The correct rated fuse for the new camera system is supplied already installed in the correct slot. Install the fuse tap (with the two fuses fitted) in to the fuse box (where you removed the original fuse). Lastly, connect the earth terminal to a chassis bolt or screw (or add a new bolt/screw to secure it).

The mini blade is the most commonly seen fuse size on modern vehicles.

Standard blade used to be the most common fuse size installed, and is still commonly seen, even on very recent vehicles.

PDF Instructions

We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.

Click preview image to download the PDF file

For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install.

Click preview image to download the PDF file

MON5001 5 inch Vehicle Monitor Display Reversing Camera Monitor Fitting Instructions  Our guide to the compact 5 inch monitor, it's fitting and menu settings.

Mainland UK Shipping

We have three postage options to select from during checkout (on larger items eg kits there will be two options):

Royal Mail Tracked - Smaller / Lighter weight orders. This will be sent via Royal Mails Tracked Service.  They will send emails/SMS to inform you of the tracking events. This option won't be shown for heavier weight orders.

DPD 2 Day. Small or large orders. This will be sent with DPD Local and should arrive within two working days (if you place the order before 12:30PM).

DPD Next Day. Small or large orders. This will be sent with DPD Local and should arrive the following working day (if you place the order before 12:30PM).

Highlands and Islands UK Shipping

We offer a 2-3 day service fulfilled with either Royal Mail Post, or Parcel Force. The prices charged are identical to mainland UK. Small orders will be sent via the post, larger orders via Parcel Force.

Outside of the UK Shipping

We shop around when selecting the best method for Europe (we avoid the cheap budget couriers due to parcels being lost). Southern Ireland is always sent via DPD. Other countries will usually be either Parcel Force, UPS, or Fedex. Please note that we require a phone number for international deliveries. Also if you are a company in Europe, a VAT number or EORI number will help speed up customs.

We remove the UK VAT (Tax) when any country other than the UK is selected in the shopping basket or checkout. From this point all prices on the site drop down to exclude VAT. If you are from the Channel Islands, please select Jersey / Guernsey from the country list in order to remove UK sales Tax.

60 day "Change of Mind" policy

We understand that for whatever reason you may need to return your purchase.  We provide a 60 day opportunity for you to do just that.  Simply give us an email or a phone call to let us know it is due back.  You are responsible for the shipping back to us but you will receive a full refund including the original shipping we charged you for your order.  We recommend getting a signed for or proof of postage when posting back to us.

All we ask is that you return the items in the condition they were sent in, with the packaging present.  You are welcome to have temporarily tested the product and unravelled things, but if you have cut wires, soldered, glued, installed and used for a while then this wouldn't be suitable for returns under the change of mind policy.
