VW Volkswagen Transporter T5 Tailgate Reversing Camera Kit for Brake Light with Mirror Monitor Display | PM39BLLB
VW Transporter T5 Brake light reversing camera kit with clip-on mirror monitor to fit T5 tailgate vans built from 2003-2015. Two year guarantee, high resolution 4089 700tvl image sensor on camera, 800x480 premium quality mirror monitor, great support, fast delivery. Expect a great image from the kit, and great service from us - Reversing Cameras UK Ltd.

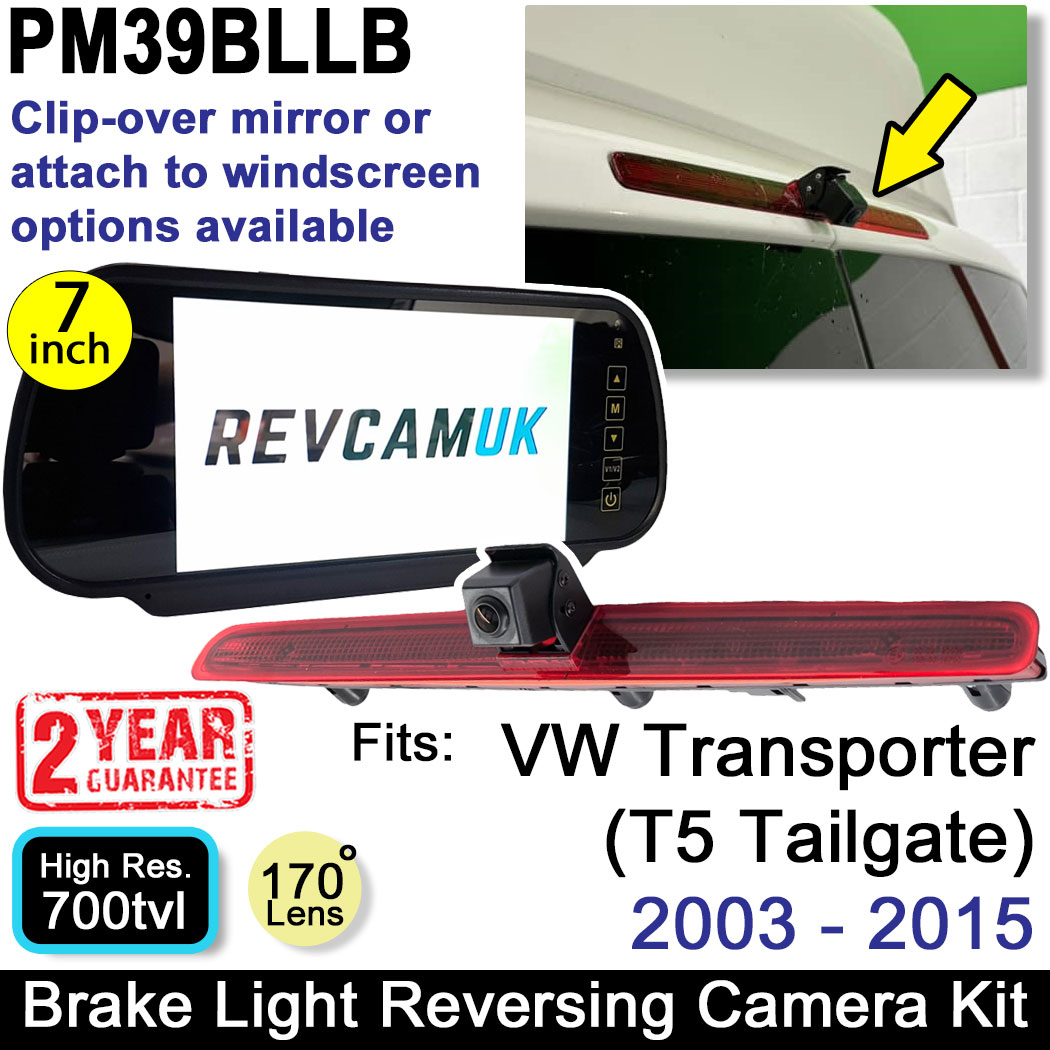

VW Volkswagen Transporter T5 Tailgate / One Door 2003-2015 Reverse Parking Camera Kit for Brake Light with 7" Mirror Monitor
If you are looking for a retrofit factory look reversing camera kit for your 2003-2015 VW Transporter T5 van, then look no further. The reverse camera in the kit comes from our most respected brake light camera supplier, and is based on their winning lens/image sensor combo - the PC4089 image sensor and quality all glass composite lens (unlike the commonly found cheaper plastic/glass versions that fade over time with UV from the sun causing a gradually worsening picture). The mirror monitor uses one of the best LCD panels you can have fitted, as well as being very reliable. All parts covered by our usual 2 year guarantee on kits.
This brake light reversing camera kit fits :
- Volkswagen VW Transporter T5 Tailgate (1 Door) Vans - 2003 - 2015 - Fits the Transporter vans built with the single lift up door with one wide slim brake light.
This reversing camera kit has the following advantages :
Top Quality High Resolution Display - Our 7 inch mirror monitor display gives a good quality image thanks to it's 800x480 pixel digital hi-res LCD panel. Fitted with the best quality LCD panels for great colour replication and a sharp, clear picture.
Most Popular Location for Fitting a Monitor - The position of the interior mirror is where we naturally look when we wish to see what is behind us.
Great Image Quality - We don't settle for the base spec when it comes to this brake light camera. We have the 4089 700tvl image sensor fitted, which is paired with a top quality all-glass composite lens. The image sensor is one of the most important components for ensuring a colourful, sharp, and high dynamic image. We select all glass lenses instead of cheaper glass-plastic composites, because over time plastic containing lenses would fade from UV damage. No such issue with our all-glass lenses.
IP69K Waterproof Protection - This reversing camera is rated to IP69K water/dust ingress protection - the highest possible. This will keep the camera protected in even the worst wet and stormy weather the Great British weather can throw at it, or indeed on your trips across the continent.
170°(D) Ultra Wide Angle - Due to the external lens fitted to this camera, you are able to have a greater field of view, which is very helpful when reversing. External lenses can achieve wider field of view compared to those mounted behind a glass cover.
2 Year Guarantee - We believe that our brake light reversing cameras come from the best factory, the factory is so sure of their own product that they fully support our highly respected two year guarantee. We find the fault rate very low from them, but should anything happen in your first two years of ownership, we will provide a replacement.

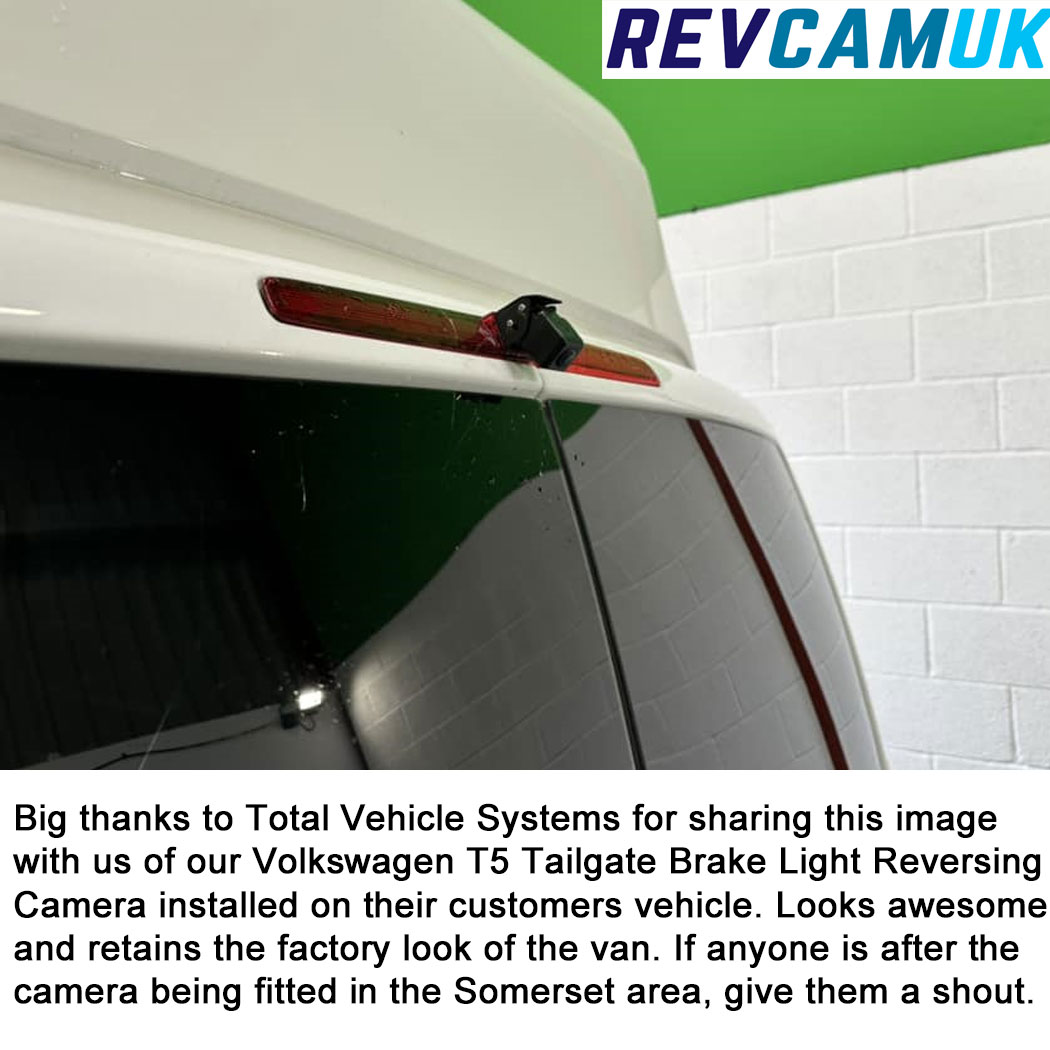

Maintains a Tidy Factory Look - This brake light reverse camera was designed to fit perfectly where the OEM brake light used to be. If you didn't tell anyone, most people would assume it was a factory addition. The brake light works just as well as the original.
Adjustable Tilt - This is the latest model with adjustable tilt, to allow you to get the optimum viewing angle for parking.

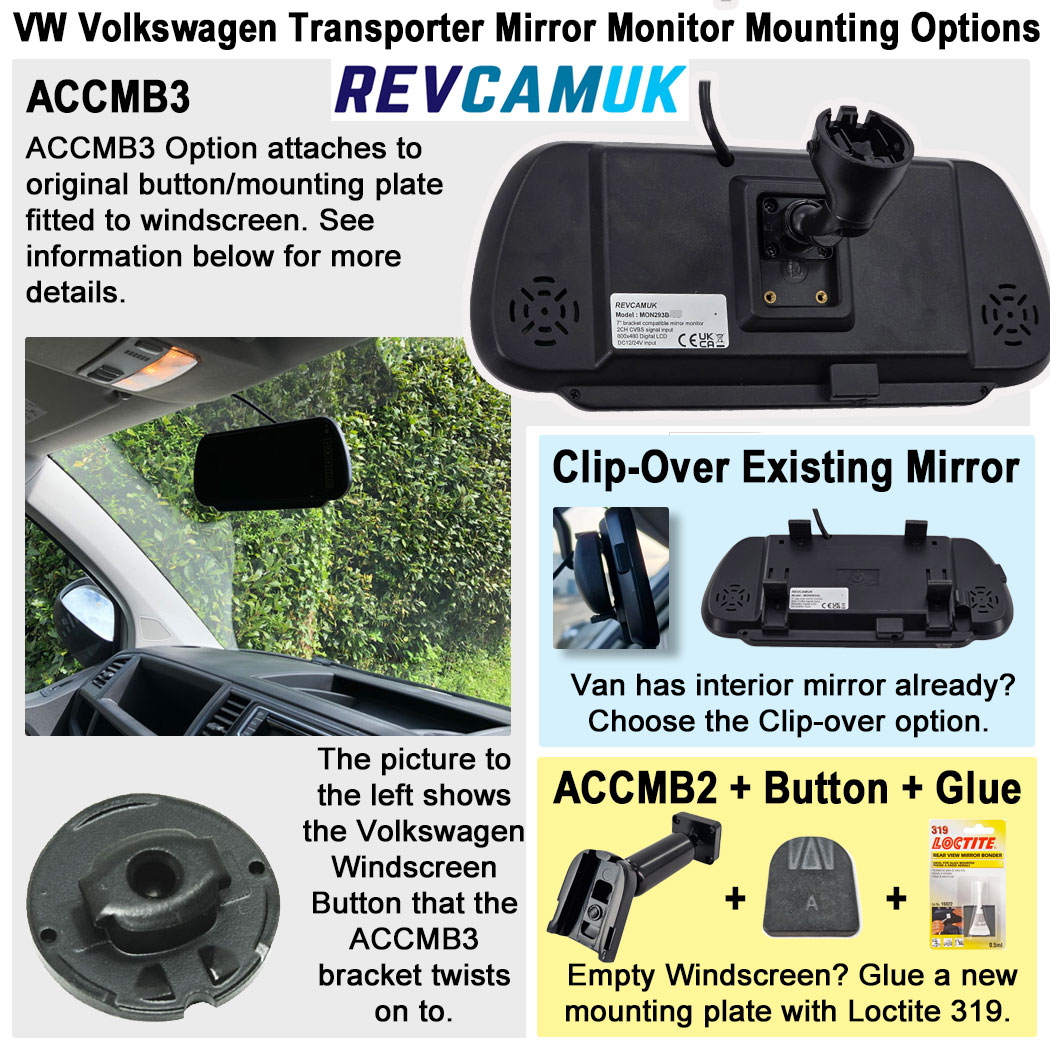

Choice of preferred mirror monitor mounting option :
- Have a mirror? Choose our clip-over mirror option, we will supply you with a rear view mirror monitor that clips over your existing interior mirror.

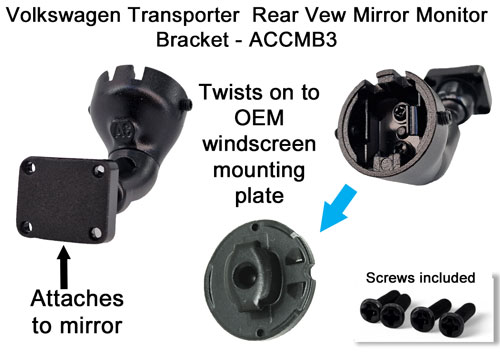

- Don't have a mirror but have a metal button on the windscreen for one? Choose our ACCMB3 swan neck bracket option, we will supply you with our swan neck bracket compatible rear view mirror monitor + a swan neck bracket to fit to the windscreen button/stub/metal plate commonly found on most VW Transporter vans.

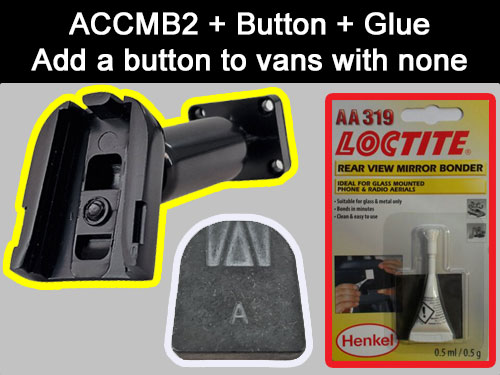

- Don't have a mirror and don't have a metal button on the windscreen? Choose our ACCMB2 + Button + Glue option, we will supply you with the bracket compatible monitor, a Ford Button to bond to the windscreen, Loctite 319 windscreen button adhesive to bond the button up, as well as full instructions on how to mount a windscreen button with Loctite 319 adhesive. We have researched videos, reviews, and manufacturer recommendations to provide the best instructions available to get the job done correct, first time.

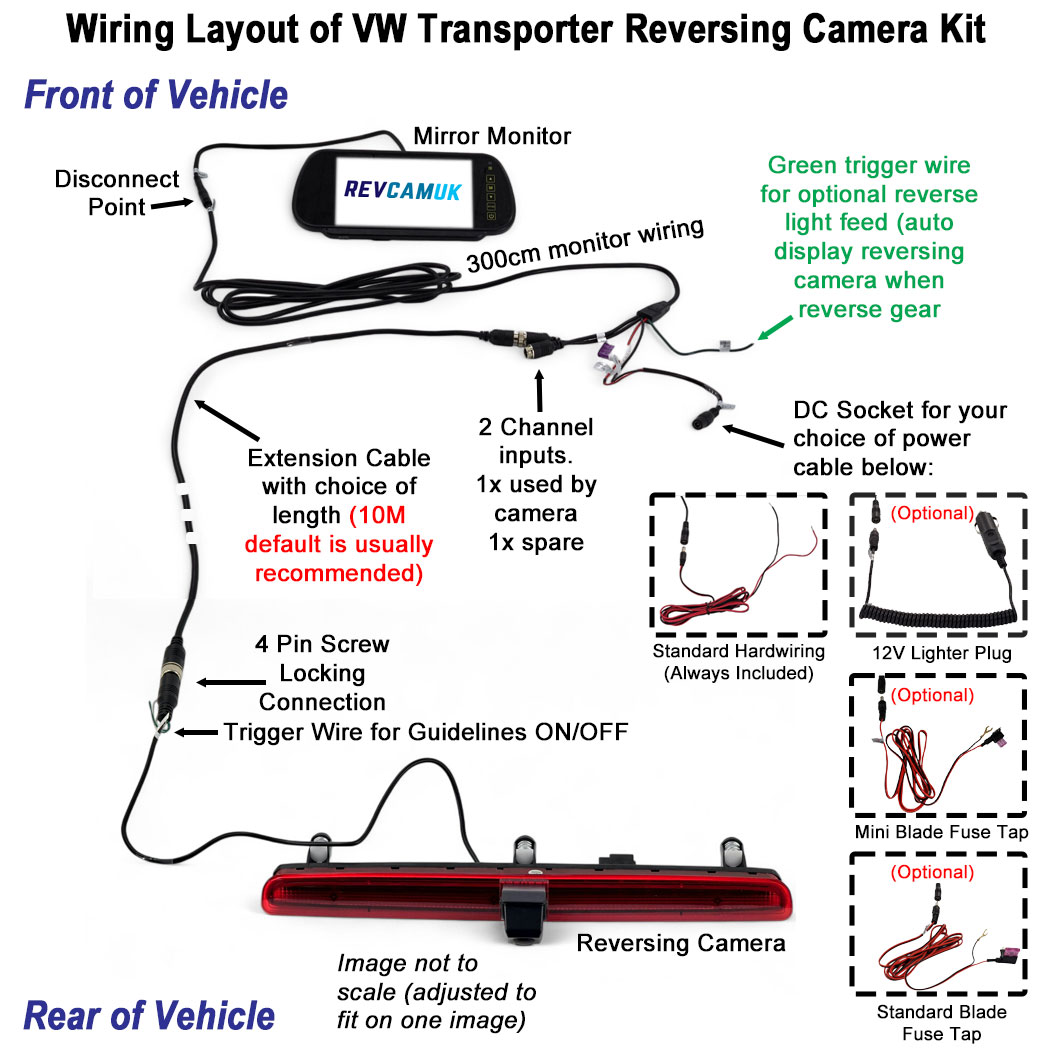

Installation and Power Options:
- Easy installation with various power options that plug in to a socket on the monitors wiring harness/loom.
- Single power connection powers the entire system.
- Standard hardwiring ALWAYS included even when adding the additional connector options.
- Choose a lighter plug for the easiest plug and play solution. Some customers order this just for testing purposes before using one of our hardwiring options (fuse tap or bare wire) afterwards.
- Choose one of our fuse taps for an easy hard wire installation. We have had them designed so that one end plugs in to the monitor power socket on the end of the wiring harness, whilst on the other side of the 200cm lead has a mini blade or a standard blade fuse tap aka piggyback fuse holder, as well as a chassis earth/ground terminal fixing (find a screw/bolt connected to bare chassis and fix to this). See our downloadable PDF instructions on how to install a fuse tap/piggyback fuse holder to your vehicles fusebox.
For more information including main reversing camera kit instructions, and monitor instructions, please click the tab for PDF instructions. If you would like any information/questions that may not be present, please contact us.
Power Connection Options
You have the option to add additional leads that plug in to a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder / crimp to a power supply.
On the drop down menus you will notice there are two options selectable. One to add a lighter plug, one for a fuse tap. Scroll down for details on each option.
Lighter Plug
Selecting this option adds an additional lighter plug lead - attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some people order this option just to try out there new kit before hardwiring permanently.
Fuse Tap (Mini blade, Standard blade)
Selecting this option adds an additional easy-wire fuse tap lead with built in earth terminal connector.
We designed and had this product produced in 2023, and they have been very popular. We wanted to create something that meant our customers could hardwire a reversing camera system to their vehicle with ease and minimal tools. Fuse taps have already become popular for installing dash cams, so we wanted to make them more popular for reversing camera kits too.
Usually fuse taps have no earth terminal connector and require crimp tools to connect to your wiring - our easy wire fuse tap kits are different. They come supplied with 2M of twin wire (power + earth) attached. The wires can be pulled apart should you wish to earth to an area far from the fuse box.
Choose a fuse that's active when the ignition is on. Remove the original fuse and place it in the empty slot of the fuse tap. The correct rated fuse for the new camera system is supplied already installed in the correct slot. Install the fuse tap (with the two fuses fitted) in to the fuse box (where you removed the original fuse). Lastly, connect the earth terminal to a chassis bolt or screw (or add a new bolt/screw to secure it).
The mini blade is the most commonly seen fuse size on modern vehicles.
Standard blade used to be the most common fuse size installed, and is still commonly seen, even on very recent vehicles.

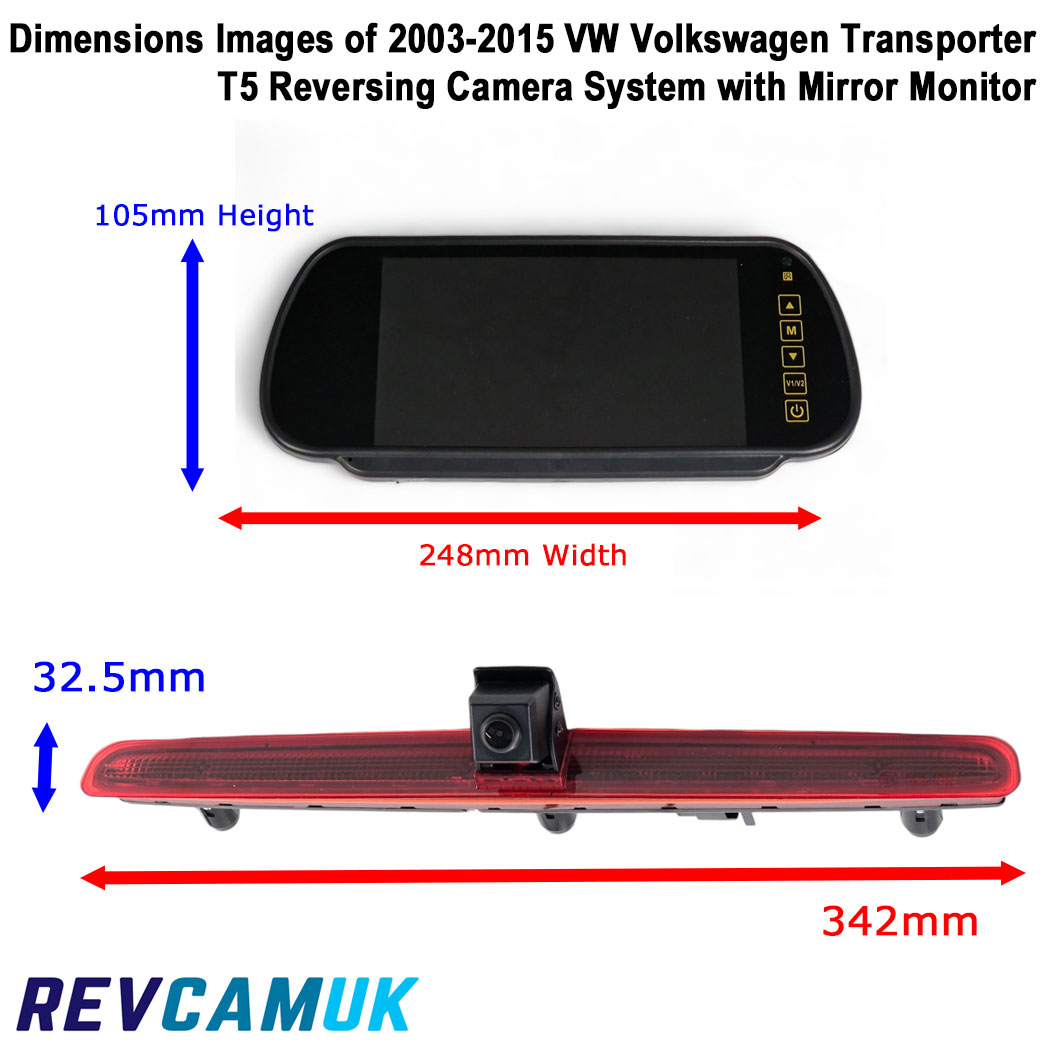

Monitor
7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x3(RGB)x480
2x 4 pin Inputs
PAL/NTSC/AUTO
Camera
Image Sensor : 1/3" colour Super CMOS
Effective Pixels : 976(H) x 592(V)
Resolution : 700TVL
Minimum illuminations : 0.1 Lux (day)
Lens Angle : 170 degrees
Waterproof : IP69K
AGC : Auto
Signal to noise ratio : Better than 48dB
White balance : Auto
Electronic Shutter : Auto
Power Supply : DC12V
Operating Temperature : -20C to 70C RH95% MAX
Storage Temperature : -40C to 80C RH95% MAX
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install. |
 Click preview image to download the PDF file | Clip-Over Option Mirror Monitor Instructions If you choose a mirror monitor kit and you don't select the AHD upgrade option then this monitor will be supplied. It is a great monitor with lots of menu options, lovely colour, adjustable guidelines, and good viewing angle range. |
 Click preview image to download the PDF file | Bracket to Windscreen Mirror Monitor Instructions If you choose a mirror monitor kit with a direct to windscreen swan neck mount option, then this will be the monitor that is supplied. This guide will teach you about adjusting guidelines, wiring, and other menu settings. |
If you are ordering the Mini Bade or Standard Blade Fuse Tap power option, then please see the further instruction sheet below dealing with this time saving connection method.
 | Instructions for fitting Fuse Taps / Piggyback fuse holders for power supply Our guide on how to correctly install a piggyback fuse holder tap to power a reversing camera system from the fuse box. |
