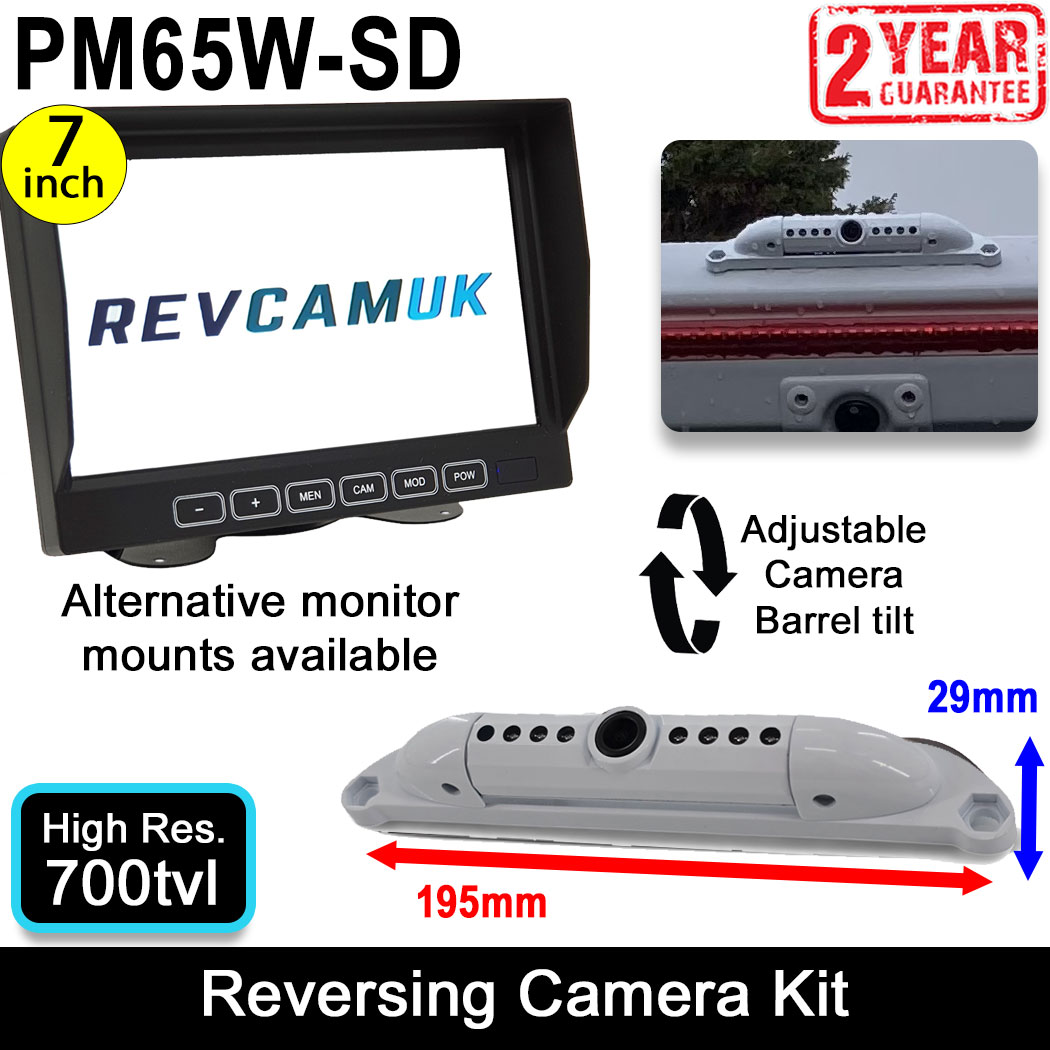

White Slimline Reverse Camera Kit with 7" Monitor | PM65W-SD
White slimline reverse camera kit with 7" dash mounted monitor. 12V/24V, High Resolution Image Quality, Durable Monitor and Camera, Adjustable Guidelines when reversing ON/OFF via Monitor, Two Year Guarantee, Great Looks and Great Performance. Choice of mounting bracket for monitor.
About our White Slimline Reverse Camera Kit with 7" Monitor
White slimline reverse camera kit with 7" dash mounted monitor. 12V/24V, High Resolution Image Quality, Durable Monitor and Camera, Adjustable Guidelines when reversing ON/OFF via Monitor, Two Year Guarantee, Great Looks and Great Performance. Choice of mounting bracket for monitor.
Attractive White Slimline Design - A subtle, discreet camera that can be mounted either low down near the number plate, or higher up to give a birdseye view. See our images to see an example of this camera fitted high up on the back of a Motorhome.
High Resolution Monitor Image Quality - Our 7 inch stand/dash mount monitor display gives a good quality image thanks to it's 800x480 pixel digital hi-res LCD panel. This resolution can handle even the highest resolution of traditional CVBS signal reversing cameras (CVBS signal still makes up 95%+ of all existing reversing camera systems). Numbers can be misleading, as we have seen lots of poor quality panels with the same resolution, but with poor performance. Trust us, check out the photos customers have sent in, then make your decision with the knowledge that you are buying from a long established, trusted, reputable firm who keep things consistent, and support their customers for life.
Advanced Menu System - A lot of reversing camera displays have very basic functions, usually just the colour/contrast/brightness. This menu system has the ability to add guidelines, number the guidelines with a distance, choose to say if the measurement is displayed as M or Ft, individually change settings for each channel e.g mirror one channel but not the other, and set interval mode so the monitor flicks between both channels at a set number of seconds. We don't just leave you to figure things out yourself, we issue a booklet to guide you through all of the functions, why not read it before you purchase by heading to the PDF instructions tab of this listing. We are about keeping long term products, consistency, and support for life, which includes providing detailed support material such as this.
Ability to Add Guidelines to Image in Reverse - You can set the monitor up so that it displays guidelines when you select reverse gear. These lines can be adjusted in width, and along both the vertical axis and horizontal axis. Numbers can be added, and choice of imperial or metric measurements. See pages 5 to 6 of our comprehensive instruction manual for the 7 inch reversing camera monitor for more details on the guidelines.
Great Camera Image Quality - Thanks to the 4089 700tvl image sensor and the all glass composite lens, the reverse camera produces a good quality image on your monitor display.
Night Vision IR LED's - Thanks to the fitted IR LED's you can expect good rear vision at all times, even in the middle of the night. With separated IR LED's and Lens you can expect good contrast at night time, to give you greater confidence whilst reversing.
Wide Angle Lens - We have a good quality all glass composite lens fitted, which provides a nice wide spread to give the greatest visibility of any objects around the rear of your vehicle.
IP68 Waterproof Protection - With a rating of IP68, you can be assured your camera will remain in good working order whatever the Great British weather can throw at it.
Increases Reversing Safety - With nearly a quarter of all vehicle collisions occurring whilst reversing, having a reversing camera helps give you greater visibility when travelling backwards. Important in avoiding harming others, or damaging property.
Trigger Wire for automatic channel changing e.g. when in reverse - This model has a trigger wire that is linked to channel 2 of the monitor. You do not have to use any trigger wires to be able to watch a camera, but if you did want the monitor to auto switch to a channel, or to turn the monitor on if the monitor is usually off, you can connect the trigger wire up to a power source e.g. reverse light feed (the most common setup). This gives you hands free convenience when it comes to the reversing camera system functioning.
Full Function Remote Control - We provide a remote control that allows you access to all the menu functions and changing channels from a distance. These functions can also be achieved on the monitor by using the buttons.
Two Year Guarantee and Lifetime Support - This monitor and camera should last a very long time without any issue. We guarantee it to be free from faults for two years. After two years we are able to offer attempted low cost repairs on the monitor to keep your system in good condition and avoid extra time or expense installing all new components. We also keep good stock of spare parts such as wiring harnesses should you decide to take the monitor out of the vehicle with you when you sell your vehicle but leave the wiring where it is.
Alternative bracket options - The monitor has a rear channel that allows our alternative monitor brackets to be installed. This choice includes quick release, ceiling mount, heavy duty, and temporary suction mount brackets. You can choose to add a discounted price bracket with this monitor using the drop down selection box menu - see monitor bracket options tab for more details on each type.
Cable Length Options
This drop down menu allows you to select the length of cable that goes between the camera and the monitor wiring harness. When choosing cable length, please be aware that there is between 2-3M length supplied with the monitor wiring, whilst the reversing camera has another approx. 0.5M. We use quality pure copper 4 pin screw locking connector cables to ensure a long lasting, stable picture.
What Length Should I select?
5M (16ft) - Ideal if you have a very small vehicle e.g. a car or compact van.
7.5M (24ft) - Recommended for large cars, 4x4, and some smaller vans.
10M (32ft) - Most popular length for standard sized vans.
12.5M (41ft) - Most popular length for Motorhomes and larger vans.
15M (49ft) - Ideal for large Motorhomes and HGV/LGV.
20M (65ft) - Fits very large vehicles e.g. HGV, Coaches, and LGV.
8mm Disconnect Link
We are able to offer a small disconnect 8mm point on our 10M/12.5M/15M cable lengths. This is located 100cm from the front side of the cable (next to the monitor). This means you can run the cable through tight gaps/cupboards/bulk heads with just a small 8mm hole/gap required, reconnecting the larger connector once you have your cable next to the monitors wiring harness.
2010+ Dometic/Waeco Cable Adaptors
We often see motorhomes pre-fitted with the 2010+ Dometic/Waeco cable. Most commonly this is seen on Baileys, Burstner, and Hymer motorhomes, although has been found on a wide assortment of others too. See the photo below for an image of what this type of cable looks like.
If you choose the option for the adaptors then you will receive an adaptor to place on both sides of your existing cable (we won't give you a long cable). Essentially this turns your existing pre-fitted cable in to one of our 4 pin cables. See photo below of the pair of adaptors you will receive.
Additional Monitor Bracket Options
To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below. We also have a YouTube video showing the various bracket options below.
ACC035 - "Butterfly" Bracket option
So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.
ACC041 Quick Release Bracket option
The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.
ACC705B - Heavy Duty Rear Mount Bracket Option
The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.
ACC038 - Suction Mount Bracket Option
Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.
ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option
The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.
Power Connection Options
You have the option to add additional leads that plug in to a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder / crimp to a power supply.
On the drop down menus you will notice there are two options selectable. One to add a lighter plug, one for a fuse tap. Scroll down for details on each option.
Lighter Plug
Selecting this option adds an additional lighter plug lead - attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some people order this option just to try out there new kit before hardwiring permanently.
Fuse Tap (Mini blade, Standard blade)
Selecting this option adds an additional easy-wire fuse tap lead with built in earth terminal connector.
We designed and had this product produced in 2023, and they have been very popular. We wanted to create something that meant our customers could hardwire a reversing camera system to their vehicle with ease and minimal tools. Fuse taps have already become popular for installing dash cams, so we wanted to make them more popular for reversing camera kits too.
Usually fuse taps have no earth terminal connector and require crimp tools to connect to your wiring - our easy wire fuse tap kits are different. They come supplied with 2M of twin wire (power + earth) attached. The wires can be pulled apart should you wish to earth to an area far from the fuse box.
Choose a fuse that's active when the ignition is on. Remove the original fuse and place it in the empty slot of the fuse tap. The correct rated fuse for the new camera system is supplied already installed in the correct slot. Install the fuse tap (with the two fuses fitted) in to the fuse box (where you removed the original fuse). Lastly, connect the earth terminal to a chassis bolt or screw (or add a new bolt/screw to secure it).
The mini blade is the most commonly seen fuse size on modern vehicles.
Standard blade used to be the most common fuse size installed, and is still commonly seen, even on very recent vehicles.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General Kit Installation instructions Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need |
 Click preview image to download the PDF file | MON16/MON745 7 Inch High Resolution Monitors If you choose the PM60 series kits you will have the MON16/MON745 monitor supplied, which is covered by these instructions. They will guide you through the various menu functions including rotation, adjustable guidelines, trigger delays, interval mode, and display settings. |
If you are ordering the Mini Bade or Standard Blade Fuse Tap power option, then please see the further instruction sheet below dealing with this time saving connection method.
 | Instructions for fitting Fuse Taps / Piggyback fuse holders for power supply Our guide on how to correctly install a piggyback fuse holder tap to power a reversing camera system from the fuse box. |
Technical Specification
Vehicle Monitor Display
7” Colour LCD screen
Audio Output: 0.5W
Loudspeaker: one 15x40mm round loudspeaker
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Contrast: 500:1
Brightness: 400cd/m2
Viewing Angle: U: 50 degrees/ D: 60 degrees, R/L: 70 degrees
Operating Temperature: -10C to +65C
Storage Temperature: -30C to +80C RH90%
2 Inputs
PAL/NTSC/AUTO
Mirror/Normal Switch on both channels
Full function Remote Control
Reversing Camera
Image Sensor : CMOS4089
Effective Pixels : 976(H) * 592(V)
TV Lines : 700TVL
TV System : PAL
Lens : 1.9mm
Min illumination 0.1Lux / 0Lux (LED ON)
Waterproof : IP68
Viewing angle : 150°(D)
Power Voltage : 12V
Operating temperature : -20℃~+70℃
