Additional Monitor Bracket Options

To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below.  We also have a YouTube video showing the various bracket options below.

ACC035 - "Butterfly" Bracket option

So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.

ACC041 Quick Release Bracket option

The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.

ACC705B - Heavy Duty Rear Mount Bracket Option

The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.

ACC038 - Suction Mount Bracket Option

Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.

ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option

The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.

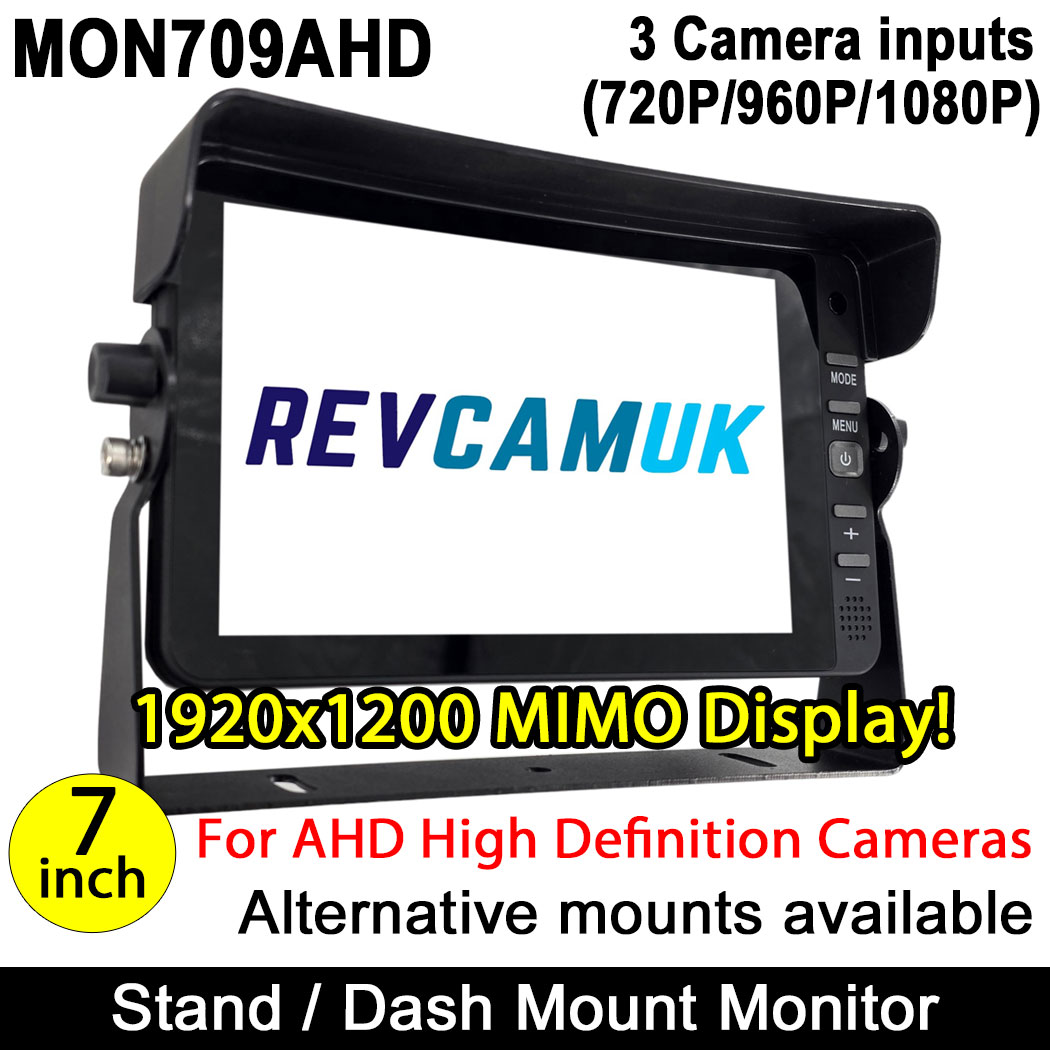

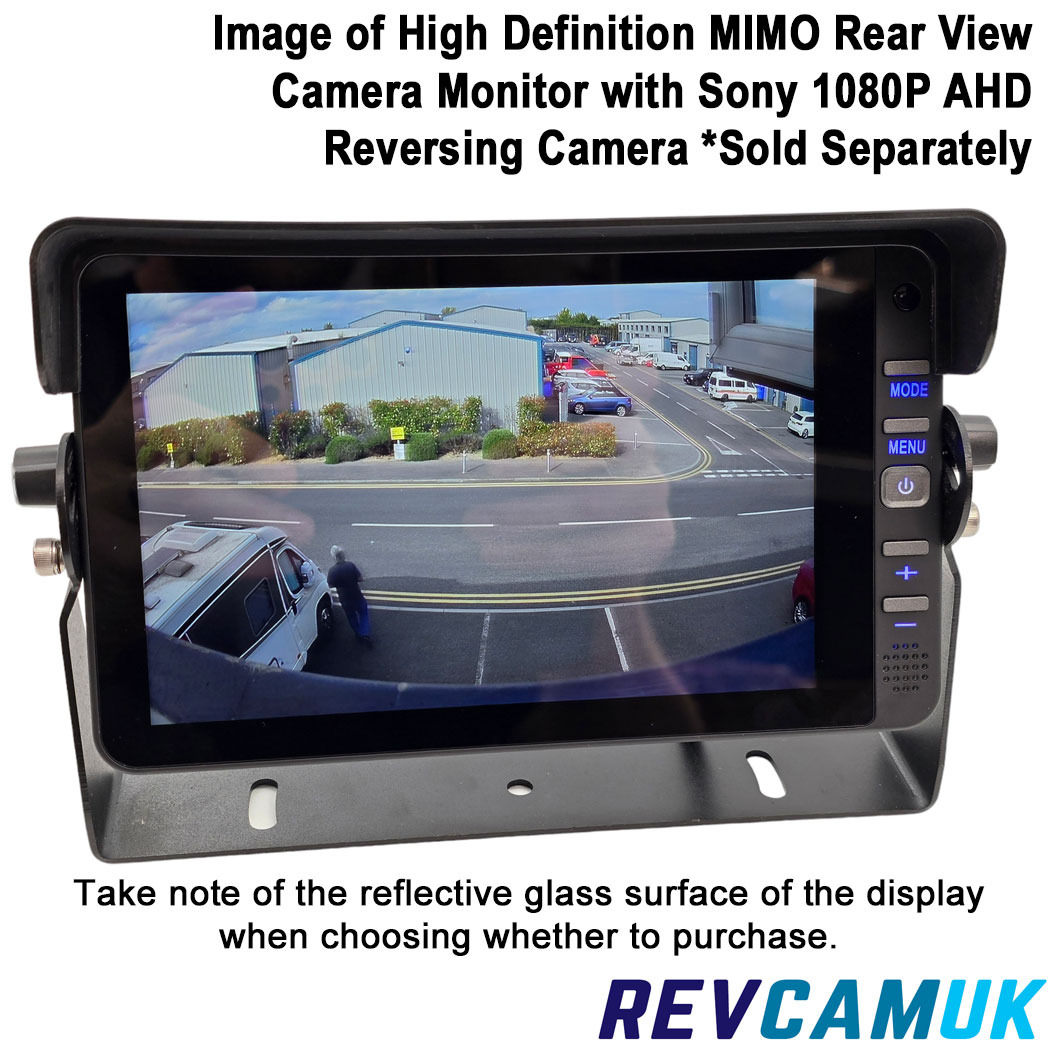

Technical Specification

Display Panel Technology : MIPI (Mobile Industry Processor Interface)
Screen Ratio : 16:9
Resolution : 1200*RGB*1920
Backlight Luminance : 450 cd/m2
Contrast : 1200:1
FPS : 1080P: P25f/s, N30f/s
Viewing Angle : UP-80°, DOWN 80°, LEFT 80°, RIGHT 80°
Working temperature -10~+60 ºC
Working humidity : 85%RH
Storage temperature -30~+70 ºC
Power supply : DC12-24V
Boot time : 2S
Current consumption : DC12V/320mA
OSD control : Image display, Reversing delay, Image mode, System setting
Power consumption : 4W
Signal input : 3CH AHD 1080P / 720P / CVBS input, 2CH audio input
Compatible with CVBS and AHD signals
Compatible with PAL and NTSC systems
Language : Simplified Chinese, English, Traditional Chinese (8 kinds of language)
Image display : 3CH single image display
Trigger : 3CH trigger control, could set reversing delay
System : PAL/NTSC automatically
Shockproof level : 4G
Size : 194*115*26MM
