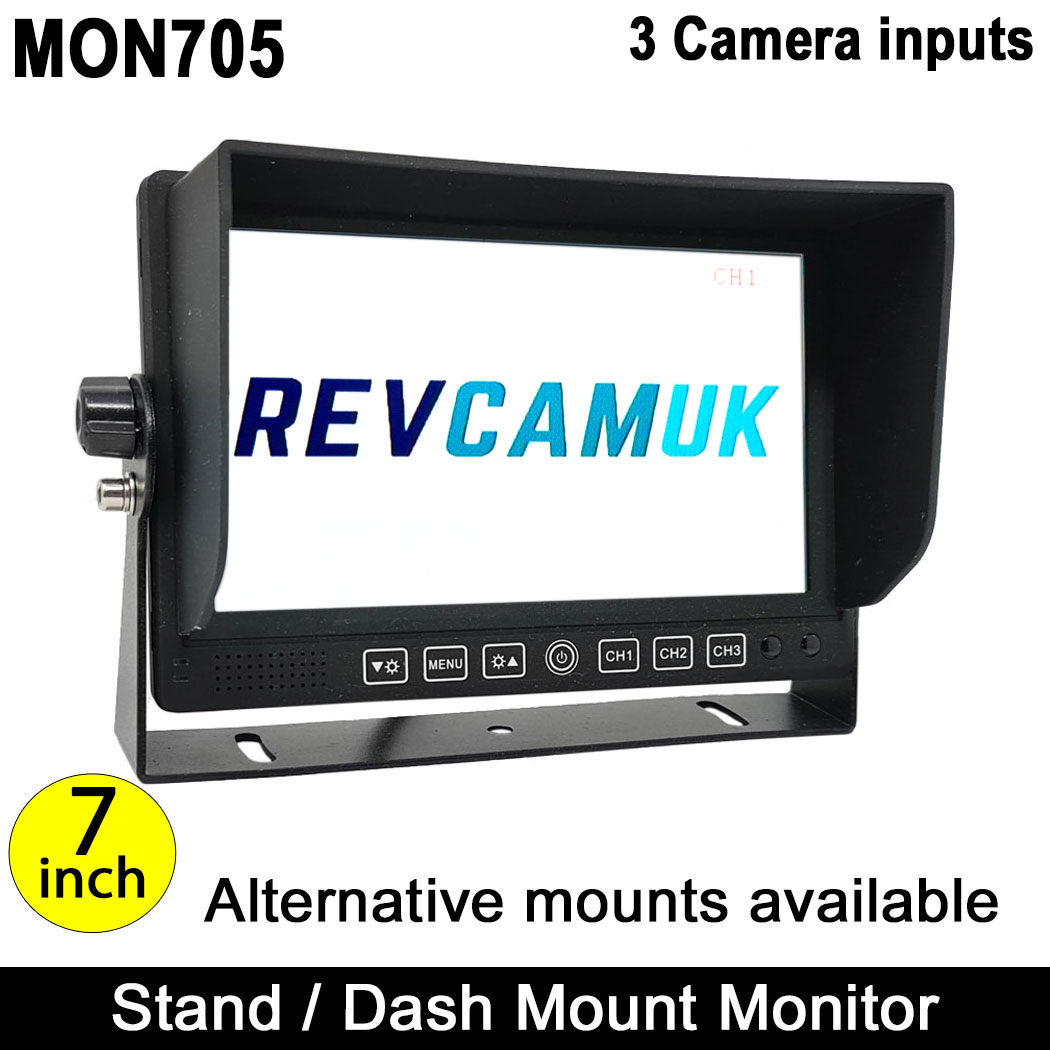

7" Monitor for Reversing/ Rear View Cameras | MON705
7" Heavy-duty reversing camera display, with the capacity to accept 3x reverse, rearview, monitoring, and side view cameras. Strong, side mounting U Bracket, as well as a rear channel for our other bracket options. Auto-dims to avoid glare whilst driving through tunnels and at night. Two Year Guarantee, works on 12V and 24V vehicles, thick removable sunshade to reduce glare from the sun, a good quality high-resolution digital LCD panel with bright LED backlight, awesome reliability and very popular with the agricultural community and Motorhomers. Expect lifetime support, spare parts, and a nice image from this rear view monitor.
About our 3 Channel Heavy Duty Monitor for Rear View and Reversing Cameras
This is one of our most seasoned reversing camera monitors and has been with us for many years. Super reliable and has had upgrades to the panel and backlights over time. This monitor has 3 inputs, runs on either 12V or 24V, has auto dim in low level light conditions, 3 trigger wires and is running the latest 800x480 digital panel LCD. The LED backlight has been upgraded to make it brighter than ever. Comes as standard with the U Bracket but has a rear channel for quick release bracket or suction bracket. This display comes with the following advantages :
Auto-Dim Function - This monitor is built with a light sensor that detects how bright the cabin is. This means that when you drive through a tunnel, or start driving at night, the monitor will automatically adjust the brightness of itself to reduce glare to the driver.
3 Channel Inputs - Add up to a total of 3 cameras to this display, this could be a rear view camera, a reversing camera, plus a side camera. Recently we have had people using one of the channels for a waste pipe monitor camera so they can stay dry inside whilst waiting for the waste tank to empty. Change between the cameras either with the 3x channel number buttons at the front, the 3 trigger wires, or with the remote control.
Bright High Resolution Display - This monitor is fitted with a good quality LED backlit 800x480 high resolution digital LCD panel. In this business numbers tend to mean little, two monitors with the same technical description can have completely different performance to each other. Rest assured that this monitor is one of the best for image performance in the standard definition range. Feel confident ordering one today with our 60 days change of mind policy.
Built in Speaker - If your reverse camera is fitted with a microphone, if you insert it in to channel 1 or channel 2 this will output to the built in speaker (full volume control). Most of our cameras don't have microphones, get in contact if you want to be directed to the cameras that do.
Two Year Guarantee - We guarantee your product will be free from defects for 2 years after purchase. After this time, we can usually perform low cost repairs, as well as provide support e.g. spare parts (wiring harnesses, brackets...).

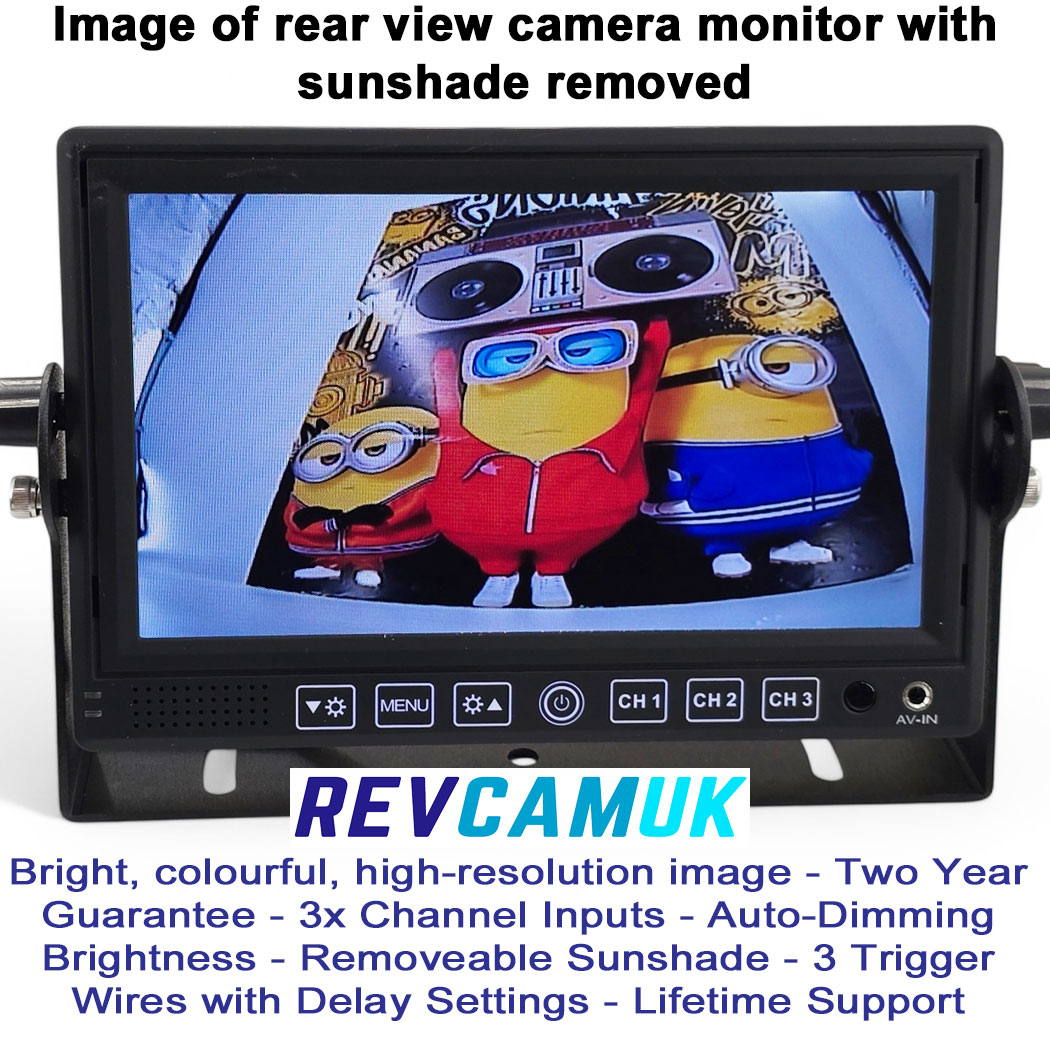

Deep Removable Sunshade - If you have a bright cabin, having a thick sunshade is important to maintain good visibility to the LCD screen. This is removeable - useful if you plan to mount high.
Various Bracket Options - The standard U Bracket can either be mounted down on to a flat piece of dashboard area, or you can invert the bracket and have it hanging from the ceiling. The monitor also has a rear channel that is designed to fit any of our range of stand style monitor brackets. Add one discounted bracket by using the drop down menu on this listing.
4 Pin Aviation Inputs (Optional RCA Adaptors) - This monitor has 3x 4 pin screw connector inputs. You are also able to purchase between one to three discounted adaptors to convert the 4 pin input to a yellow RCA Phono socket for RCA reversing cameras to fit in to.
Additional Monitor Bracket Options
To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below. We also have a YouTube video showing the various bracket options below.
ACC035 - "Butterfly" Bracket option
So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.
ACC041 Quick Release Bracket option
The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.
ACC705B - Heavy Duty Rear Mount Bracket Option
The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.
ACC038 - Suction Mount Bracket Option
Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.
ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option
The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.
Technical Specs

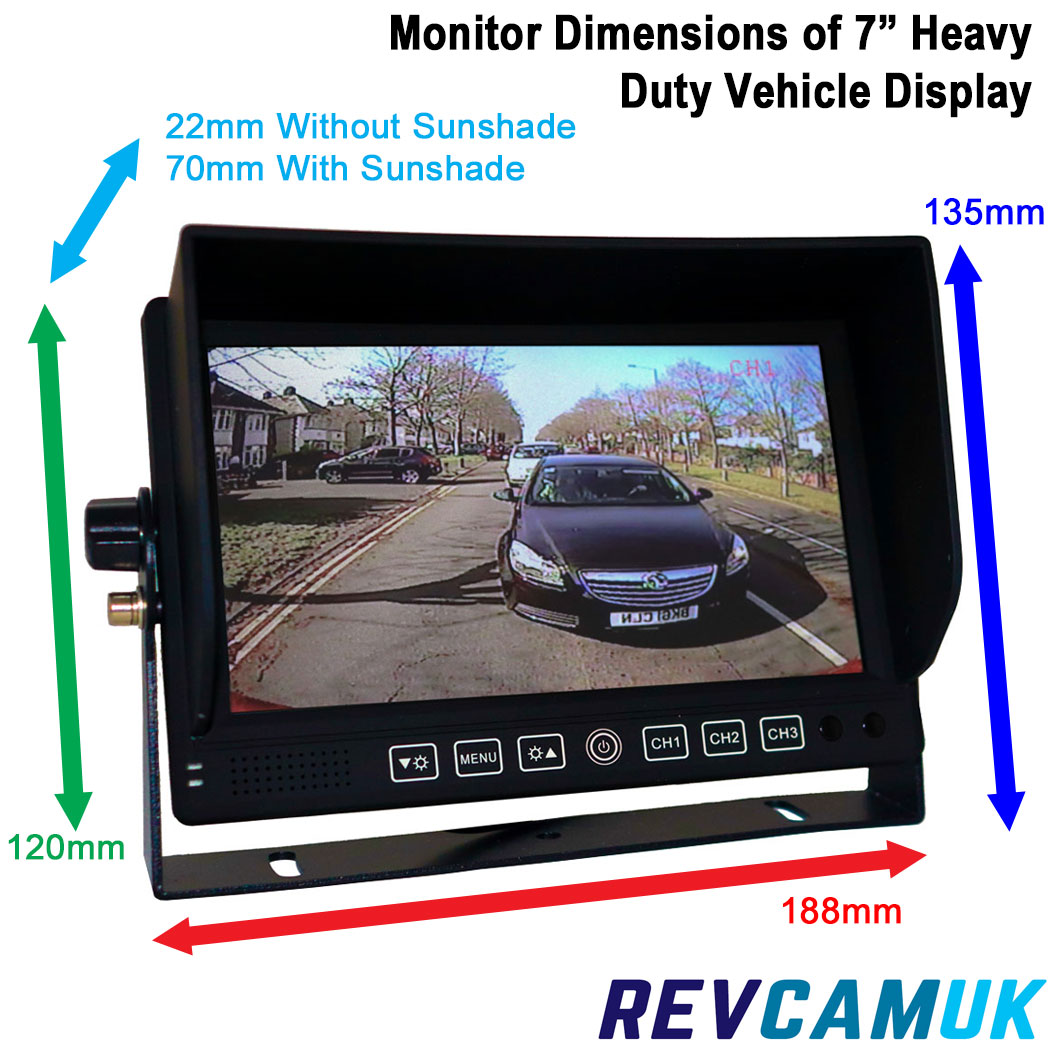

Display size : 7" Diagonally Measured
Power Consumption : 7.5W
Power : 12V-24V
TV System : PAL/NTSC (Auto detect)
Resolution : 800(w)*RGB*480(H)
Video Input : Three Video Inputs (2 audio inputs with speaker).
Blue screen when no signal input.
Auto dims according to light levels
Full function Remote Control
