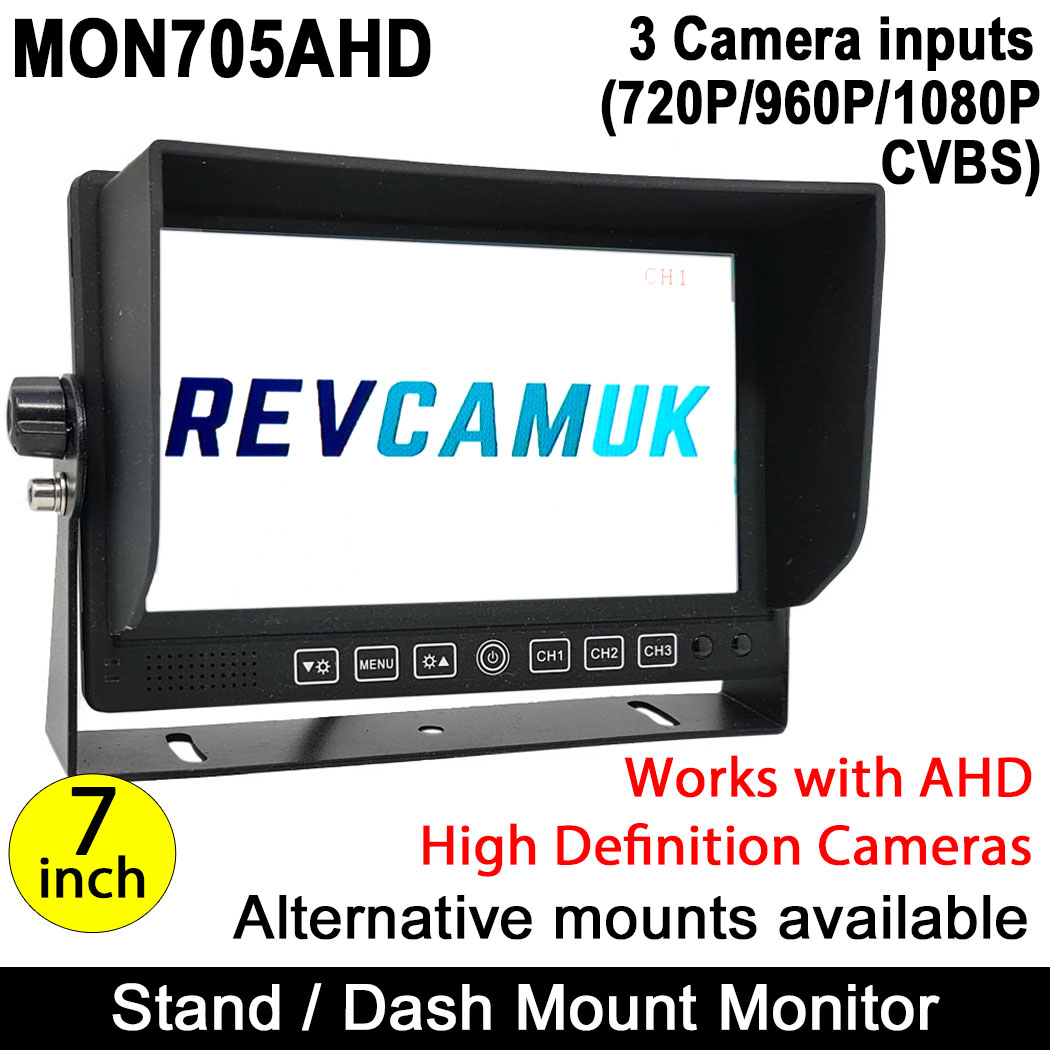

7" AHD High Definition Vehicle Monitor for Reversing / Rear View Cameras | MON705AHD
AHD High Definition 7 inch stand / dash mount monitor for reversing/side/rear view cameras. Bright and clear 7" 1024x600 IPS display, 3 channel 4 pin inputs, removeable deep sunshade, auto dimming in the dark, selection of compatible stand/brackets, 2 year guarantee, and lifetime support. Ideal display for 720P/960P/1080P AHD reverse cameras.
About our 7" AHD High Definition Vehicle Monitor for Reversing / Rear View Cameras
AHD High Definition 7 inch stand / dash mount monitor for reversing/side/rear view cameras. Bright and clear 7" 1024x600 IPS display, 3 channel 4 pin inputs, removeable deep sunshade, auto dimming in the dark, selection of compatible stand/brackets, 2 year guarantee, and lifetime support. Ideal display for 720P/960P/1080P AHD reverse cameras.
Bright and Clear 7" IPS Display - This vehicle monitor never fails to impress customers with its extra bright and clear display. The technology used is IPS - a display type that is popular amongst the gaming community for their monitors. The IPS panel fitted to this reversing camera display will provide you a bright, colourful and easy to see image.
Compatible with 720P/1080P AHD Cameras - This monitor will display the latest 720P/060P/1080P AHD signal reversing cameras. It is worth mentioning that this monitor is compatible with traditional standard definition cameras, however we don't recommend using this monitor if you only have standard definition CVBS cameras, since a CVBS monitor will display them better (keep CVBS cameras with CVBS monitors).
Auto-Dimming In the Dark - The monitor is installed with a light sensor, which will reduce the brightness of the display down as it gets darker inside the cabin. This means that the driver is less distracted with glare at night, or whilst driving through dark areas e.g. tunnels/underground car parks.
3x 4 Pin Channel Inputs - This monitor can handle up to 3x cameras. It uses the most popular type of input connection - the 4 pin aviation connector. Having three channels means you can fit reversing cameras, rear view cameras, and possibly a side camera to keep an eye out on a blindspot.
Works on 12V and 24V Vehicles - The monitor can work on both 12V vehicles e.g. Motorhomes and Vans, as well as 24V vehicles e.g. HGV, LGV, and Trucks. The monitor can take up to 32V and regulate the output to the cameras down to 12V.
Deep Removeable Sunshade - To reduce the glare of sunlight on to the display, the monitor is supplied with a deep sunshade. This can be added and removed according to your preference. Some people choose not to install this, especially if they are mounting high up on the ceiling.
Heavy Duty Side Mounting U Bracket - The monitor is always supplied with the side mounting "u bracket", even when you order other brackets in the listing. This bracket is actually very popular. It can either be mounted on the dashboard, or inverted and used to hang the monitor from the ceiling instead.
Optional Rear Mount Brackets Available - Fitted with a rear channel that can allow any of our wide selection of alternative monitor bracket mounts to fit. See the drop down menu to add 1x discounted bracket to the bundle. If you would like to order more than this, please see our reversing camera monitor bracket mounts category.
3x Trigger Wires e.g. Reverse/Indicator - All 3 channels has a trigger wire that is assigned to it. Trigger wires are important for vehicle monitors since they allow you to automate the display of a particular channel in response to an event/trigger. The most popular use of this is to link up the reversing camera channel trigger wire to the positive reverse light feed. This would auto power on (if monitor was off) and select the related channel when you enter reverse, then return to the power state/channel it was on when you come out of reverse.
Two Year Guarantee - We are very confident in the build quality of this monitor, which is why it comes with a two year guarantee. In the unlikely event any fault shows itself in this time, we will replace or repair. Even outside of this period of time, we are usually able to offer a low cost repair service to keep the system working in tip top condition. Something that is very rare in the throw away society of today.
Please kindly note :- Although the monitor can be used with traditional standard definition (SD) reversing cameras, we find that the result is not as good as a dedicated standard definition monitor. This monitor will perform at its best with AHD signal reversing cameras.
Additional Monitor Bracket Options
To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below. We also have a YouTube video showing the various bracket options below.
ACC035 - "Butterfly" Bracket option
So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.
ACC041 Quick Release Bracket option
The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.
ACC705B - Heavy Duty Rear Mount Bracket Option
The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.
ACC038 - Suction Mount Bracket Option
Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.
ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option
The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.
Technical Specification
7” Diagonally Measured Colour IPS screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 1024 x3(RGB)x600
3 Hybrid Inputs
PAL/NTSC/AUTO
Full function Remote Control
