7 Inch Rear View Mirror Monitor - 2x Reversing Camera Inputs

High Resolution Image Quality - Our 7 inch mirror monitor display gives a good quality image thanks to it's 800x480 pixel digital hi-res LCD panel. This resolution can handle even the highest resolution of traditional CVBS signal reversing cameras (CVBS signal still makes up 95%+ of all existing reversing camera systems).

2 Channels for Reverse, Rear View, Side View Cameras - The monitor wiring harness is fitted with 2x 4 pin aviation connectors. This gives space for a rear view, and reversing camera to be fitted. Change between channels by either using the V1/V2 button on the screen, the remote control, or the reverse trigger wires.

Most Popular Location for Fitting a Monitor - The position of the interior mirror is where we naturally look when we wish to see what is behind us.

Trigger Wire for automatic channel changing e.g. when in reverse - This model has a green trigger wire linked to channel 2 of the monitor. You do not have to use any trigger wires to be able to watch a camera, but if you did want the monitor to auto switch to a channel, or to turn the monitor on if the monitor is usually off, you can connect the related trigger wire up to a power source eg reverse light feed (the most common setup). This gives you handsfree convenience when it comes to the reversing camera system functioning.

Full Function Remote Control - We provide a remote control that allows you access to all the menu functions and changing channels from a distance. These functions can also be achieved on the monitor by using the buttons.

Two Year Guarantee and Lifetime Support - This monitor should last a very long time without any issue. We guarantee it to be free from faults for two years. After two years we are able to offer low cost repairs to keep your system in good condition and avoid extra time or expense installing all new components. We also keep good stock of spare parts such as wiring harnesses should you decide to take the monitor out of the vehicle with you when you sell your vehicle but leave the wiring where it is.

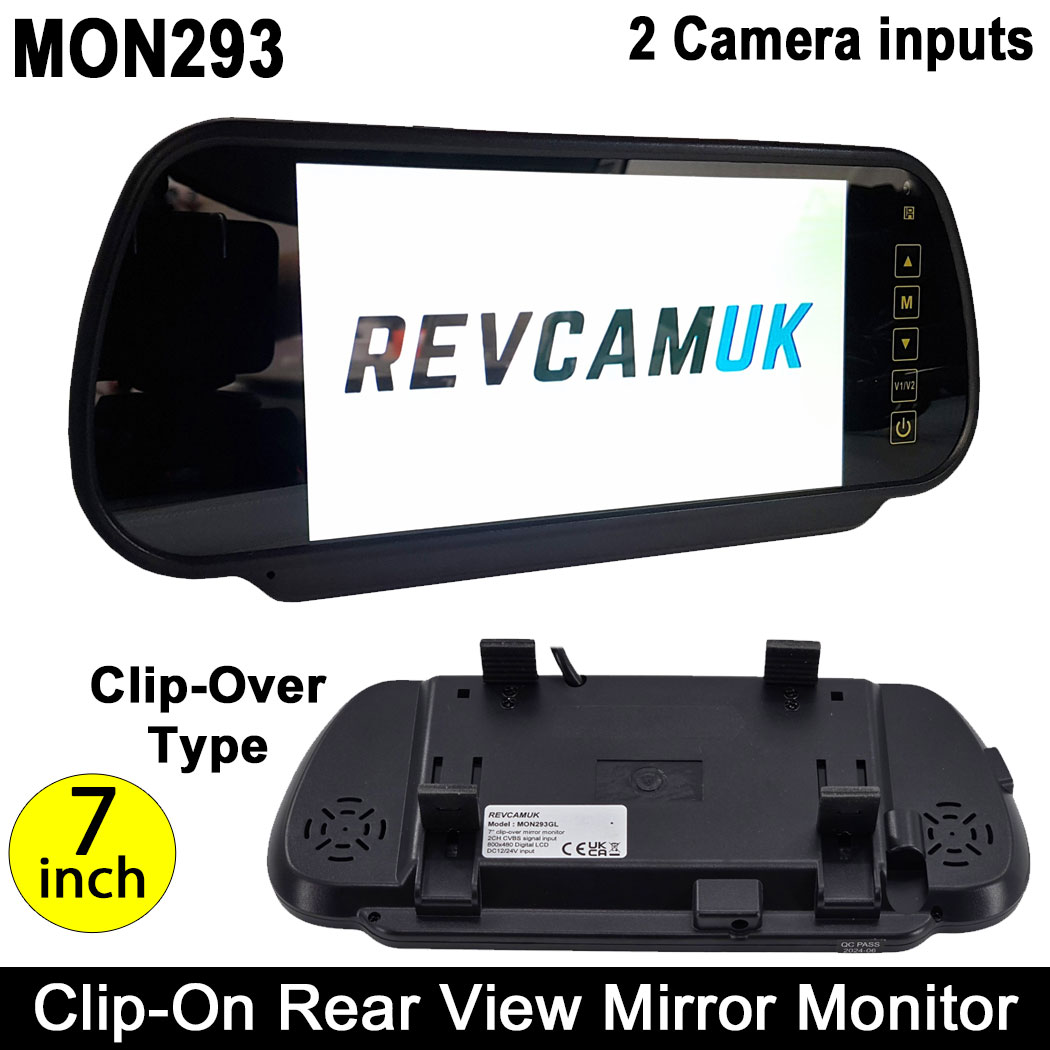

Clips over existing interior mirror - This mirror monitor is fitted with two strong spring loaded clamps on the rear. There are two fixed brackets at the top-rear, whilst two lower brackets that pull down are underneath these. To fix the monitor simply pull the two lower spring brackets until you have enough clearance for them to get past your existing interior mirror, hold the monitor against the mirror, then let go of the two lower brackets so that they clamp to the existing mirror. See our video below to see us place one on to a mirror.

4 Pin Channel Inputs and RCA adaptor options - As standard this monitor will come with 2x 4 pin inputs. This is the favourite connector type for the reversing camera industry allowing the monitor to power the cameras - avoiding CANBUS issues and allowing for an easy install. We also have the option to add RCA adaptors, these short adaptors screw to the inputs and change the input type to a yellow RCA socket input. This is ideal if you are replacing a monitor with an older RCA Phono input.
