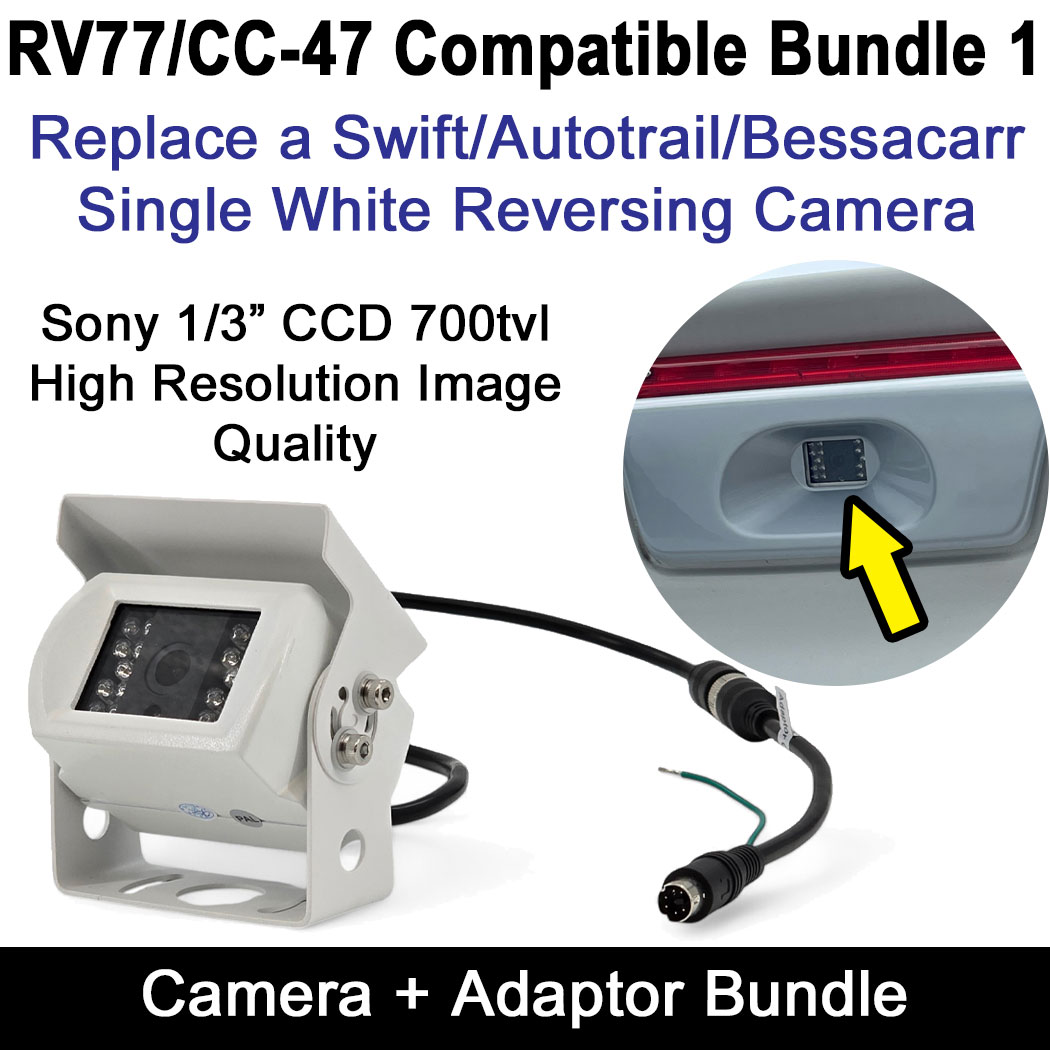

RV77/CC-47 Compatible Replacement Reversing Camera with 6 Pin PS/2 adaptor | Adaptor-G+CAM061
White Reversing Camera + 6 Pin PS/2 Adaptor Bundle Set to Replace Failed/Faulty Swift Motorhome C-47/RV77 Camera. Quality Sony 1/3" CCD image sensor fitted. Adaptor converts our 4 pin fly lead to the same 6 pin factory fitted wiring. Premium quality replacement from a family business who have supported the Motorhome community for close to two decades.
Compatible Replacement for Factory Fitted White RV77 CC-47 Reversing Cameras on Swift/Autotrail/Bessacarr Motorhomes
For more than a decade we have supported the replacement of parts that fail on the Swift, Bessacarr, Autotrail reversing camera systems originally produced by Sargent Electrical. This listing is to replace the white single reverse camera, hidden behind a plastic moulding.

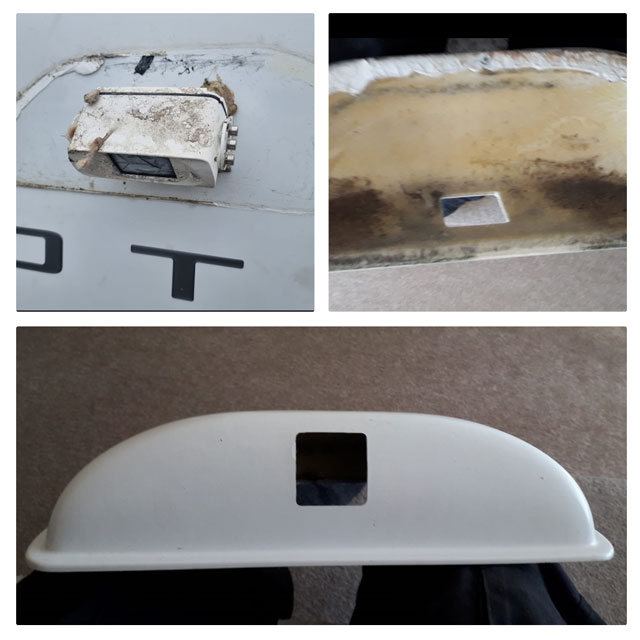

Early models of RV77/CC47 Reversing Camera were fitted behind a rounded/dome type cover. See these images sent in below from a customer showing the original white factory reversing camera mounted behind the pod. Please note that this pod can be tricky to get back on once removed, it may also need some modification to the cut-out to fit the new camera due to the size difference.

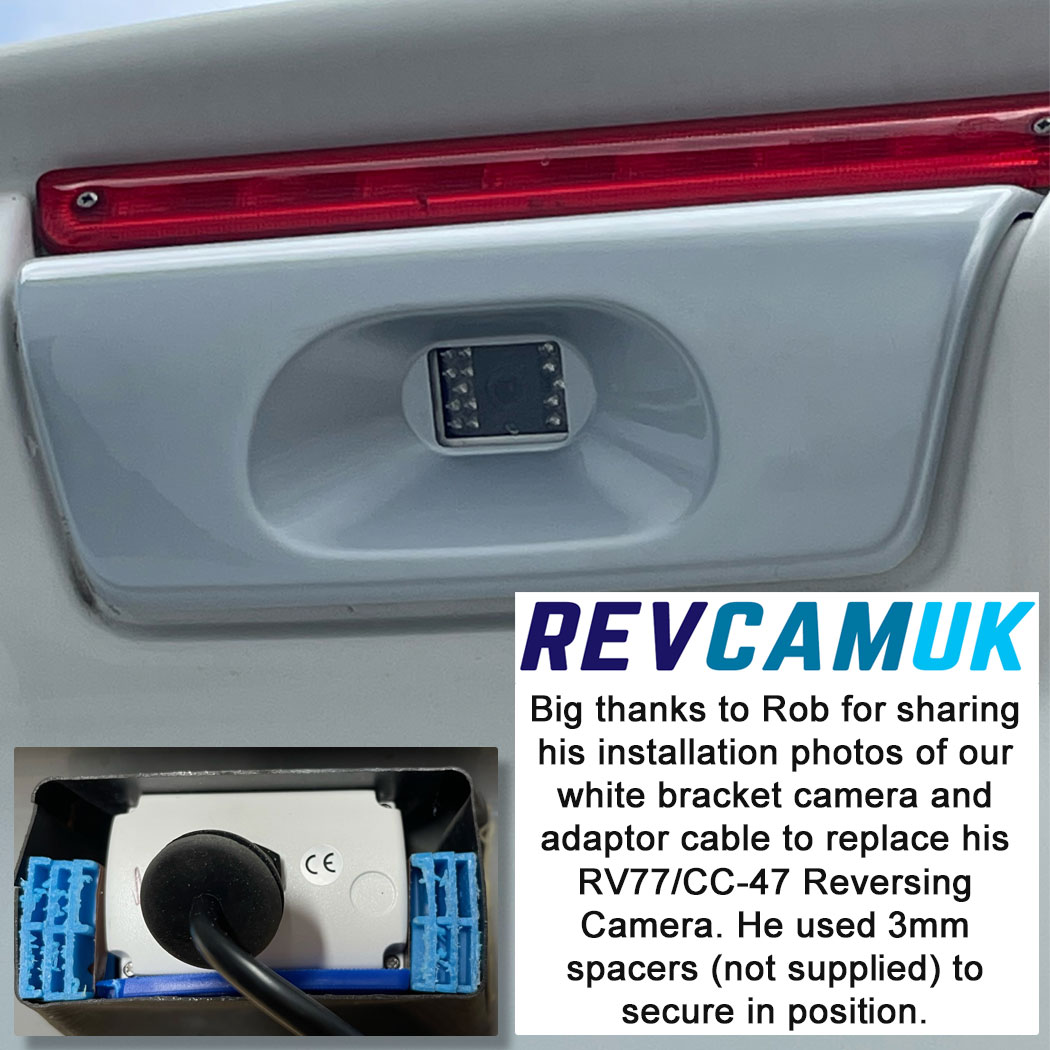

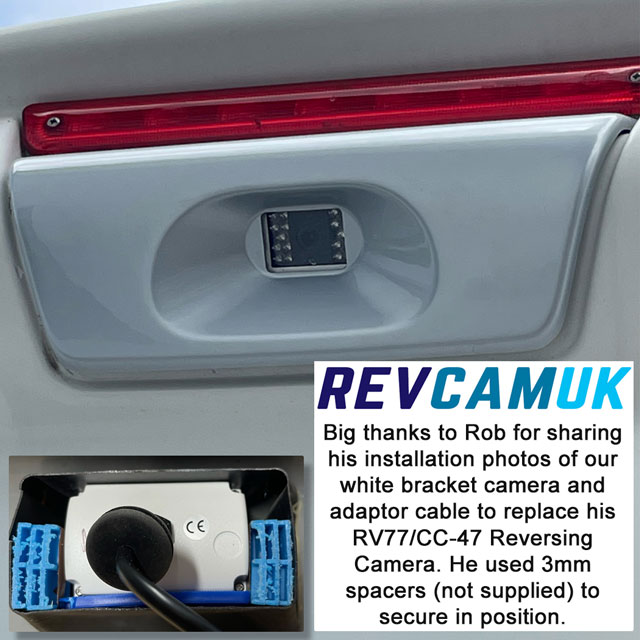

The later models had a more "built-in" design. See the image below to see photos sent in by Rob, of his install of this compatible reversing camera bundle set fitted to his Swift Bessacarr Motorhome. He secured the camera in to position using 3mm spacers taped together to the correct size. A tidy job, very happy customer, with a lovely picture (thanks to the Sony CCD image sensor), and most importantly keeping the visibility and safety as high as possible.
We will supply the correct adaptors for this camera system to convert our 4 pin version in to their 6 pin PS/2 connector version.
The adaptor cable has a fly lead coming off the connector. If your old camera had an orange wire that was connected to another lead (reverse trigger), then you must join the adaptors fly lead to the vehicle reverse trigger wire. If you do not need to connect the wire at the rear, you MUST put some insulation tape over this wire to avoid electric touching something it shouldn't (this sometimes becomes live when connected to the OEM 6 pin cable).
Rest assured that we have supplied many hundreds of these with the adaptors to many happy customers.
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Apect Ratio of output: 4:3
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR LEDs on)
Waterproof to Ip68
Infrared LEDs to provide night view
120-degree lens
Mirror image
Stainless Steel Bracket (painted)
