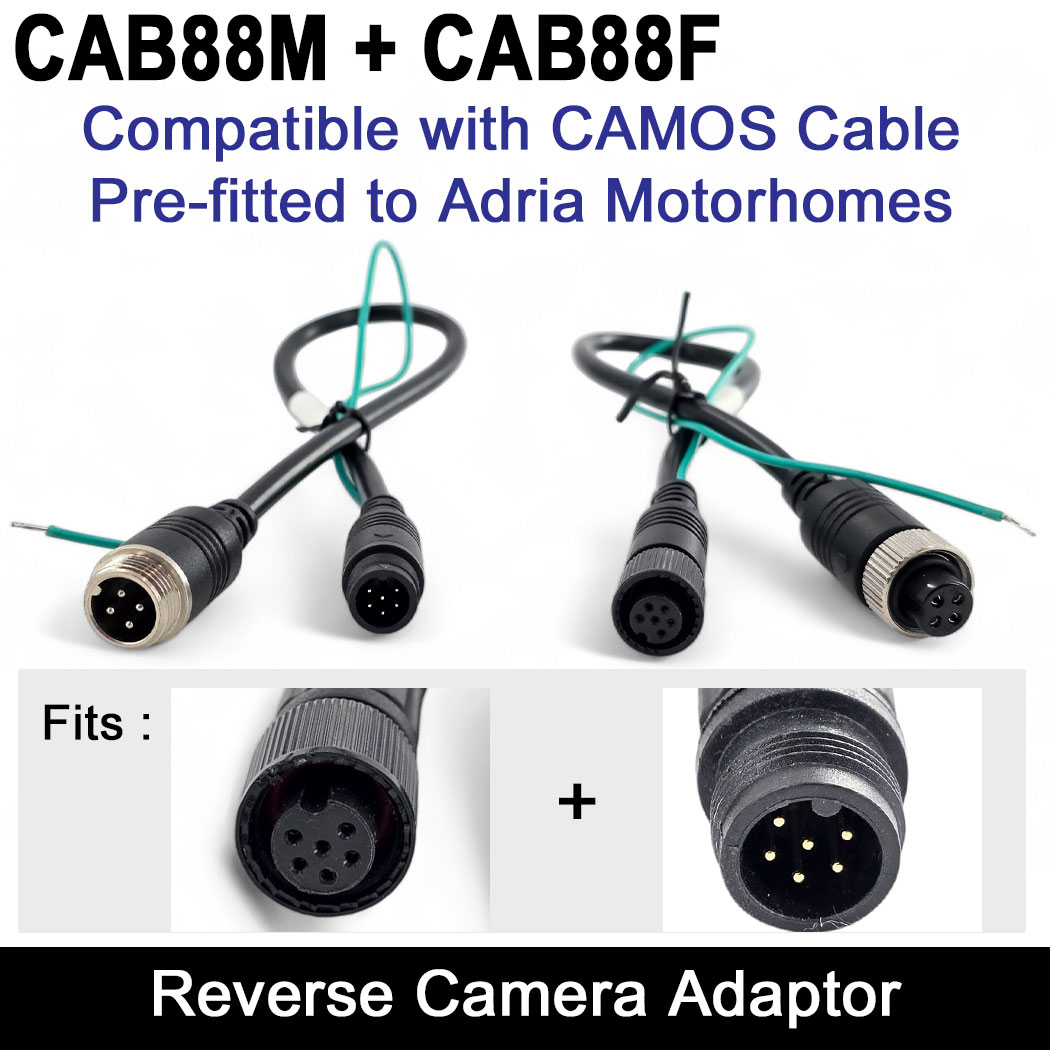

Adria/CAMOS 6 Pin Compatible Reversing Camera Adaptor Set to 4 Pin | CAB88M + CAB88F

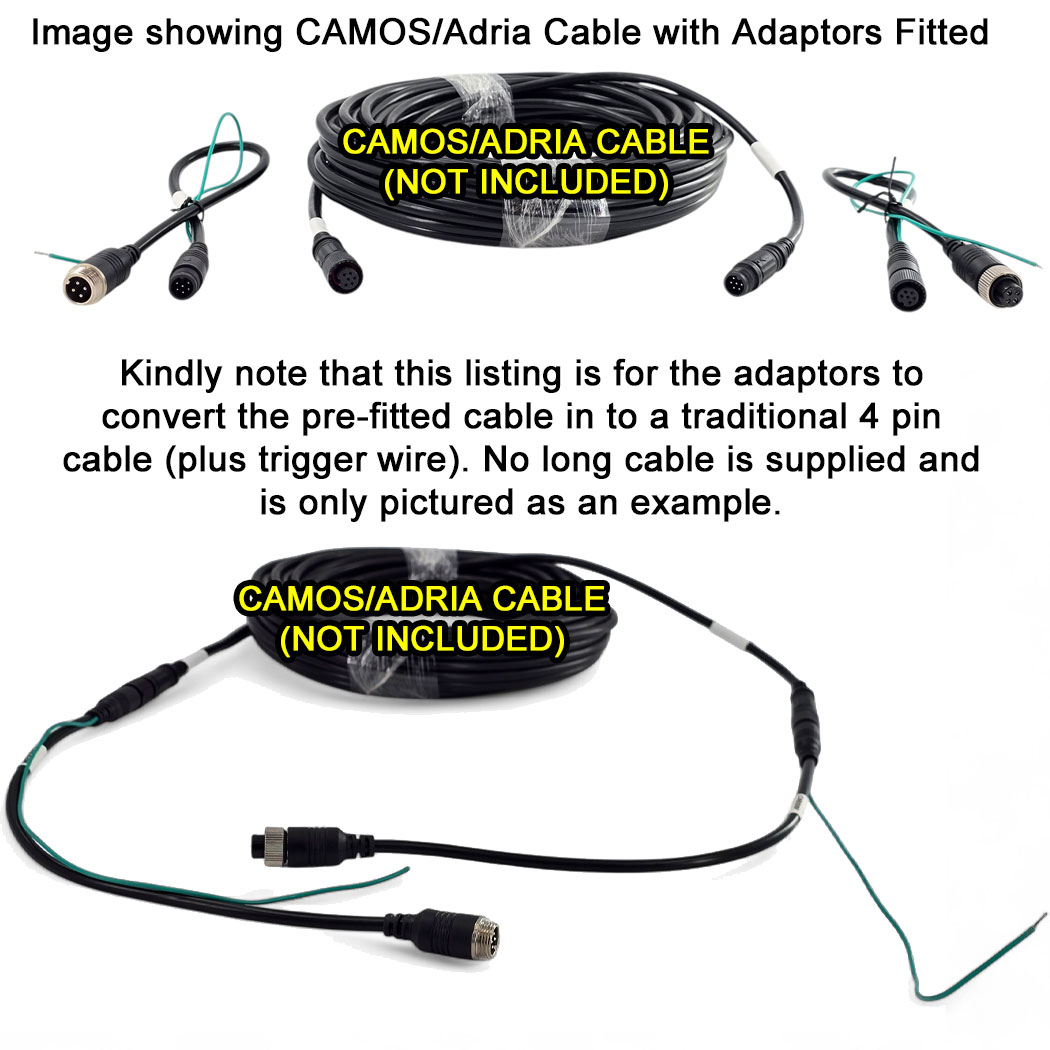

Compatible Reverse Camera Adaptor set to go from the 6 pin CAMOS Cable fitted to Adria Motorhomes to 4 Pin Screw Aviation. This cable makes using the pre-fitted cable and replacing parts easy and cost-effective.
Compatible Reverse Camera Adaptor set to go from the 6 pin CAMOS Cable fitted to Adria Motorhomes to 4 Pin Screw Aviation. This cable makes using the pre-fitted cable and replacing parts easy and cost-effective.
If you are wondering what the green wires are, it is because we wired up the adaptors to recover the reverse trigger wire (if used). On some cameras e.g. the CAMOS Jewel the reverse trigger wire is sent down one of the pins in order to get the camera to crop a different section of the image. We had this same pin linked to the wire so that if you decide to upgrade the camera to one of our proper Sony CCD image sensor Dual Twin Lens Reverse + Rear View Cameras, you would be able to achieve this by using our ACCMB99 Switching box - simply attaching the green trigger wire from the adaptor to the blue trigger wire of the switching box.
Important Compatibility Notice:
This product is not manufactured by Camos, Adria, or any of their affiliated companies, but it is designed to be compatible with certain Camos reversing camera systems commonly fitted to Adria motorhomes.
If you are using this adaptor to connect a new 4 pin camera to a new 4 pin monitor (or vice versa) and both ends of the adaptor are being used, then compatibility should be fine regardless of who originally made the cable.
However, if you are only using one side of the adaptor, please ensure you are connecting it to a confirmed genuine Camos system. Other connectors may look similar but may be wired differently, and using this adaptor with non-Camos equipment could cause damage.
If you’re unsure, please contact us before purchasing.
Mainland UK Shipping
We have three postage options to select from during checkout (on larger items eg kits there will be two options):
Royal Mail Tracked - Smaller / Lighter weight orders. This will be sent via Royal Mails Tracked Service. They will send emails/SMS to inform you of the tracking events. This option won't be shown for heavier weight orders.
DPD 2 Day. Small or large orders. This will be sent with DPD Local and should arrive within two working days (if you place the order before 12:30PM).
DPD Next Day. Small or large orders. This will be sent with DPD Local and should arrive the following working day (if you place the order before 12:30PM).
Highlands and Islands UK Shipping
We offer a 2-3 day service fulfilled with either Royal Mail Post, or Parcel Force. The prices charged are identical to mainland UK. Small orders will be sent via the post, larger orders via Parcel Force.
Outside of the UK Shipping
We shop around when selecting the best method for Europe (we avoid the cheap budget couriers due to parcels being lost). Southern Ireland is always sent via DPD. Other countries will usually be either Parcel Force, UPS, or Fedex. Please note that we require a phone number for international deliveries. Also if you are a company in Europe, a VAT number or EORI number will help speed up customs.
We remove the UK VAT (Tax) when any country other than the UK is selected in the shopping basket or checkout. From this point all prices on the site drop down to exclude VAT. If you are from the Channel Islands, please select Jersey / Guernsey from the country list in order to remove UK sales Tax.
60 day "Change of Mind" policy
We understand that for whatever reason you may need to return your purchase. We provide a 60 day opportunity for you to do just that. Simply give us an email or a phone call to let us know it is due back. You are responsible for the shipping back to us but you will receive a full refund including the original shipping we charged you for your order. We recommend getting a signed for or proof of postage when posting back to us.
All we ask is that you return the items in the condition they were sent in, with the packaging present. You are welcome to have temporarily tested the product and unravelled things, but if you have cut wires, soldered, glued, installed and used for a while then this wouldn't be suitable for returns under the change of mind policy.
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Apect Ratio of output: 4:3
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR LEDs on)
Waterproof to Ip68
Infrared LEDs to provide night view
8mm - 45-degree lens
Mirror image
