Burstner, Baileys, Dometic, Waeco Pre-fitted 6 Pin Motorhome Cable Adaptors 2010+ version for Single Reverse Camera RCA output to Stereo Head Unit | CAB00W-RCA
Many models of 2010+ motorhomes have been pre-fitted with a grey cable that terminates in a 6 pin screw locking connector. This is produced by a company called Dometic aka Waeco, and the two biggest motorhome brands using this cable are Burstner and Baileys. This reversing camera adaptor set is compatible with this cable. This version is ideal if you plan to install one of our 4 pin aviation screw connector cameras in to an RCA headunit eg Pioneer/Sony/Kenwood.

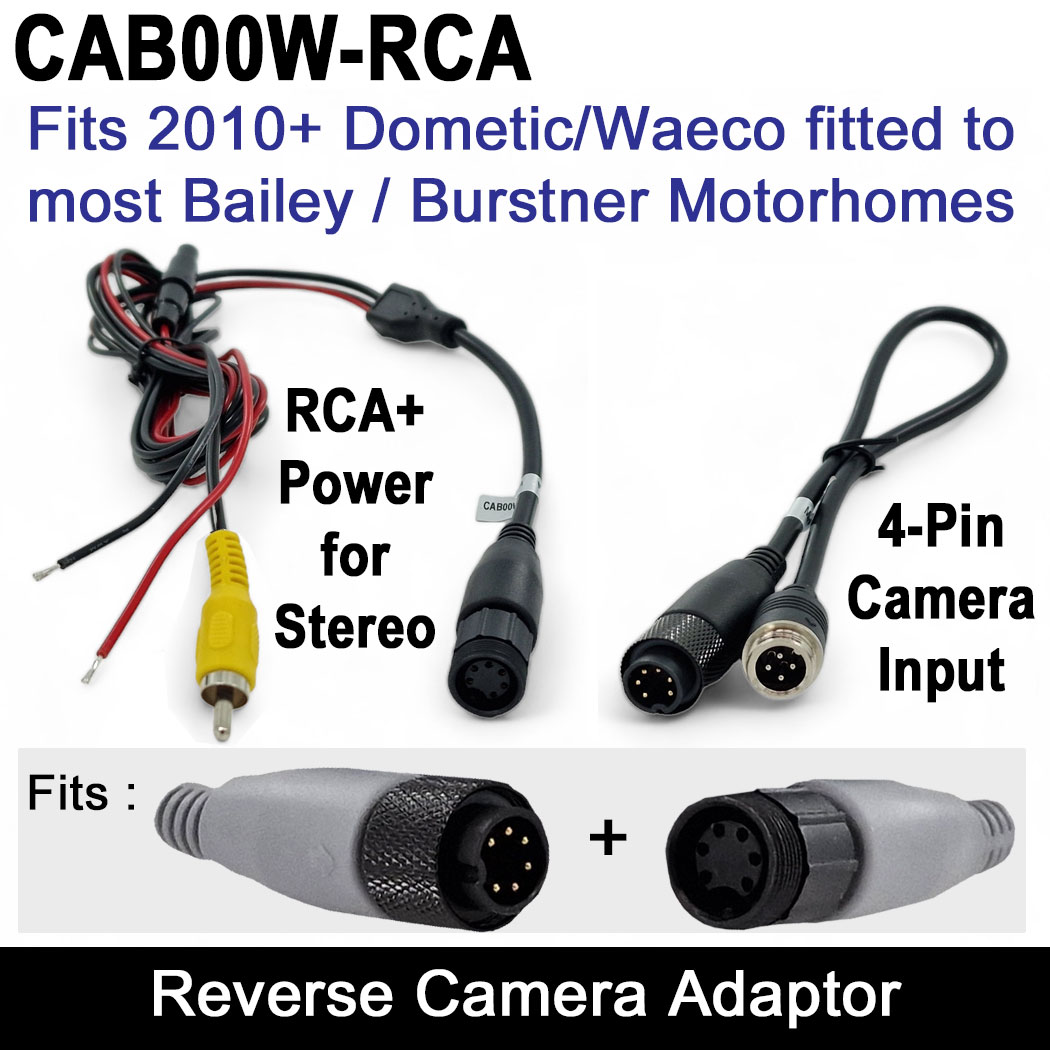

Dometic Waeco 6 Pin Screw Connector Reversing Camera Cable Compatible Adaptors to attach 4-Pin Camera to to RCA Phono e.g. Stereo Headunit
Many models of 2010+ motorhomes including Baileys and Burstner have a pre-fit grey 6 pin screw locking connector cable installed. This was produced by a company called Dometic aka Waeco. This reversing camera adaptor set is compatible with this cable.
Our reversing camera adaptor set is most commonly used to replace a faulty camera, upgrade to a higher resolution camera, or ordering the front section only to move from displaying on a monitor to a stereo head unit display e.g. Pioneer, Sony, or Kenwood. Each section can be purchased individually.

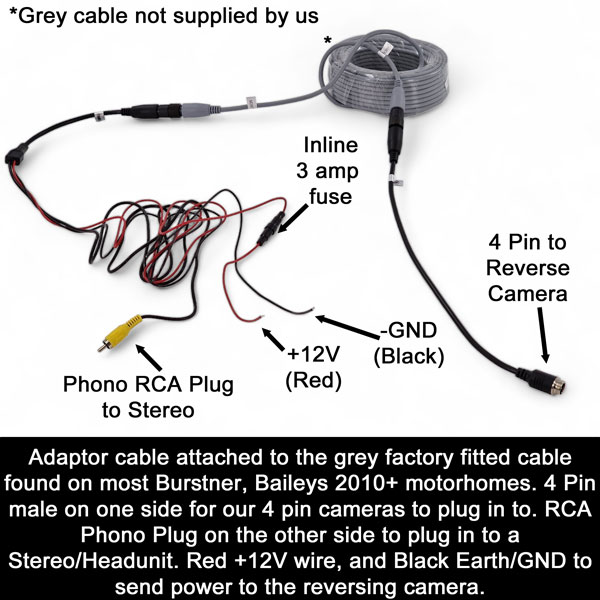

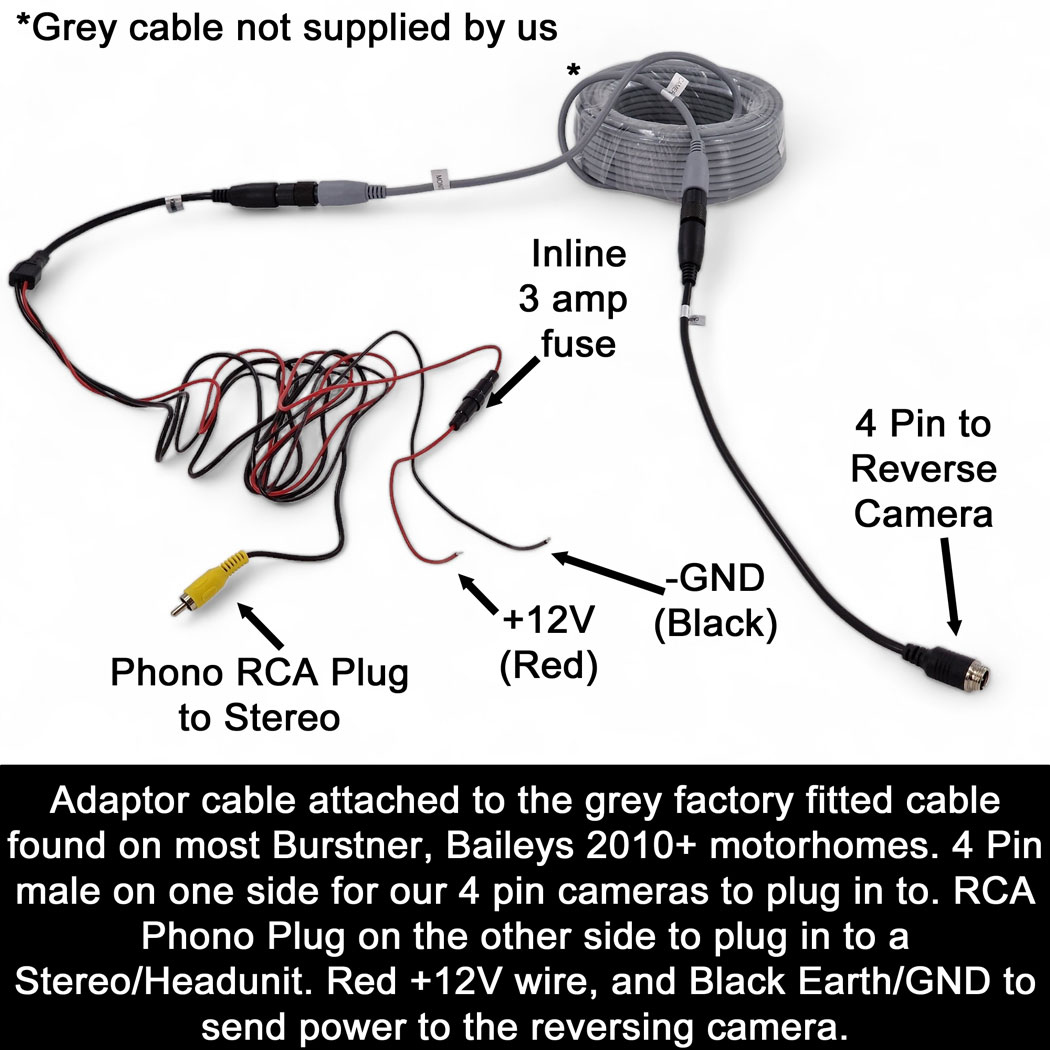

The cable lengths at the front for +12V / Earth / Phono-RCA is 150CM. The red +12V wire has a 3 amp fuse built in to protect the reversing camera.
Our video below shows us using our adaptors to change a single reversing camera in to a double twin rear view camera on a Burstner motorhome. The same general idea applies to other brands that use this cable eg Baileys. . The adaptors on this page allow you to fit or change the reversing camera on your motorhome. Although this video is about the twin adaptors, this still applied to single adaptor sets.
