CC-47/RV77, RV66... Single Camera Replacement Adaptor | Adaptor-G (Read Listing)

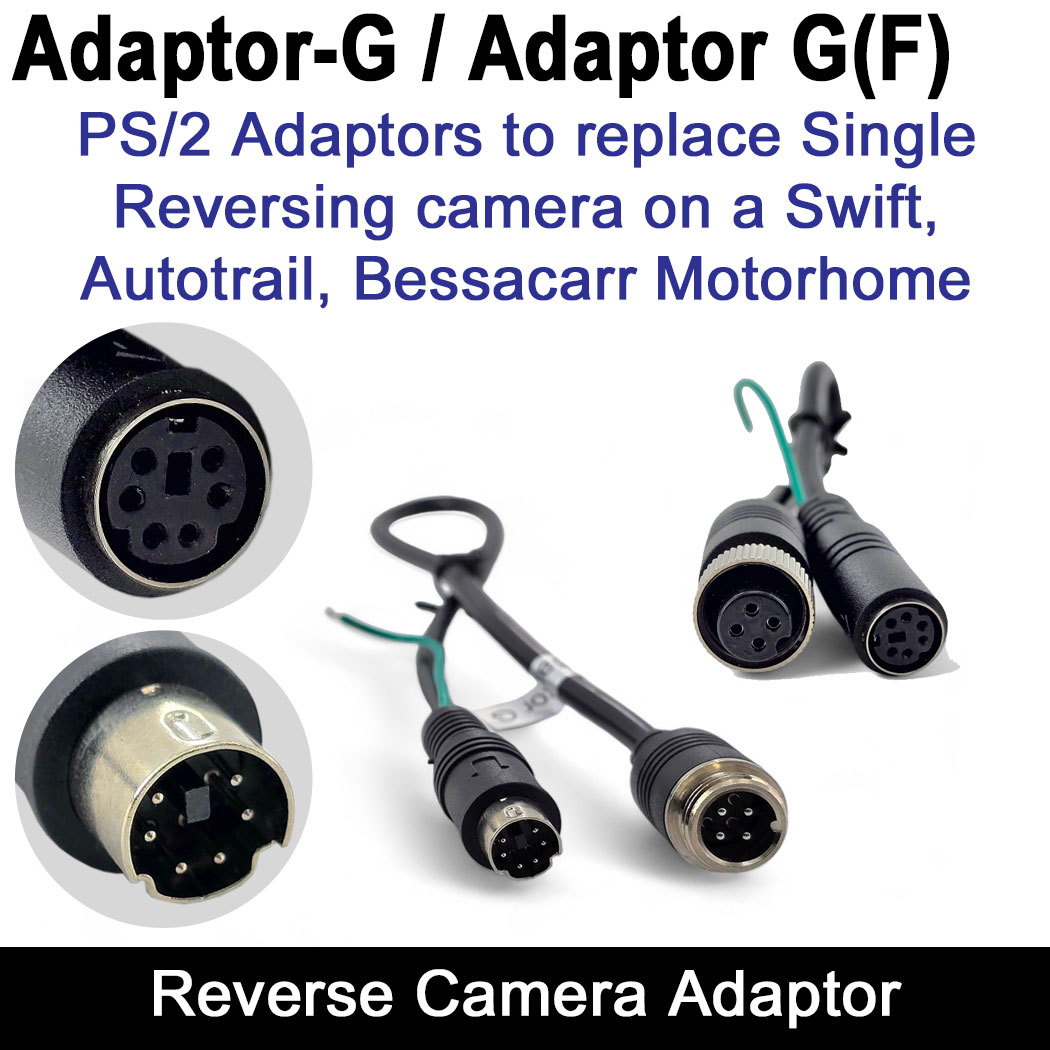

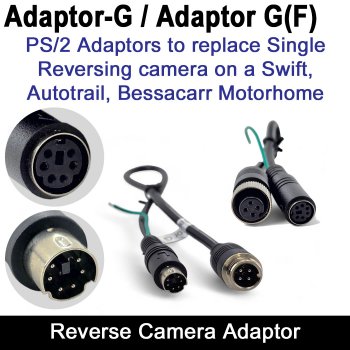

For more than a decade we have supported the replacement of parts that fail on the Swift, Bessacarr, Autotrail motorhome reversing camera systems originally produced by Sargent Electrical. This listing is for the adaptor cables required to add 4 pin reversing cameras to the original 6 pin PS/2 Cables that were fitted with SINGLE CAMERAS (not the twin unit).

Warning

This type of connector has been used by lots of different brands, all of them wired up differently to each other. In fact for Swift, Bessacarr, Autotrail Motorhomes we have 3 adaptors, all of them wired up differently to each other. Do not look at the connector and just try in hope. We have half a dozen PS/2 connectors, none of them will work on systems other than the one they are designed for. You may cause damage to your system or the new camera if you just "try and see". If you are in doubt contact us

  • £15
  • including VAT
Qty:
In stock (9 items available)

6 Pin Reversing Camera Adaptor Lead to Replace Failed Single Reversing Cameras on Swift, Bessacarr, and Autotrail Motorhomes

For over a decade, we have supported the replacement of parts that fail on the Swift, Bessacarr, and Autotrail reversing camera systems produced initially by Sargent Electrical. This listing is for the adaptor cables required to add four pin reversing cameras to the original six pin PS/2 Cables fitted with SINGLE cameras. This will not work on the twin camera systems, if you require these please see our twin Swift, Autotrail, Bessacarr, and Autotrail reversing camera adaptors.

What type of reversing cameras will this adaptor help replace?

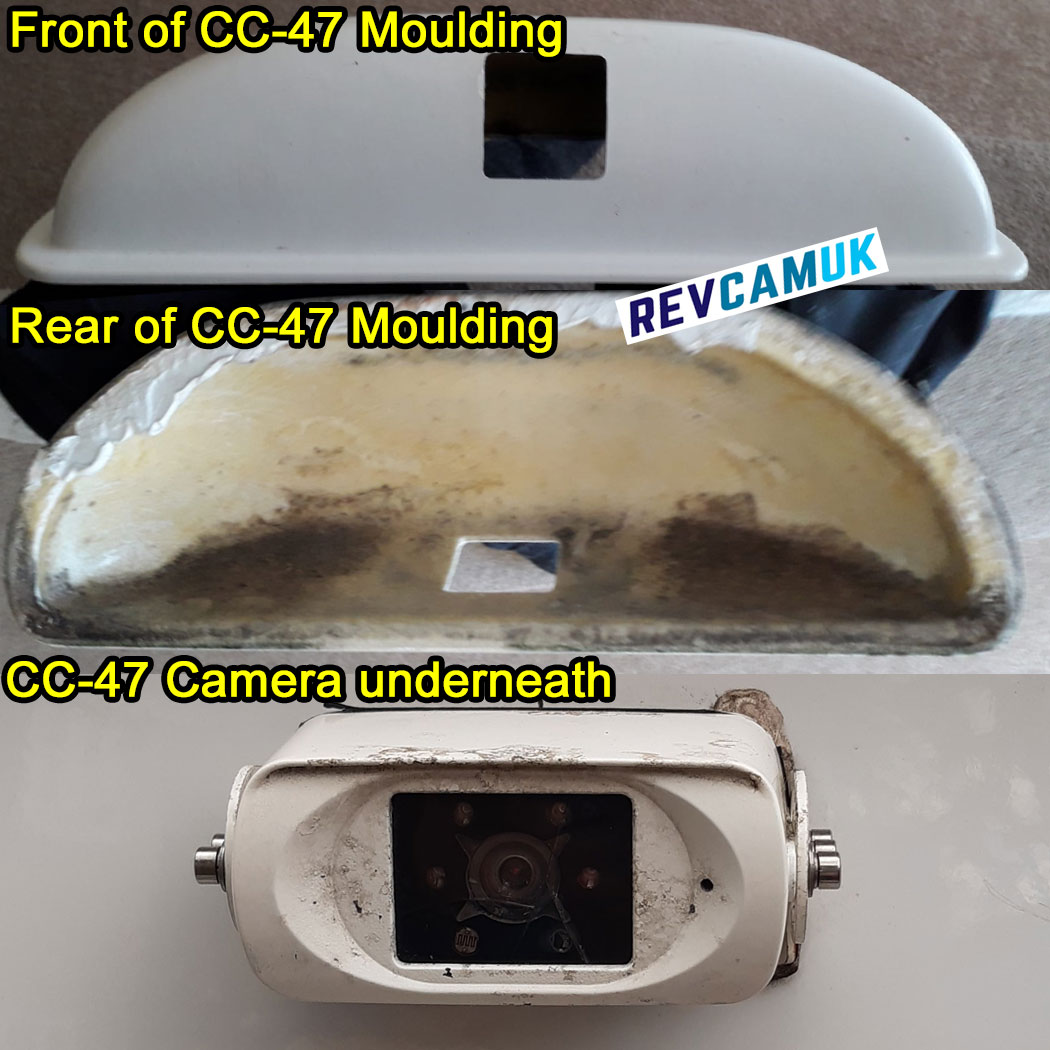

RV47 / CC-47 Reversing Camera

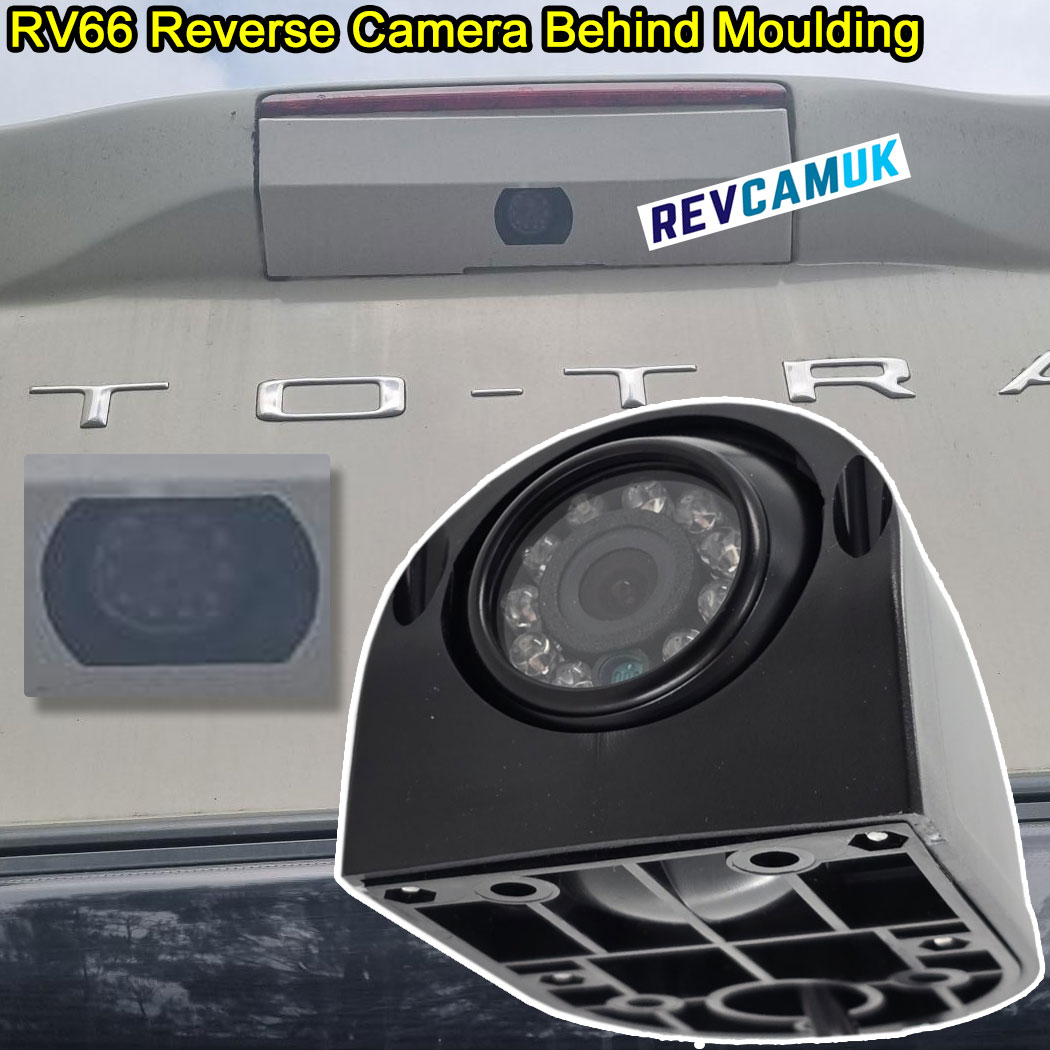

RV66 Reversing Camera

As well as many more. Send us photos if you would like advice on replacement.

Fitting Instructions

  • Most often the reverse camera will be fitted behind a plastic moulded covering such as the images above. This will need to be carefully removed first. Warning, sometimes this cover may break as you are taking it off as it has a lot of sealant/adhesive applied. You may need to source a replacement panel from the dealership prior to undertaking replacement, although some people choose not to replace this if it does break.
  • Remove the original camera from the vehicle, disconnecting it from the 6 pin socket. If there is an orange lead coming from the vehicle to the camera, this is a reverse light supply (keep away from touching anything for now). You might find an orange tail on the camera that isn't connected to anything, this again is normal. Most cameras had the tail, but not all vehicles required it at the rear.
  • Fit a new replacement reversing camera of your choice with the 4 pin aviation connector.

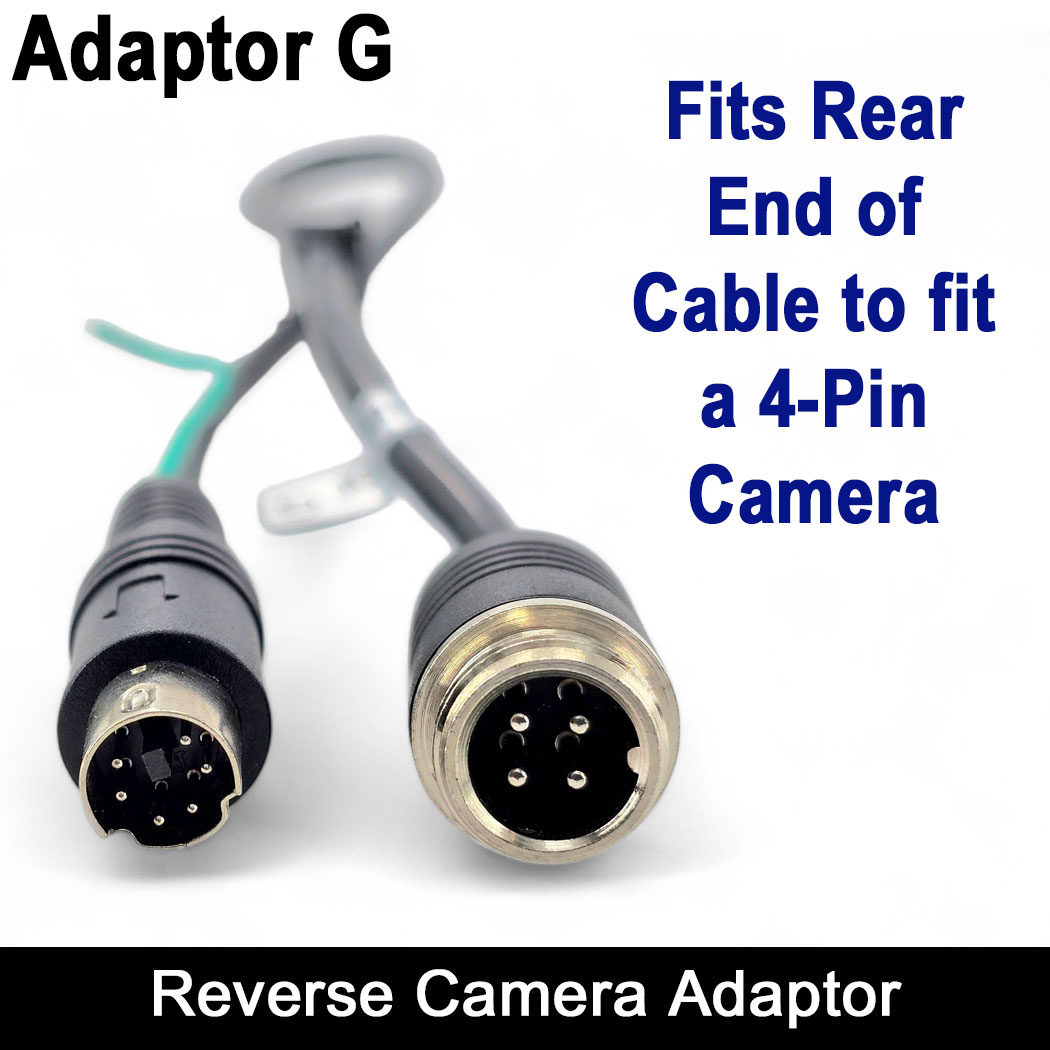

  • Attach this reversing camera adaptor cable to the 4 pin screw connector on your new reverse camera. Then insert the other end (6 pin PS/2) in to the original extension lead on the motorhome.
  • If your old camera had a reverse feed lead (usually orange) running to a tail coming from the camera you will need to attach this to the tail coming off Adaptor-G. You will need to use solder/crimp/wago/connector block or similar to achieve this. If your old camera did not connect to anything, do not connect the Adaptor-G tail to anything! Make sure you place insulation tape over the end of the tail as this may become live when you select reverse.

Warning

This type of connector has been used by lots of different brands, all of them wired up differently to each other. In fact for Swift, Bessacarr, Autotrail Motorhomes we have 3 adaptors, all of them wired up differently to each other. Do not look at the connector and just try in hope. We have half a dozen PS/2 connectors, none of them will work on systems other than the one they are designed for. You may cause damage to your system or the new camera if you just "try and see". If you are in doubt contact us
