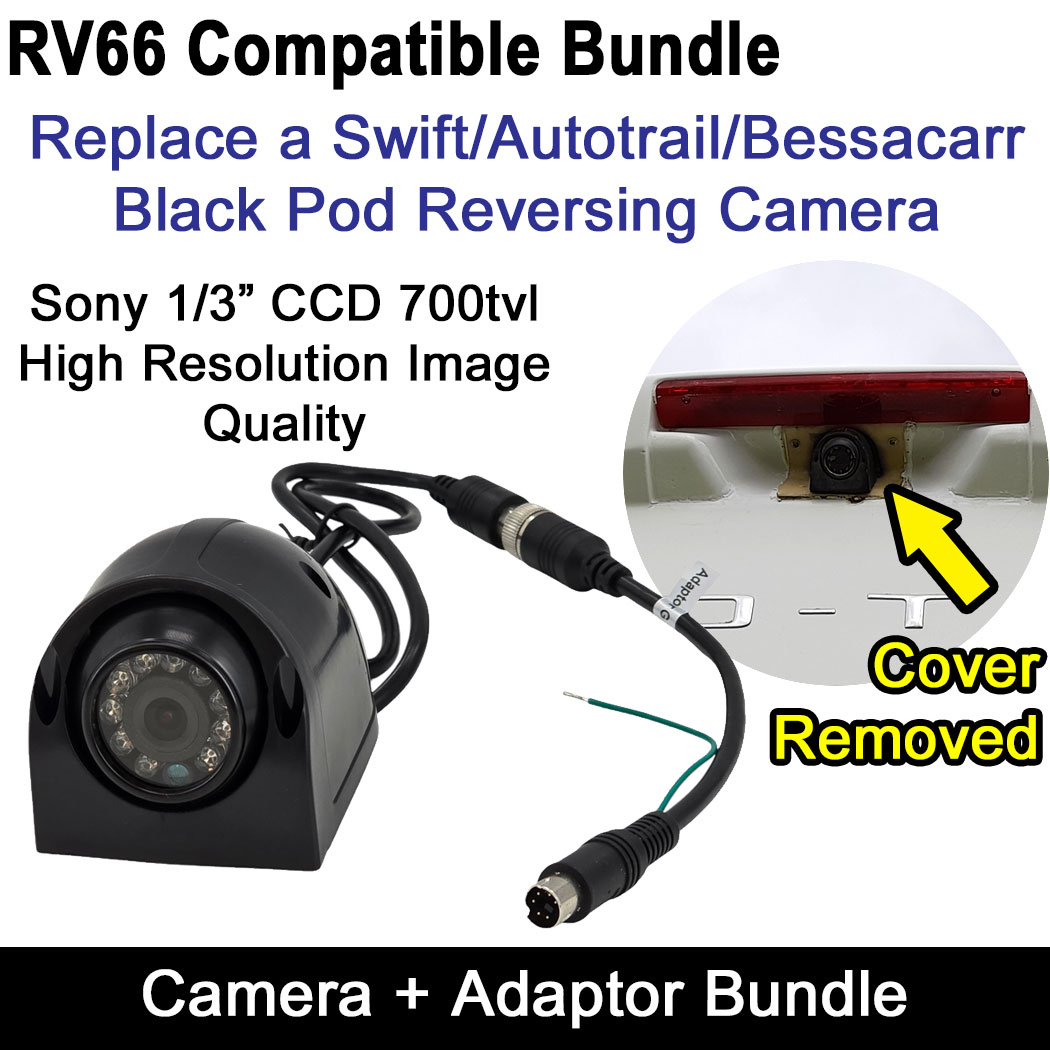

RV66 Compatible Replacement Reversing Camera with 6 Pin PS/2 adaptor | Adaptor-G+CAM667B
Black Pod Reversing Camera + 6 Pin PS/2 Adaptor Bundle Set to Replace Failed/Faulty Swift Motorhome RV66 Camera. Quality Sony 1/3" CCD image sensor fitted. Adaptor converts our 4 pin fly lead to the same 6 pin factory fitted wiring. Premium quality replacement from a family business who have supported the Motorhome community for close to two decades.
Compatible Replacement for Factory Fitted Black Pod RV66 Reversing Cameras on Swift/Autotrail/Bessacarr Motorhomes

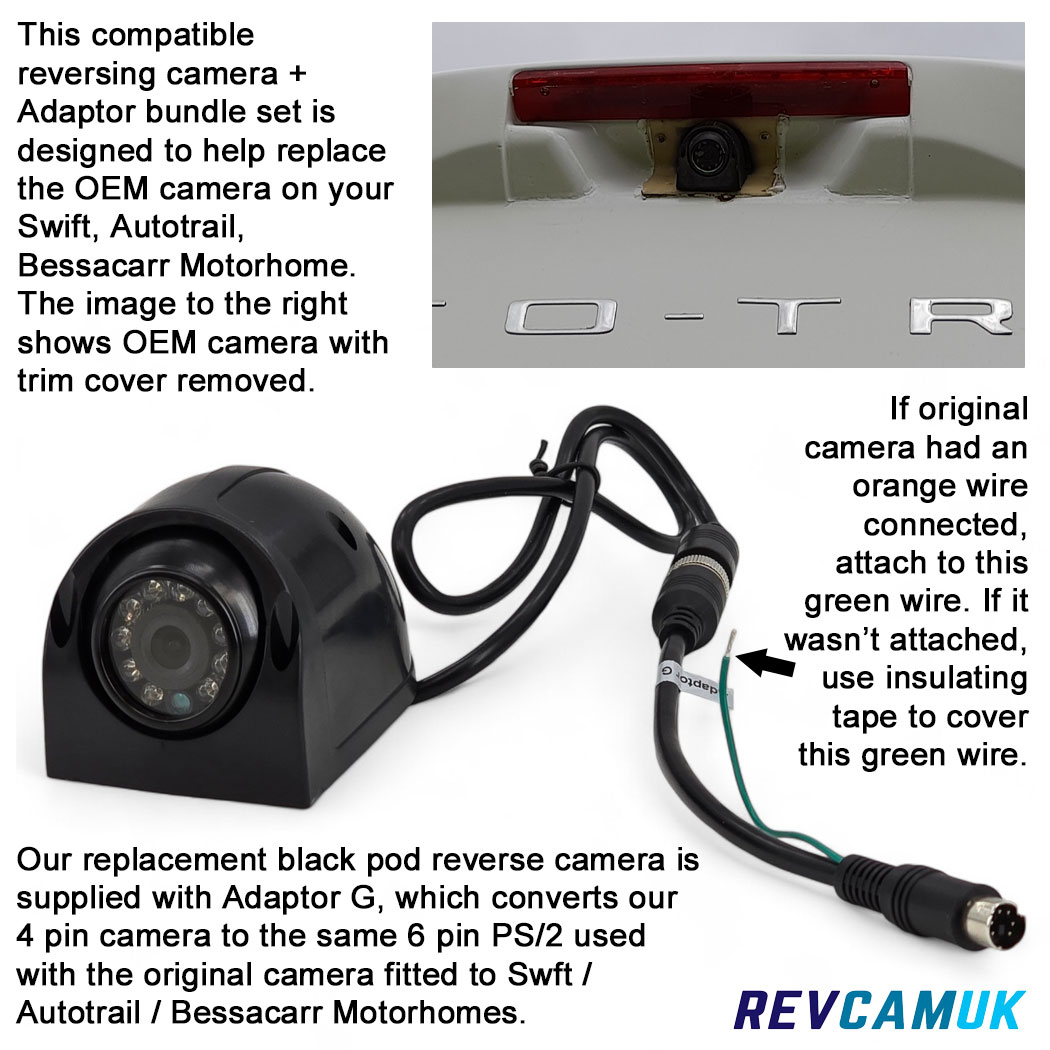

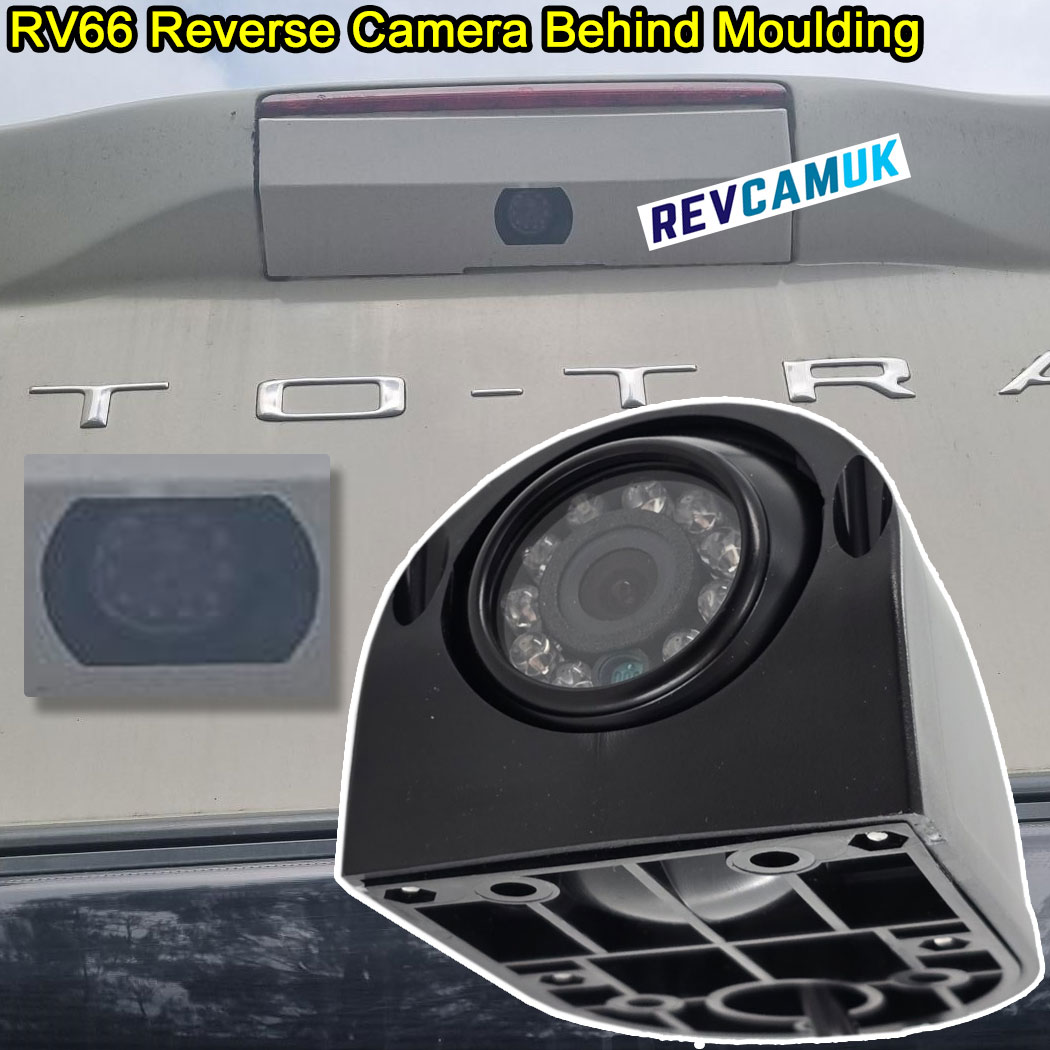

For more than a decade we have supported the replacement of parts that fail on the Swift, Bessacarr, Autotrail reversing camera systems originally produced by Sargent Electrical. This listing is to replace the black pod single reverse camera, hidden behind a plastic moulding. See image below to see what the camera looks like looking at it through the trim.
We will supply the correct adaptors for this camera system to convert our 4 pin version in to their 6 pin PS/2 connector version. The adaptor cable has a fly lead coming off the connector. If your old camera had an orange wire that was connected to another lead (reverse trigger), then you must join the adaptors fly lead to the vehicle reverse trigger wire. If you do not need to connect the wire at the rear, you MUST put some insulation tape over this wire to avoid electric touching something it shouldn't (this sometimes becomes live when connected to the OEM 6 pin cable).
Both the camera and adaptor comes with full instructions. You can download PDF's in advance if you wanted to see what is involved before ordering.
Downloadable PDF files of camera fitting and adaptor guidance
 Click preview image to download the PDF file | Instructions for fitting our CAM667 Side View Vehicle Blindspot cameras Instructions on fitting and adjusting the side view blindspot cameras. |
 | Adaptor G for replacing Swift Autotrail Bessacarr Single Reversing Cameras Guide and safety advice |
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Apect Ratio of output: 4:3
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR LEDs on)
Waterproof to Ip68
Infrared LEDs to provide night view
120-degree lens
Mirror image
Stainless Steel Bracket (painted)
