RVM730 Compatible Bundle - 7" Bracket Mirror Monitor with Adaptor I - Replacement screen compatible with some Swift / Autotrail / Bessacarr motorhomes
Upgrade/Replace a RVM730 bracket to windscreen mirror monitor on Swift Motorhome. Compatible with the original Sargent Electrical supplied reversing camera systems that use the EM3.5 and EM5.0/EM5.6 boxes. Commonly seen on Swift, Autotrail, Bessacarr motorhomes. Fits original bracket, or order a new replacement bracket in the bundle.

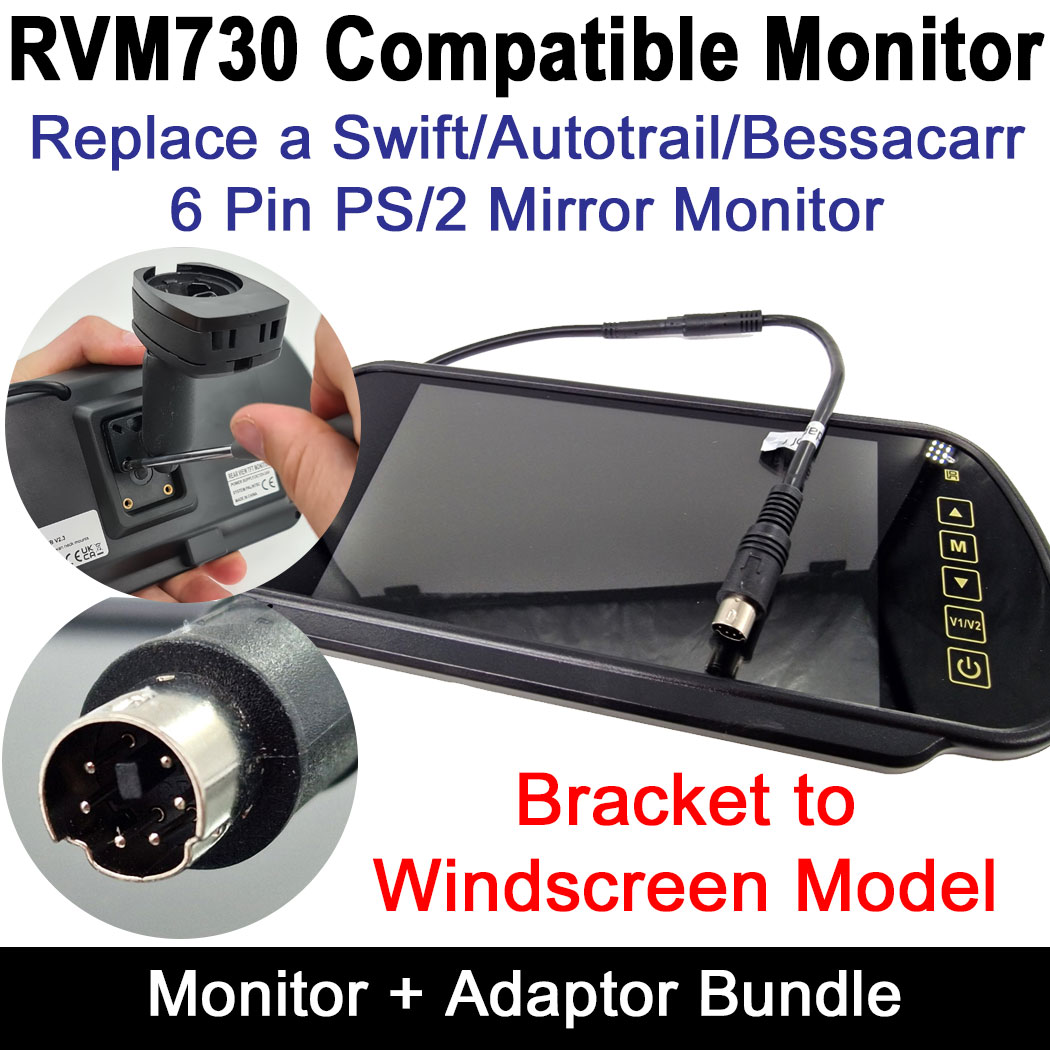

Monitor + Adaptor Bundle Set that allows our 7 inch rear view mirror monitor to replace the one installed on Sargent Electrical systems fitted to Swift / Autotrail / Bessacarr motorhomes
An Monitor and adaptor bundle, designed to upgrade/replace the RVM720 mirror monitor on Sargent Electrical reversing camera systems that use the EM3.5, EM5.0, and EM5.6 series boxes. Commonly seen on Swift, Autotrail, Bessacarr motorhomes. Our mirror monitor uses a slimline 8 pin plug, which then fits to our Adaptor I (converts to a PS/2 connector, which we have had pinned out to match Sargent's cabling).
Check out our video below to see our replacement mirror monitor attached to the original EM3.5/EM5.6 box that are fitted with this type of system.
Compatibility Warning for other models with similar connector
Please kindly note that other factories use the same 6 pin PS/2 connector on their monitors. This kit is ONLY designed for the standard Sargent Electrical supplied systems commonly fitted to Swift/Autotrail/Bessacarr motorhomes, it is unlikely to work (and could cause damage) if plugged in to any other factories 6 pin cabling.

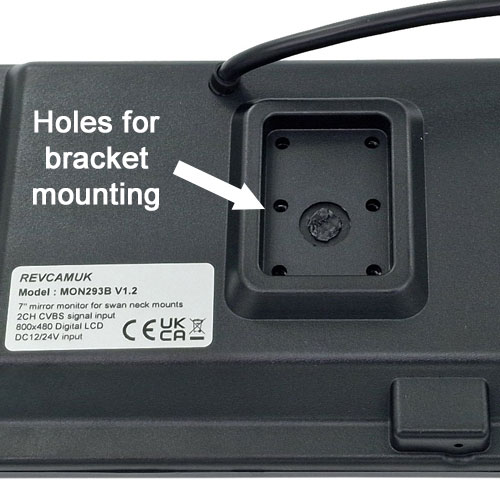

Optional Bracket (if you already have a bracket monitor then the original will fit on to our monitor)

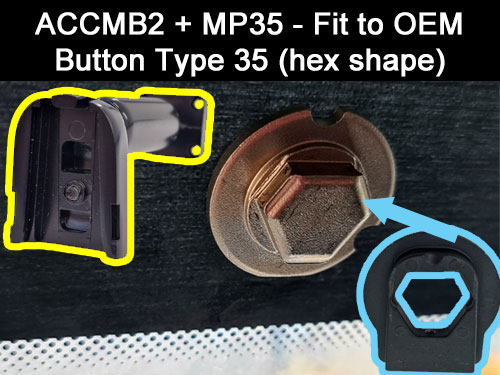

We can supply an optional bracket for this monitor to attach to the hexagonal bolt shaped mirror mounting plate usually found on these motorhomes. If you are replacing the factory mirror monitor, and already have a bracket, then you will just require the monitor only. If you are changing your monitor from a clip over type to the bracket to windscreen type then you will need to order the bracket option to do so.
We use an enhanced bracket mounting system, that is easier to install, and lower cost than the one originally supplied. We did used to sell the original type, but changed to the type shown below.
To see how easy the bracket is to fit to the windscreen, please see our YouTube video below.
- 7” Colour LCD screen
- Power supply: 12V/24V
- Power Consumption: 8.64W or lower
- Digital Screen Resolution: 800 x3(RGB)x480
- Operating Temperature: -10C to +65C
- 2 Inputs
- PAL/NTSC/AUTO
- Rotation/Mirror on both channels
- Full function Remote Control
