60M Digital Wireless Rear View / Reversing Camera Bridge | WB60
Wireless Sender and Receiver Box for use with reversing cameras and rear view cameras. 60M digital wireless transmission for reliable long range. Works on 12V and 24V Vehicles. Sender powers the camera via 4 pin aviation cable, extensions can be used. Receiver takes it's power from a 4 pin monitor of your choice. Can be used with any CVBS (traditional signal) PAL format (European) camera.

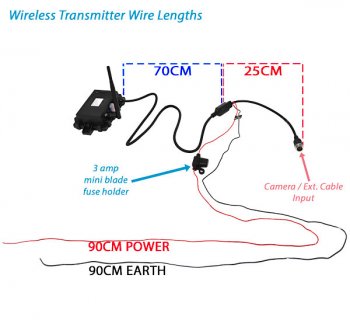

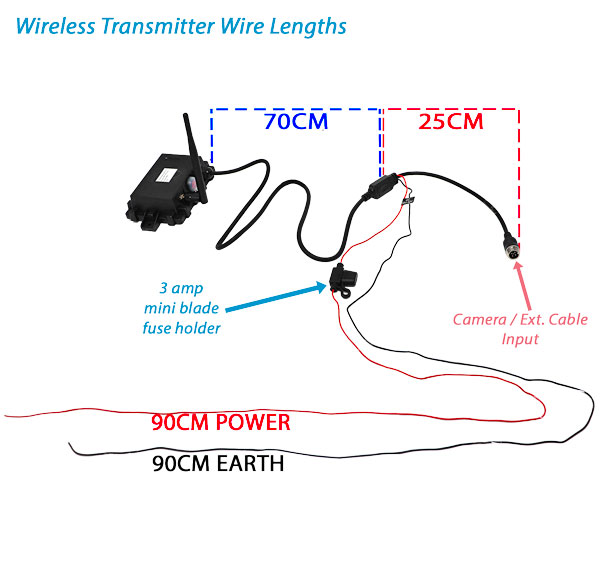

Digital wireless sender/receiver boxes have become a very popular way of sending a video feed from a reversing/rearview camera back to the monitor without cables being run that distance. You will have a wire to link between the camera and sender box, plus tails to connect to power at the back, and you will have a tail on the receiver that inputs to your 4 pin monitor (adaptors can be used instead of using a phono monitor).
Works with traditional CVBS reversing cameras that use the PAL format (Europe). Please be aware that we carry a few small NTSC cameras and brake light cameras that we bring in to help people who need a camera to integrate into factory head units. If you would like to double-check any of our cameras to ensure compatibility first, please contact us.
This set isn't compatible with the new AHD (high definition) reversing cameras that we stock. If you are using AHD high definition reversing cameras please see our 1080P high definition reverse camera sender + receiver boxes.

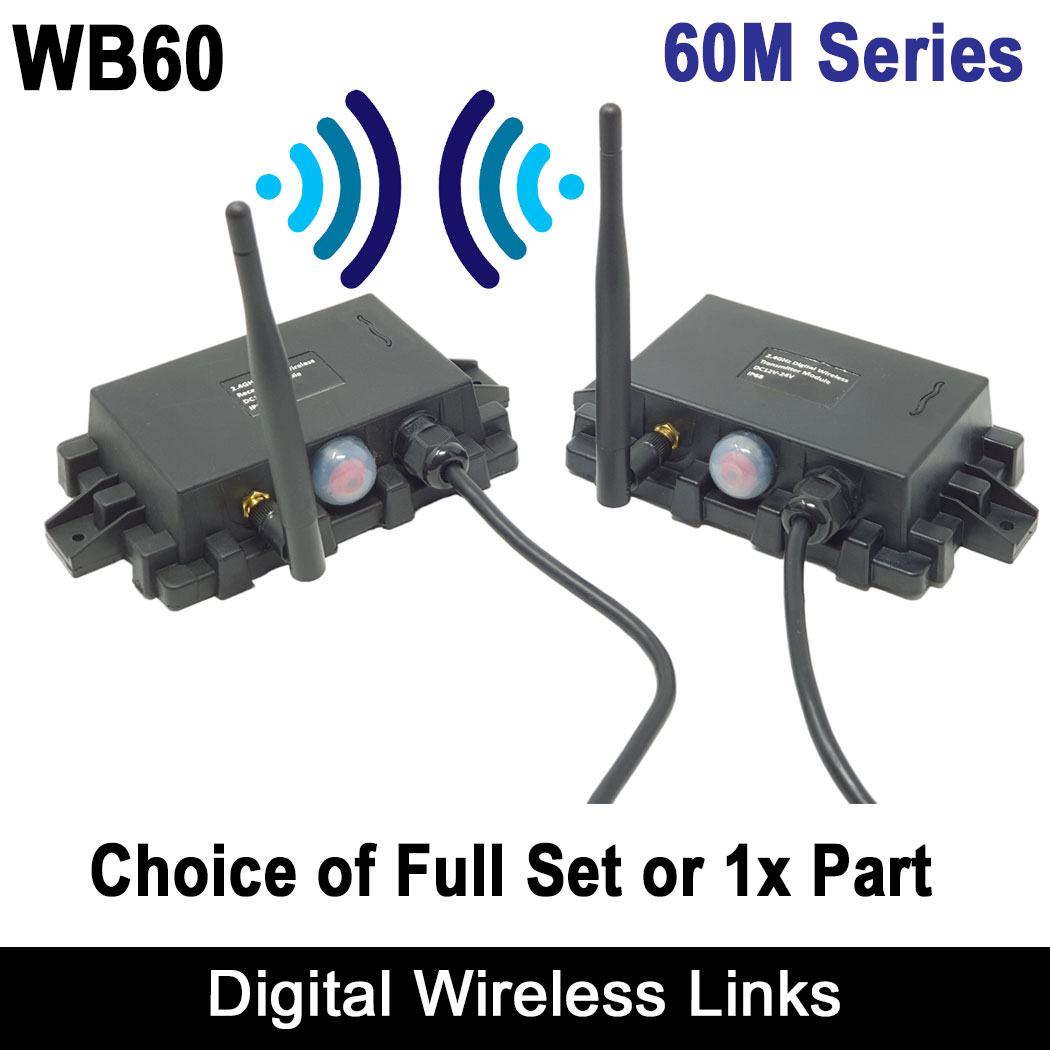

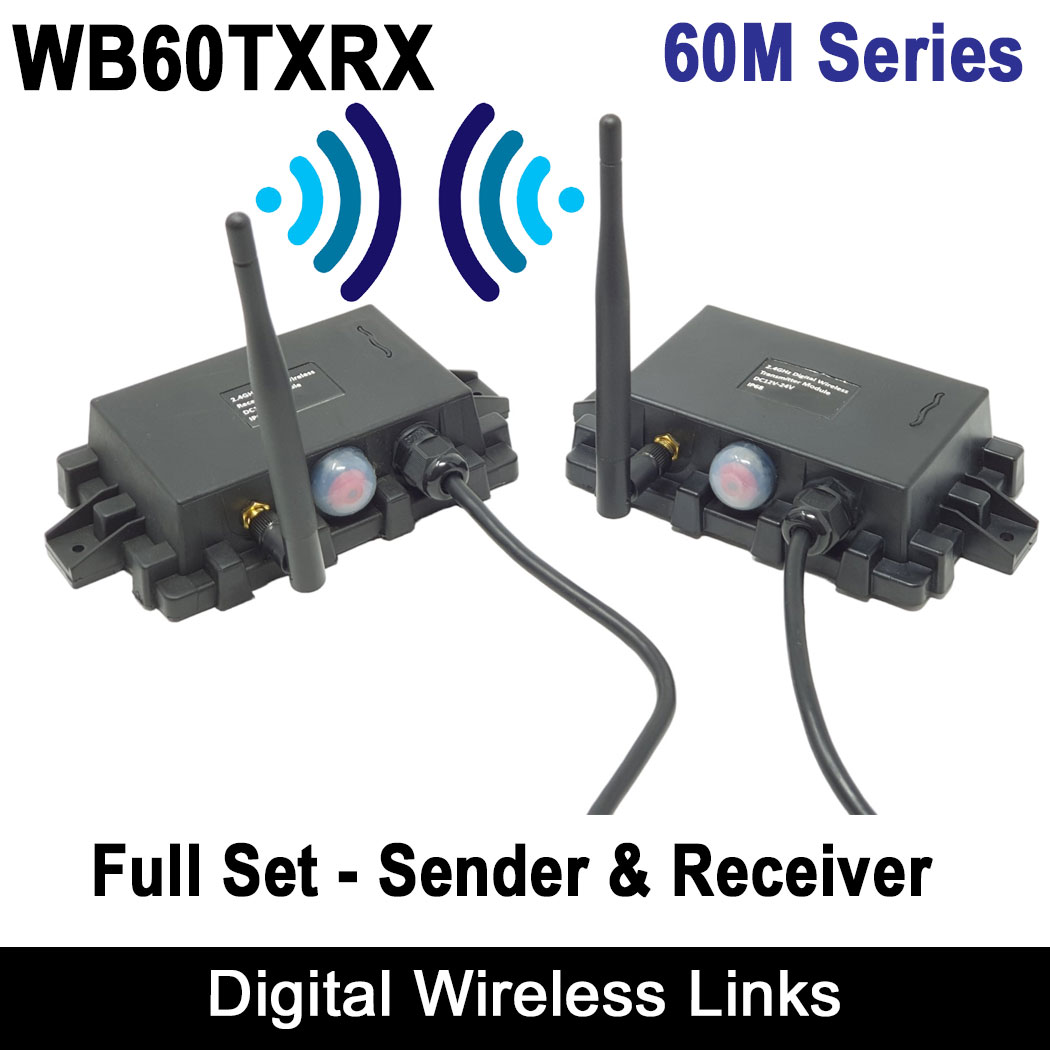

Option to choose a complete set or separate spare units.
Extension cables can be used to move the box further away from the monitor or camera.
The two boxes pair together to always make sure they find the best frequency to transmit on without any assistance needed from the user. The digital signal won't have the noise etc you get on analogue systems as the signal is sent digitally, similar to the way a wifi router would work. You won't see a picture of a horse pop up on the screen when overtaking a horse trailer (as people used to get with analogue wireless).
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | Digital Wireless Links for reversing camera / monitor Our downloadable PDF instructions for fitting and using our digital wireless sender and receiver boxes for wireless fitting of reversing cameras and monitors. |
Technical Specification
Power Input DC 12-24 V
Frame 30 fps
Operation Frequency 2400-2483.5 MHz
Video Codec MPEG4
Out Power 18dBm
RF Bit Rate 6Mbps
Spread Spectrum FHSS
Hopping rate 1200/S
Latency 100mS
Receiving Sensitivity -68dBm
IP rating IP69K
Transmission Distance 60 meters
Operating Temperature -20℃ to approx. 70℃
Dimensions (w x h x d) 8.5 x 12 x 2.9cm
Weight 0.24kg
