60M Digital Wireless Twin Input - Rear View + Reversing Camera Bridge | WB60TX-Dual
Wireless Sender and Receiver Box for use with twin signal reversing cameras and rear view cameras. 60M digital wireless transmission for reliable long range. Works on 12V and 24V Vehicles. Sender powers the cameras via 4 pin aviation connectors, extensions can be used. Can be used with any two CVBS (traditional signal) PAL format (European) cameras. Switching between cameras is performed by connecting the green trigger wire to a reverse light feed. Please ensure your trailer/caravan has a reverse light before ordering, as this is required for switching to work.
About our Dual Input Rear View Wireless Transmitter Link for Reversing and Rear View Cameras
For years we have stocked the standard WB60TX wireless transmitter box for single reverse cameras. We were continually asked if we could produce one that would run our popular twin lens rear view + reversing camera. In 2024, we finally managed to get a production run arranged. Introducing the new dual input 60M digital wireless sender/transmitter box for dual lens rear view + reversing cameras.

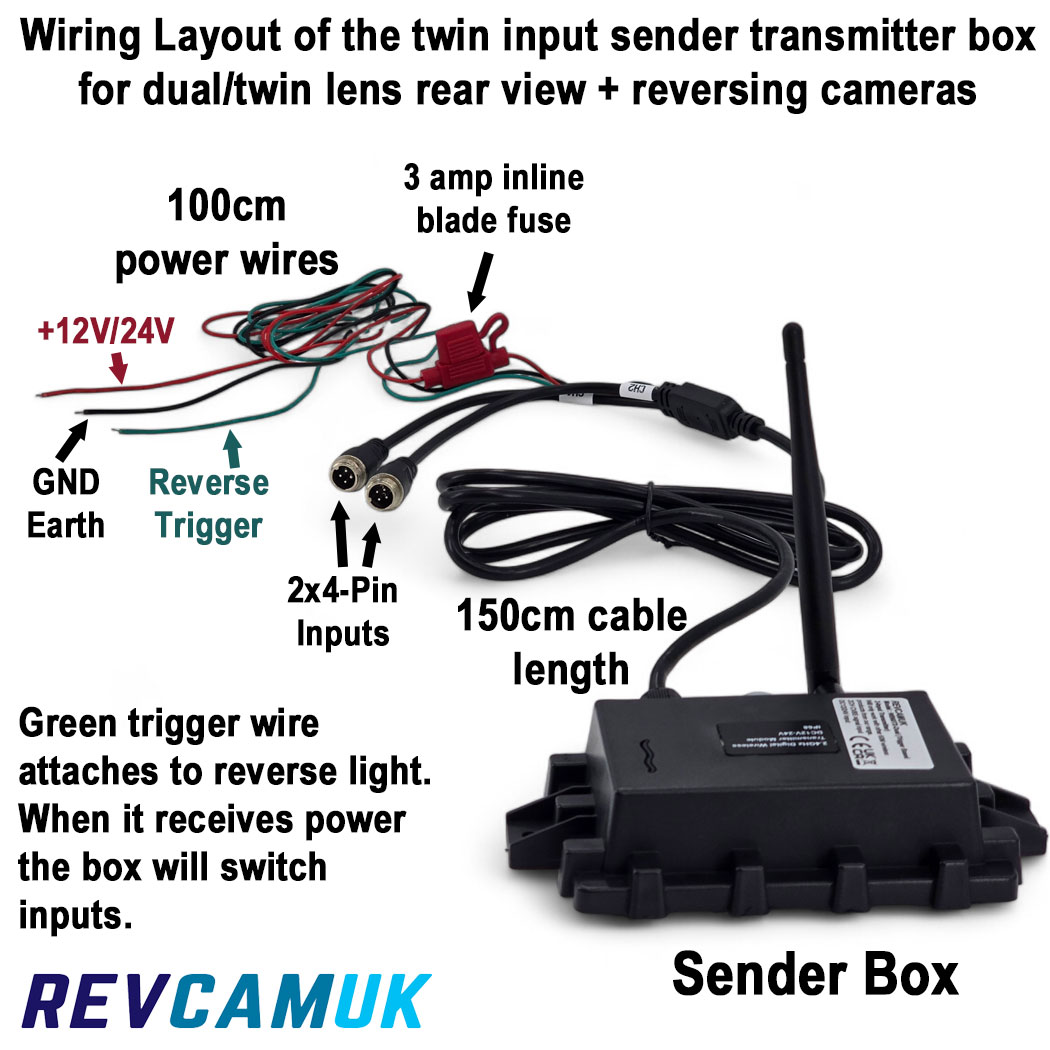

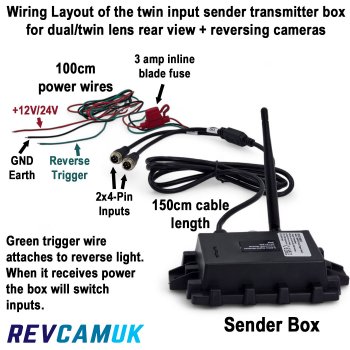

This reliable, secure digital transmitter has been at the core of our wireless range for a number of years, so we know it's good. This model is equipped with a switching function, allowing either two separate cameras, or one twin lens camera to be inserted in to the two inputs. The switching is achieved by attaching the green trigger wire to a reverse light feed. This way every time you select reverse, the input from Channel 2 is shown - you will attach the reverse parking camera in to this input.
Works with traditional CVBS reversing cameras that use the PAL format (Europe). Please be aware that we carry a few small NTSC cameras and brake light cameras that we bring in to help people who need a camera to integrate into factory head units. If you would like to double-check any of our cameras to ensure compatibility first, please contact us.
To make a complete kit, simply order this transmitter, and either our integrated aerial 5 inch wireless monitor, or a receiver bridge for reversing camera + monitor of your choice.
This set isn't compatible with the new AHD (high definition) reversing cameras that we stock.
Extension cables can be used to move the box further away from the monitor or camera.
Technical Specification of Wireless Sender / Transmitter Box for Twin Camera
Power Input DC 12-24 V
Frame 30 fps
Operation Frequency 2400-2483.5 MHz
Video Codec MPEG4
Out Power 18dBm
RF Bit Rate 6Mbps
Spread Spectrum FHSS
Hopping rate 1200/S
Latency 100mS
Receiving Sensitivity -68dBm
IP rating IP69K
Transmission Distance 60 meters
Operating Temperature -20℃ to approx. 70℃
Dimensions (w x h x d) 8.5 x 12 x 2.9cm
Weight 0.24kg

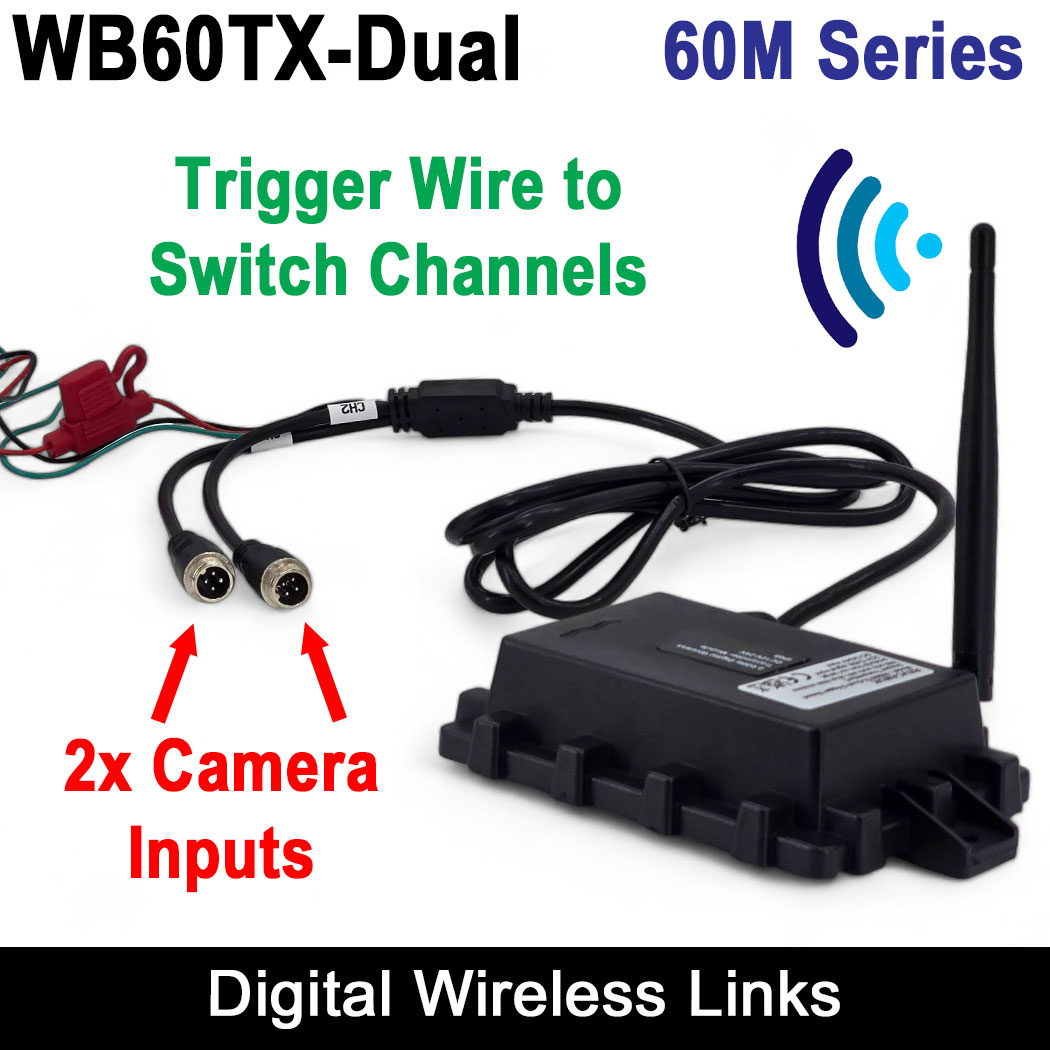

Trigger Wire to Switch between two inputs
