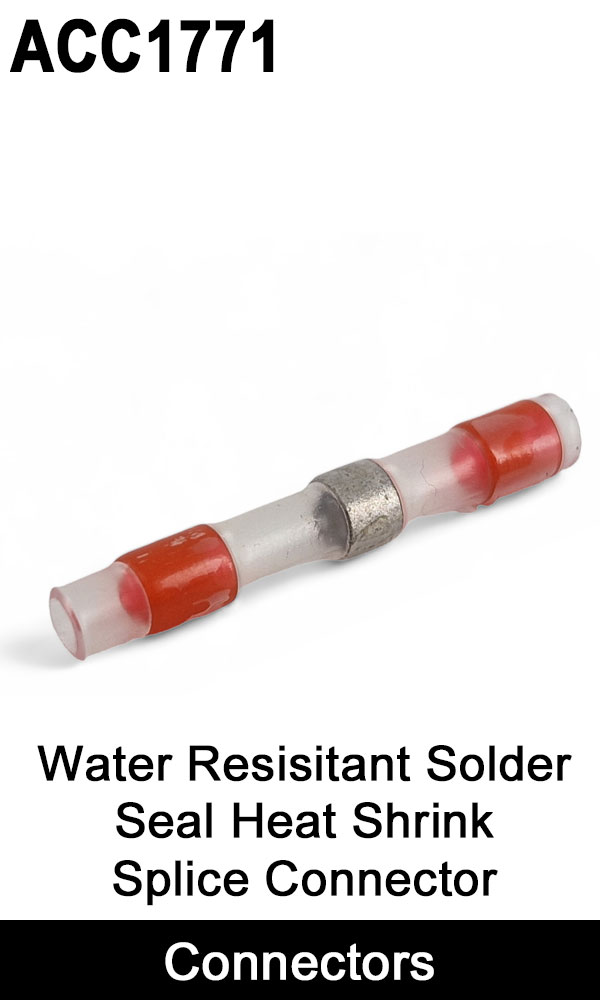

Solder/Seal Red Crimp Butt Splice Connector - ACC1771
A connector that is suitable for areas exposed to the elements, only requires a heat gun and some wire strippers.
We decided to stock this new type of connection based on recommendations from a few of our customers. While we still lean towards using solder for our own connections, we've experimented with these and managed to create some robust and secure joints. These connectors come equipped with a solder ring inside that melts when exposed to heat from a heat gun. Additionally, the heat shrink material contracts to firmly seal the joint, and there's an inner layer of hot melt adhesive for added water resistance.
Here's how to use them:
- Slide the connector to one side of the two wires you want to connect.
- Strip approximately 1cm of insulation from both ends of the cable to expose the metal strands.
- Twist the metal strands from both wires together.
- Adjust the connector so that the solder ring is centered over the joint.
- Ensure that the heat shrink tubing will cover the entire joint.
- Gently heat the joint with a heat gun (remember to take precautions to prevent melting anything behind the joint). Make sure to evenly distribute the heat around the joint.
- Check the connection to ensure it's secure and that you can see the solder has melted across the metal strands inside the joint.
While we still prefer the traditional solder and adhesive-lined heat shrink method, these connectors might be a good fit for those who wish to avoid soldering.
