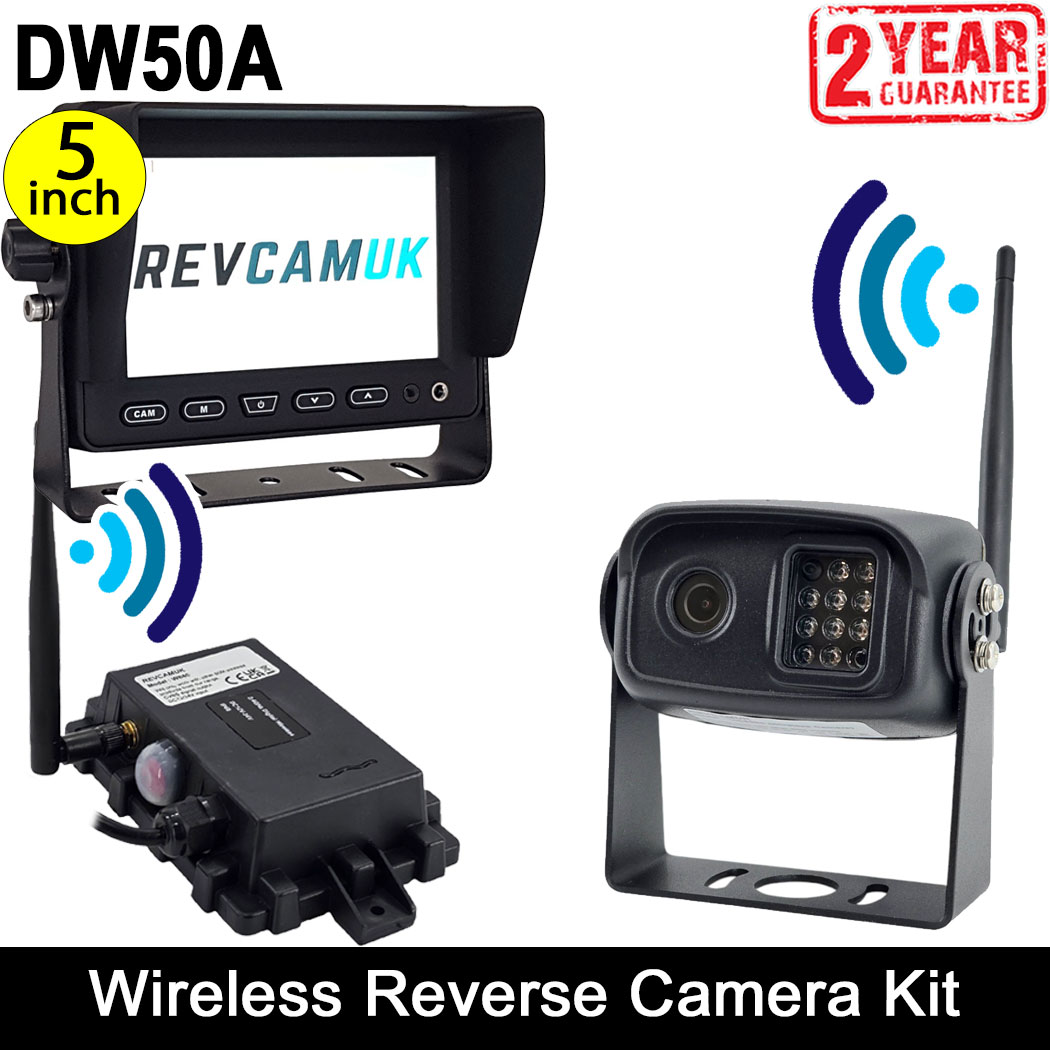

Black Bracket Wireless Reversing Camera Kit with 5 inch display | DW50A
Reversing camera kit with black bracket camera using the latest digital wireless technology for a secure and reliable signal. Digital hi-res display and camera. Integrated aerial on the camera, receiver box for the monitor. 2 year guarantee.
About Our Wireless Reverse Camera Kit with 5" Monitor and Black Bracket Camera
Reversing camera kit with black bracket camera using the latest digital wireless technology for a secure and reliable signal. Digital hi-res display and camera. Integrated aerial on the camera, receiver box for the monitor. 2 year guarantee. This kit comes with the following advantages :
Great Image Quality Camera - The 60M Digital Wireless Reversing Camera is fitted with a Sharp CCD image sensor, which has a great reputation for image quality. The image sensor is the part of the camera that captures the image, so a good image sensor has a huge positive impact on the picture quality. CCD is more expensive to produce than CMOS, but does produce a better dynamic range, and lower "noise" in darker conditions.
High Resolution Image Quality Monitor Display - Our compact 5 inch stand/dash mount monitor display still packs a punch thanks to it's 800x480 pixel digital hi-res LCD panel. This resolution can handle even the highest resolution of traditional CVBS signal reversing cameras (CVBS signal still makes up 95%+ of all existing reversing camera systems).
60M Range - Customers are always surprised by the range of this wireless reversing camera system. Some customers who have caravans/trailers have driven away from the camera and mentioned how far they could drive before they lose signal with each other. The general consensus with wireless cameras is to look for range that is double the distance between camera/monitor i.e. if you have a 8M Caravan and a 5M car, you would want a minimum of 26M range wireless. We used to supply 40M range systems in the past, and this was ample for everyone, so the 60M sets are absolutely no worries.
IR Night Vision - This 60M Digital Wireless Reversing Camera is fitted with numerous Infra-Red (IR) Night Vision LED's. This means that in pitch black conditions, the rear of the vehicle will be lit up with light only the camera can see. What this means is that the camera will NOT blind following vehicles with light, but WILL be able to see in the dark using the light. IR light is below the visible spectrum of the human eyes, but in the spectrum of the cameras image sensor.
12V/24V Suitable For All Vehicles - This wireless reversing camera kit can operate on either 12V vehicles such as car/van/trailer/caravan, or 24V vehicles such as HGV/LGV/Truck. One thing we would like to mention is that most modern cars/vans rear lights are fitted with CANBUS. If you try to power the camera from a rear light on one of these vehicles you might find the power cuts to the camera due to this. It is rare still to see CANBUS on caravans/trailers, where most people use a side light supply to power the camera.
No Static / Secure Connection - Being digital, this wireless system operates like a Wifi network - encrypting information and securely linking together. No picking up horsebox/home CCTV whilst driving. Because the two parts are paired together, the system knows what it can ignore, meaning the system does not suffer from snowy static interference of the older analogue wireless.
Built-in Aerial - This camera has an integrated aerial, as well as a built-in sender/transmitter.
Two Year Guarantee - We guarantee all parts of your new wireless reversing camera system will be free from factory defects for a period of 2 Years. We endeavour to support your purchase beyond this with spare parts where available.
Alternative bracket options - The monitor has a rear channel that allows our alternative monitor brackets to be installed. This choice includes quick release, ceiling mount, heavy duty, and temporary suction mount brackets. You can choose to add a discounted price bracket with this monitor using the drop down selection box menu.
Digital Wireless - Interference Free
Wireless cameras used to have an awful reputation in the past, for good reason too. In Europe analogue wireless was restricted to just 10mW transmitting power due to the "dirty" signal from analogue, this level of power struggled at even a cars length, then you had interference. With the digital wireless technology used in this kit you now have 100mW transmitting power, the sender/receiver syncs together and encrypts the signal between each other. You won't see anything other than the camera you are paired up with. With the new technology we just never find that range is a problem anymore.
Should you use wireless?
Caravans, articulated lorries, horsebox trailers, and other trailers are prime candidates for wireless camera systems as it solves the problem of getting the signal between the two sections. We don't recommend using wireless on modern cars/vans due to the sensitive CANBUS electrics on the rear lights, which most likely will cut power when they detect the unusual draw of power from the sender (you can get around this with relays but that negates the selling point of ease of install). For cars/modern vans we recommend our cabled systems which provide power from the monitor instead of the rear lights.
Additional Monitor Bracket Options
To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below. We also have a YouTube video showing the various bracket options below.
ACC035 - "Butterfly" Bracket option
So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.
ACC041 Quick Release Bracket option
The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.
ACC705B - Heavy Duty Rear Mount Bracket Option
The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.
ACC038 - Suction Mount Bracket Option
Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.
ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option
The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | MON5001 5 inch Vehicle Monitor Display Reversing Camera Monitor Fitting Instructions Our guide to the compact 5 inch monitor, it's fitting and menu settings. |
 Click preview image to download the PDF file | Digital Wireless Links for reversing camera / monitor Our downloadable PDF instructions for fitting and using our digital wireless sender and receiver boxes for wireless fitting of reversing cameras and monitors. |
Technical Specification
Monitor
5” Colour LCD screen
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Luminance: 350cd/m2
3 Inputs
PAL/NTSC/AUTO
Full function Remote Control
Camera
Colour 1/3" Sharp CCD
Effective Pixels: 512*492
Illumination : 0.1 LUX
Lens: 3.6mm
Resolution: 420 TV lines
Viewing Angle: 110 degrees
Power input: 12-32V
Waterproof: IP68
Power consumption (IR on): Approx 3.5W
Transmission Distance: 60m in the open (100M if choosing the 100M version)
White Balance: Auto
Receiver Box
Power Input DC 12-24 V
Frame 30 fps
Operation Frequency 2400-2483.5 MHz
Video Codec MPEG4
Out Power 18dBm
RF Bit Rate 6Mbps
Spread Spectrum FHSS
Hopping rate 1200/S
Latency 100mS
Receiving Sensitivity -68dBm
IP rating IP68
Transmission Distance 60 meters
Operating Temperature -20℃ to approx. 70℃
Dimensions (w x h x d) 8.5 x 12 x 2.9cm
Weight 0.24kg
