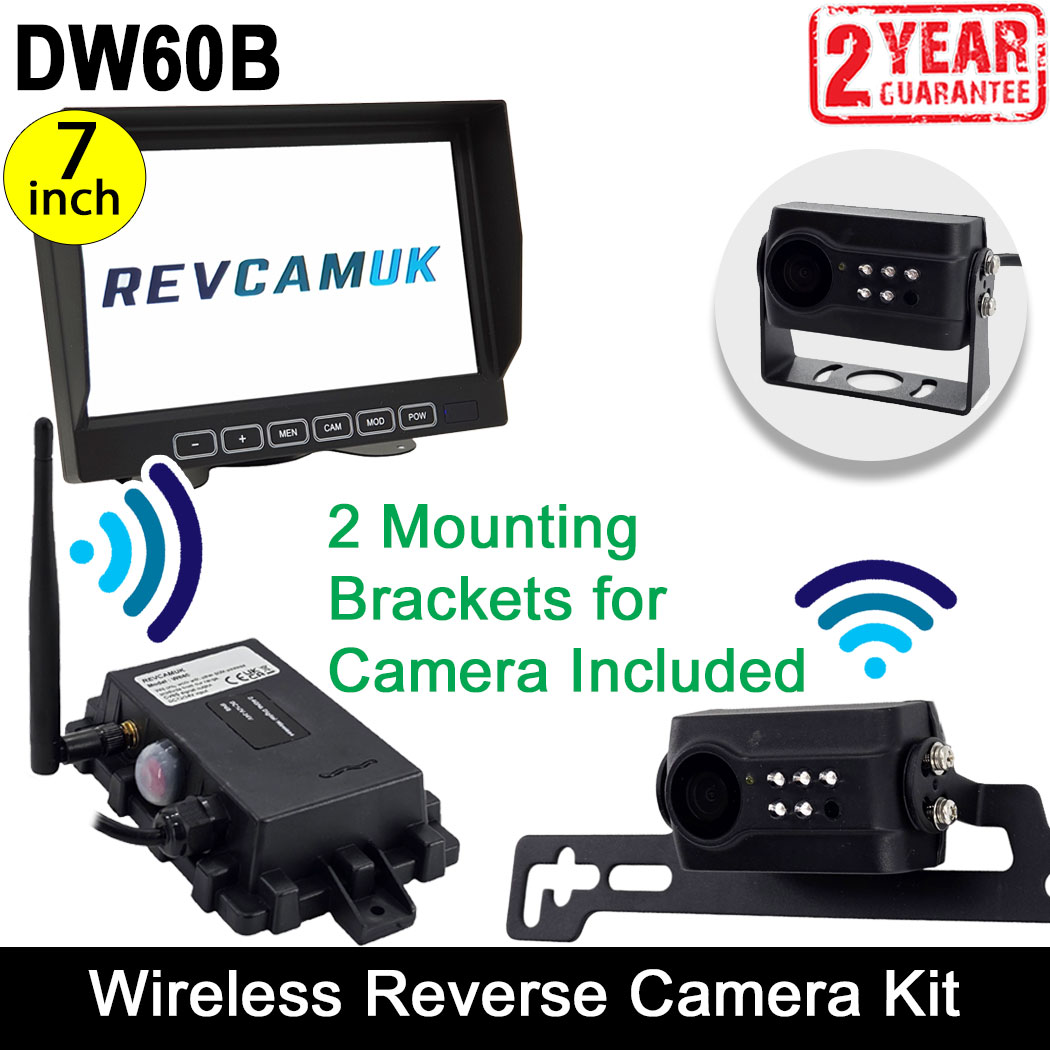

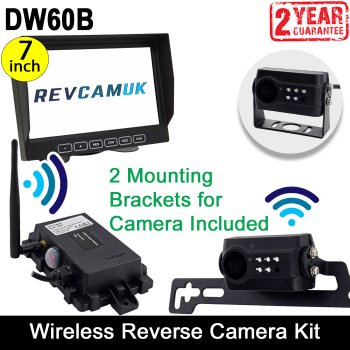

Wireless Number Plate Reversing Camera and 7" Monitor | DW60B
Our wireless reversing camera kit is designed to fit the number plate or any other location with a flat surface to mount. It comes with two mounting brackets to give multiple fitting options. Aerial is built into the camera power lead. It uses a 60M range of digital wireless technology to produce a reliable and stable signal. The system comes with a two year guarantee, fast delivery, and a lifetime of support from the UK's leading reversing camera specialists.
About our Wireless Number Plate Reversing Camera and 7" Monitor
Our wireless reversing camera kit is designed to fit the number plate or any other location with a flat surface to mount. It comes with two mounting brackets to give multiple fitting options. Aerial is built into the camera power lead. It uses a 60M range of digital wireless technology to produce a reliable and stable signal. The system comes with a two year guarantee, fast delivery, and a lifetime of support from the UK's leading reversing camera specialists. This kit comes with the following advantages :
High Resolution Image Quality - Our 7 inch stand/dash mount monitor display gives a good quality image thanks to it's 800x480 pixel digital hi-res LCD panel. This resolution can handle even the highest resolution of traditional CVBS signal reversing cameras (CVBS signal still makes up 95%+ of all existing reversing camera systems). Numbers can be misleading, as we have seen lots of poor quality panels with the same resolution, but with poor performance. Trust us, check out the photos customers have sent in, then make your decision with the knowledge that you are buying from a long established, trusted, reputable firm who keep things consistent, and support their customers for life.
Flexible Mounting Options - Two mounting brackets are supplied with this wireless reverse camera. One is designed to fit behind the number plate - with the camera either sitting above or below. The second bracket turns the camera in to a traditional bracket camera for either horizontal or vertical surface mounting.
Clear Static-free Image - Thanks to the digital wireless technology used, which securely links the camera to whichever one of our monitor/receivers you choose to use. As the two parts are paired together and securely encrypted, the receiver knows what interference it can ignore, avoiding the static seen on older wireless systems.
60M Long Range Transmission - In the UK/EU traditional analogue wireless is restricted to 10mW, which often struggles even with a small vehicle e.g. car. Being digital, this reversing camera is allowed to be ten times this, and comes in at 100mW. The reason digital wireless is allowed to be more powerful, is because digital wireless is a "clean" transmission vs "dirty" analogue feeds.
Night Vision IR LED's - This camera is fitted with IR LED lights so it can see at night time. This light is below the visible spectrum of the human eye, so it won't blind drivers following you.
High Resolution Image Quality Monitor Display - Our compact 5 inch stand/dash mount monitor display still packs a punch thanks to it's 800x480 pixel digital hi-res LCD panel. This resolution can handle even the highest resolution of traditional CVBS signal reversing cameras (CVBS signal still makes up 95%+ of all existing reversing camera systems).
Suitable for Always on Rear View Driving - This reverse camera can be left on all the time you are driving. The camera angle is fairly wide, so it should be mentioned that vehicles will look further away on a camera display than they do in your mirrors. This isn't a problem for most people, since they tend to want to keep an eye out for tailgaters or people walking behind them when they are reversing.
Most Popular Size Reversing Camera Display- The 7 inch displays are the most popular size for reversing camera monitors. Commonly seen fitted to motorhomes and vans.
Guaranteed for Two Years - We are confident in our product, it is part of our long term range, therefore you will have a two year guarantee with us should any factory-fault/defect present itself.
Alternative bracket options - The monitor has a rear channel that allows our alternative monitor brackets to be installed. This choice includes quick release, ceiling mount, heavy duty, and temporary suction mount brackets. You can choose to add a discounted price bracket with this monitor using the drop down selection box menu.
Please be aware that there is an aerial on the power wire to the camera, this is NOT waterproof. Ensure that you can safely keep this part away from getting wet. The camera itself is waterproof of course.
Digital Wireless - Interference Free
Wireless cameras used to have an awful reputation in the past, for good reason too. In Europe analogue wireless was restricted to just 10mW transmitting power due to the "dirty" signal from analogue, this level of power struggled at even a cars length, then you had interference. With the digital wireless technology used in this kit you now have 100mW transmitting power, the sender/receiver syncs together and encrypts the signal between each other. You won't see anything other than the camera you are paired up with. With the new technology we just never find that range is a problem anymore.
Should you use wireless?
Caravans, articulated lorries, horsebox trailers, and other trailers are prime candidates for wireless camera systems as it solves the problem of getting the signal between the two sections. We don't recommend using wireless on modern cars/vans due to the sensitive CANBUS electrics on the rear lights, which most likely will cut power when they detect the unusual draw of power from the sender (you can get around this with relays but that negates the selling point of ease of install). For cars/modern vans we recommend our cabled systems which provide power from the monitor instead of the rear lights.
Additional Monitor Bracket Options
To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below. We also have a YouTube video showing the various bracket options below.
ACC035 - "Butterfly" Bracket option
So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.
ACC041 Quick Release Bracket option
The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.
ACC705B - Heavy Duty Rear Mount Bracket Option
The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.
ACC038 - Suction Mount Bracket Option
Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.
ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option
The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | 7 Inch High-Resolution Monitor These instructions will guide you through the hardwiring of the monitor, as well as various menu functions including rotation, adjustable guidelines, trigger delays, interval mode, and display settings. |
 Click preview image to download the PDF file | Digital Wireless Links for reversing camera / monitor Our downloadable PDF instructions for fitting and using our digital wireless sender and receiver boxes for wireless fitting of reversing cameras and monitors. |
Technical Specification
Please find the full technical specifications of the equipment supplied in this wireless reversing camera system below :
Monitor
7” Colour LCD screen
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Contrast: 500:1
Brightness: 400cd/m2
Viewing Angle: U: 50 degrees/ D: 60 degrees, R/L: 70 degrees
Operating Temperature: -10C to +65C
Storage Temperature: -30C to +80C RH90%
2 Inputs
PAL/NTSC/AUTO
Mirror/Normal Switch on both channels
Full function Remote Control
Camera
Colour CMOS
Effective Pixels: 512*492
Illumination : 0.1 LUX
Lens: 3.6mm
Resolution: 420 TV lines
Viewing Angle: 110 degrees
Power input: 12-32V
Waterproof: IP68
Power consumption (IR on): Approx 3.5W
Transmission Distance: 60m in the open
White Balance: Auto
Receiver Box
Power Input DC 12-24 V
Frame 30 fps
Operation Frequency 2400-2483.5 MHz
Video Codec MPEG4
Out Power 18dBm
RF Bit Rate 6Mbps
Spread Spectrum FHSS
Hopping rate 1200/S
Latency 100mS
Receiving Sensitivity -68dBm
IP rating IP69K
Transmission Distance 60 meters
Operating Temperature -20℃ to approx. 70℃
Dimensions (w x h x d) 8.5 x 12 x 2.9cm
Weight 0.24kg
