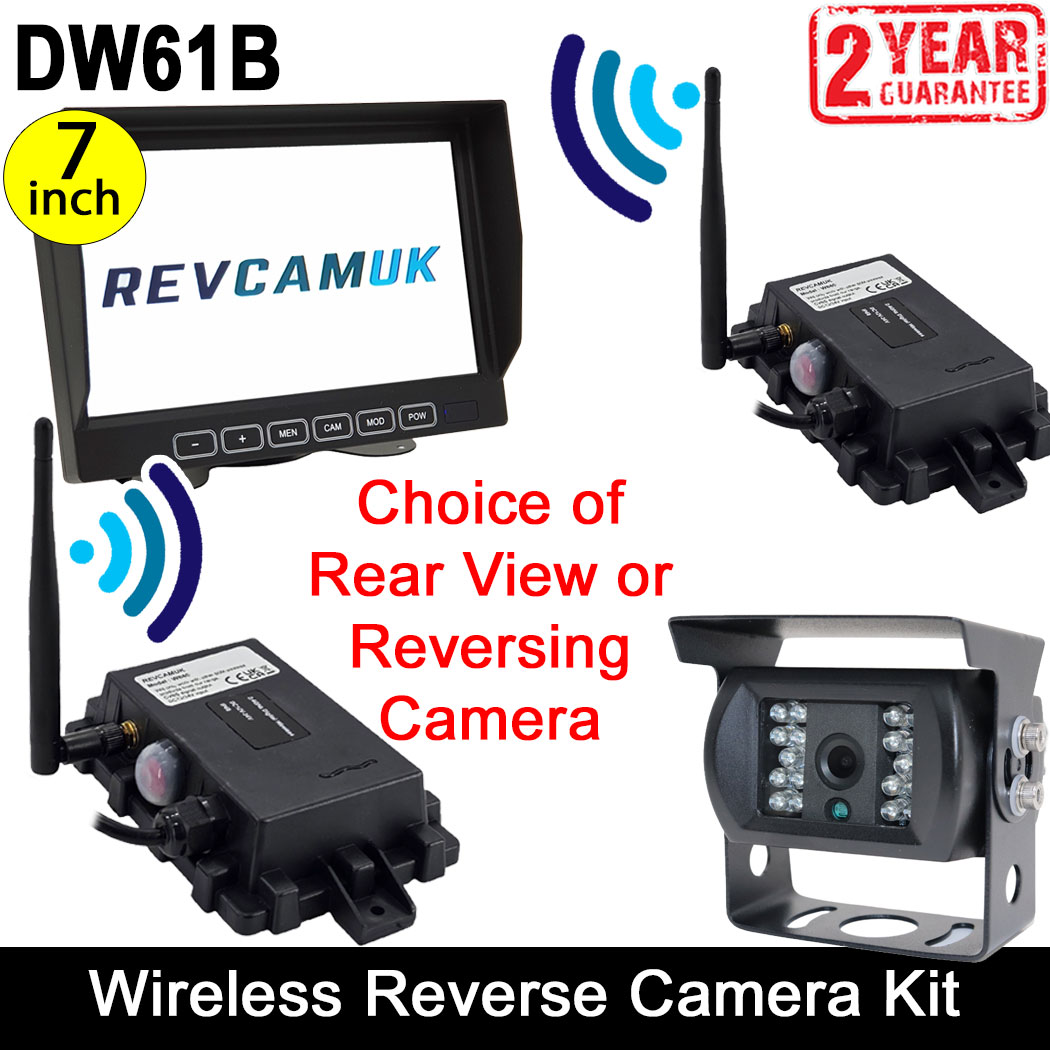

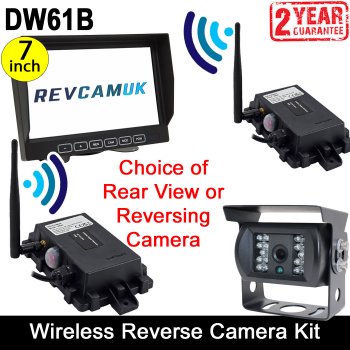

Sony CCD Black Bracket Wireless Reversing / Rear View Camera Kit with 7" Monitor | DW61B
Our black painted stainless steel bracket camera + 7" Monitor wireless reversing or rear view camera kit is very popular. Choice of lens angle fitted, either wide angle for general use/reversing, or narrow angle for always on driving rear view. 60M Digital Wireless Range for a reliable connection even on the longest vehicle/caravan/trailer. Anti-rust camera bracket, Sony CCD image sensor fitted for good quality image, IR night vision LED's, two year guarantee, fast delivery, and life time support from the UK's leading reversing camera specialists.
About our Sony CCD Black Bracket Wireless Reversing / Rear View Camera Kit with 7" Monitor
Our black painted stainless steel bracket camera + 7" Monitor wireless reversing or rear view camera kit is very popular. Choice of lens angle fitted, either wide angle for general use/reversing, or narrow angle for always on driving rear view. 60M Digital Wireless Range for a reliable connection even on the longest vehicle/caravan/trailer. Anti-rust camera bracket, Sony CCD image sensor fitted for good quality image, IR night vision LED's, two year guarantee, fast delivery, and life time support from the UK's leading reversing camera specialists. This kit comes with the following advantages :
Choice of Lens Angle Rear View or Reversing - We can either supply the camera with a 120 degree lens angle for general use/parking, or a 60 degree lens for driving/rear view use. Simply select your desired option from the drop down menu.
High Resolution Monitor - Our 7 inch stand/dash mount monitor display gives a good quality image thanks to it's 800x480 pixel digital hi-res LCD panel. This resolution can handle even the highest resolution of traditional CVBS signal reversing cameras (CVBS signal still makes up 95%+ of all existing reversing camera systems). Numbers can be misleading, as we have seen lots of poor quality panels with the same resolution, but with poor performance. Trust us, check out the photos customers have sent in, then make your decision with the knowledge that you are buying from a long established, trusted, reputable firm who keep things consistent, and support their customers for life.
Great Camera Image Quality - You can expect a colourful, high resolution image in the day, plus a good quality image at night hanks to the installed 1/3" Sony CCD 700tvl image sensor.
Clear Static-free Image - Thanks to the digital wireless technology used, which securely links the camera to whichever one of our monitor/receivers you choose to use. As the two parts are paired together and securely encrypted, the receiver knows what interference it can ignore, avoiding the static seen on older wireless systems.
60M Long Range Transmission - In the UK/EU traditional analogue wireless is restricted to 10mW, which often struggles even with a small vehicle e.g. car. Being digital, this reversing camera is allowed to be ten times this, and comes in at 100mW. The reason digital wireless is allowed to be more powerful, is because digital wireless is a "clean" transmission vs "dirty" analogue feeds.
IR Night Vision LED's - Multiple IR LED's provide the camera with useable light when it gets dark. This light is not visible to the human eye, so you won't be blinding people behind you, but it will be visible to the camera to help you avoid obstacles at night.
Painted Stainless Steel Bracket - To prevent rust, we have fitted this camera with a black painted stainless steel bracket. Painting stainless steel is costly and difficult, which is why it is still rare to see on many competitor products. But since we swapped over more than a decade ago, we never have any of our customers asking to replace a rusty, broken bracket.
Horizontal or Vertical Mounting - This reverse camera can either be mounted on a horizontal surface, or a vertical rear wall. This camera is popular with a multitude of different vehicle types including vans, HGV/LGV, Agricultural, Motorhomes, and even tanks/monster trucks/Santa's sleigh.
Increased Driving/Reversing Safety - Most importantly this reversing camera helps to improve reversing safety by helping to reduce blind spots to the rear of the vehicle.
IP68 Waterproof Rating - Rated to withstand even the worst weather the Great British Isles can throw at it.
Alternative bracket options - The monitor has a rear channel that allows our alternative monitor brackets to be installed. This choice includes quick release, ceiling mount, heavy duty, and temporary suction mount brackets. You can choose to add a discounted price bracket with this monitor using the drop down selection box menu.
Digital Wireless - Interference Free
Wireless cameras used to have an awful reputation in the past, for good reason too. In Europe analogue wireless was restricted to just 10mW transmitting power due to the "dirty" signal from analogue, this level of power struggled at even a cars length, then you had interference. With the digital wireless technology used in this kit you now have 100mW transmitting power, the sender/receiver syncs together and encrypts the signal between each other. You won't see anything other than the camera you are paired up with. With the new technology we just never find that range is a problem anymore.
Should you use wireless?
Caravans, articulated lorries, horsebox trailers, and other trailers are prime candidates for wireless camera systems as it solves the problem of getting the signal between the two sections. We don't recommend using wireless on modern cars/vans due to the sensitive CANBUS electrics on the rear lights, which most likely will cut power when they detect the unusual draw of power from the sender (you can get around this with relays but that negates the selling point of ease of install). For cars/modern vans we recommend our cabled systems which provide power from the monitor instead of the rear lights.
Additional Monitor Bracket Options
To add a discounted price additional monitor bracket to your product bundle, please see the descriptions/photos below. We also have a YouTube video showing the various bracket options below.
ACC035 - "Butterfly" Bracket option
So called because the base looks like a pair of butterfly wings. Fitted with an adhesive pad on the base, peel the protective layer off and stick to your clean dashboard. Additional screws can be used if you feel it needs reinforcement. The square nut fits in to the channel of your monitor, whilst there is a screw to the rear of the bracket that will then screw in to the square washer until it locks the two together.
ACC041 Quick Release Bracket option
The quick release bracket is one of the most popular bracket options. The bracket has a removable mounting plate that attaches to the rear channel of the monitor. This plate can then slide in to the bracket that is mounted to the dashboard and locks. To release, simply pull back the thumb switch at the rear, then slide the monitor up and out. Our monitors have disconnect points around a foot away from the monitor to allow it to disconnect. A bracket that makes initial install a little quicker, as well as allowing more adjustability in positioning of the display. Adhesive pad base for sticking to clean dashboard with bendable feet.
ACC705B - Heavy Duty Rear Mount Bracket Option
The most sturdy of all of our rear mounted dash mounts, all metal design. Monitor slides on to the bracket, which has a rear adjustment rotational wheel to lock the monitor to the bracket. Self adhesive base, with bendable "feet" for curvy dashboards. You can add screws if required.
ACC038 - Suction Mount Bracket Option
Only designed for temporary mounting eg. moving a monitor from one vehicle to another. This bracket has strong suction, people are often shocked by how strong it is. We use these when we road test new monitors for temporary mounting. A ball joint allows for good adjustment to give the monitor the optimum viewing angle.
ACC20540 - "Banana" Ceiling Mount Swan Neck Bracket Option
The ceiling mount bracket is a very sturdy and adjustable bracket mount for the monitor in this kit. Two screws secure this to the ceiling or plastic trim of the vehicle. The other side attaches to the channel on the back of the monitor and secures with a twist of the locking wheel. Release the tension by turning the hand screw knob on the left to allow the ball joint to rotate clockwise and anticlockwise, or up/down/left/right. These have been a very popular option since they were introduced.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | 7 Inch High-Resolution Monitor These instructions will guide you through the hardwiring of the monitor, as well as various menu functions including rotation, adjustable guidelines, trigger delays, interval mode, and display settings. |
 Click preview image to download the PDF file | Digital Wireless Links for reversing camera / monitor Our downloadable PDF instructions for fitting and using our digital wireless sender and receiver boxes for wireless fitting of reversing cameras and monitors. |
Technical Specification
Please find the full technical specifications of the equipment supplied in this wireless reversing camera system below :
Monitor
7” Colour LCD screen
Power supply: 12V/24V
Power Consumption: 4W Max
Digital Screen Resolution: 800 x3(RGB)x480
Contrast: 500:1
Brightness: 400cd/m2
Viewing Angle: U: 50 degrees/ D: 60 degrees, R/L: 70 degrees
Operating Temperature: -10C to +65C
Storage Temperature: -30C to +80C RH90%
2 Inputs
PAL/NTSC/AUTO
Mirror/Normal Switch on both channels
Full function Remote Control
Reversing or Rear View Camera
Image Sensor :1/3 SONY CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Minimum Illuminstion: 0.01 LUX
S/N Ratio: ≥48dB（AGC OFF）
Horizontal Resolution: 700 TV lines
Video Output:1.0vp-p,75Ohm
Backlight compensation: Auto
Vibration Rate: 4G
Built-in Lens: 3.6mm (wide angle) 8.0mm (narrow angle)
Working Temperature: -20℃ to 80℃ RH95% Max
Storage Temperature: -30℃ to 85℃ RH95% Max
Waterproof to Ip68
18 Infra red LEDs to provide night view
Mirror image
Stainless Steel Bracket (painted)
Sender/Receiver Box
Power Input DC 12-24 V
Frame 30 fps
Operation Frequency 2400-2483.5 MHz
Video Codec MPEG4
Out Power 18dBm
RF Bit Rate 6Mbps
Spread Spectrum FHSS
Hopping rate 1200/S
Latency 100mS
Receiving Sensitivity -68dBm
IP rating IP69K
Transmission Distance 60 meters
Operating Temperature -20℃ to approx. 70℃
Dimensions (w x h x d) 8.5 x 12 x 2.9cm
Weight 0.24kg
