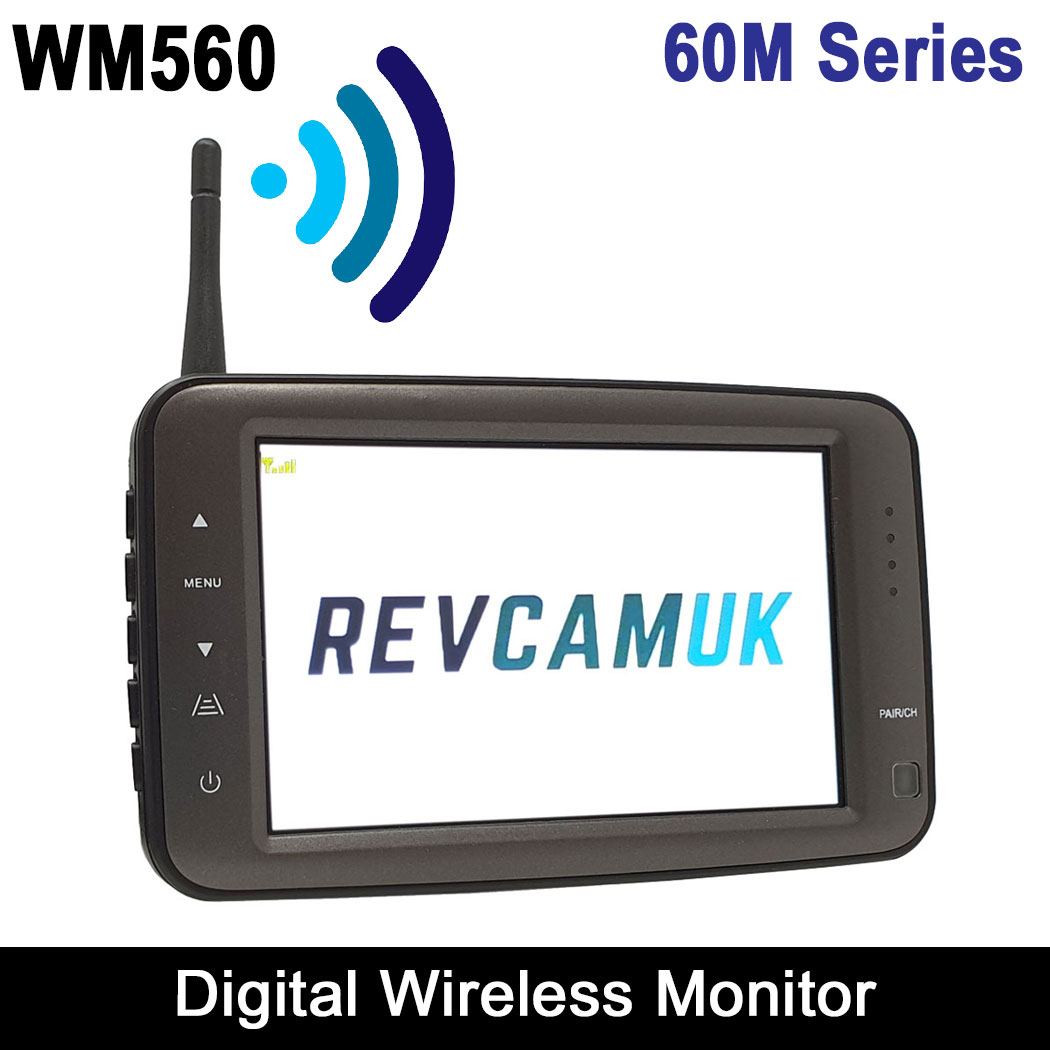

60M Digital Wireless 5" Monitor Display for Reversing Camera | Built in Aerial + RX Receiver | WM560
60M Digital Wireless Suction Monitor for our wireless rear view and reversing cameras. Alternatively, connect this to our 60M Wireless Transmitter for a reversing camera or our Dual Input 60M Wireless Transmitter for two rear view and reversing cameras. The 800x480 high-resolution LED-backlit display provides good image quality. Two-year guarantee with the forum favourites—Reversing Cameras UK Ltd, a.k.a REVCAMUK. It comes with a suction mount for the windscreen, but our other brackets for vehicle monitor display can be used.
About our 5 inch Suction Mount Digital Wireless Monitor for Reverse Camera
60M Digital Wireless Suction Monitor for our wireless rear view and reversing cameras. Alternatively, connect this to our 60M Wireless Transmitter for a reversing camera or our Dual Input 60M Wireless Transmitter for two rear view and reversing cameras. The 800x480 high-resolution LED-backlit display provides good image quality. Two-year guarantee with the forum favourites—Reversing Cameras UK Ltd, a.k.a REVCAMUK. It comes with a suction mount for the windscreen, but our other brackets for vehicle monitor display can be used.

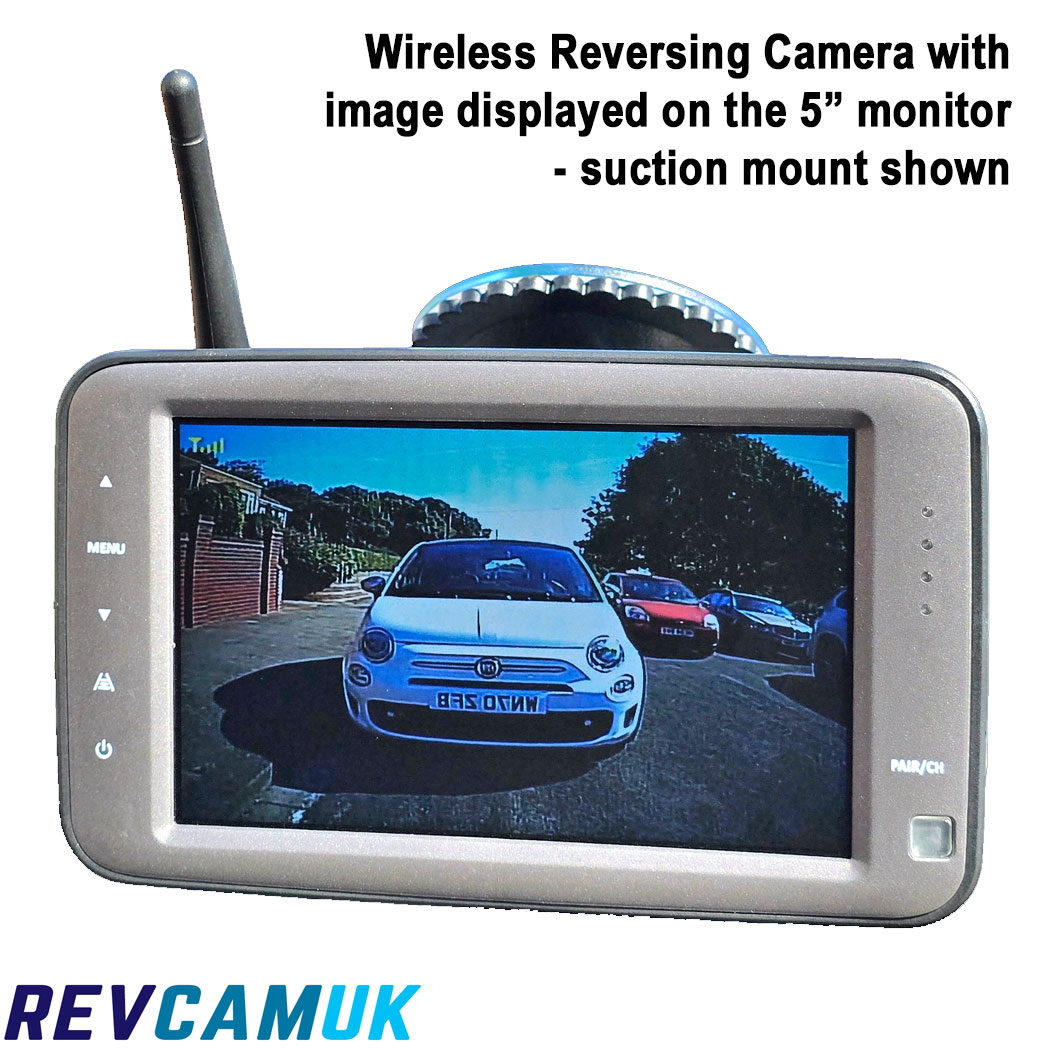

High Resolution Image Quality - Thanks to the digital 800x480 LED backlit display, you can expect a nice clear image from the monitor.
Reliable and Durable - This wireless reversing camera monitor has been at the core of our wireless reversing camera kits for many years. The monitor has a good history of reliability.
Two Year Guarantee - In the unlikely event any fault presents itself with this monitor within two years of purchase, we will provide a replacement.
No Static / Secure Connection - Being digital, this wireless system operates like a Wifi network - encrypting information and securely linking together. No picking up horsebox/home CCTV whilst driving. Because the two parts are paired together, the system knows what it can ignore, meaning the system does not suffer from snowy static interference of the older analogue wireless.
Built-in Aerial - This monitor has an integrated aerial, as well as a built-in receiver.
60M Range - Customers are always surprised by the range of this wireless reversing camera system. Some customers who have caravans/trailers have driven away from the camera and mentioned how far they could drive before they lose signal with each other. The general consensus with wireless cameras is to look for range that is double the distance between camera/monitor i.e. if you have a 8M Caravan and a 5M car, you would want a minimum of 13M range wireless. We used to supply 40M range systems in the past, and this was ample for everyone, so the 60M sets are absolutely no worries.
Who should choose a wireless reversing camera?
Caravans, articulated lorries, horsebox trailers, and other trailers are prime candidates for wireless camera systems as it solves the problem of getting the signal between the two sections. We don't recommend using wireless on modern cars/vans due to the sensitive CANBUS electrics on the rear lights (most common place people look to power wireless cameras). CANBUS will most likely will cut power when they detect the unusual draw of power from a wireless camera/transmitter - you can get around this with relays but that negates the selling point of ease of install. For customer with modern cars/vans we recommend using our cabled/wired reversing camera systems, as the monitor powers the camera instead of the rear lights - thus avoiding CANBUS issues.
For more information including fitting instructions and technical specification please click the relevant tabs on this page. If you would like any information/questions that may not be present, please contact us.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.

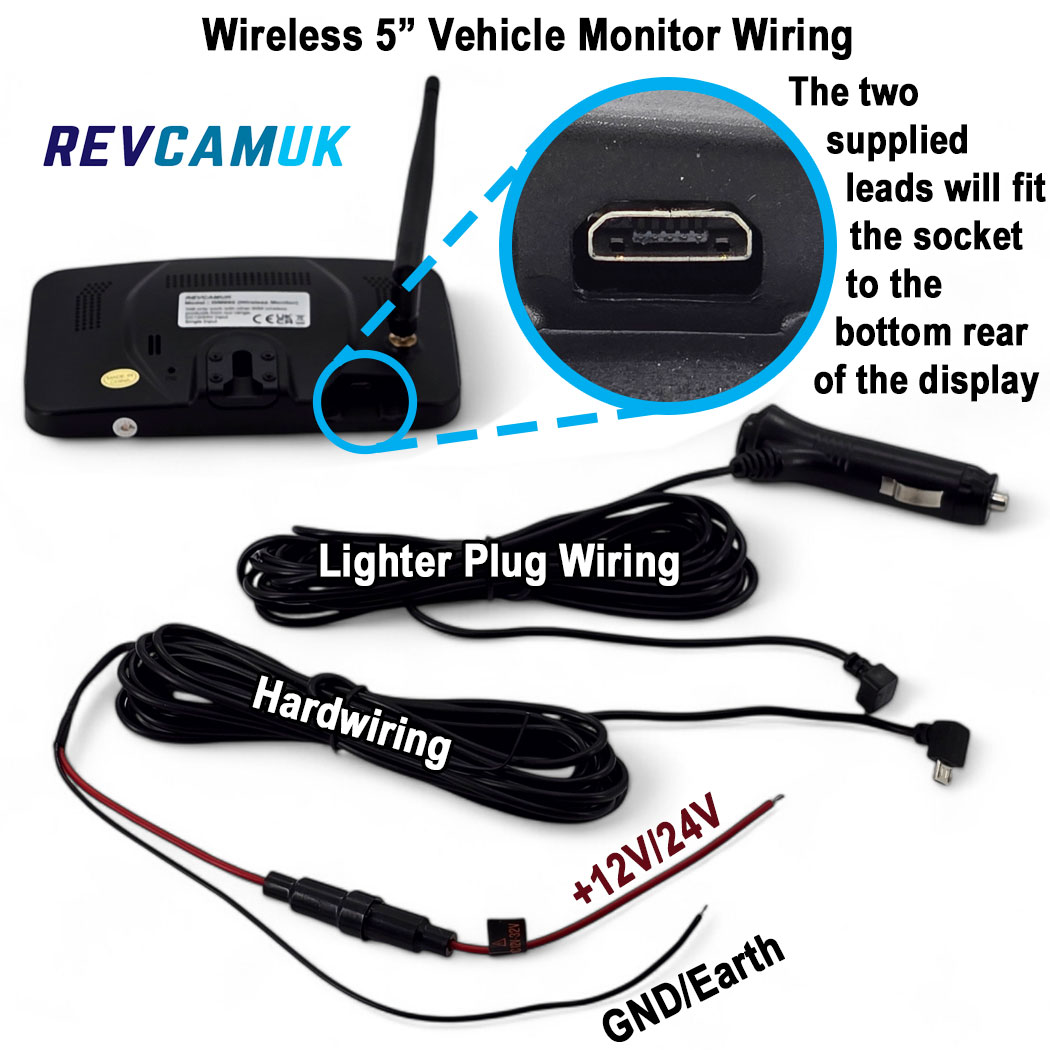

 Click preview image to download the PDF file | For wireless kits with built in aerials on monitors If you choose one of our 5 inch or 7 inch monitors with the built in aerial, this instruction manual will be your guide to installing the kit. We pair up your camera/sender boxes, so installation is very simple. However this guide will help to keep your mind at ease, and also support you should you make any changes to the system over time which may involve pairing a new camera/sender. |
Technical Specification

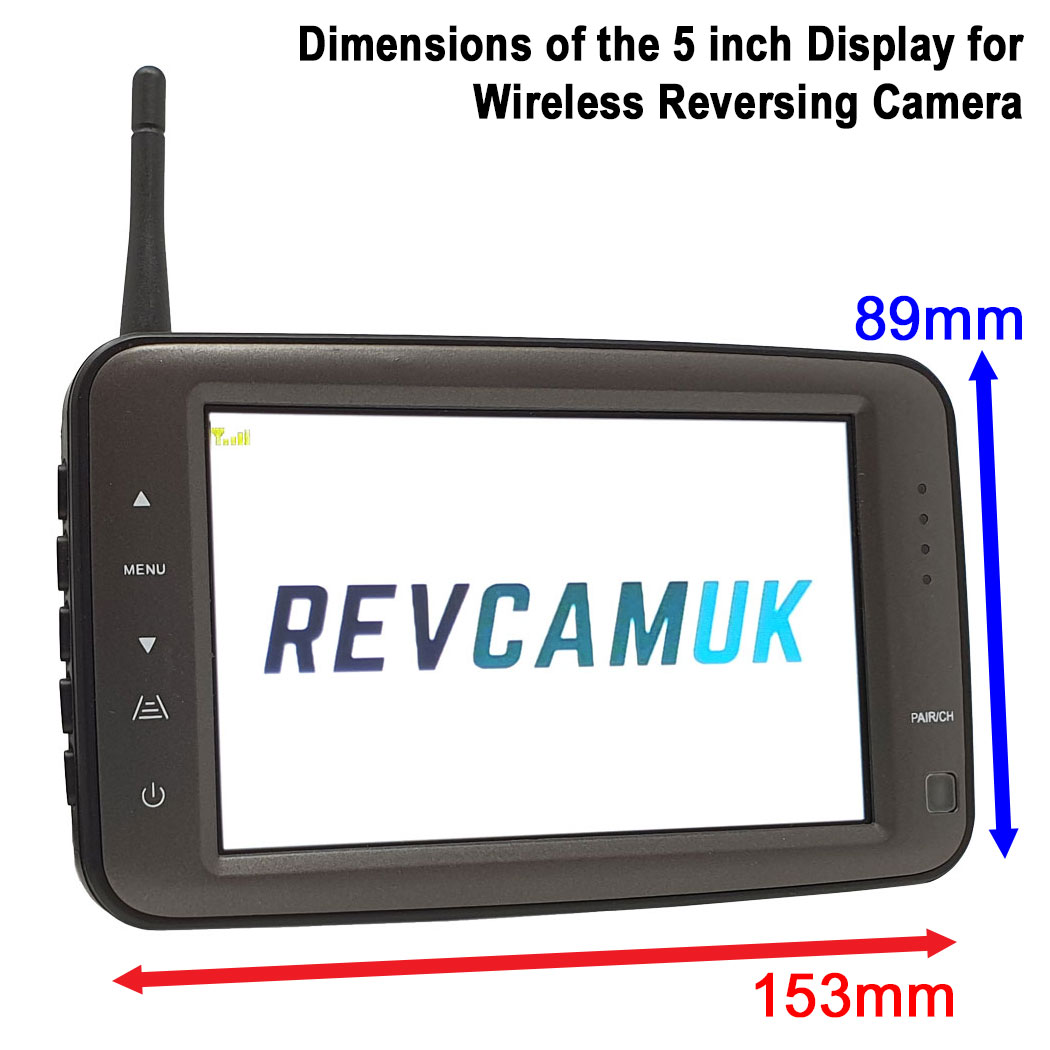

5” Diagonally Measured Colour LED Digital Panel
Power supply: 12V/24V
Power Consumption: About 4W
Digital Screen Resolution: 800 x3(RGB)x600
1 Channel (60M Version)
Brightness 500cd/m2
Contrast 500:1
Field of View : Top:50 degrees, Bottom:70 degrees, L/R:70 degrees
Screen Mode 16:9
