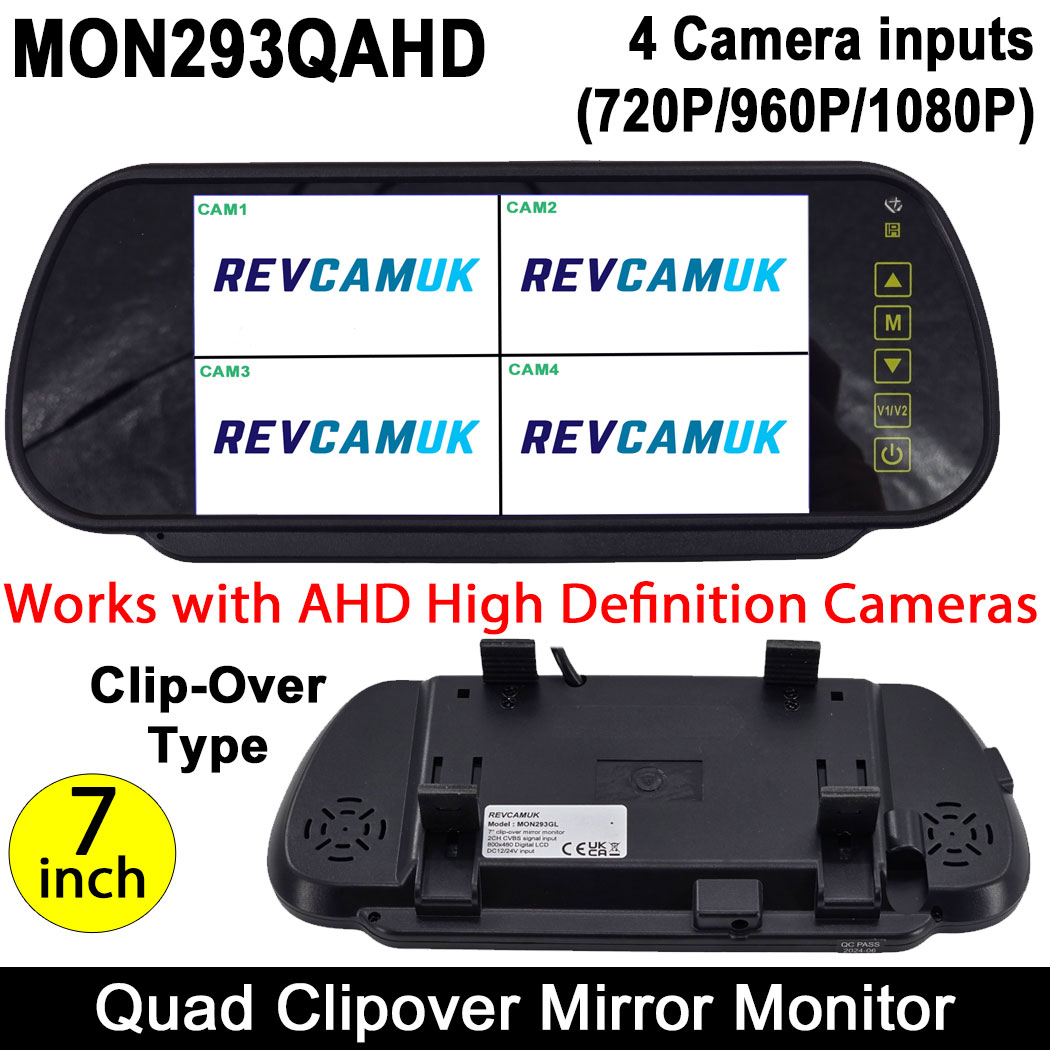

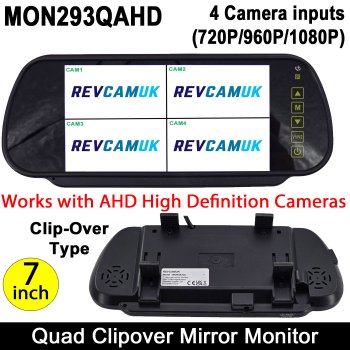

About our 4 Channel Quad Mirror Monitor Display for 1080P AHD Reversing Camera / Side Blindspot Cameras / Rear View Camera

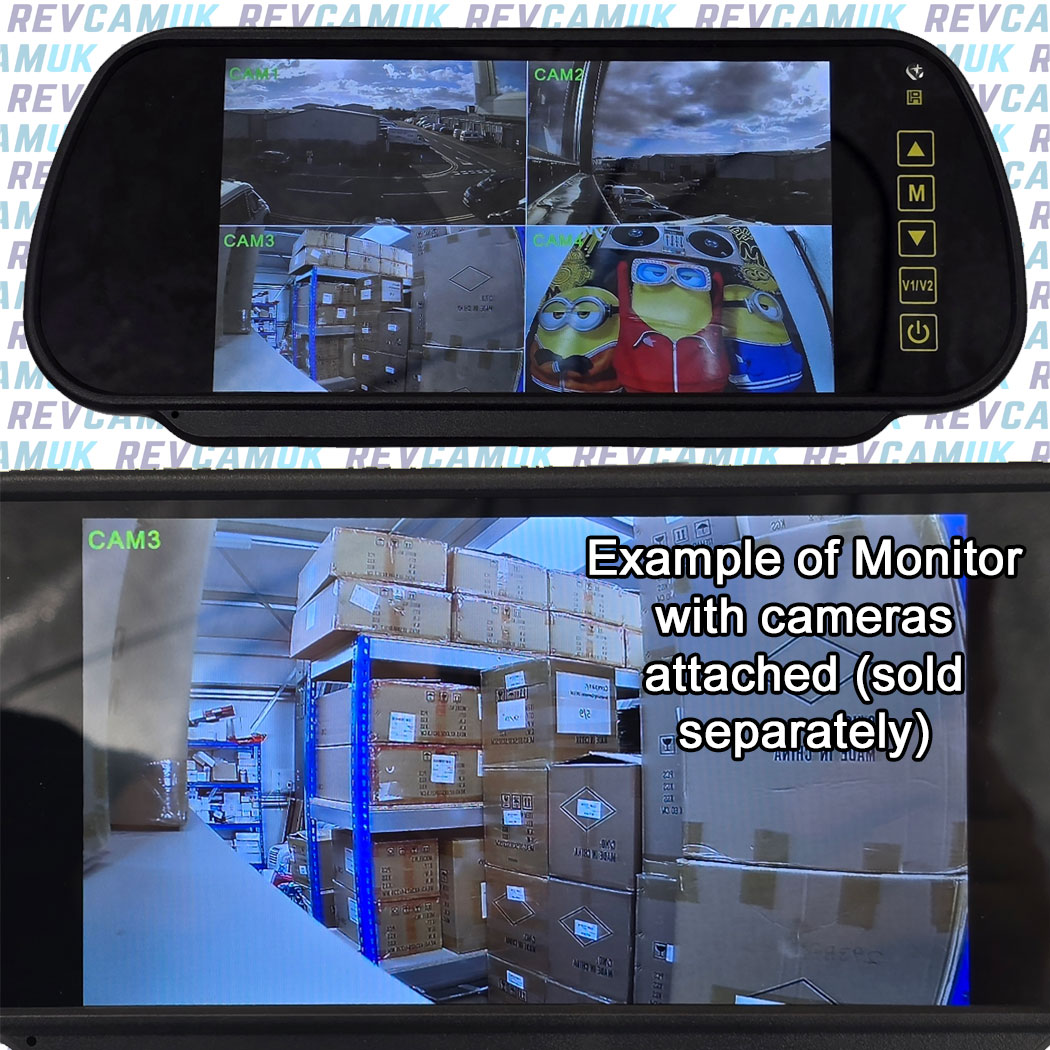

High Definition Image Quality - Our 7 inch mirror monitor display uses a 1024x600 IPS panel. IPS panels are used on gaming PC monitors to produce even better colours, a sharp defined image and great viewing angle. This produces an amazing, easy to view image.

Multiple Input types up to 1080P - This monitor can accept up to 4x reversing/side/rear view camera signals including the latest AHD signal, whether it is 720P/960P/1080P in PAL or NTSC format. The monitor can also accept traditional standard definition signals (CVBS), however we recommend AHD for the best experience.

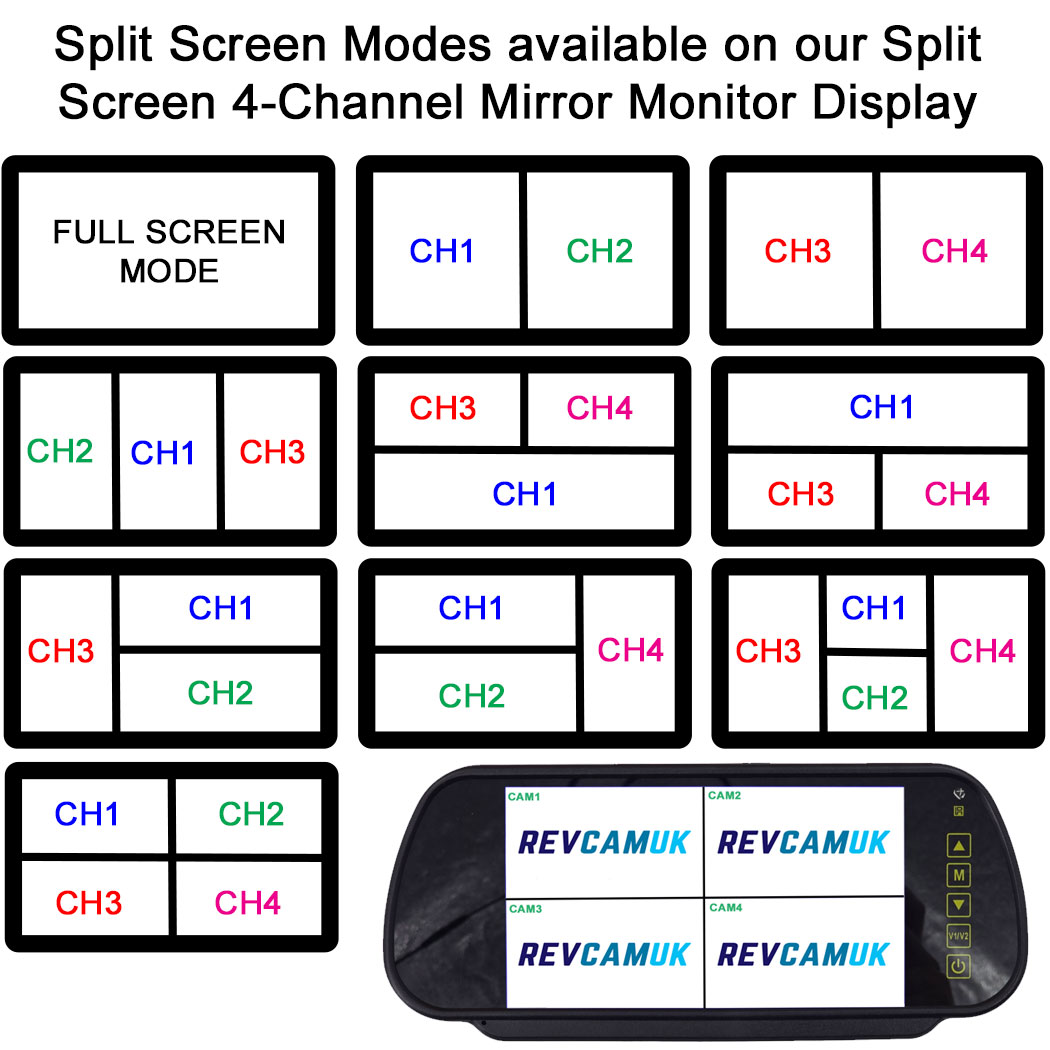

Multiple Split Image Modes - This monitor allows Full Screen on One Channel, Two Way Splits, Three Way Splits and 2x 4 Way Splits (4 Square/H split)

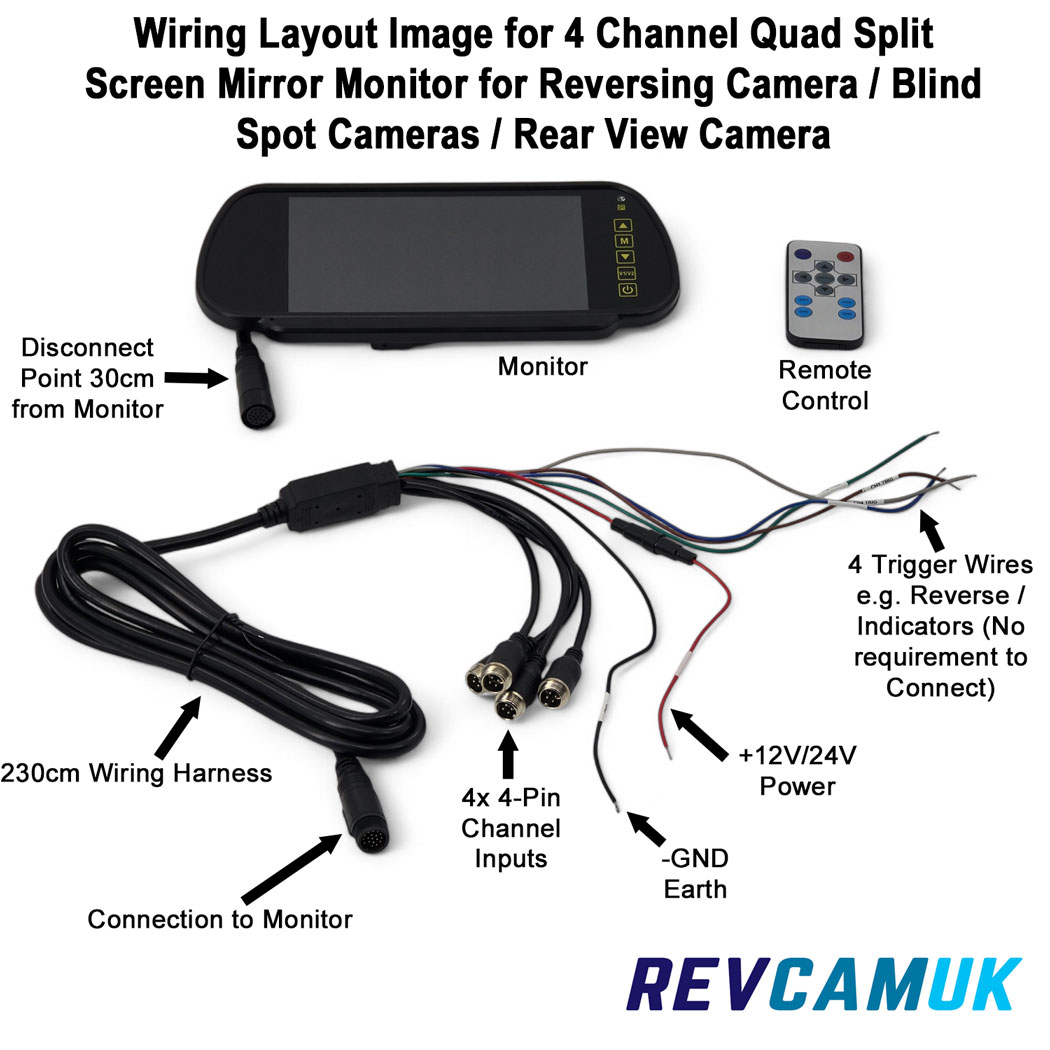

4 Channels for Reverse, Rear View, Side View Cameras - The monitor wiring harness is fitted with 2x 4 pin aviation connectors. This gives space for a rear view, and reversing camera to be fitted. Change between channels by either using the V1/V2 button on the screen, the remote control, or the trigger wires.

Most Popular Location for Fitting a Monitor - The position of the interior mirror is where we naturally look when we wish to see what is behind us.

Trigger Wires for automatic channel changing e.g. reversing/indicating - Optional to connect. This 4 channel mirror monitor has 4 trigger wires, which can be used to automatically change channel when events occur e.g. reverse gear. Trigger delay time allows you to hook up to side indicator lights and set a time delay to avoid the monitor just flashing on/off the channel when the indicator light flashes e.g. change delay to 3/4 seconds, which is longer than the flash interval of your indicators and it will stay on that channel for 3/4 seconds since the last time your indicator light flashes.

Full Function Remote Control - We provide a remote control that allows you access to all the menu functions and changing channels from a distance. These functions can also be achieved on the monitor by using the buttons.

Two Year Guarantee and Lifetime Support - This monitor should last a very long time without any issue. We guarantee it to be free from faults for two years. After two years we are able to offer low cost repairs to keep your system in good condition and avoid extra time or expense installing all new components. We also keep good stock of spare parts such as wiring harnesses should you decide to take the monitor out of the vehicle with you when you sell your vehicle but leave the wiring where it is.

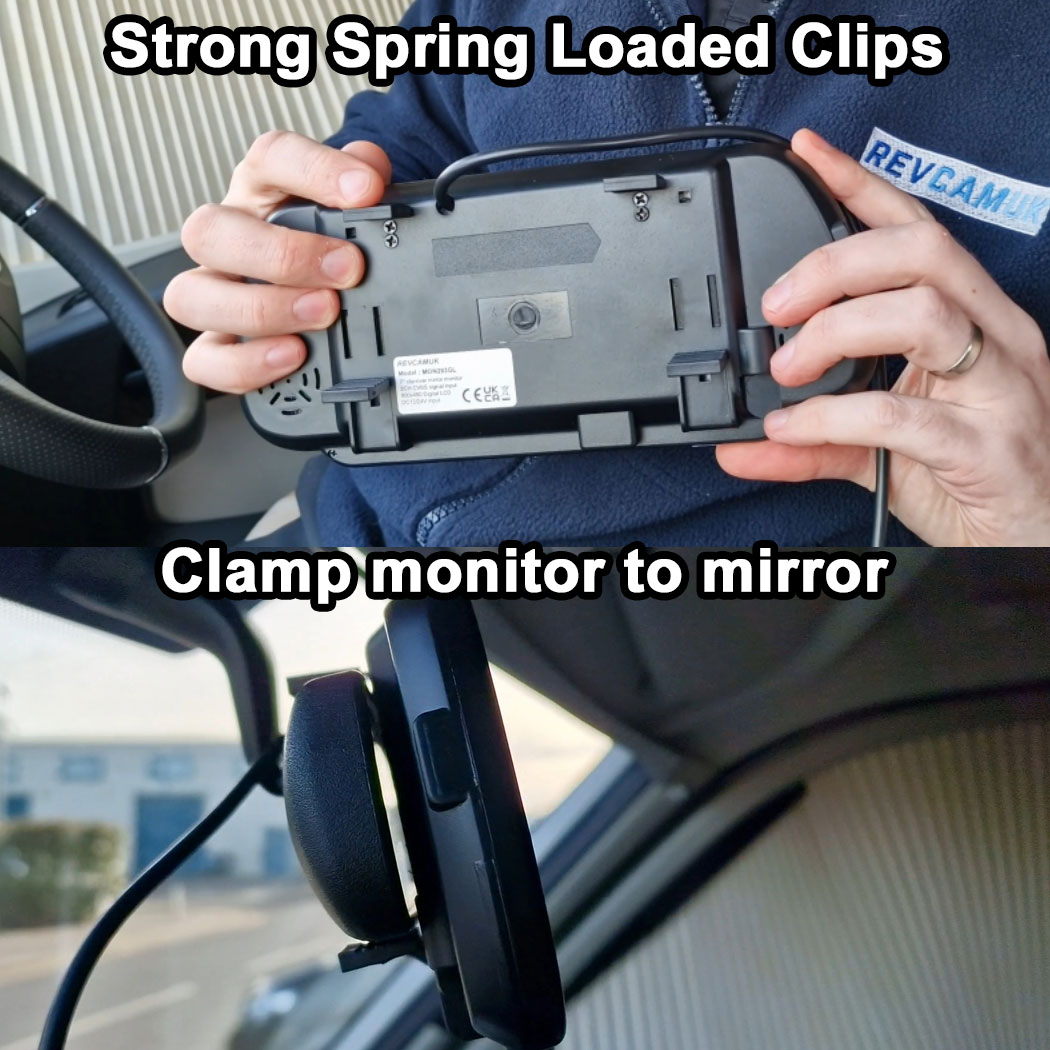

Clips over existing interior mirror - This mirror monitor is fitted with two strong spring loaded clamps on the rear. There are two fixed brackets at the top-rear, whilst two lower brackets that pull down are underneath these. To fix the monitor simply pull the two lower spring brackets until you have enough clearance for them to get past your existing interior mirror, hold the monitor against the mirror, then let go of the two lower brackets so that they clamp to the existing mirror.

4 Pin Channel Inputs - This monitor is fitted with 4x 4 pin inputs. This is the favourite connector type for the reversing camera industry allowing the monitor to power the cameras - avoiding CANBUS issues and allowing for an easy install.

Check out our video below showing the function, wiring, and menu system of the split screen mirror monitor.
