Number Plate Frame Reversing Camera Kit with 7" Mirror Monitor | PM35F-SD
This is a very popular kit especially for cars, the mirror monitor clips over your existing rear view mirror, and the camera is built into a numberplate frame. To attach the camera/frame to the vehicle you simply need to insert your numberplate in to the frame, then reattach to the vehicle using the original screws.
7" Mirror Monitor + Number Plate Frame Reversing Camera Kit Details
This mirror mounted reversing camera kit includes a number plate frame reverse camera. The high-resolution digital LCD panel on the monitor and the number plate frame reversing camera. The kit offers :
Choice of Mirror Mounting Options - We stock two types of mirror monitor, made by the same factory to the same spec but with different rear mounting panels. The clip over type has strong spring loaded lower clips that pull down to clamp against an existing interior mirror to provide a secure fit. To attach directly to the windscreen please see our info tab named "mirror mount options" for more details.
High Resolution Display - Fitted with one of the best quality 7" hi-res digital LCD panels we have seen, this mirror monitor will give you rich colours, a bright picture that is easy to see, and easy to view even when sat at an angle to the display. This resolution can handle even the highest resolution of traditional CVBS signal reversing cameras (CVBS signal still makes up 95%+ of all existing reversing camera systems).

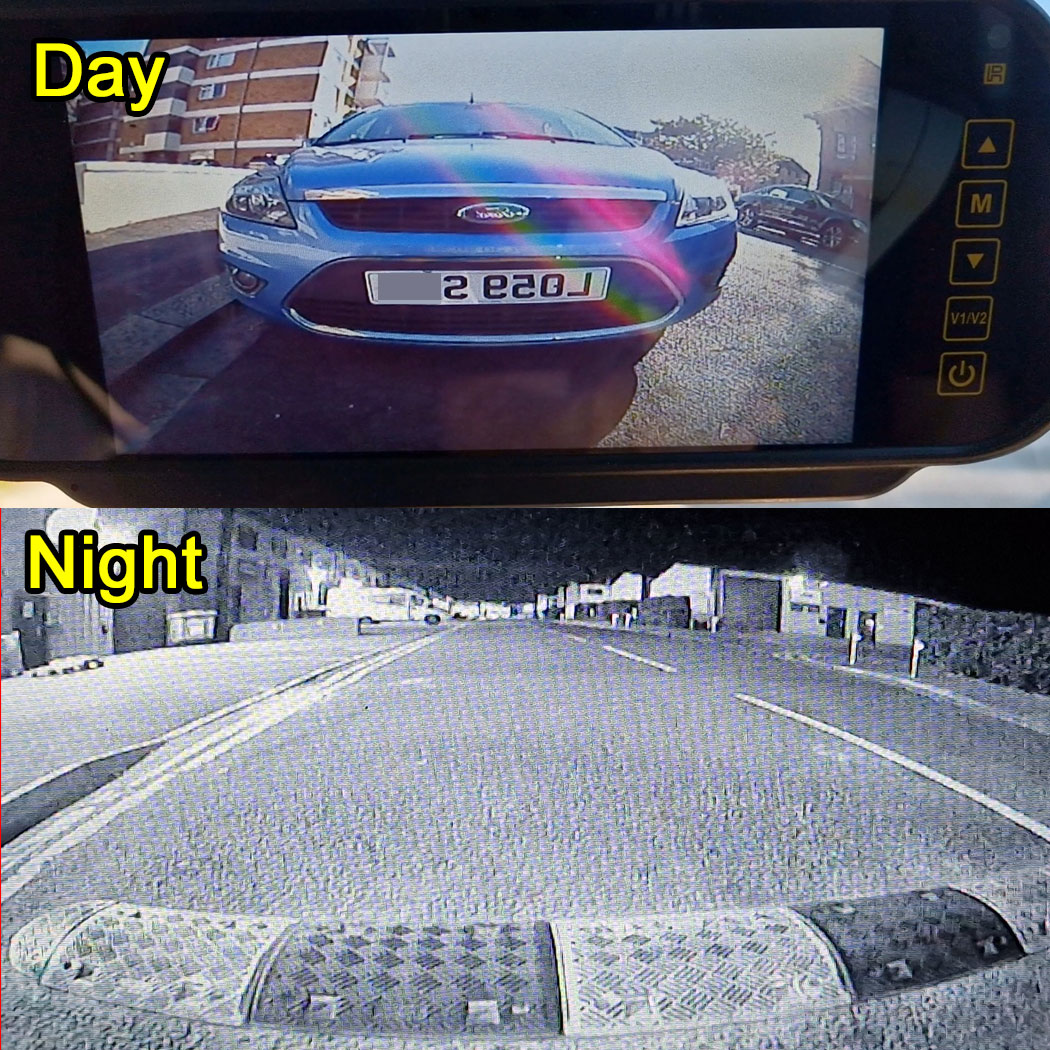

High Resolution Reverse Camera - Fitted with a good quality 1058 600tvl modern image sensor combined with a high quality aspheric lens.
Unbeatable Build Quality - Both the camera and monitor are built by the best factories we have found in their respective fields. Don't mistake the similarity in appearance to other cheaper cameras you may find.
Add Adjustable Guidelines to Image - The menu system on this monitor is one of the most advanced that we have come across. One of the features is that you can add guidelines to the picture, as well as move them about. You can even choose to measure the distance to the lines and change the numbers, as well as specifying if you wish the units to be displayed as M or ft. To use this feature you must use the green reverse trigger wire, if you activate them in the menu the lines will only display when the green trigger has power e.g. when in reverse. For more details please see page 6 of our rear view mirror monitor instruction manual.

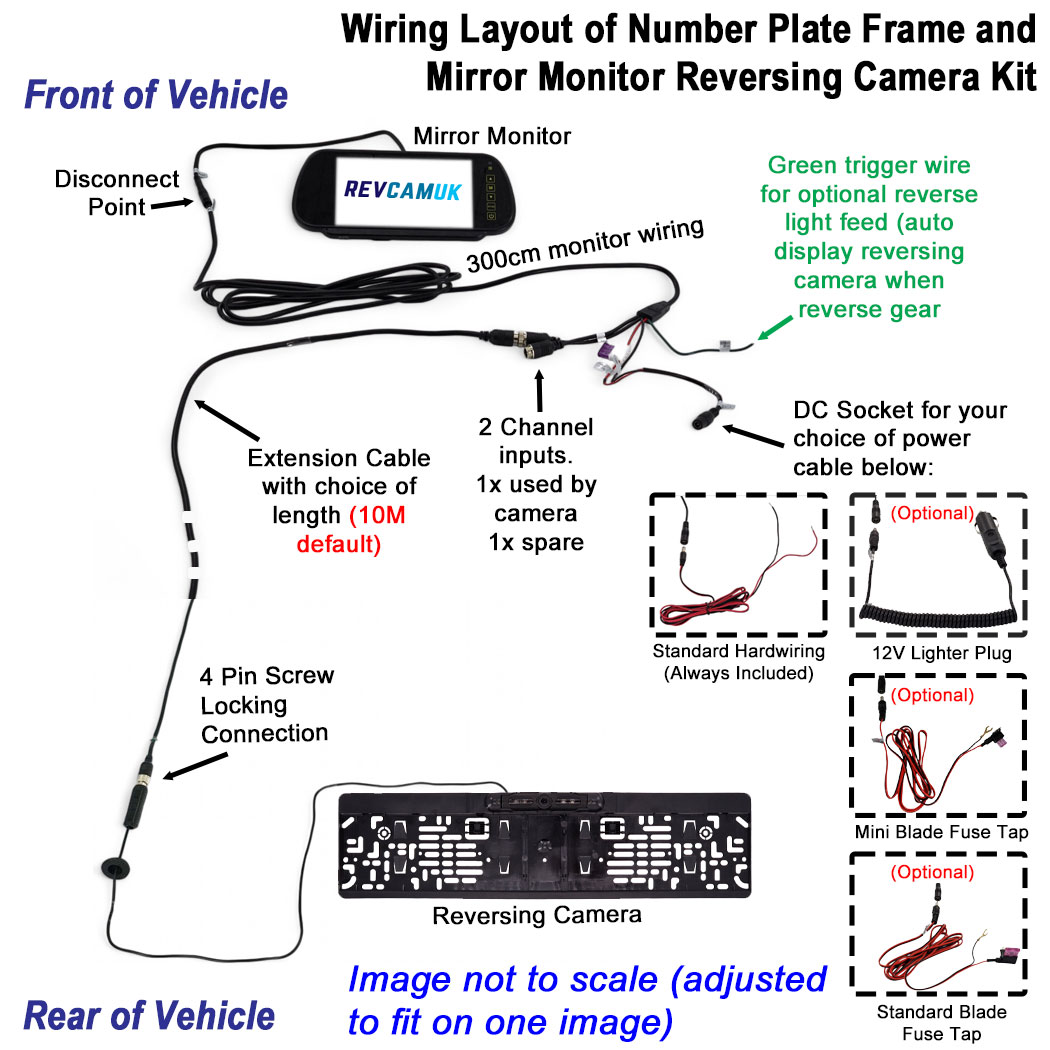

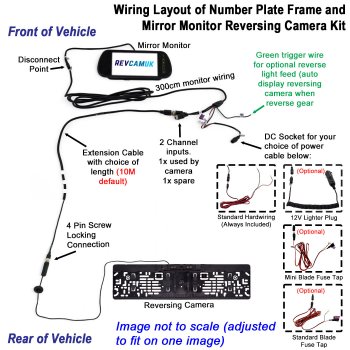

Easy-Fit Wiring - Using the 4 pin aviation cabling, this system is easy to wire up as the monitor provides power to the camera via the all in one locking waterproof connector cables. We have used 4 pin cables since the mid 2000's, it has now become the dominant cable connector in the industry. Strong and durable connectors, they can even be left outside in wet and freezing conditions.

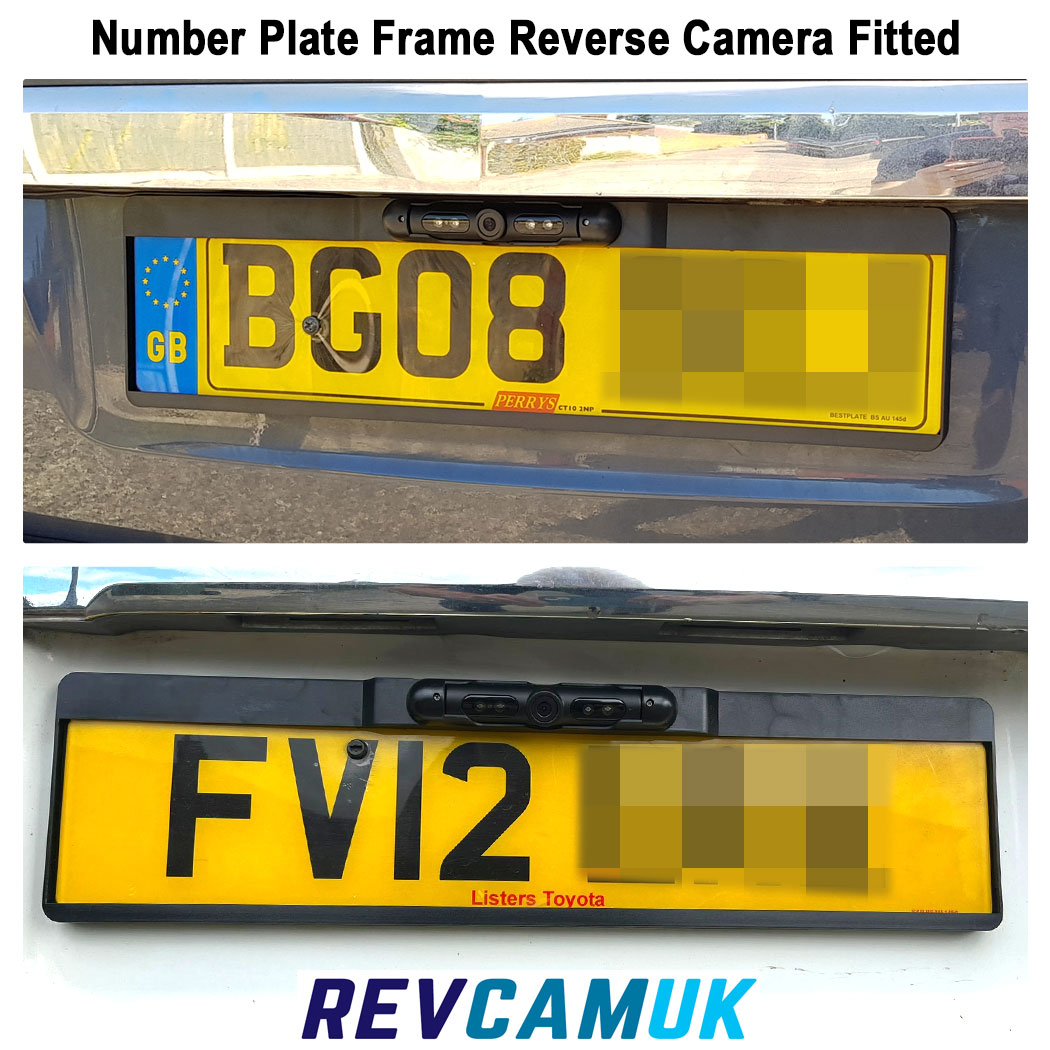

Easy Install Number Plate Frame Camera - The number plate frame camera is our easiest camera to fix to your vehicle. Simply remove your number plate, insert it in to the number plate frame camera, then screw the numberplate + frame camera to the vehicle using the original screws/screw holes. See video below to see how simple it is.
Convenient Location - This monitor is one of the most popular for cars, vans, and motorhomes because it is a natural place to look when you want to view behind you, as well as keeping the dashboard clear for other devices you may use.
Two Year Guarantee and Lifetime Support - This monitor and reversing camera kit should last a very long time without any issue. We guarantee it to be free from faults for two years. After two years we are able to offer low cost repairs on the monitor to keep your system in good condition and avoid extra time or expense installing all new components. We also keep good stock of spare parts such as wiring harnesses, cables, and cameras should you decide to take the monitor out of the vehicle with you when you sell your vehicle but leave the wiring where it is.
Choice of power options - We have had a DC socket added to the monitors wiring harness that allows you to select various power lead attachments to plug in to this. As standard you are supplied with a lead that terminates in a red wire (+12V / +24V) and black wire (Earth / Ground). You may also choose from a cigarette lighter 12V plug option, or an easy wire fuse tap option that allows you to hardwire the whole kit without soldering or crimping. Simply remove a fuse from the fuse box, insert it in to the fuse tap, then connect the earth terminal to a chassis screw/bolt. See the power options tab for more details.
Optional slimline 8mm disconnect point on extension cable - The cable length selection drop down menu includes an 8mm disconnect point option on selected cable lengths. If you select this option we will supply a version of the main extension cable that has a small 8mm diameter disconnect point, so that the larger connector is temporarily removed to allow for easy feeding through the vehicle and any tight gaps/cupboards etc you may encounter. The disconnect is 1M from the front of the cable, so it will re-join close to the monitor and convert back to the 4 pin screw connector for the monitor input.
Reversing Safety - The amount of time I have had the phone call "I keep hitting things when I reverse, I had better get a reversing camera". Increasing your visibility of the rear of your vehicle can help reduce the chances of hitting a person, or colliding with another vehicle/object. Not only will this help avoid extra unexpected stress and costs, this will also reduce the stress whilst manoeuvring.
For more information including main reversing camera kit instructions, and monitor instructions, please click the tab for PDF instructions. If you would like any information/questions that may not be present, please contact us.
Video below shows the difference between the two image sensor choices, rest assured that both choices will give you a very good performance/safety. To order the upgrade, please see the upgraded 1080P AHD number plate reversing camera kit listing to purchase.
Rear View Mirror Mount Options Details
We have various mounting options for the rear-view mirror reversing camera kits. Please see the options below. Remember to carefully check the description and photos, as some mounts look similar. We only stock the most common vehicle mounts (usually vans). Be aware that if there is a plastic cover over the mounting plate this may not fit back on with a bracket in place.
Clip-over Existing Mirror - This is the most popular option, especially if you already have an interior mirror to clip on to. This option has a version of the mirror monitor that has strong spring loaded clamps to attach it to the old mirror.
ACCMB1 - Mercedes Sprinter with Auto Lights / Wipers Option - We usually see this type of mounting on Mercedes Sprinter vans that are fitted with auto lights or wipers. 90 degree twist (clockwise from 9 o'clock position to fit).
ACCMB2 - Some Ford / Universal - Most commonly seen on Ford vehicles e.g. Ford Transit. Also known as the universal bracket because the mounting plate (button) that works with this bracket is the easiest to glue on. We stock the button and glue kit (see further down). Slides down from above.
ACCMB3 - Some Volkswagen - We usually see this mounted to Transporter, various cars, and Crafter vans built after 2017. 90 degree twist (clockwise from 9 o'clock position to fit).
ACCMB5 - Some Mercedes / Renault / Vauxhall - Most commonly found on Mercedes Sprinters without auto lights/wipers, as well as older Renault Trafic, Renault Master and Vauxhall Vivaro vans. Mounts by sliding down from above.
ACCMB6 - Universal Ceiling Mount - Allows you to attach the monitor to the ceiling.
ACCMB7 - Some Citroen Relay / Peugeot Boxer / Fiat Ducato / Iveco Daily Vans - We typically see this fitted to earlier models of Relay/Boxer/Ducato vans, as well as recent Iveco Daily vans. Slide down from above fitment.
ACCMB8 - Some Renault Master, Vauxhall Movano and Nissan NV400 Vans - We typically see this fitted to earlier models of Renault Master, Vauxhall Movano, and Nissan NV400 vans. Slide up from below fitment.
ACCMB2 + MP35 - Some Citroen Relay / Peugeot Boxer / Fiat Ducato / Ford Transit / New Vauxhall Vivaro - Most commonly found on more recent Ducato/Relay/Boxer vans. Usually this will be hidden by a round plastic circular cover. There will also be a spring underneath the cover that will need to be twisted anti-clockwise to remove (be careful in case it pings off in the direction of your eyes).
ACCMB2 + Button + Glue - Universal - adds a button with Loctite 319 interior mirror adhesive for ACCMB2 bracket to attach to - This is ideal if you find your vehicle doesn't have any mounting plate fitted, or has one that we have no bracket to fit to. This bundle will provide you with a universal bracket, a universal button/mounting plate, and the Loctite 319 interior mirror adhesive required to fix this to the windscreen. We provide full detailed instructions on how to achieve a good, strong bond.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install. |
 Click preview image to download the PDF file | Clip-Over Option Mirror Monitor Instructions If you choose a mirror monitor kit and you don't select the AHD upgrade option then this monitor will be supplied. It is a great monitor with lots of menu options, lovely colour, adjustable guidelines, and good viewing angle range. |
 Click preview image to download the PDF file | Instructions for fitting our CAM103 and CAM104 number plate reversing cameras Instructions on fitting and adjusting the two most popular number plate reversing cameras that we stock. |
If you are ordering the Mini Bade or Standard Blade Fuse Tap power option, then please see the further instruction sheet below dealing with this time saving connection method.
 | Instructions for fitting Fuse Taps / Piggyback fuse holders for power supply Our guide on how to correctly install a piggyback fuse holder tap to power a reversing camera system from the fuse box. |
Monitor
7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x3(RGB)x480
21 LED Backlight (Brighter than other 14 LED versions)
2 Inputs
PAL/NTSC/AUTO
Camera
TV System: PAL
Effective Pixels: 960 (H) x 576 (V)
Resolution: 600TV Lines
Sensing Area: 4.880mm x 3.670mm
Scanning System: 2:1 Interlace
Sync. System: Internal
Minimum Illumination: 0 lux(LED ON)
Horizontal Sync. Frequency: 15.625KHz
Vertical Sync. Frequency: 50Hz
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 43.3dB
White Balance: Auto
Electronic Shutter: 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto
Power Supply: DC12V
Operating Temperature: -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C, RH95% MAX
Lens Angle: 150°
