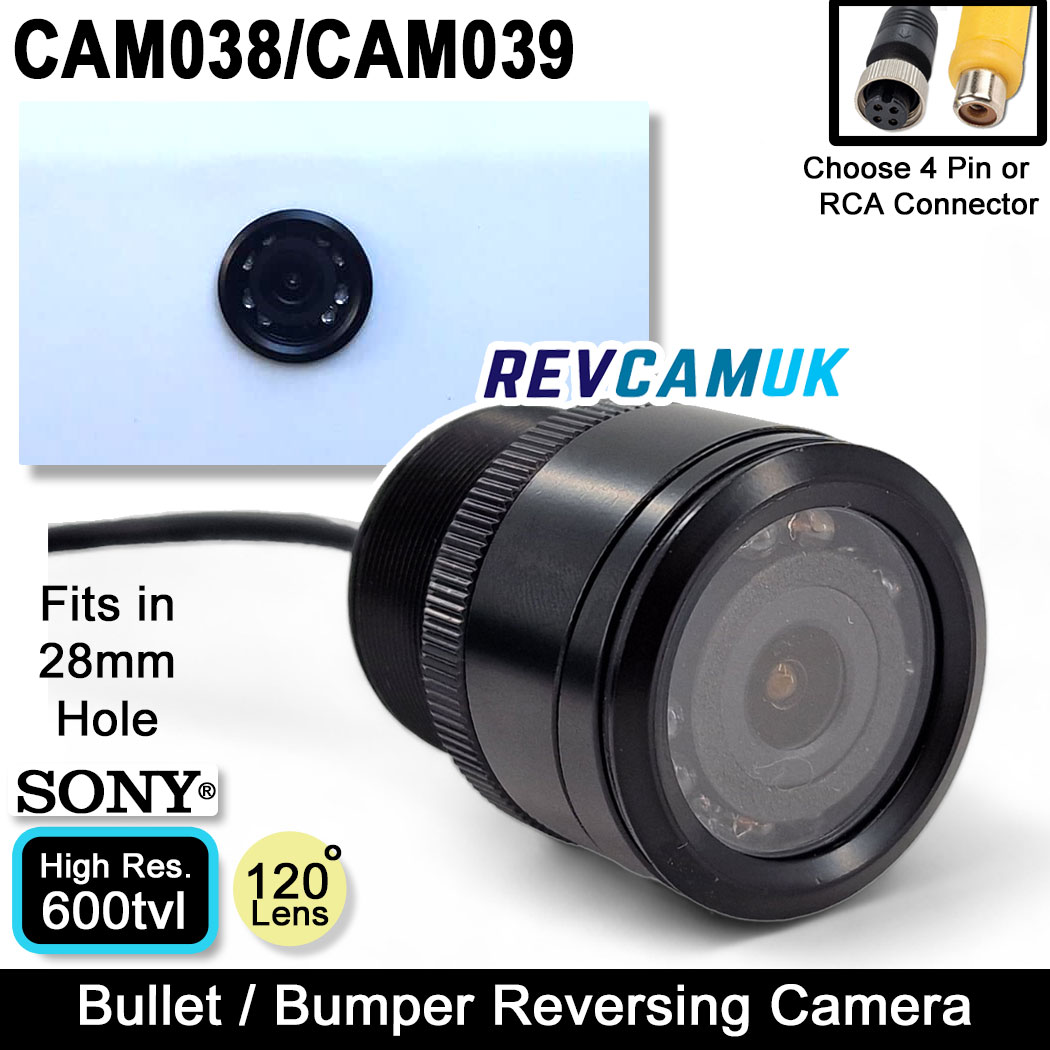

Flush Bullet/Bumper Reversing Camera - Sony 600TVL CCD | CAM038/CAM039
If you are looking for a very subtle, hard to see reversing camera, then this bumper camera is for you. The camera flush fits in to a 28mm diameter hole (hole saw provided). This camera can be fitted to any flat area that you have access to the rear to lock the camera in position and access cables. Choice of connectors depending on your monitor connection type. Sony 1/3" CCD 600TVL image sensor fitted, as well as night vision IR LED's.
About our Sony CCD Flush Bumper Reversing Camera
The flush fitting bullet/bumper reverse camera is very popular with customers who are looking for an extremely discreet, hard to spot camera. It comes with the following advantages :
Discreet and Subtle - Designed to fit in a small 28mm hole, usually in the bumper. This camera is hard to spot and looks similar to a parking sensor. The camera comes supplied with the hole saw to drill the correct sized hole for the camera to fit in.
Increased Reversing Safety - The most important bonus about this camera is that it improves the visibility to the rear of your vehicle. This will help to improve the safety to pedestrians and property whilst reversing.
High Resolution Camera Image Quality - Thanks to the Sony 639 600tvl 1/3" CCD image sensor, this reverse camera will return a good, high resolution image, that captures good colour detail and works well in both day and night conditions.
Night Vision IR LED's - This camera is fitted with Infra Red LED's that come on automatically when the camera detects it is dark. This light is below the visible spectrum of the human eye, but is visible to the camera. This means it will not distract following vehicles, but will allow the reverse camera to see in the dark.
IP68 Waterproof Rating - Rated to withstand even the worst weather the Great British Isles can throw at it.

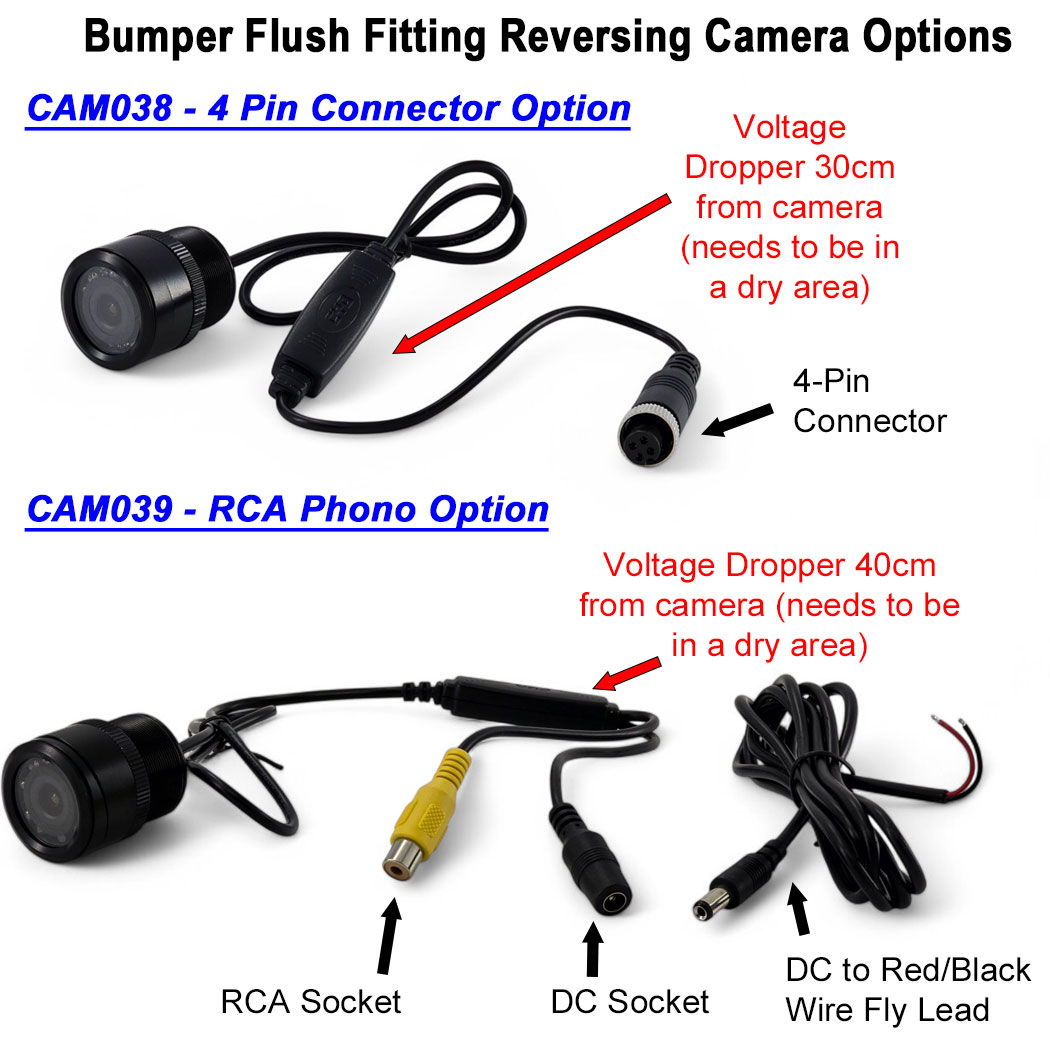

Choice of 4 Pin or RCA Connectors - We stock this camera with an option of the two main universal connector types - RCA and 4 Pin Aviation.

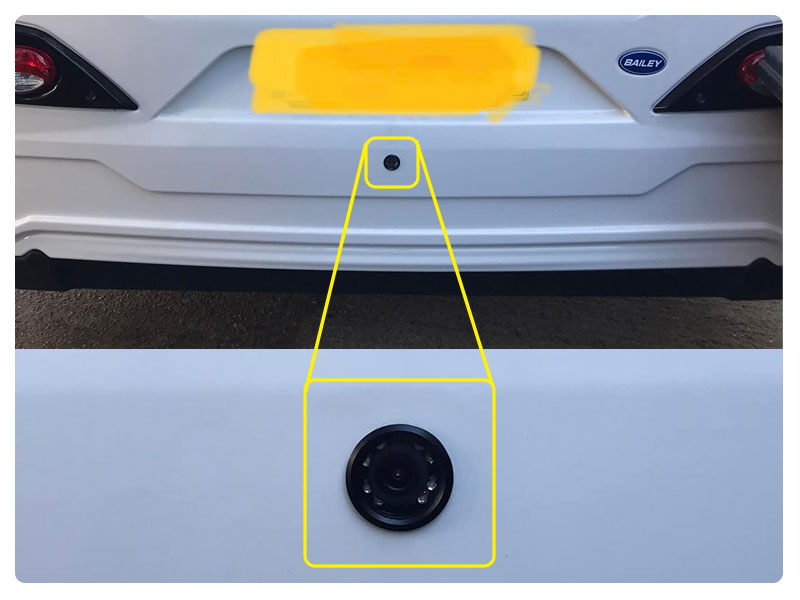

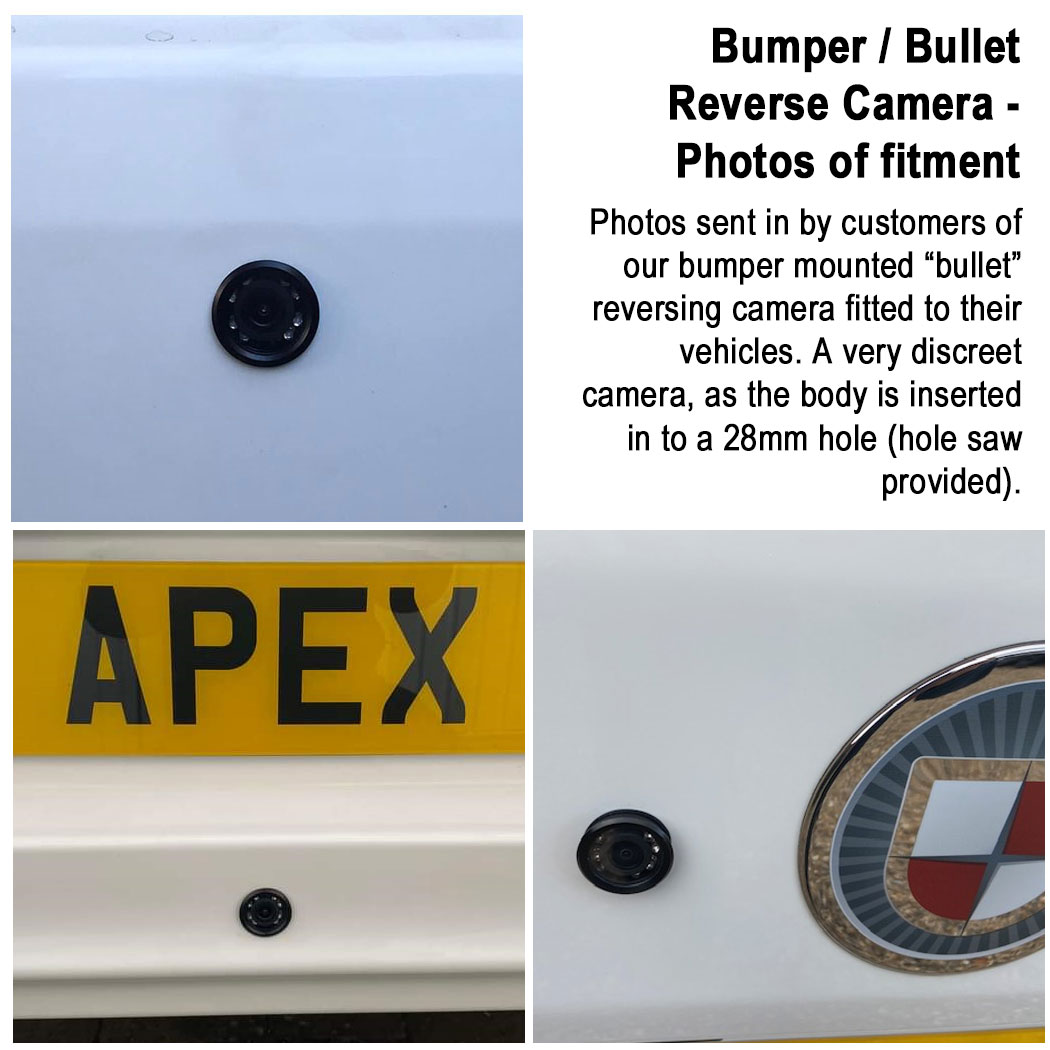

We find the bumper/flush mount cameras have been very popular for car owners, motorhomes, as well as small vans and people installing cameras into doors. See the image below, sent in to us by one of our regular auto electrician customers after installing the bumper reversing camera on to one of their customers motorhome.

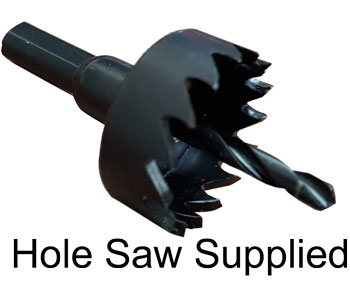

The bumper reverse camera is designed to be discreet, we supply a 28mm hole saw to use on a drill, the camera then inserts in to this hole and you screw locking rings to the rear to fix it in position.

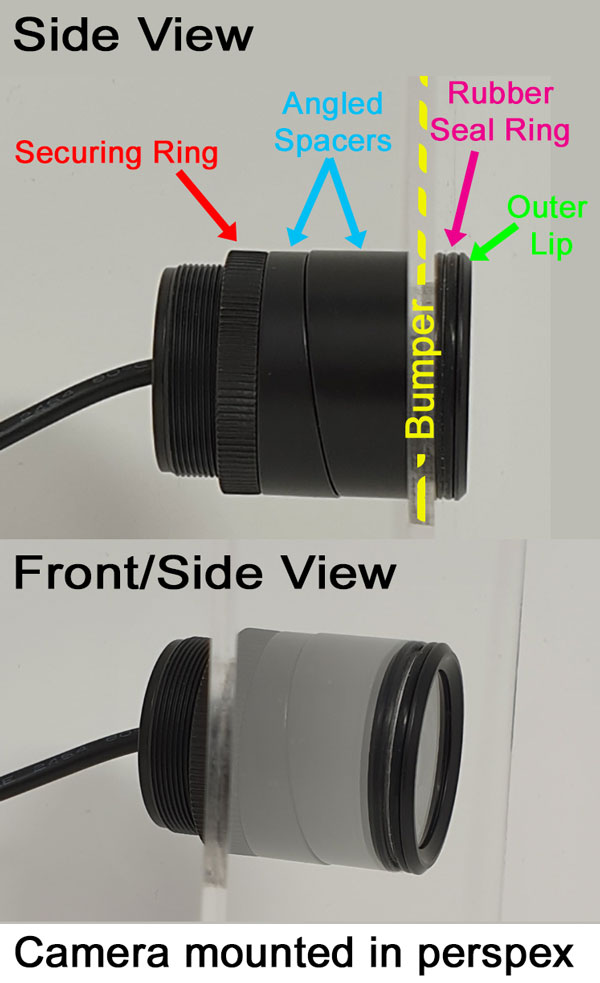

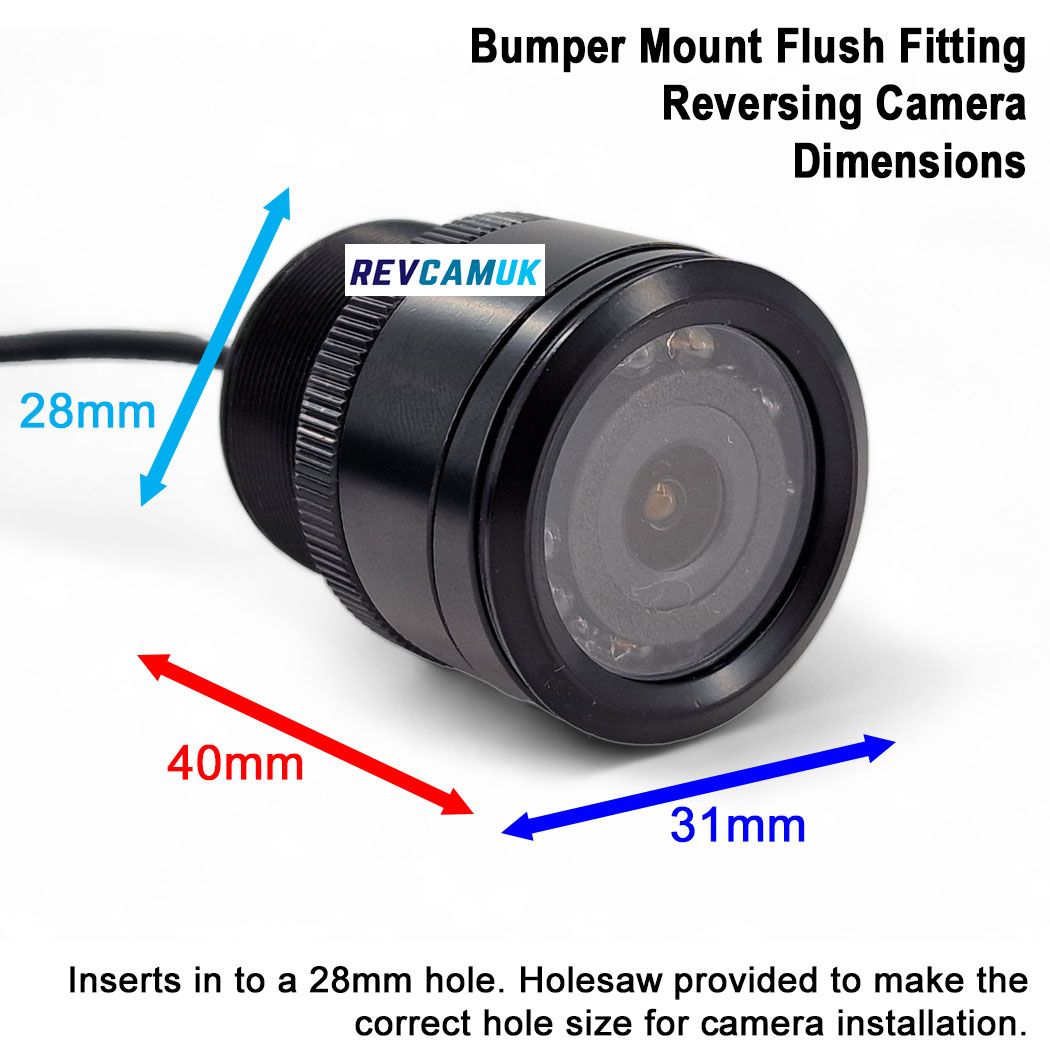

The bumper reversing camera has an outer lip that is approximately 32mm in diameter, plus a rubber seal o-ring - this sits against the surface that you mount to (usually the bumper). See the image below to see how the camera installs on to a vehicle. The body of the camera is 28mm in diameter, a hole saw is provided that fits a household drill to create the appropriate sized hole. The body is threaded, once in position the securing ring is tightened on to the body to lock everything in place.

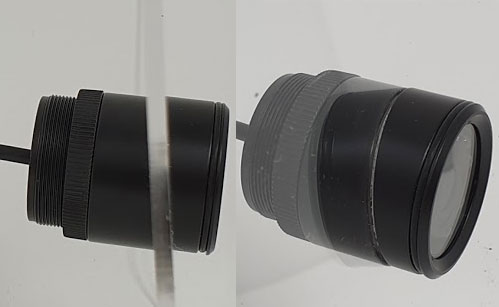

The bumper camera is supplied with angled spacer rings, which can be used in situations where you wish to angle the camera down slightly eg if you have a sloped door/mounting higher up. This makes the camera less flush, see image below with the camera mounted in Perspex as a demonstration.
If you choose the 4 pin connector option, check out our 4 pin extension cables category. Require an adaptor for a different style connector, check out our adaptors category.
If you choose the RCA/Phono connector option, check out our range of RCA Phono extension cables, and DC power extension cables.
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Click preview image to download the PDF file | Bumper reversing camera fitting guide Our flush fitting bumper camera designed to fit in to a 28mm hole (correct sized hole saw supplied). These instructions cover the fitting of the camera, including using the supplied angled spacer rings if required. |
Image Device : 1/3 Sony 600TVL CCD
TV System: PAL
Effective Pixels: 648H*488V
Resolution: 600 TV lines
Minimum Illumination:0.01 Lux (IR leds on)
Built-in Lens: 2.8mm
Lens Angle 90 degrees (D)
Waterproof to Ip68
Infra red LEDs to provide night view
Mirror image
