Reverse Parking Camera Kit for Peugeot Boxer/Citroen Relay/Fiat Ducato (2006-Present), and Vauxhall Movano (2022+) to fit Brake Light | PM39BLB
Mirror monitor brake light reversing camera kit to fit Fiat Ducato, Peugeot Boxer, and Citroen Relay vans built 2006 to present, as well as Vauxhall Movano 2022+. Factory look, tidy install. Top spec image sensor and monitor. Attach to windscreen or clip over mirror types. 2 year guarantee.
Introduction to our Fiat Ducato, Peugeot Boxer, Citroen Relay 2006 - Present, and Vauxhall Movano 2022+ Brake Light Reversing Camera Kit with 7" Mirror Monitor
Mirror monitor brake light reversing camera kit to fit Fiat Ducato, Peugeot Boxer, and Citroen Relay vans built 2006 to present, as well as Vauxhall Movano 2022+. Factory look, tidy install. Top spec image sensor and monitor. Attach to windscreen or clip over mirror types. 2 year guarantee.
This brake light reversing camera fits the following vans:
Fiat Ducato 2006 - Present
Peugeot Boxer 2006 - Present
Citroen Relay 2006 - Present
Vauxhall Movano 2022 - Present
This camera has the following advantages :
Great Camera Image Quality - We don't settle for the base spec when it comes to this brake light camera. We have the 4089 700tvl image sensor fitted, which is paired with a top quality all-glass composite lens. The image sensor is one of the most important components for ensuring a colourful, sharp, and high dynamic image. We select all glass lenses instead of cheaper glass-plastic composites, because over time plastic containing lenses would fade from UV damage. No such issue with our all-glass lenses.
High Resolution Monitor Display - Our 7 inch mirror monitor display gives a good quality image thanks to it's 800x480 pixel digital hi-res LCD panel.
IP68 Waterproof Protection - This reversing camera is rated to IP68 water/dust ingress protection. This will keep the camera protected in even the worst wet and stormy weather the Great British weather can throw at it, or indeed on your trips across the continent.
130°(H) / 160°(D) Ultra Wide Angle - Due to the external lens fitted to this camera, you are able to have a greater field of view, which is very helpful when reversing. External lenses can achieve wider field of view compared to those mounted behind a glass cover.
2 Year Guarantee - We believe that our brake light reversing cameras come from the best factory, the factory is so sure of their own product that they fully support our highly respected two year guarantee. We find the fault rate very low from them, but should anything happen in your first two years of ownership, we will provide a replacement. We also guarantee the monitors and cables to be free from defect for the same 24 month period.
IR Night Vision - This camera is fitted with IR LED's that activate when it becomes dark. IR light is beyond the visible spectrum of the human eye, so you won't be blinding anyone behind you with light. The camera will see it, and use it to see obstacles behind your van when it is dark. Another bonus about our external lens is not having the IR LED's behind a glass lens cover. This means you get a really good contrast at night time, with none of the haziness sometimes seen with glass lens cover versions.

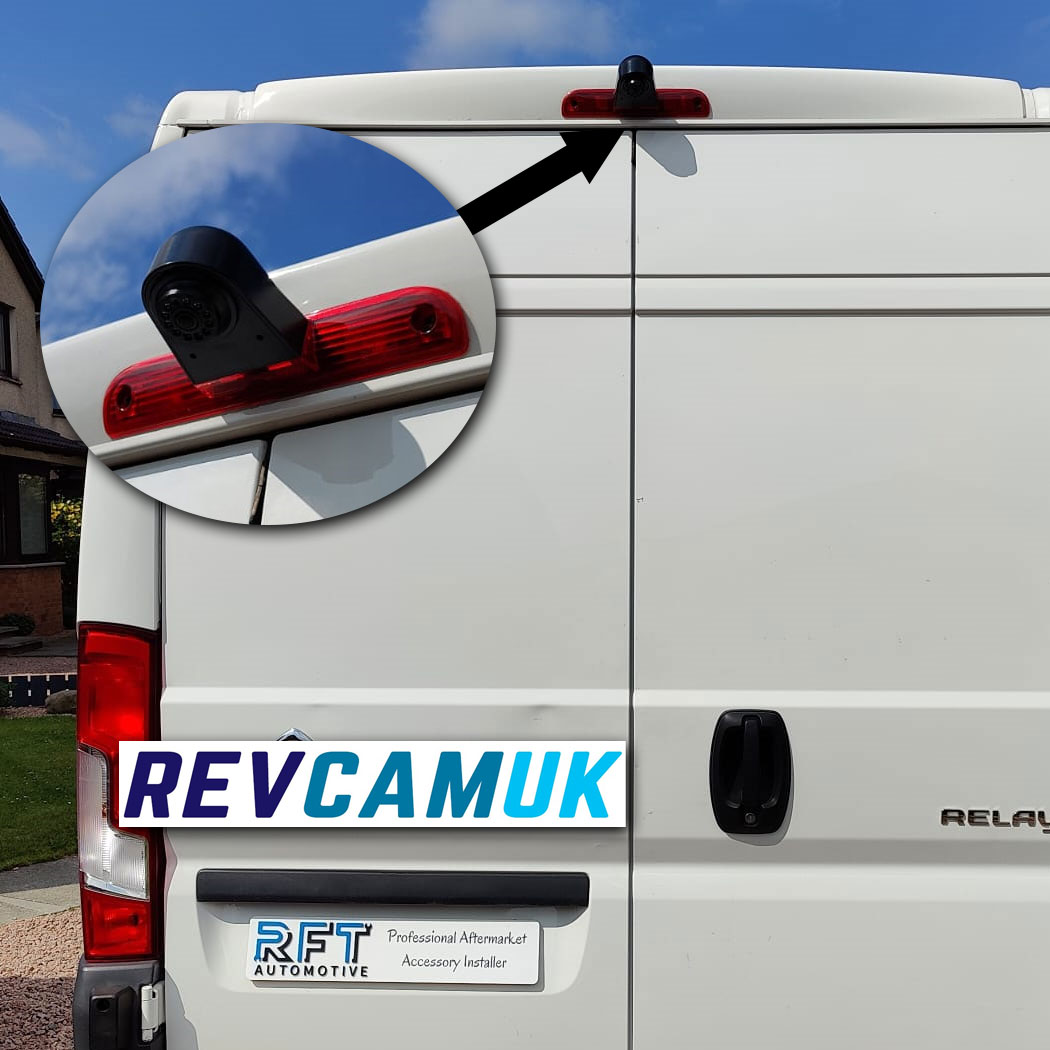

Maintains a Tidy Factory Look - This brake light reverse camera was designed to fit perfectly where the OEM brake light used to be. If you didn't tell anyone, most people would assume it was a factory addition. The brake light works just as well as the original, in fact you are actually using the original light strip.
Easy to Fit - Simply remove the two screws from the original van brake light. Unplug and remove the brake light from the van. Press the 3 top tabs, and 3 bottom tabs to release the brake light strip. Insert in to the new brake light reversing camera - clicks in to the same 3 tabs top/bottom. Fit the new brake light camera back up with the 2x original screws removed earlier. Please see either our image, or our YouTube video below to see the light strip transplanting process. A hardcopy of the instructions are sent with your order.
Choose your preferred mirror monitor mounting option :
- Have a mirror? Choose our clip-over mirror option, we will supply you with a rear view mirror monitor that clips over your existing interior mirror.

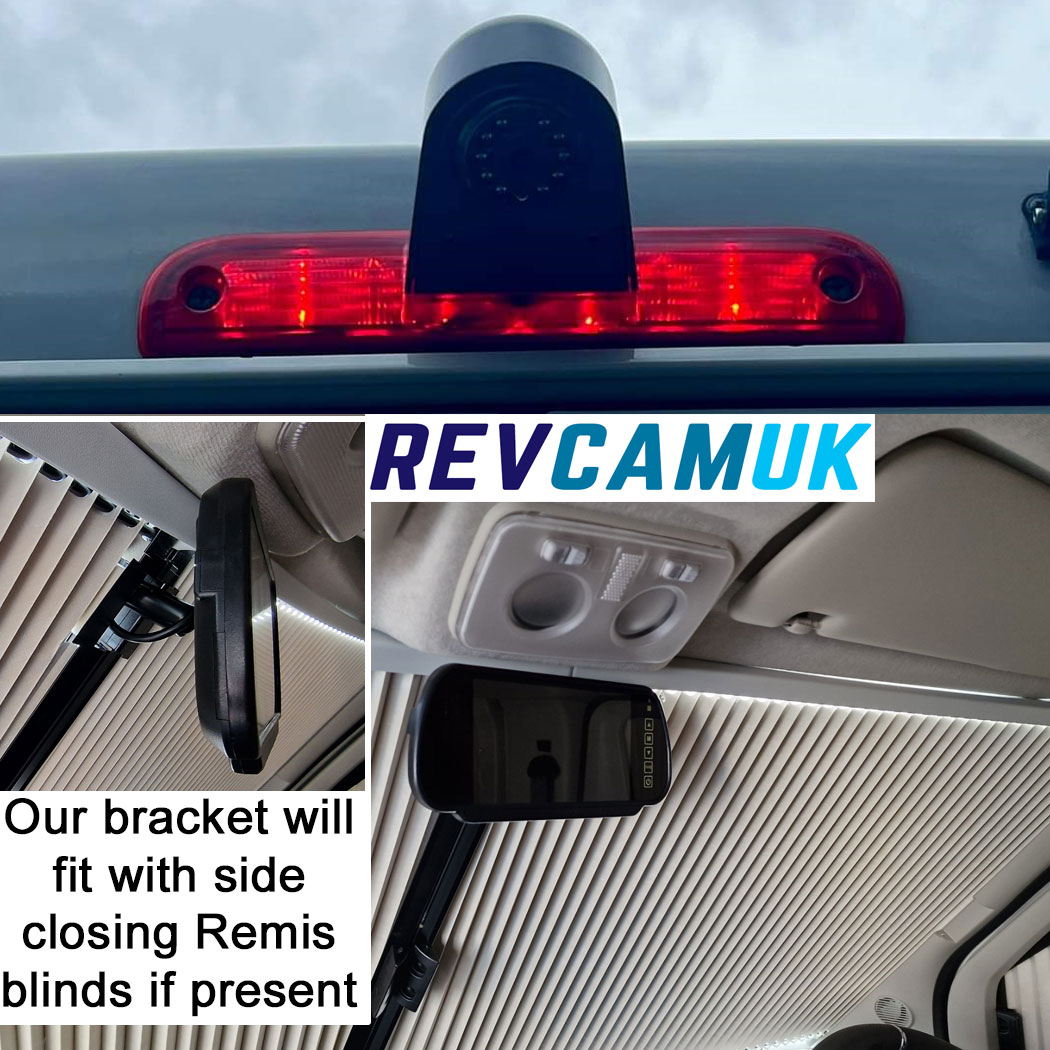

- Don't have a mirror but have a twist type hexagonal shaped metal mounting plate/button on the windscreen for one? (usually hidden behind a plastic trim/cover. Then choose the ACCMB2+MP35 swan neck bracket option, we will supply you with our MP35 (Mounting Plate 35) and Swan neck bracket, these will secure to the hexagonal shaped button and fix to the back of the mirror monitor (which we will provide with screw holes on the rear for the bracket to screw in to. This type of mounting plate is most commonly found on later model Ducato, Boxer and Relay Vans. Download the PDF fitting instructions for attaching MP35 to the hexagonal shaped windscreen plate here.
- Don't have a mirror but have a slide down type metal mounting plate/button on the windscreen for one? then choose the ACCMB7 swan neck bracket option. We will supply you with our swan neck bracket compatible rear view mirror monitor + the swan neck bracket designed to fit to the windscreen slide type metal mounting plate.
- Don't have a mirror and don't have a metal button on the windscreen? Choose our ACCMB2 + Button + Glue option, we will supply you with the bracket compatible monitor, a Ford Button to bond to the windscreen, Loctite 319 windscreen button adhesive to bond the button up, as well as full instructions on how to mount a windscreen button with Loctite 319 adhesive. We have researched videos, reviews, and manufacturer recommendations to provide the best instructions available to get the job done correct, first time.

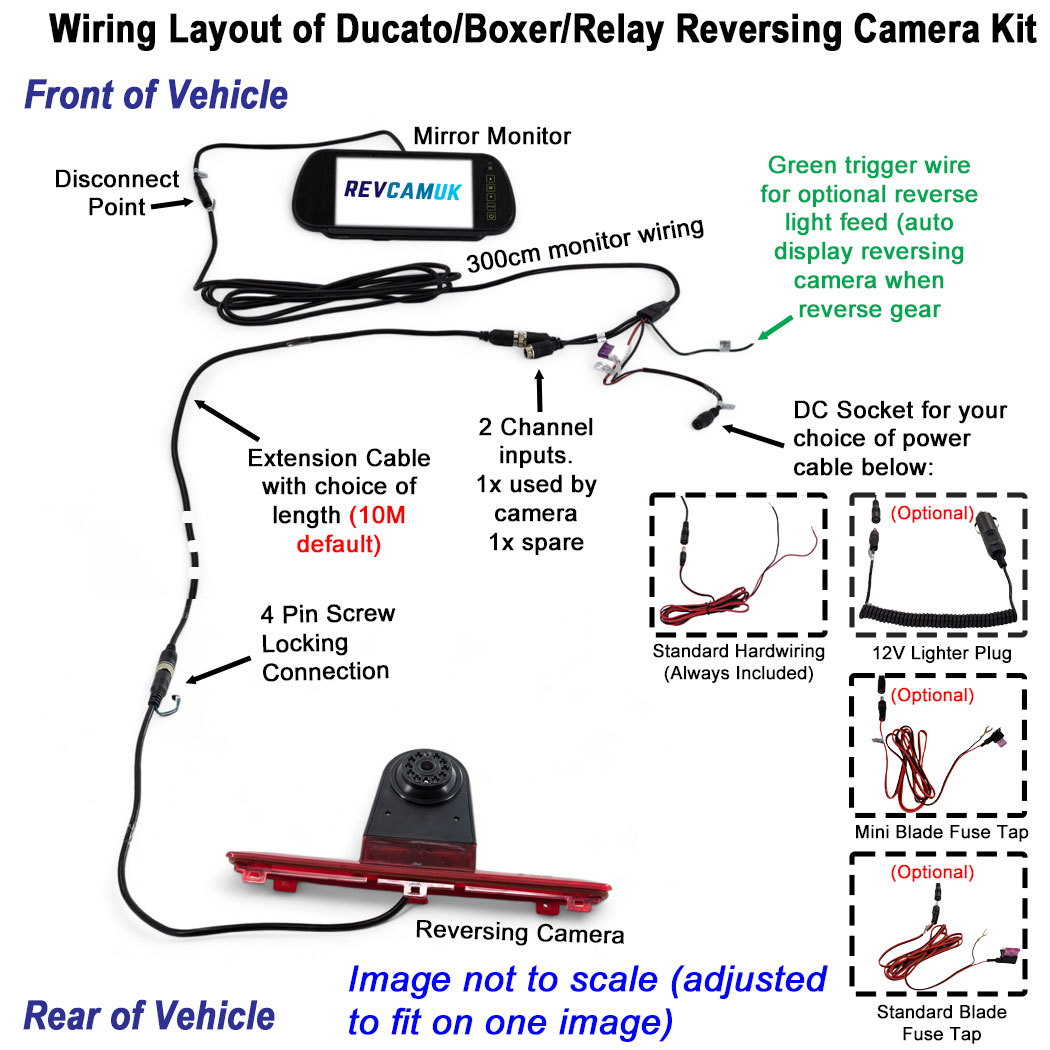

Installation and Power Options:
- Easy installation with various power options that plug in to a socket on the monitors wiring harness/loom.
- Single power connection powers the entire system.
- Standard hardwiring ALWAYS included even when adding the additional connector options.
- Choose a lighter plug for the easiest plug and play solution. Some customers order this just for testing purposes before using one of our hardwiring options (fuse tap or bare wire) afterwards.
- Choose one of our fuse taps for an easy hard wire installation. We have had them designed so that one end plugs in to the monitor power socket on the end of the wiring harness, whilst on the other side of the 200cm lead has a mini blade or a standard blade fuse tap aka piggyback fuse holder, as well as a chassis earth/ground terminal fixing (find a screw/bolt connected to bare chassis and fix to this). See our downloadable PDF instructions on how to install a fuse tap/piggyback fuse holder to your vehicles fusebox.
For more information including main reversing camera kit instructions, and monitor instructions, please click the tab for PDF instructions. If you would like any information/questions that may not be present, please contact us.
Power Connection Options
You have the option to add additional leads that plug in to a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder / crimp to a power supply.
On the drop down menus you will notice there are two options selectable. One to add a lighter plug, one for a fuse tap. Scroll down for details on each option.
Lighter Plug
Selecting this option adds an additional lighter plug lead - attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some people order this option just to try out there new kit before hardwiring permanently.
Fuse Tap (Mini blade, Standard blade)
Selecting this option adds an additional easy-wire fuse tap lead with built in earth terminal connector.
We designed and had this product produced in 2023, and they have been very popular. We wanted to create something that meant our customers could hardwire a reversing camera system to their vehicle with ease and minimal tools. Fuse taps have already become popular for installing dash cams, so we wanted to make them more popular for reversing camera kits too.
Usually fuse taps have no earth terminal connector and require crimp tools to connect to your wiring - our easy wire fuse tap kits are different. They come supplied with 2M of twin wire (power + earth) attached. The wires can be pulled apart should you wish to earth to an area far from the fuse box.
Choose a fuse that's active when the ignition is on. Remove the original fuse and place it in the empty slot of the fuse tap. The correct rated fuse for the new camera system is supplied already installed in the correct slot. Install the fuse tap (with the two fuses fitted) in to the fuse box (where you removed the original fuse). Lastly, connect the earth terminal to a chassis bolt or screw (or add a new bolt/screw to secure it).
The mini blade is the most commonly seen fuse size on modern vehicles.
Standard blade used to be the most common fuse size installed, and is still commonly seen, even on very recent vehicles.
Technical Specification
Monitor

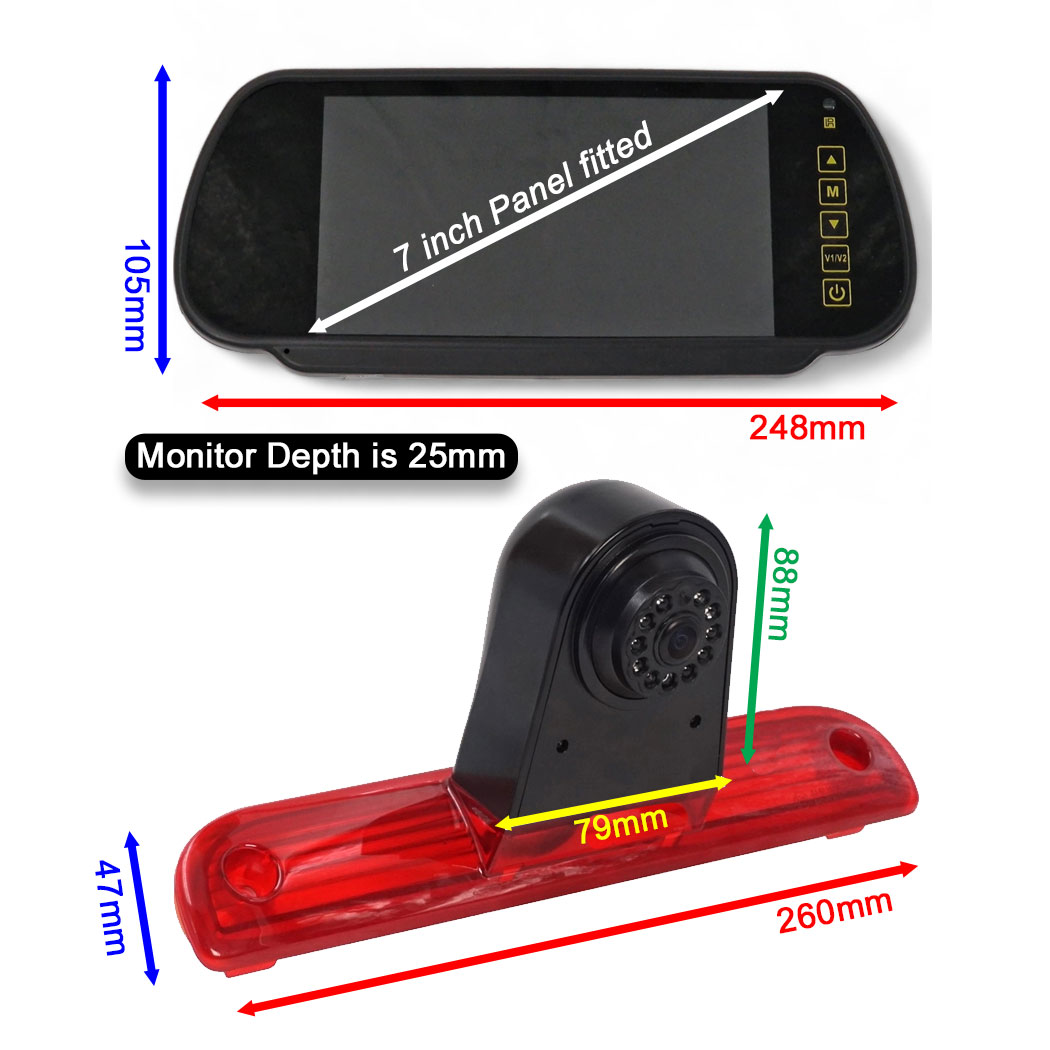

7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x3(RGB)x480
2x 4 pin Inputs
PAL/NTSC/AUTO
Camera
Sensor: 1/3" PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (some have a trigger wire to select)
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install. |
 Click preview image to download the PDF file | Clip-Over Option Mirror Monitor Instructions If you choose a mirror monitor kit and you don't select the AHD upgrade option then this monitor will be supplied. It is a great monitor with lots of menu options, lovely colour, adjustable guidelines, and good viewing angle range. |
 Click preview image to download the PDF file | Bracket to Windscreen Mirror Monitor Instructions If you choose a mirror monitor kit with a direct to windscreen swan neck mount option, then this will be the monitor that is supplied. This guide will teach you about adjusting guidelines, wiring, and other menu settings. |
If you are ordering the Mini Bade or Standard Blade Fuse Tap power option, then please see the further instruction sheet below dealing with this time saving connection method.
 | Instructions for fitting Fuse Taps / Piggyback fuse holders for power supply Our guide on how to correctly install a piggyback fuse holder tap to power a reversing camera system from the fuse box. |
