Black Bracket Driving/Rear View Camera | Sony 1/3" 700TVL CCD | CAM063

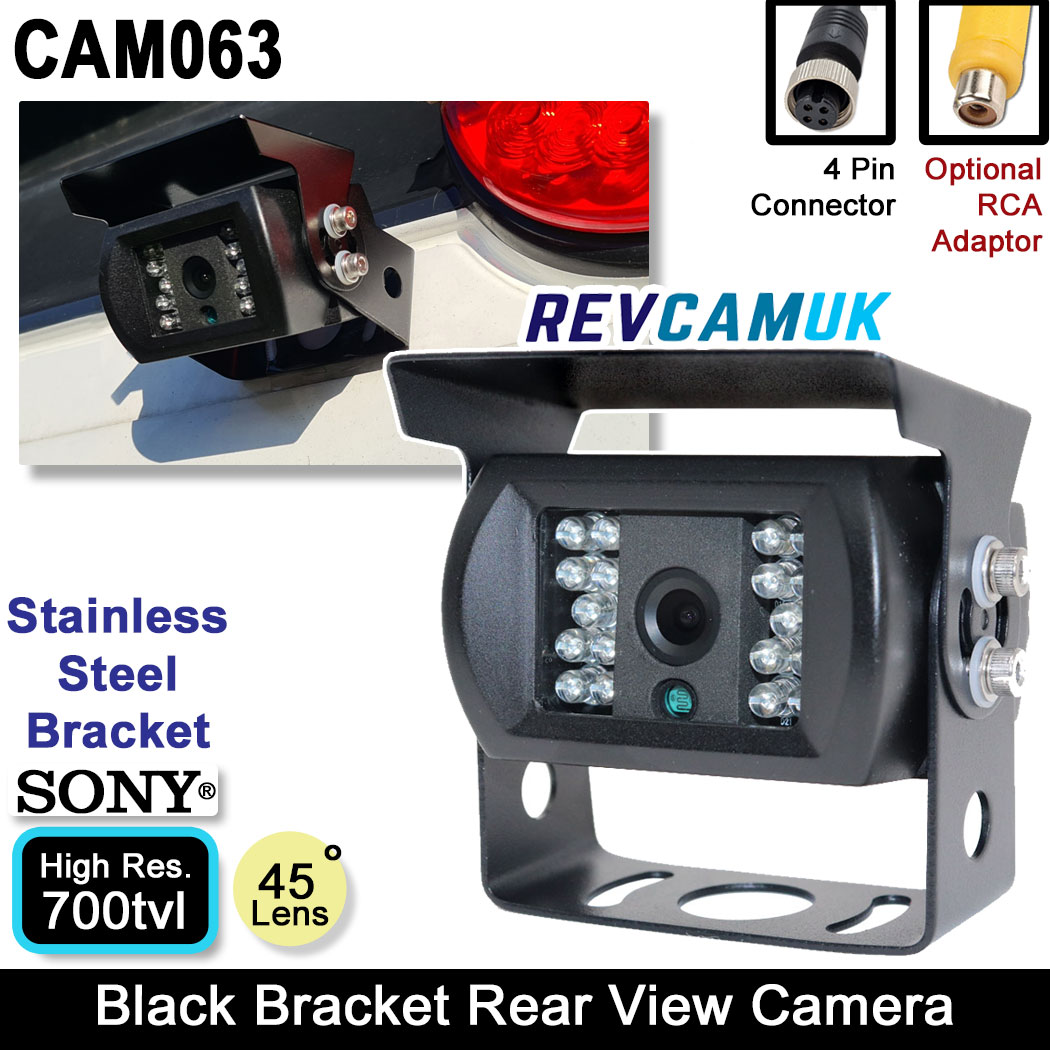

Our rear view driving camera, fitted with a 45 degree lens for narrow angle, ideal for always on driving use. Mirror image to ensure the image replicates what you expect to see in your rear view mirror. Fitted with rust-proof stainless steel bracket, painted matt black. A quality Sony 811 1/3" 700TVL image sensor, and IR LED's for night vision.
We started stocking the narrow-angle version of our popular bracket camera a number of years ago because we were getting asked by customers for a camera they could use as a rear-view camera that doesn't distort distance as much as wide-angle cameras do.
This rear view camera uses an 8mm lens vs the 2.6-3.6mm you would usually see on normal reversing cameras. The image sensor (the part that captures the picture) is the very respected 1/3" Sony CCD 960H 700TVL 811 model. This ensures lovely bright colours in the day, as well as a good image at night time, especially since this camera is equipped with 18 IR LEDs.

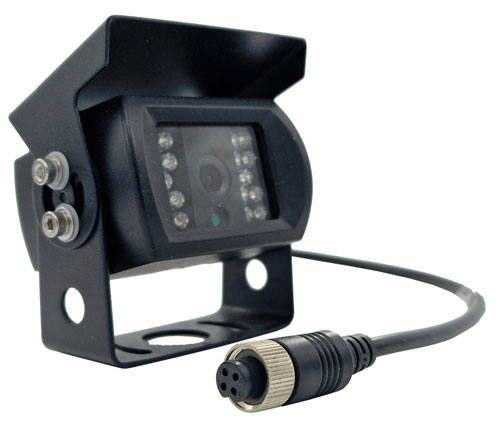

This driving camera comes with a 45cm fly lead with a 4 pin aviation connector at the end, extension cables and adaptors (for some connector types) are available.

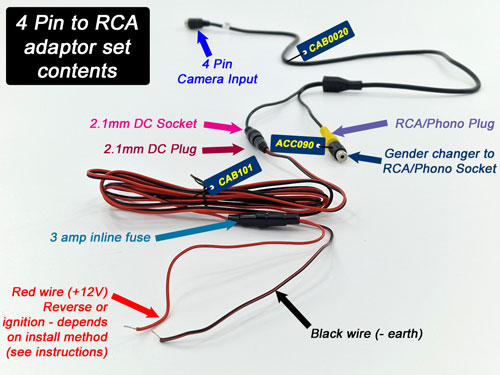

An RCA Phono conversion adaptor set can be added at a discounted price by selecting the check box on the listing next to the add to basket button. The set includes an adaptor to go from the 4 pin connector on the camera, to a yellow Phono RCA plug, a DC power socket, a DC power plug to red (+12V) and black (earth) wires, and a RCA Phono coupler (should you require an RCA socket instead of a plug).
PDF Instructions
We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.
 Click preview image to download the PDF file | General 4 Pin Camera Installation Guide This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits. |
Technical Specs
Please see the technical specifications for the product below:
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR leds on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
18 Infra red LEDs to provide night view
Waterproof with adjustable shade to prevent glare from sun
Lens Fitted : 8mm - 45 degrees
Mirror image
Stainless Steel Bracket (painted)
