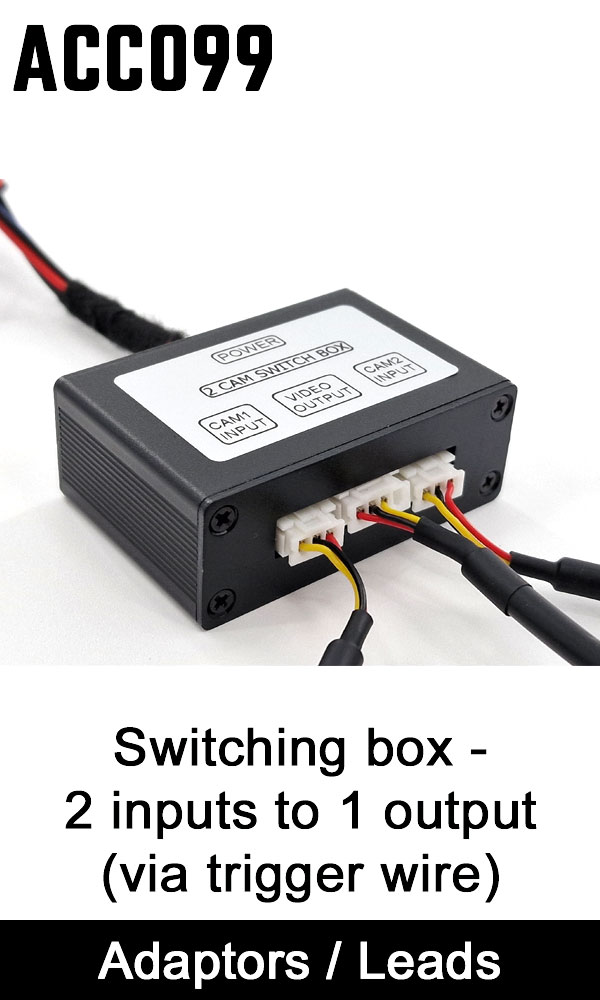

Switching box to install two 4 pin reversing cameras on to a single 4 pin cable / input | ACC099
Switching box to enable two reversing cameras to input on to one channel / cable.
We were continually being asked by our valued customers if they could upgrade their single reversing cameras in to our twin lens reversing + driving rear view camera. We hunted for a solution and eventually we found one that worked well.

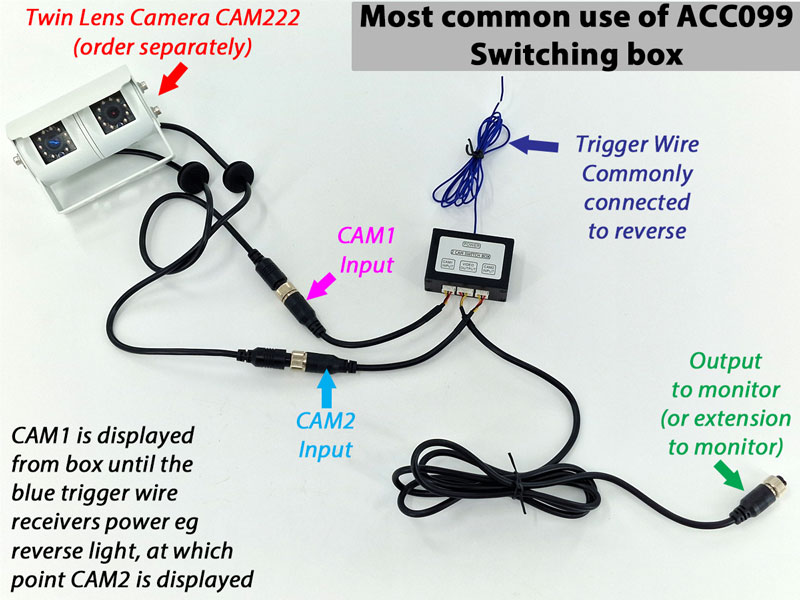

This box simply has two inputs, and one output. There is also a blue trigger wire. When this blue wire has a voltage present CAM2 will be displayed, when there is no voltage to this wire CAM1 will be displayed. Most people connect this blue wire to the reverse light feed and connect the camera that they wish to use for reversing in to CAM2 input. This setup means the reversing view is shown when they go in to reverse, then the box reverts to showing the always on driving rear view camera at all over times.
It is worth mentioning that the box is not waterproof, so must be installed in a clean, dry area. The box obtains its power supply for itself and the cameras from the 4 pin output to the monitor. If you plan to use this with an RCA/Phono connector cable then you will need to order one of our 4 Pin to RCA adaptor cables (which break out to power too).
