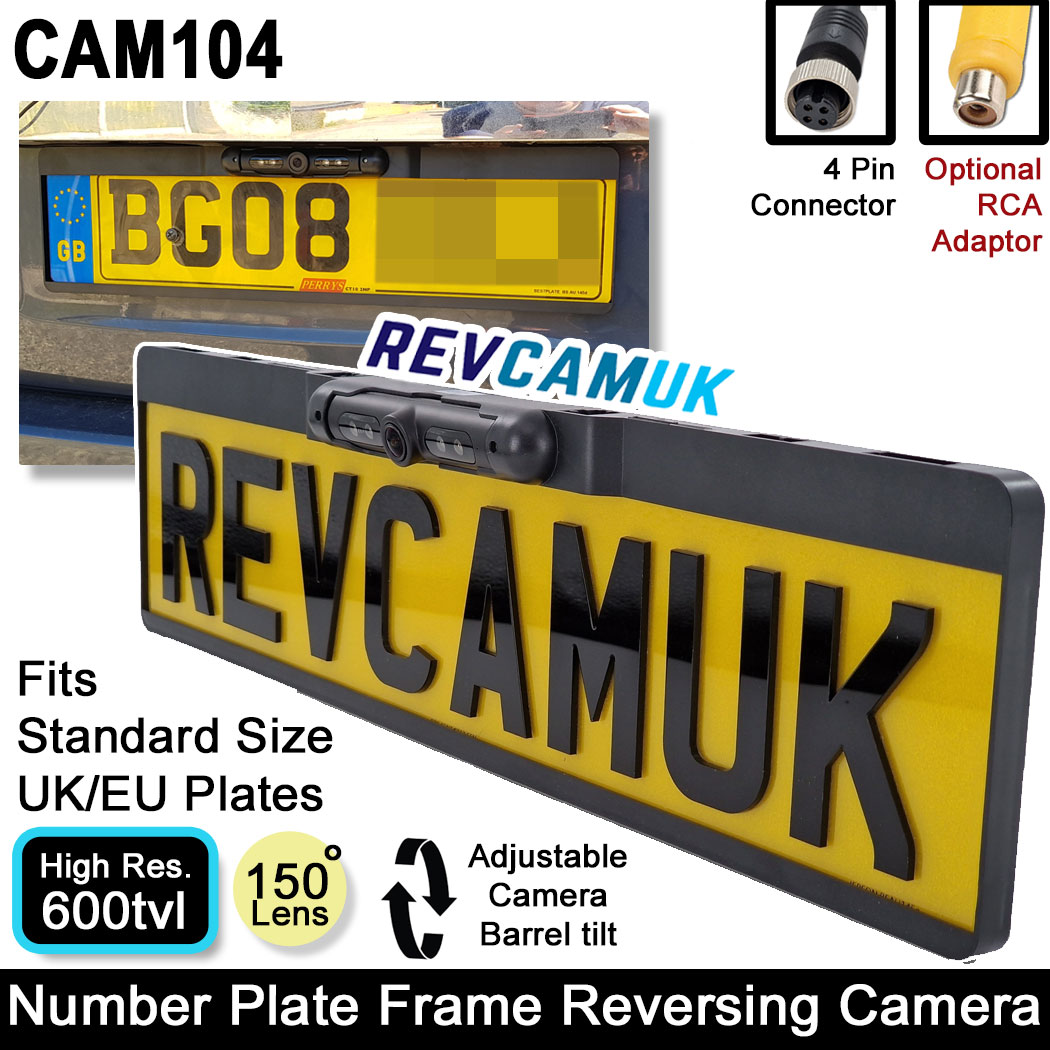

Number Plate Frame Reversing Camera | CAM104

The number plate frame reversing camera is the most popular for numberplate mounting. Great build quality and reliability. A great high-resolution PC1058 image sensor, top quality aspheric glass lens, IR night vision, ease of installation - simply slot your standard sized UK/EU number plate in to the frame, and re-screw up using the original screws. We have sold many thousands of these over the years, they come from what we consider to be the best reverse camera manufacturer.

  • £96
  • including VAT
Qty:
In stock (33 items available)

Introducing our Number Plate Frame Reversing Camera with IR Night Vision

A reverse camera that is built in to a frame, designed to fit all standard UK and EU sized number plates. Supplied from one of the best manufacturers of cameras we have come across. Fitted with an Aspheric lens, which gives a very wide angle view, without the usual goldfish bowl effect found on similar models. Great day time and night time performance. Fast delivery, great service, and made to last equipment.

There are cheap cameras that look similar to this model, this camera is built to last, and to perform. The cheap ones are notorious amongst fitters for leaking due to the barrel design. We use a factory for this camera that makes very high end cameras for some very expensive brands (selling 2-3 times our price), we've never had a leaked camera, and the only time we have seen a camera back has been user damage (crushed cable as they put it between the number plate light and tightened).

Some of the reasons to choose this camera are listed below :

Increases Reversing Safety - The most important reason, with almost a quarter of all accidents in the UK occurring during reversing. A clear, high-quality camera will help reduce the risk of harm to both people and property.

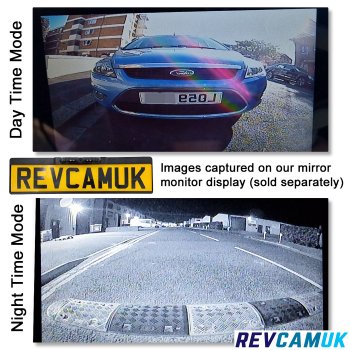

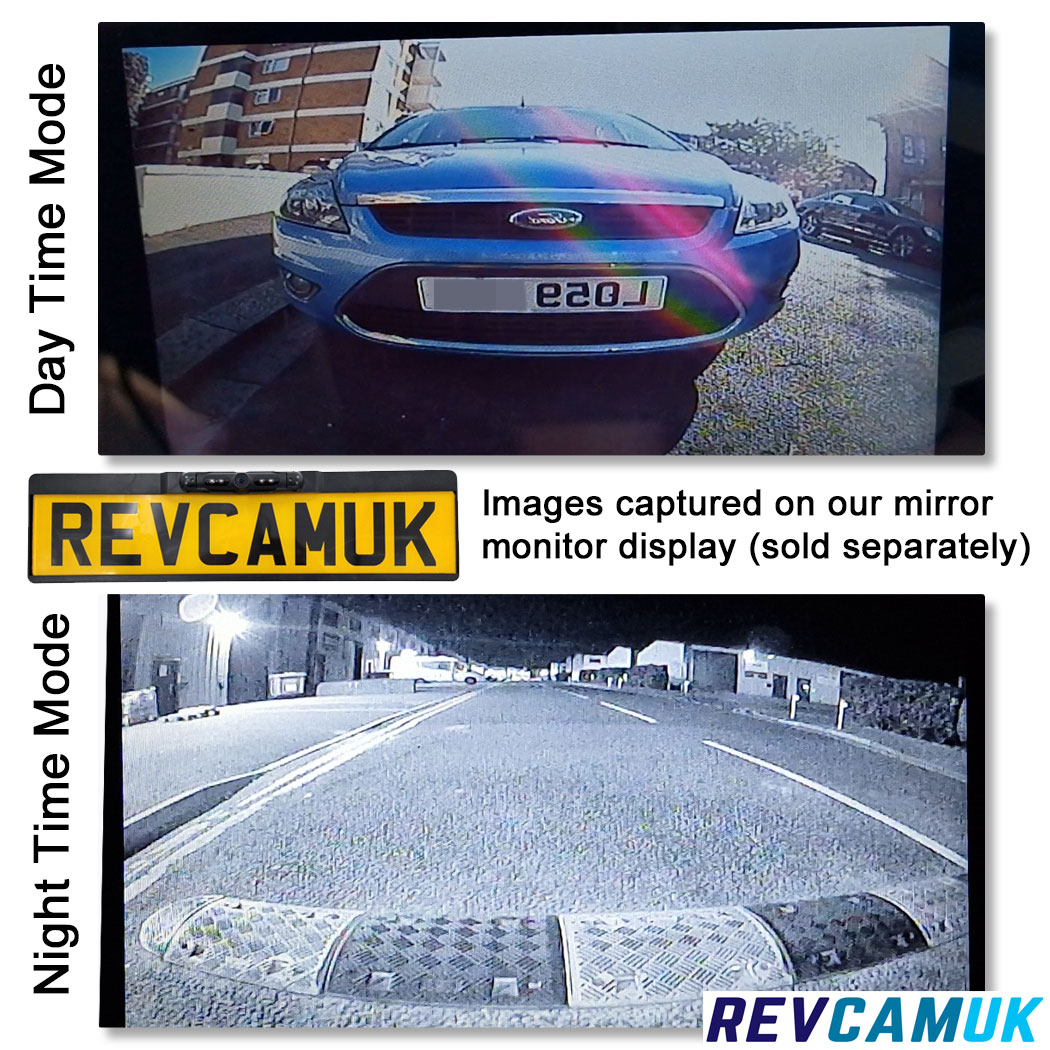

Great Image Quality - The factory who produce this camera have over 20 years of experience as a manufacturer. They even produce their own modules to get the best out of the image sensor. Expect a nice colourful image, and a very capable picture at night time when it gets very dark.

Extra Wide 150° Aspheric Lens Fitted - Going wide angle often means the image that is produced looks like you are inside a fishbowl looking out - not with this camera! A good quality aspheric lens is used to achieve an image that is much clearer and easier to use.

Amazing Build Quality and Reliability - This is on our leader board for reliability with an extremely low fault rate. The build quality is self-evident when you handle the camera.

IP69K Waterproof - An IP rating is the "Ingress Protection" rating of an item. IP69K is the highest protection level against water and dust. Guaranteed to keep itself protected against the worst weather the British Isles can throw at it.

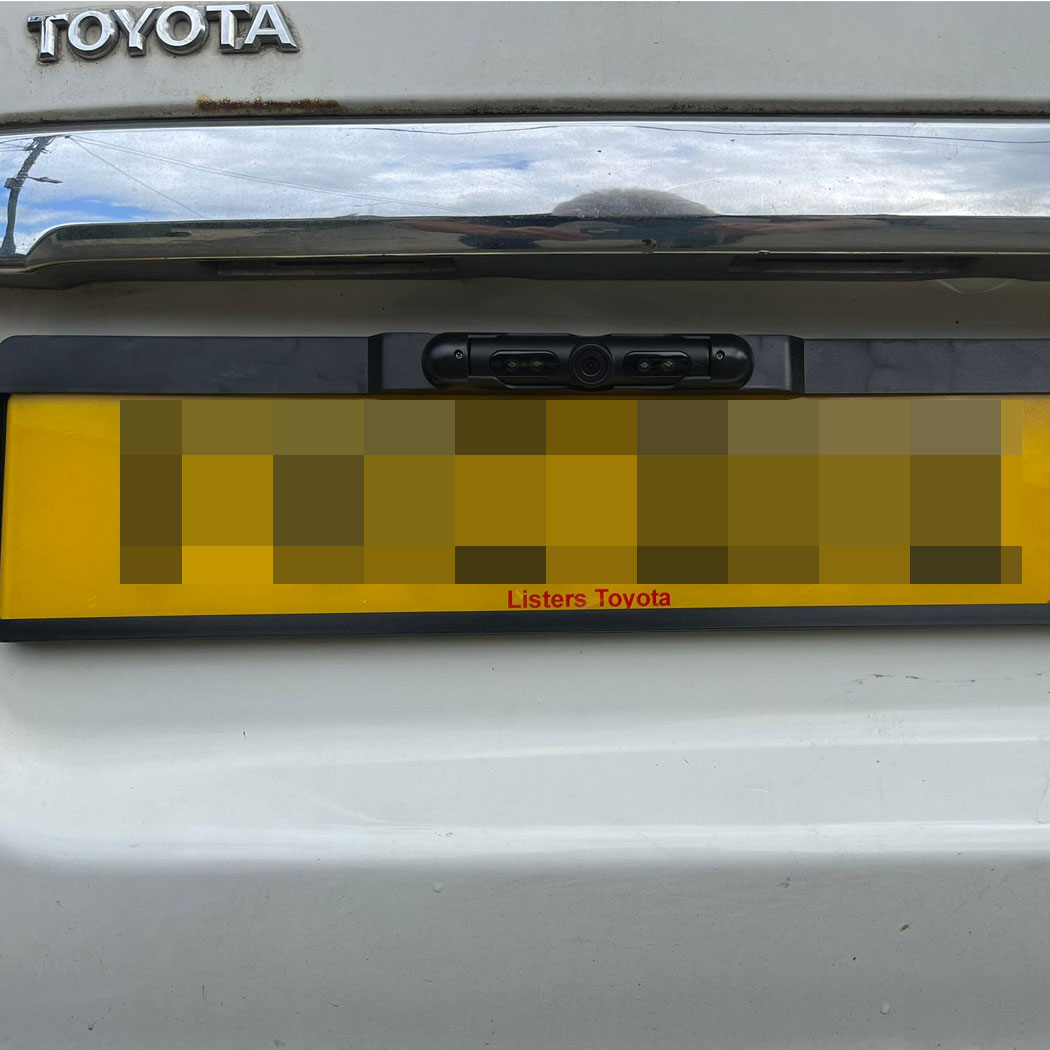

Smart and Discreet Aesthetics - The number plate frame reverse camera is very discreet and looks tidy in appearance. The number plate slots in behind the top camera strip without covering the lettering. Check out our images to see the camera fitted to vehicles.

IR Night Vision - It's rare to see a number plate camera with night vision, but this is one of them. Thanks to the sensitive image sensor and the powerful IR LED's fitted you can stay safe from collisions even in dark conditions. The IR LED's and Glass Lens being separated from each other means you can expect nice deep contrasts at night. No worry of blinding following vehicles, unlike some cheaper cameras with plain white light LED's, as Infra Red light is below the visible spectrum of the human eye.

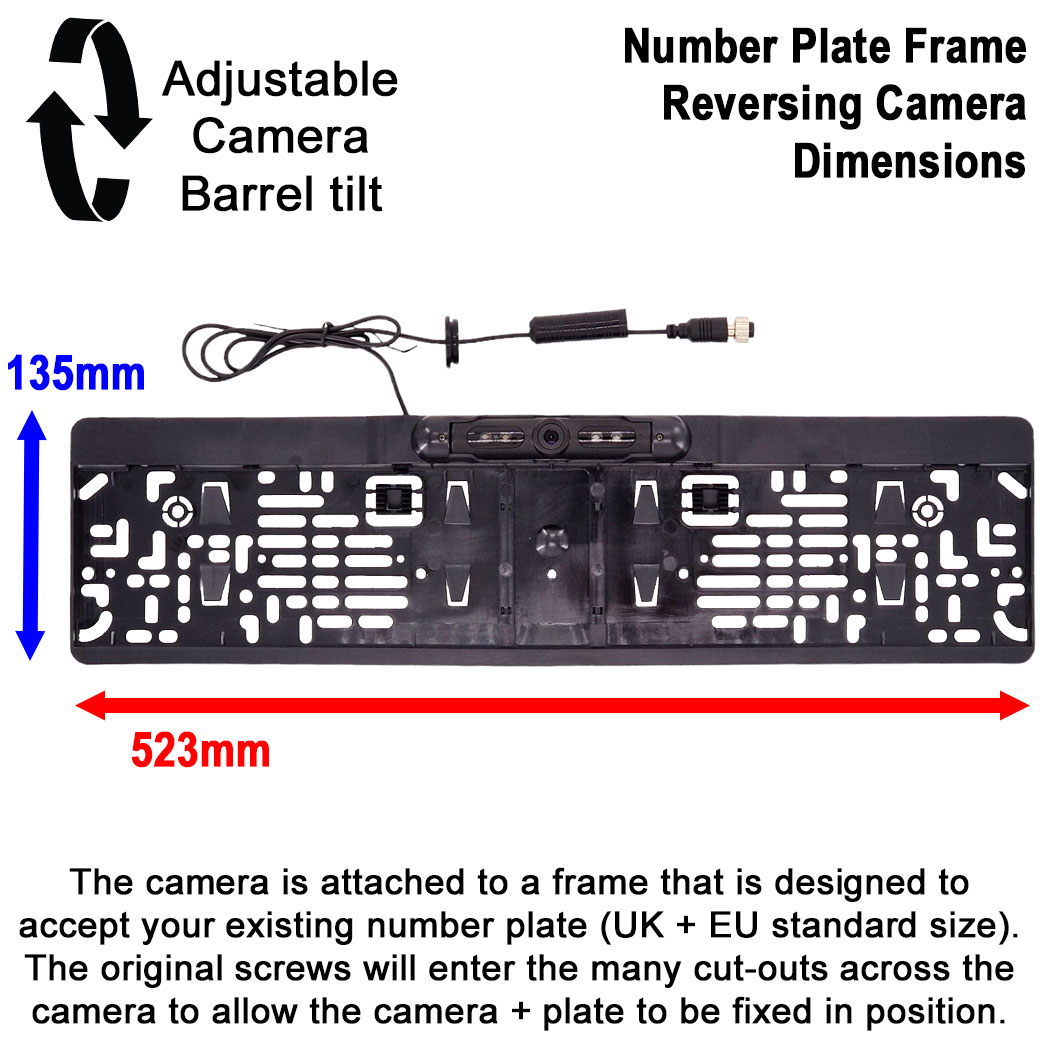

Adjustable Cylinder Camera - Releasing the two screws at the front of the camera will allow the cylindrical camera to rotate up/down to get the optimum angle. If you decide you would like the camera at the bottom of the number plate, you can achieve this by removing the two screws to the rear of the camera, flipping the camera upside down, and re-inserting in to the camera and re-inserting the two screws to secure.

Built In Microphone - This camera is fitted with a built in microphone. This means that you can listen to the external surroundings of the camera provided you have a monitor with a built in microphone.

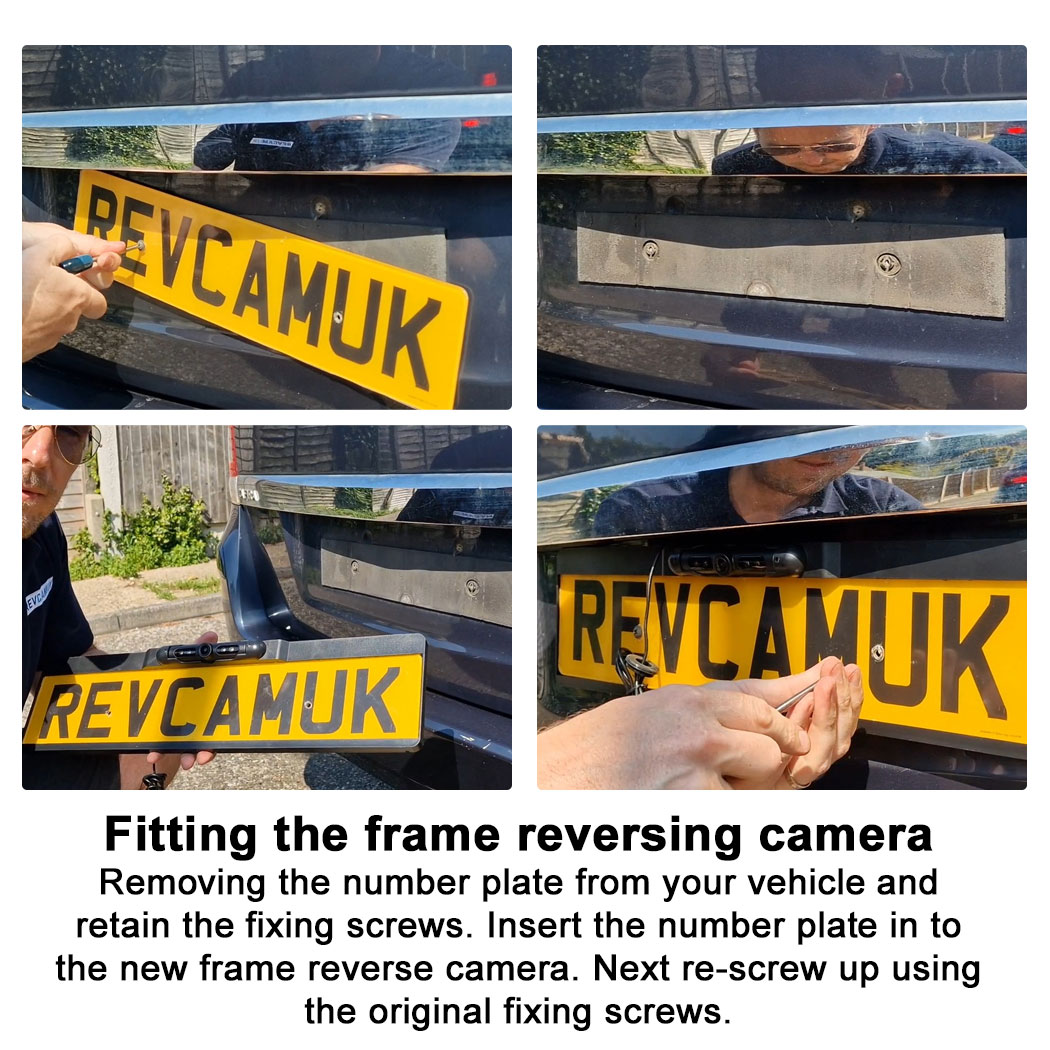

Easy to Install to Vehicle - The number plate reversing camera is incredibly easy to fix to the rear of a vehicle. See our video below, or download our number plate reversing camera PDF fitting guide.

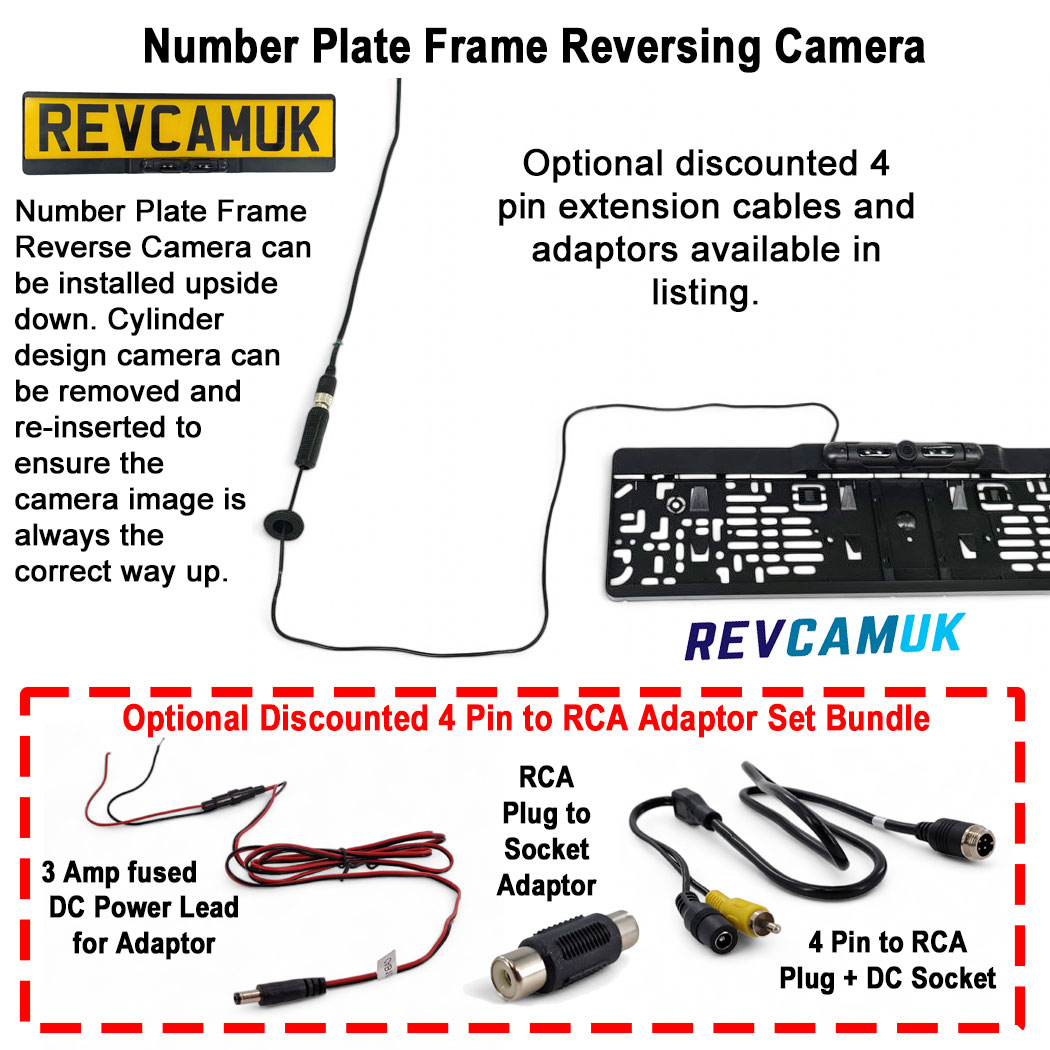

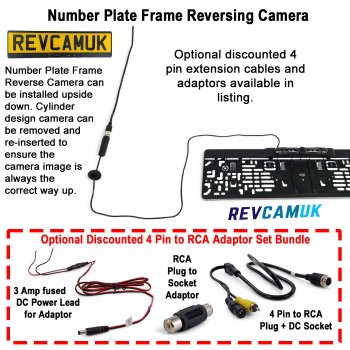

An RCA Phono conversion adaptor set can be added at a discounted price by selecting the check box on the listing next to the add to basket button. The set includes an adaptor to go from the 4 pin connector on the camera, to a yellow Phono RCA plug, a DC power socket, a DC power plug to red (+12V) and black (earth) wires, and a RCA Phono coupler (should you require an RCA socket instead of a plug). See images for more details.

PDF Instructions

We aim to provide as much information as possible to assist with both the installation and use of our equipment (something we here is very rare nowadays). If you require any further assistance with any aspect of the fitment then please contact us. Also, if you feel anything could be added to our instructions or a sticker produced for the box to assist in guidance, please let us know. We get better with your assistance.


Click preview image to download the PDF file
General 4 Pin Camera Installation Guide
This guide includes adapting the 4 pin reversing cameras to phono RCA in applications such as stereo headunits.



Click preview image to download the PDF file
Instructions for fitting our number plate reversing cameras
Instructions on fitting and adjusting the two most popular number plate reversing cameras that we stock.



Technical Specs

Please see the technical specifications for the product below:

TV System: PAL
Effective Pixels: 960 (H) x 576 (V)
Resolution: 600TV Lines
Sensing Area: 4.880mm x 3.670mm
Scanning System: 2:1Interlace
Sync. System: Internal
Minimum Illumination: 0 lux(LED ON)
Horizontal Sync. Frequency: 15.625KHz
Vertical Sync. Frequency: 50Hz
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 43.3dB
White Balance: Auto
Electronic Shutter: 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto
Power Supply: DC12V
Operating Temperature: -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C, RH95% MAX
Lens Angle: 150° Approx (real world may be different as monitors crop the image)
